2GB RAM 16GB ROM Powerful amlogic s905d2 android 9.0 quad core dual wifi 2.4GHZ/5.8GHZ pcba board for digital signage
- Category: >>>
- Supplier: Shenzhen Eny Technology Co. Ltd.
Share on (62526713077):
Product Overview
Description

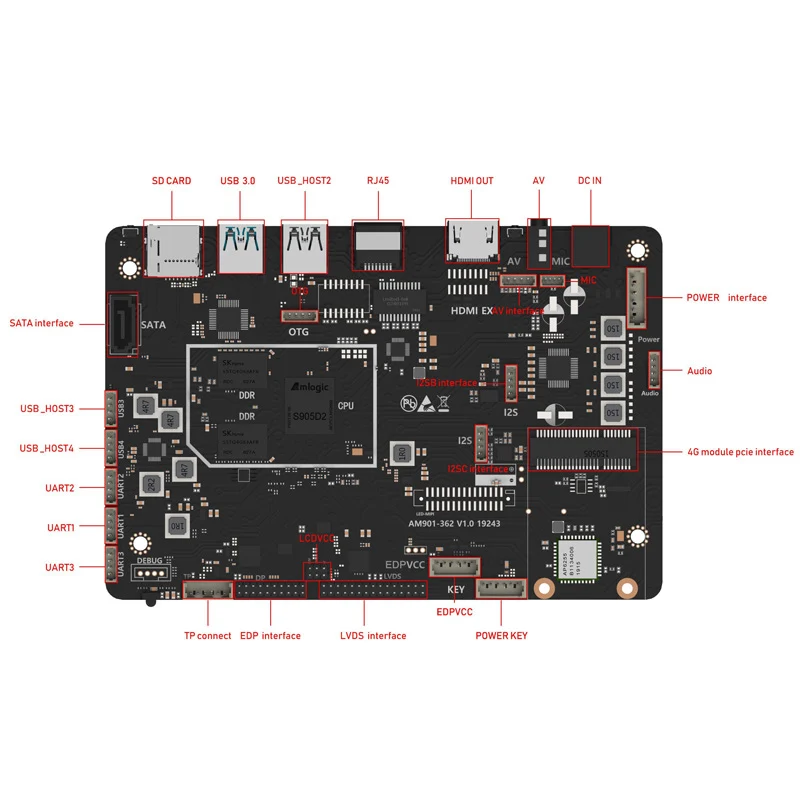

PCBA Amlogic s905D2 quad core 2gb ram 16gb rom 4G module Digital Signage Board Android 9.0 os set top box
Product Description
| CPU | Amlogic S905D2 quad core 64bits ARM® Cortex™-A53 |
| GPU | Mali-G31 MP2 |
| RAM | 2GB/4GB DDR3 optional |
| Memoery | 16GB EMMC; 32GB/64GB optional |
| OS | Android8.1 / 9.0 optional |
| External storage | microSD, max to 128G |
| HDD | SATA, max to 2TB |
| 4G module | 4G module Internet access via PCIE interface |
| WIFI/BT | Broadcom AP6255(Wi-fi + BT)/802.11b/g/n/ac |
| USB Interface | 1xUSB 2.0, 1xUSB 3.0 |
| HDMI Interface | 1*HDMI OUT |

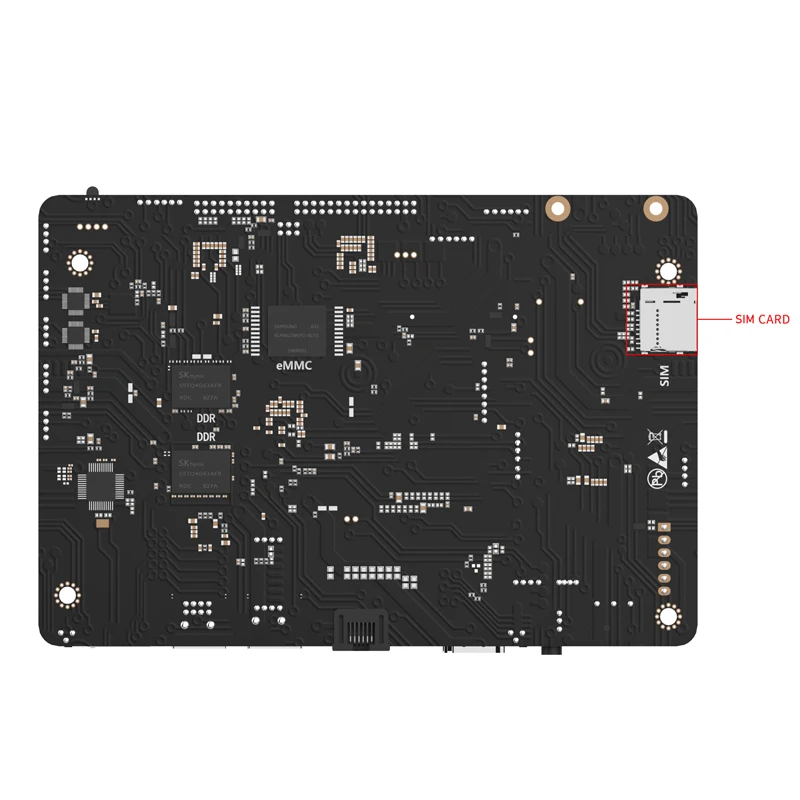

| SIM card slot | 1*MICRO SIM |
| Video output | HDMI 2.1/ 1ch LVDS/1ch EDP |
| RJ45 | 10/100/1000M MAC & 10/100M PHY |
| Remote Control | Infrared remote controller, keyboard and airmouse also |
| Power Adapter | 12V DC/ 3A,Φ5.5xΦ2.5mm |
| Dimension | 158mm(L) x 106.68mm(W) x 12mm(H) |
| U S B Transmission | USB2.0,Max 480Mbps/USB3.0, Max 5Gbps |
| Product Features | -Max to UHD 4K 60fps video decoding (resolution 3840*2160), support H.264 HDR10 and HLG high dynamic processing, support H.265/VP9 10 bit, H.264 and AVS+ and many other formats; -Support 4G high-speed Internet access with built-in PCIE 4G module interface; -Support RJ45 network access, and dual-band WIFI (2.4G/5G) wireless Internet access; -Support USB playback, and hot swapping, so content update is convenient and fast. -Support audio and video formats: MP3, WMA, JPEG, MPEG4 (AVI: Div-X / X-Vid), MPEG2 (DVD: VOB/MPG2), MPEG1 (VCD: DAT/MPG1), MOV, etc. -Play mode: support single-repeat play, folder-loop play, full-loop play modes -Picture playback: support rotate, zoom, pan, slide show, background music playback modes -Audio mode: left channel, right channel, stereo. OSD multi-language: support Chinese, English, French, German, etc. -with HD quality for picture and high-quality sound, max to 2*20W audio output. -RoHS production process. Support software OTA online upgrade. |
Related Products
Buyer Feedback
Company Information
Shenzhen ENY Technology Co., Ltd, established in 2005, is one of the professional manufacturers specialized in Smart TV box and windows min pc.
Our products have been issued UL/FCC/CE/CCC/RoHs certification which are exported to all over the world.
Factory with professional and experienced engineers to satisfy specified needs of different customers, to ensure that our products meet clients' requirements, all processes from raw material purchase, production, testing and marketing are performed based on strictly quality control.
We are committed to establish a long-term relations of cooperation with all our customers, we are waiting for you!
OEM Service: print logo; customize giftbox; customize user manual; customize boot logo; customize boot animation...etc
ODM Service: customize mould; customize PCB..etc.
Shipping
- DHL: arrive in 3-5 days
- UPS / FedEx: arrive in 4-5 days
- by Air: arrive in 1-2 days
- by Sea: arrive in 15-20 days
Payment
1, Accept T/T, Alibaba Trade Assurance Order, Western Union, PayPal..etc.
2, For normal order: 100% full payment before shipment
For OEM order: 30% deposit + 70% balance before shipment
FAQ
Q1, When will you make shipment?
For standard box, usually will be sent from stock, you will receive them in 3-5 days after getting express way tracking code,for OEM, it will take 15-25 days after confirming pre-production sample.
Q2, What is the warranty of this tv box?
We provide 12 months Warranty,if you experience manufacturer defects with this model within the guarantee period, please contact us for after-sale support, if the problem is not able to be fixed there, we will offer free repair service.
Q3, What payment methods do you accept?
We accept T/T, PayPal, Western Union, And Trade Assurance on Alibaba.
Q4, What you can do for my OEM /ODM orders?
Customize giftbox and logo printing on Housing, firmware customization including booting image, Launcher UI, animation, default settings and so on. ODM like PCBA design, build a new mould etc, well experienced R&D team to support you!
