Лидер продаж, проводная Поверхностная туннель, полностью гидравлическая подземная буровая установка
- Category: Mining Machine Parts >>>
- Supplier: Wuxi,Xizuan,Geological,Drilling,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
XZKD95-3A Tunnel core drilling rig is suitable for drilling holes for the purpose of mine exploration,also they could be used in railway engineering,tunneling and water conservancy project. You will benifited a lot by its excellent and reliable performance.

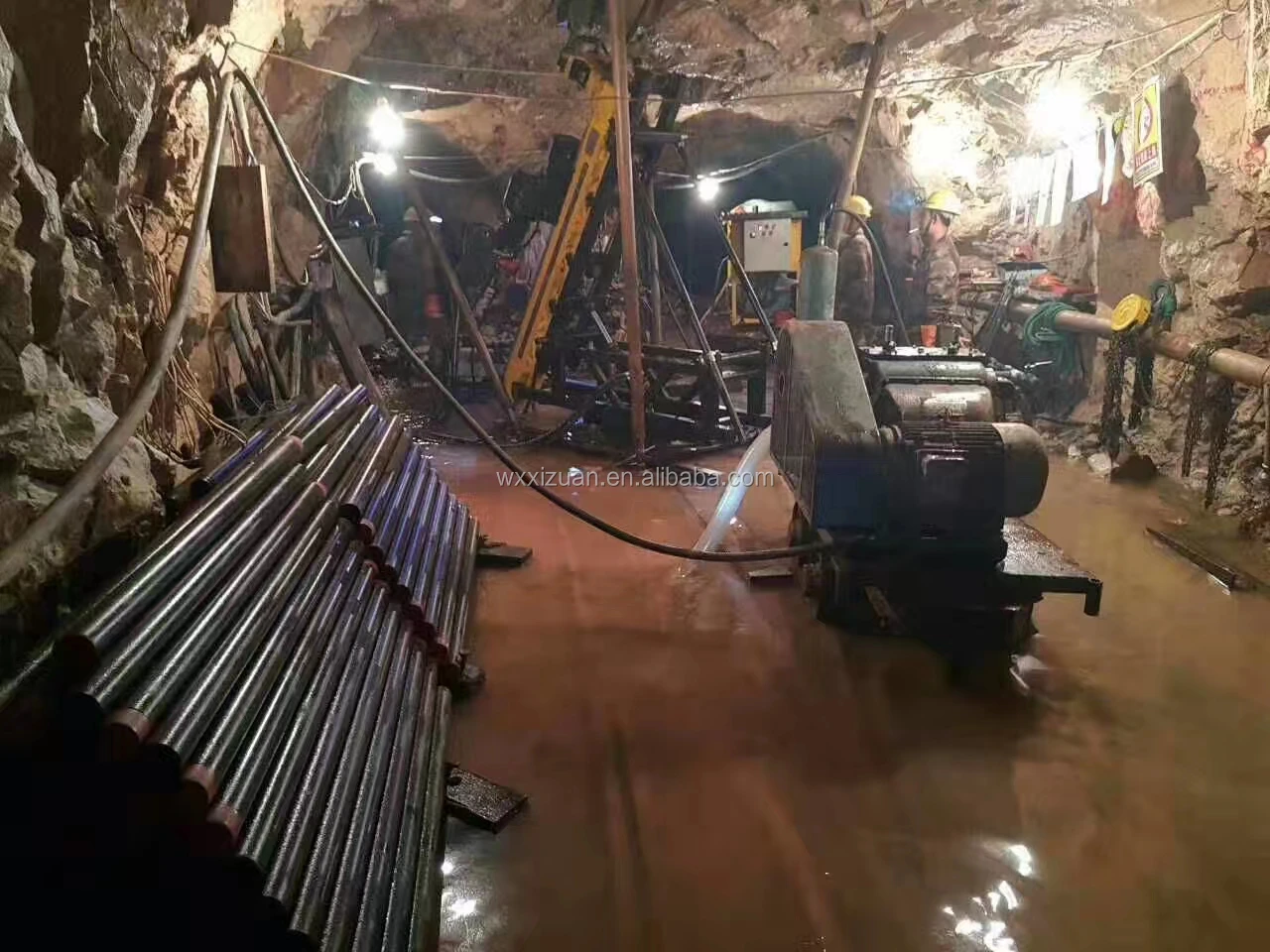

Working site:
Basic info
Original: Wuxi, China
Certification: ISO9001
Price: Negotiable
Model NO: XZKD95-3A Tunnel core drilling rig
Usage: Mine exploration,railway engineering,tunneling water conservancy
Payment term: TT, LC
Delivery date: Negotiable
Packing: export standard
Standard: ISO9001
MOQ: 1 set
Features:
1.Oil pump drive the motor to rotate,hydraulic cylinder working without turret.
2.The core drilling machine system of oatation,feed,pumping and clamping relies on fluid drive;making your drilling work smooth than any competitor;
3.Fast drilling speed can drill holes from any angle in work tunnel by column,beat applocablity;
4.With V-guide, the rig provides the highest concentrivity about principal axis;
5.Easy to maintenance,repair,disassembly,installation and movement.

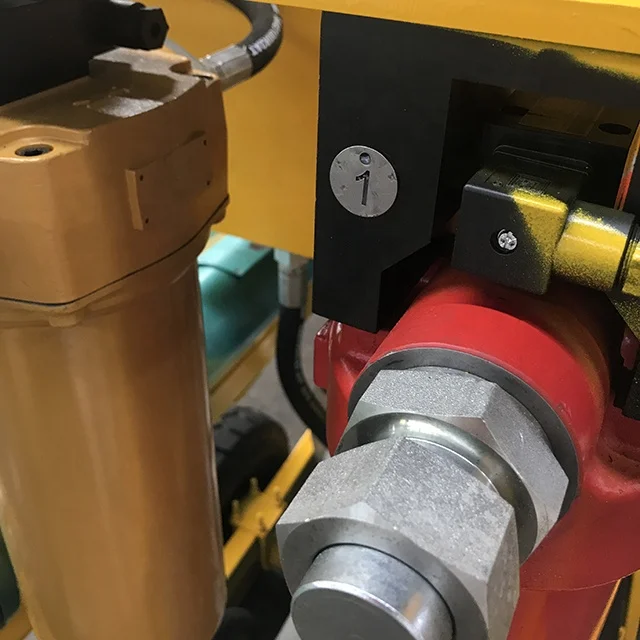

XZKD95-3A Tunnel core drilling rig is composed of power unit, machine body, control panel, rotation unit, rod holder and mud pump.
Our underground core drilling rig ranges: XZKD95-1A; XZKD95-2A; XZKD95-3A
Original: Wuxi, China
Certification: ISO9001
Price: Negotiable
Model NO: XZKD95-3A Tunnel core drilling rig
Usage: Mine exploration,railway engineering,tunneling water conservancy
Payment term: TT, LC
Delivery date: Negotiable
Packing: export standard
Standard: ISO9001
MOQ: 1 set
Features:
1.Oil pump drive the motor to rotate,hydraulic cylinder working without turret.
2.The core drilling machine system of oatation,feed,pumping and clamping relies on fluid drive;making your drilling work smooth than any competitor;
3.Fast drilling speed can drill holes from any angle in work tunnel by column,beat applocablity;
4.With V-guide, the rig provides the highest concentrivity about principal axis;
5.Easy to maintenance,repair,disassembly,installation and movement.
XZKD95-3A Tunnel core drilling rig is composed of power unit, machine body, control panel, rotation unit, rod holder and mud pump.
Our underground core drilling rig ranges: XZKD95-1A; XZKD95-2A; XZKD95-3A

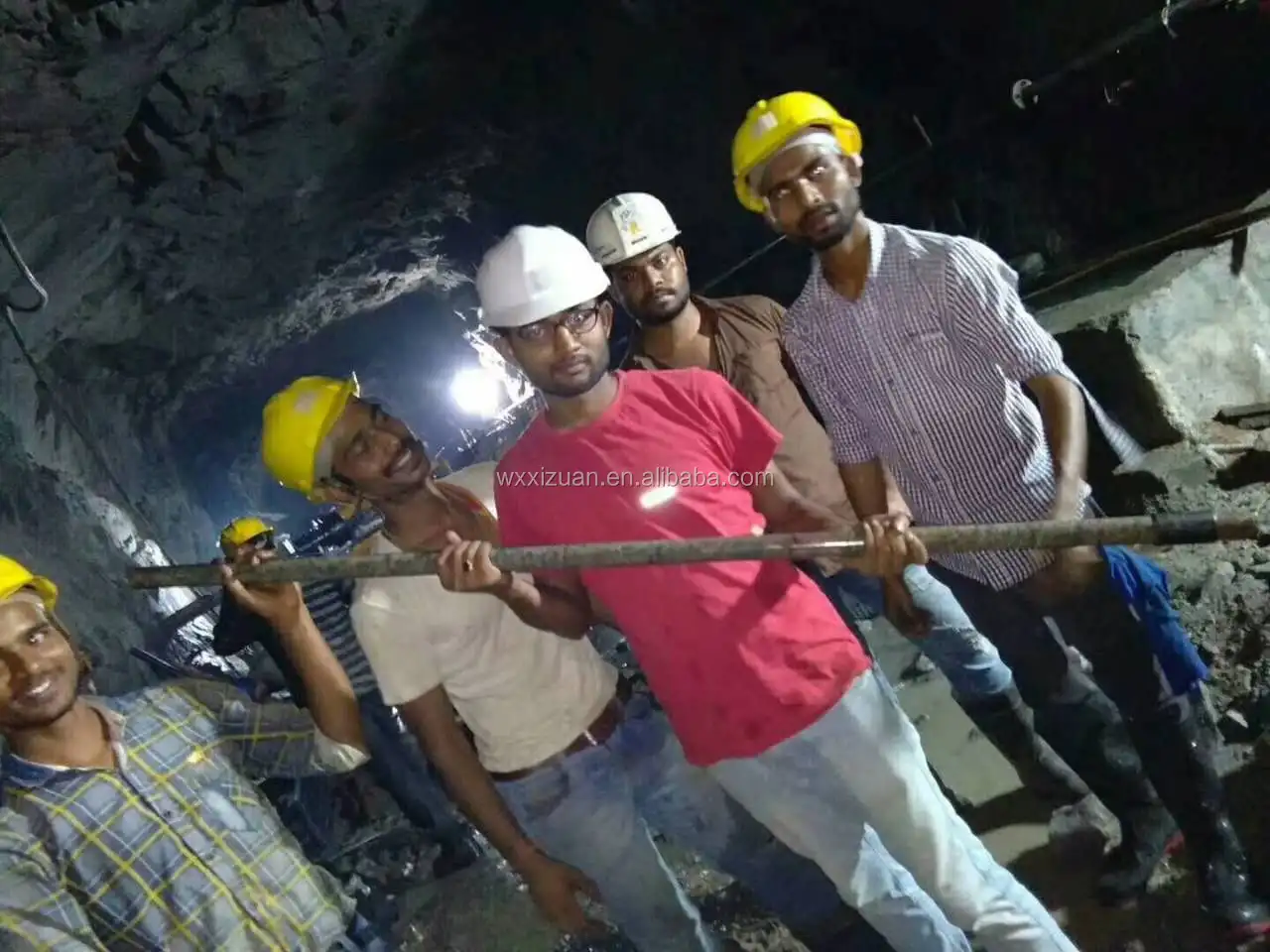

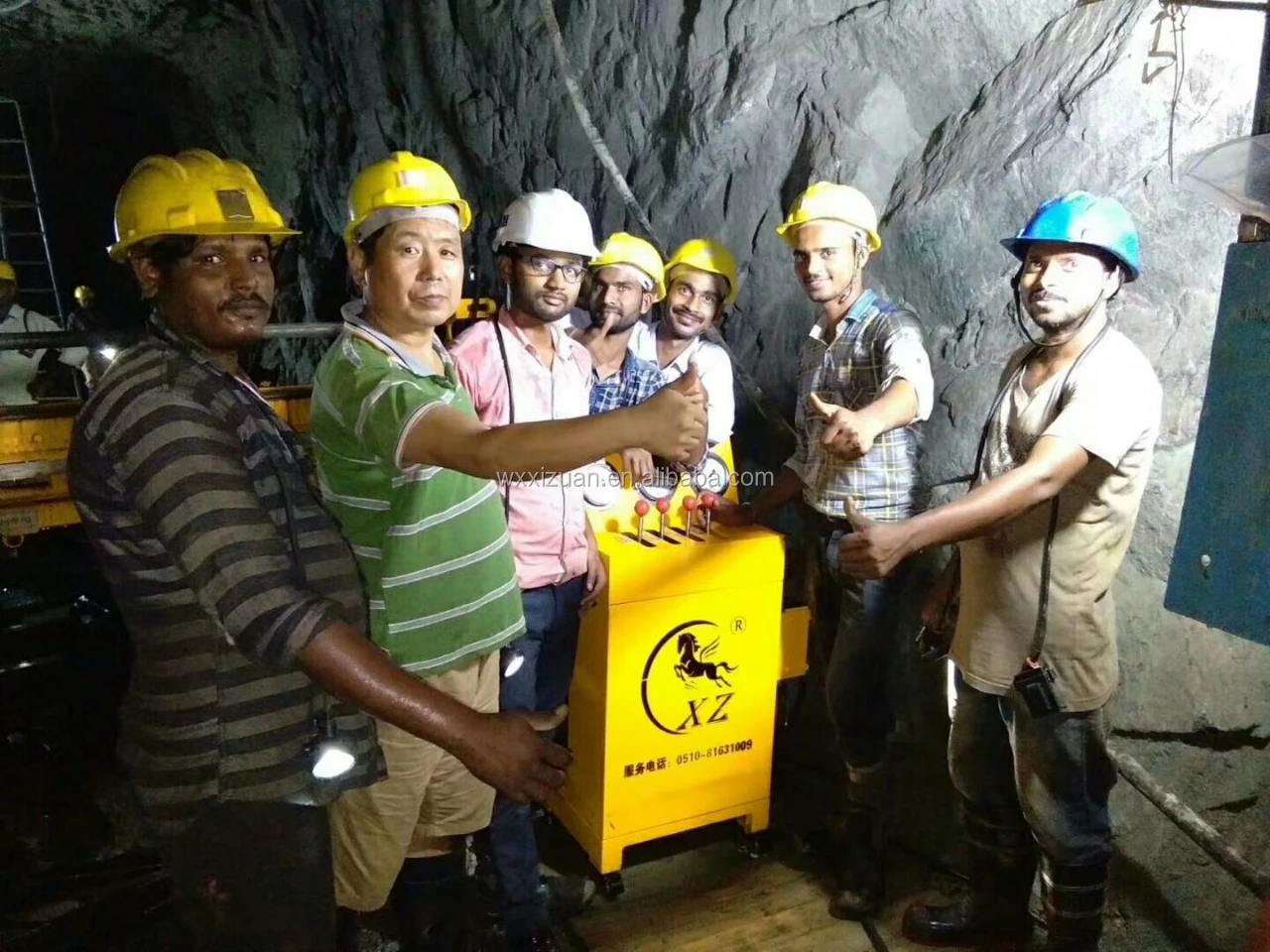

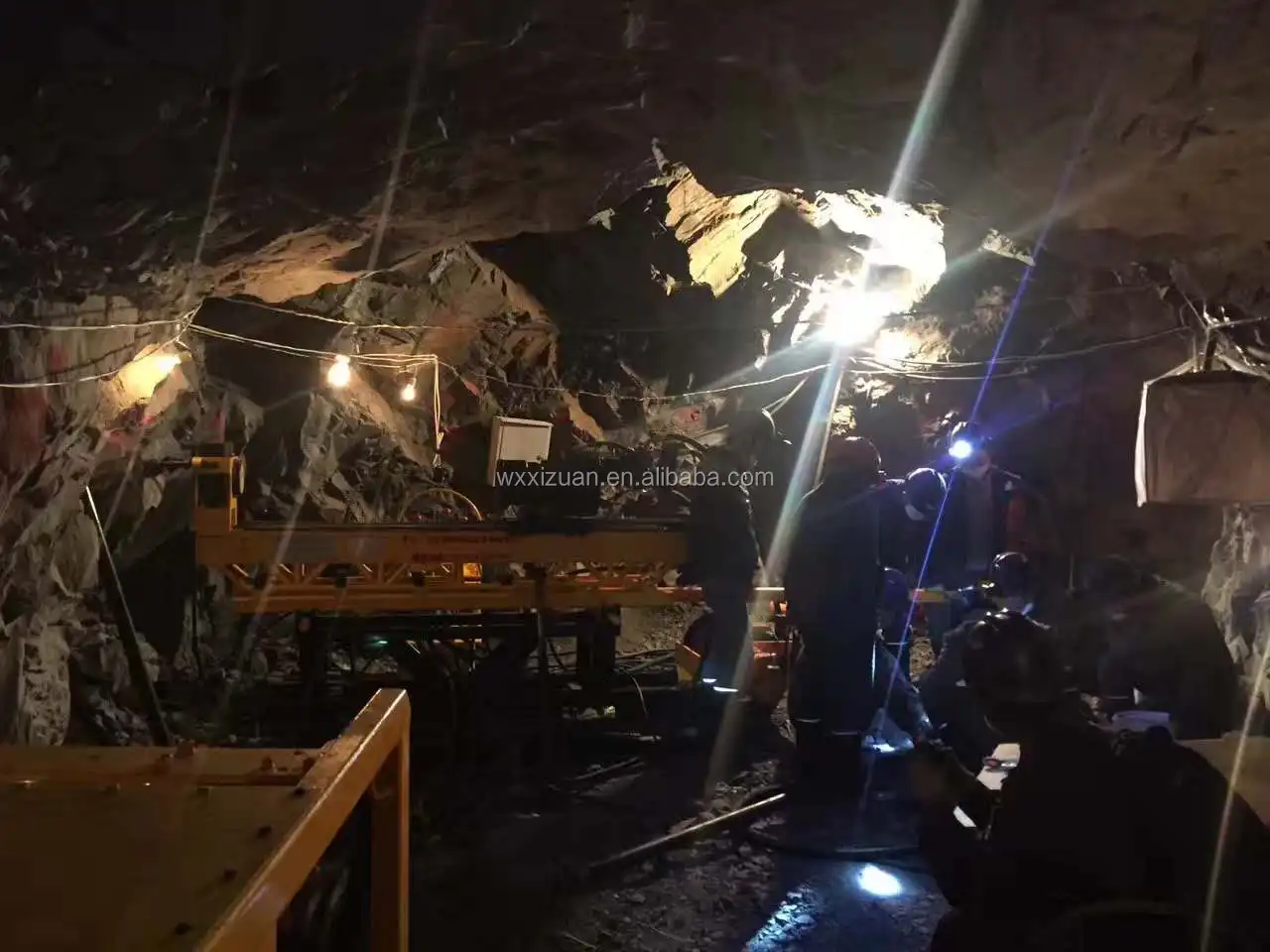

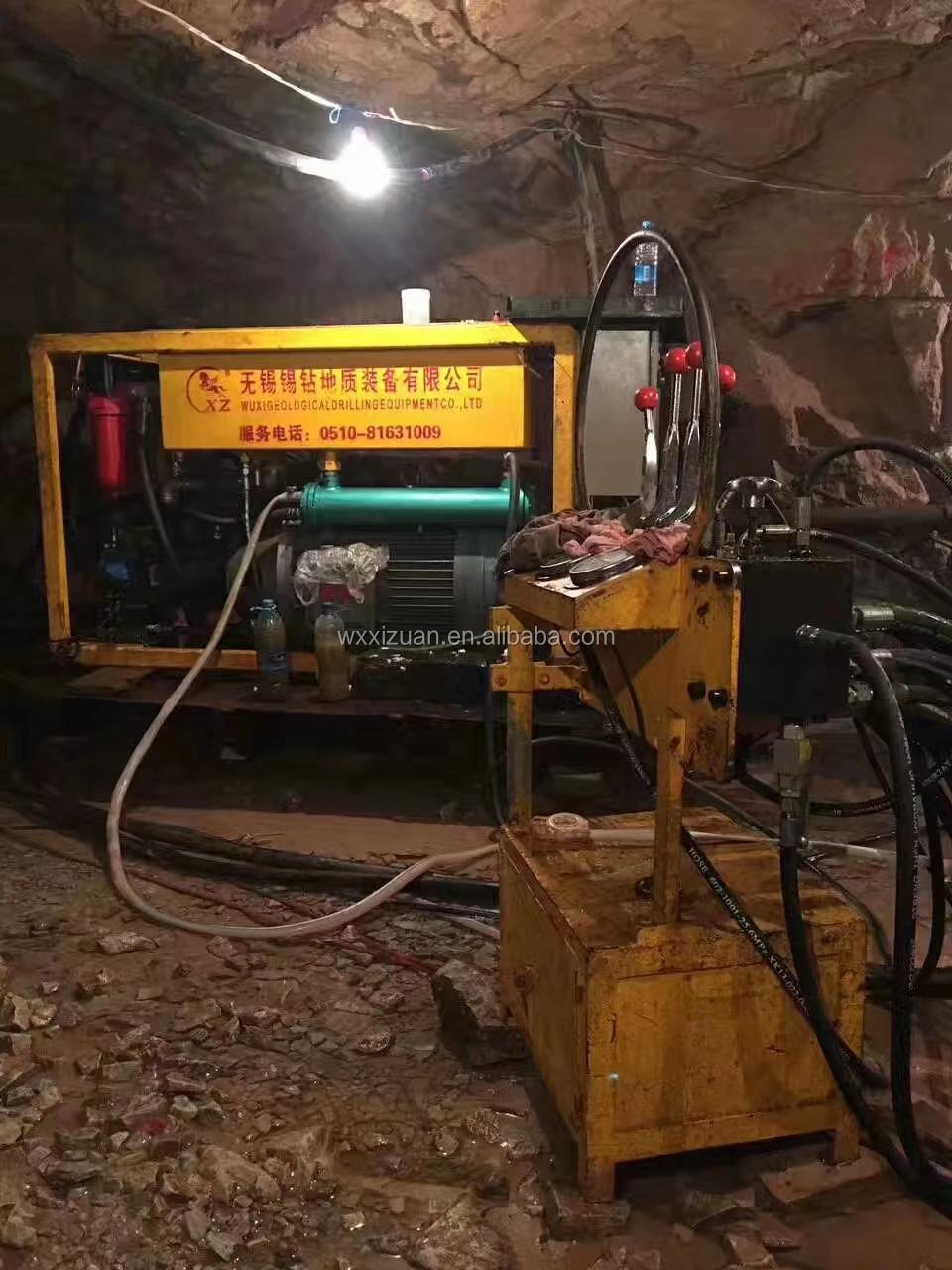

Working site:
Product Paramenters
Techinical Parameters | ||||||
Spindle Rotational Speed | 280-1200rpm | Spindle torque | 1050NM | |||
Axial Pulling Force | ≥70kN | Axial Pulling Force | ≥120kN | |||
Hydraulic System Working Pressure | 20MPa | Maximum Pressure | 25MPa | |||
Main Pump Maximum Pressure | 31.5MPa | Auxiliary Pump Maximum Pressure | 21MPa | |||
Power Head Stroke | 1600mm | Surface Drilling Angle | 0°-90° | |||
Underground Drilling Angle | 0°-360° | Azimuth Angle | 0°-360° | |||
Motor Power | 75KW | Motor Rotational Speed | 1480RMP | |||
Machine body /Size | 2800*1320*1550mm | Weight | 1395kg | |||
Power Unit | 1720*690*1420mm | Weight | 880kg | |||
Control Pannel | 500*405*1080mm | Weight | 80kg | |||
Drilling Capacity | ||||||
Bit Size (mm) | Drill Rod Size (mm) | Rod Material | Drilling Depth (m) | |||
95 (HQ) | 88.9*5.5 | XJY850 | downward: 400 | |||
horizontal: 350 | ||||||
upward: 250 | ||||||
75 (NQ) | 69.9*5.0 | XJY850 | downward: 600 | |||
horizontal: 500 | ||||||
upward: 300 | ||||||
59 (BQ) | 55.6*5.0 | XJY850 | downward: 700 | |||
horizontal: 600 | ||||||
upward: 350 | ||||||
Packing&Shipping

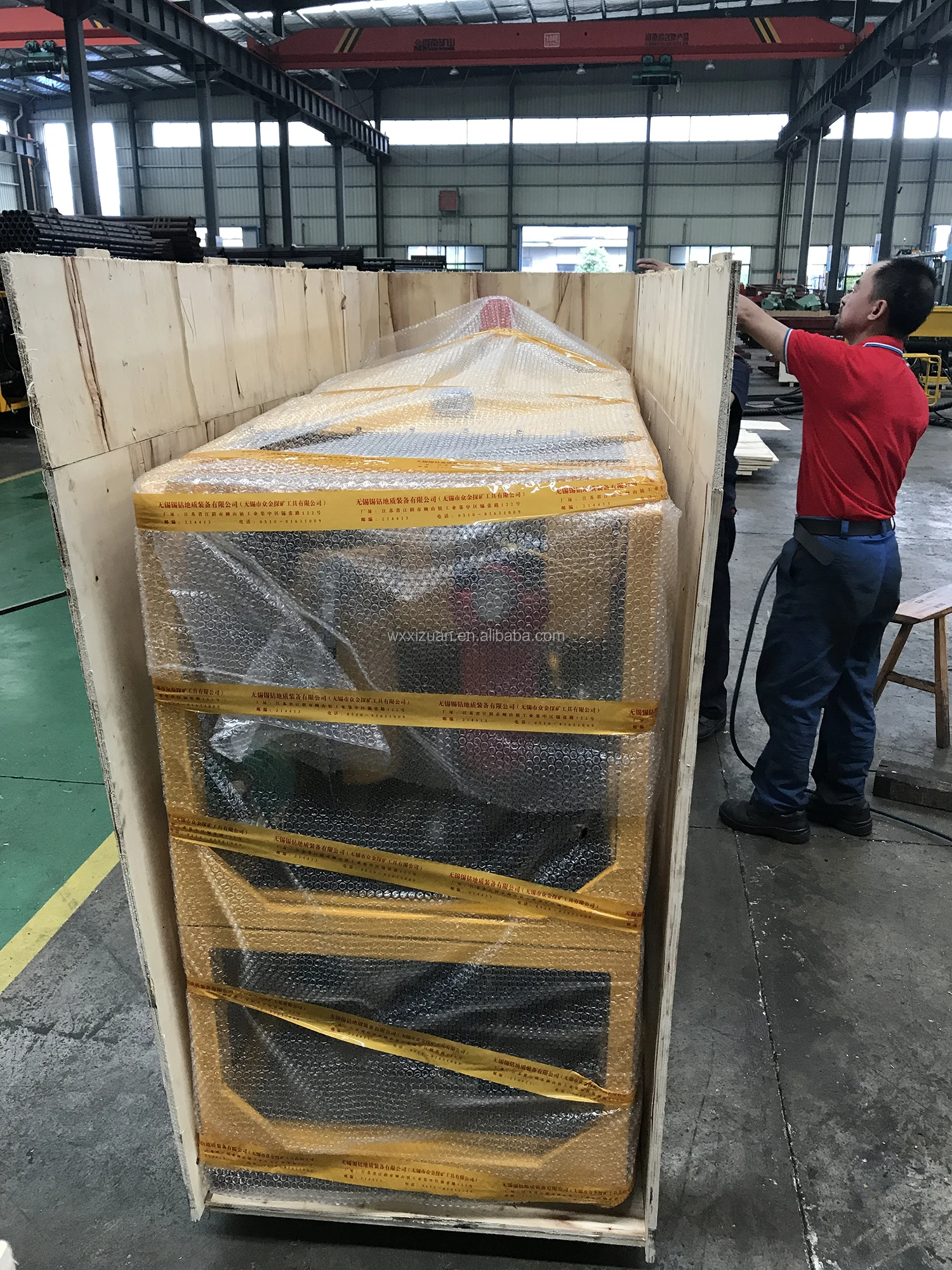

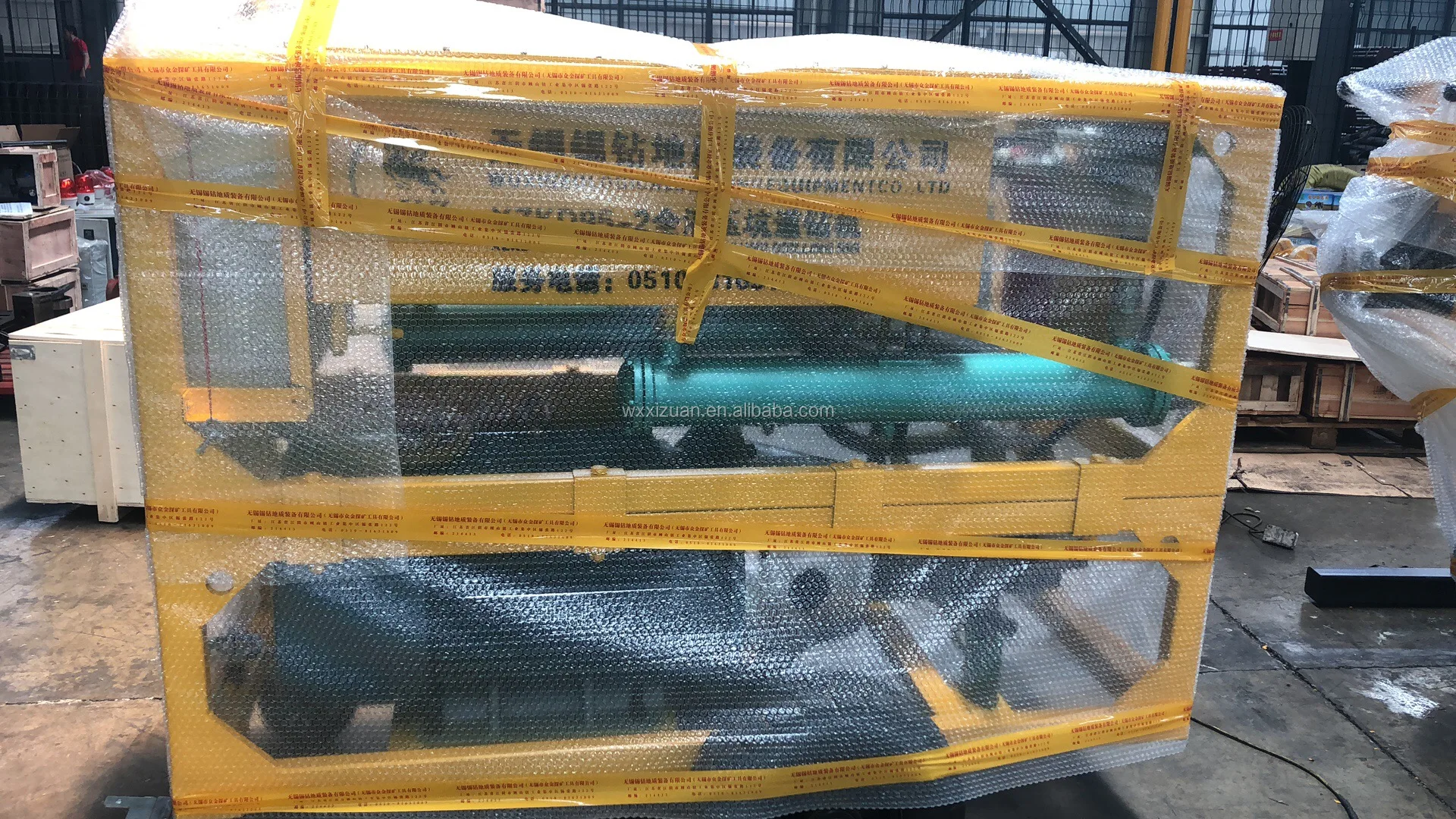

Package:
wooden cases, cardboard boxes and steel frames etc. as you required. And all goods will be protected by plastic films, thread protection caps, anti-rust oils, bubble films and so on to make sure no damage will be caused during shipping.
Shipping:
Suitable for shipping by road, by sea.
wooden cases, cardboard boxes and steel frames etc. as you required. And all goods will be protected by plastic films, thread protection caps, anti-rust oils, bubble films and so on to make sure no damage will be caused during shipping.
Shipping:
Suitable for shipping by road, by sea.

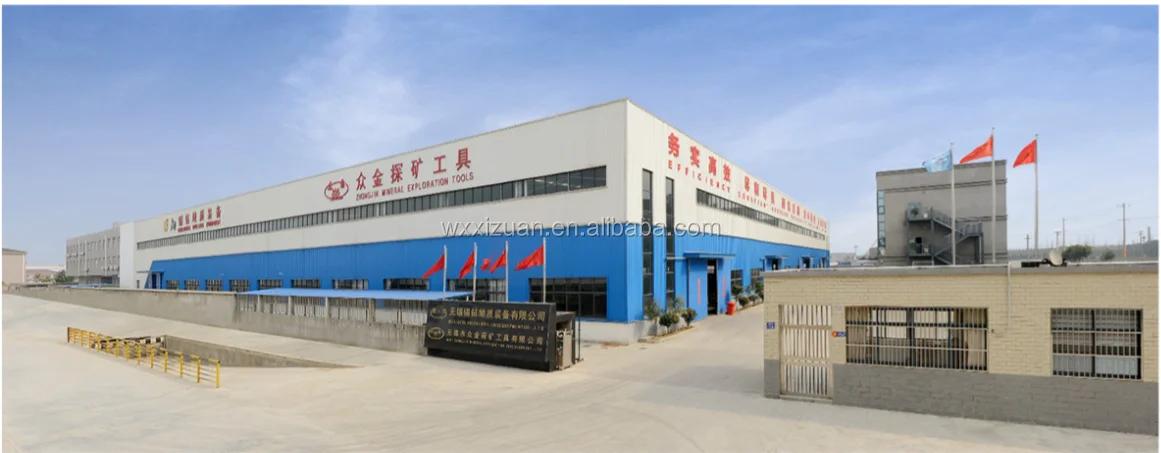

Company Introduction
We specialized in producing of varies diamond drilling tools, such as impregnated/surface-set diamond core bits, diamond casing shoes, diamond rod shoes, reaming shells, TC core bits/casing shoes/TC rod shoes, PDC bits, Thin Wall Bits, core lifters, core lifter cases, core barrels, and kinds of drilling rigs etc.
With ISO certificate & quality control.
With ISO certificate & quality control.
Exhibition
Our Advantages
a. Extensive Production Experience: we are specialized in diamond core bits,drill bits,wireline drilling tools,drill pipes,casings,mud pumps, underground drilling rigs with an experience of 10 years.

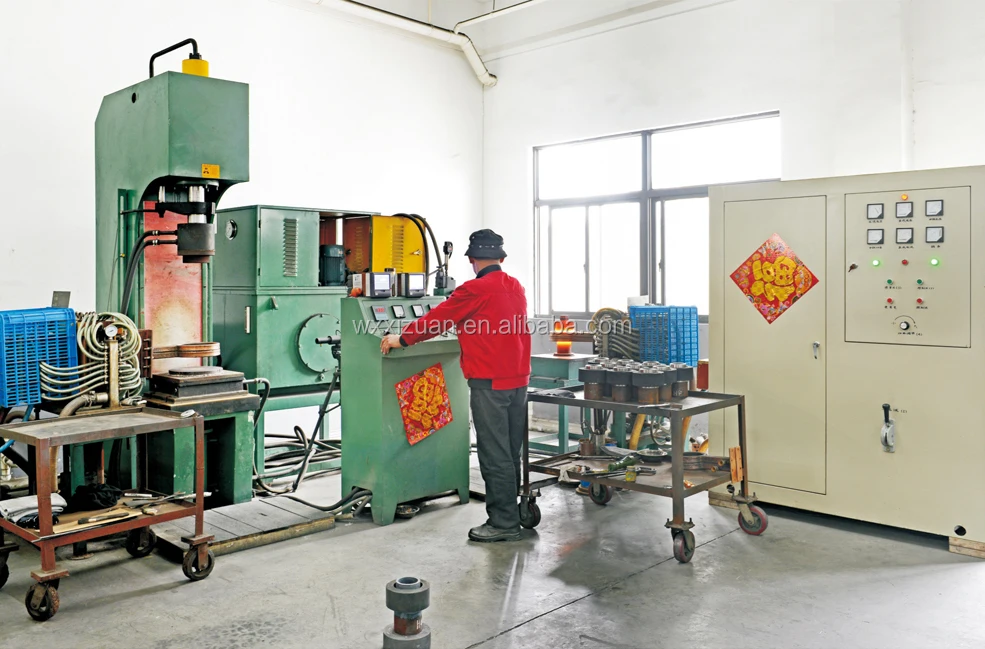

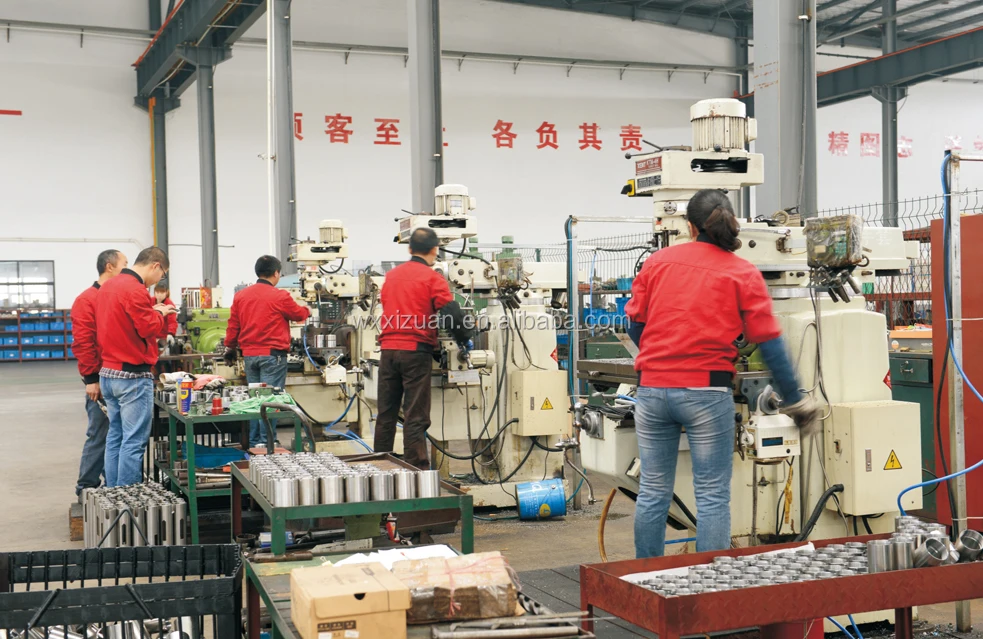

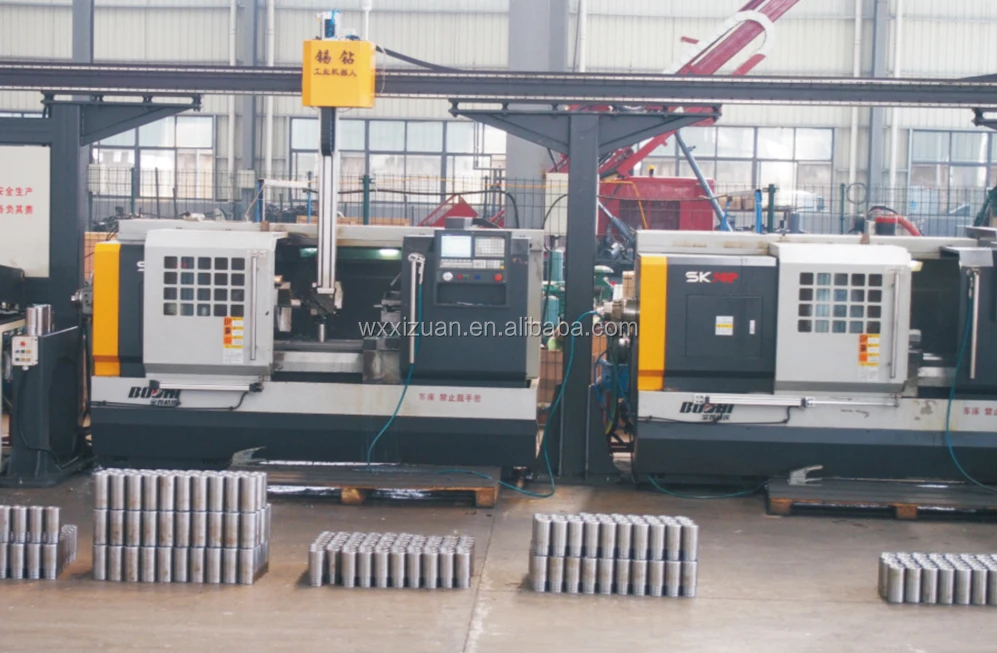

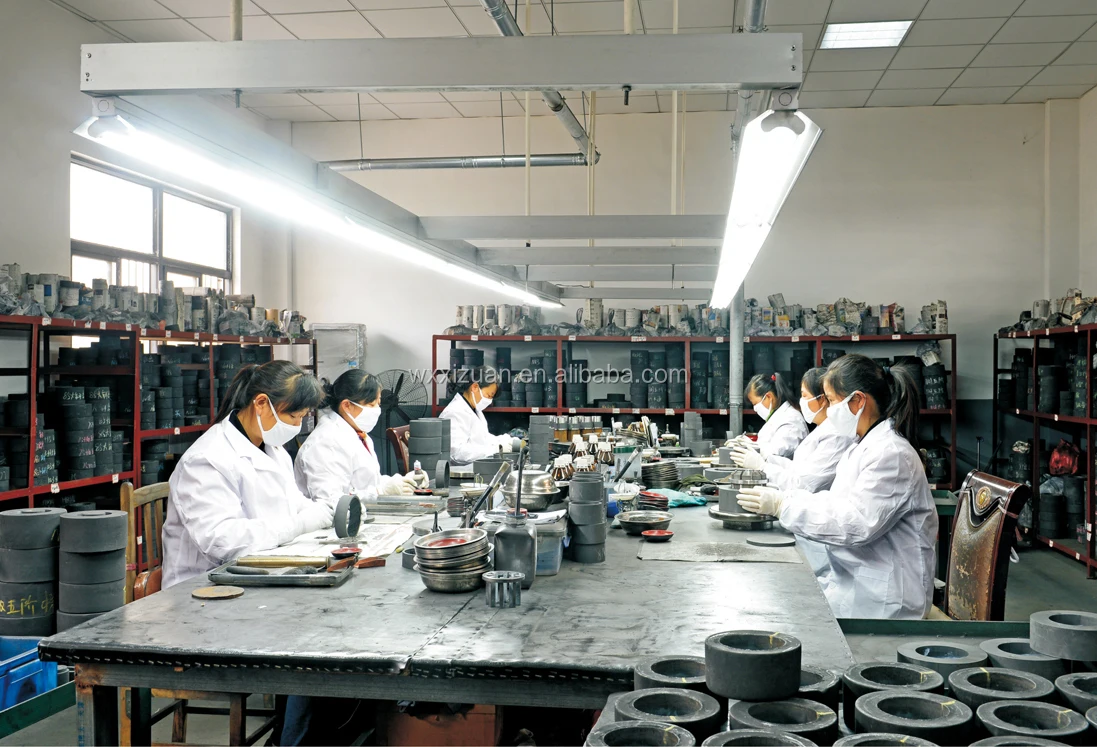

b. Complete Production Facilities: owning precision CNC machine, Milling machine, Sintering machine, Manipultator and other advanced equipments. Our technicians will do regular scheduled maintenance on these machines to guarantee them work well.
c. High Quality Raw Material: we mainly choose raw material from big steel factory, such as TPCO, BAO STEEL, SHA STEEL, which are best and largest raw material manufacturer in China.

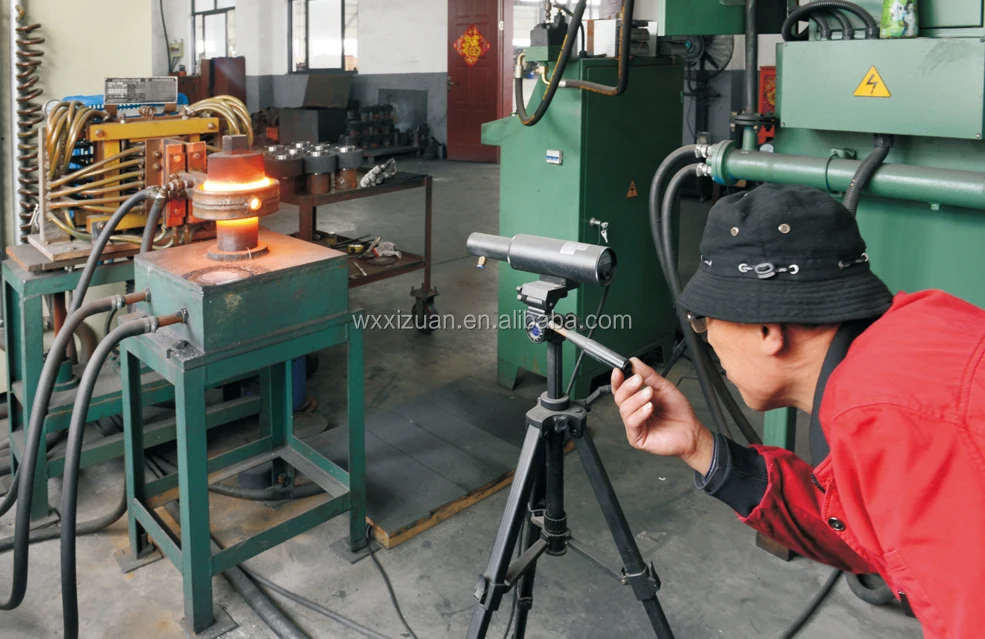

d. Strict Physical/Chemical Testing Procedures: meeting the requirements of the product design and process, providing reliable testing data.

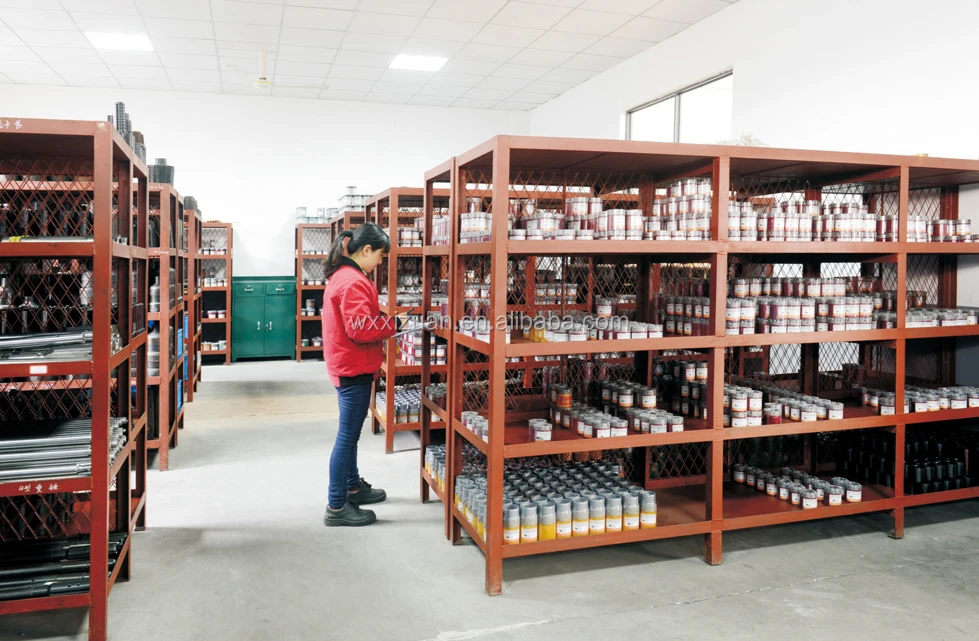

e. Short Delivery Time: If one container 15-20 days. We also stock some standard-sized tubes and rods, if you need 3-5 pcs, we can delivery soon.
f. Safe Packing: anti-rust oil be spread on tubes and rods before shipping, plastic caps on tube ends to protect inside surface, each rod be protected with cardboard tube. Finally be packed with seaworthy package or in wooden case.
g. Best After-Sale Service: Over 60% products are sold to the Southeast Asia, Middle East and Europe, and all products are trusted by domestic and foreign customers.
b. Complete Production Facilities: owning precision CNC machine, Milling machine, Sintering machine, Manipultator and other advanced equipments. Our technicians will do regular scheduled maintenance on these machines to guarantee them work well.
c. High Quality Raw Material: we mainly choose raw material from big steel factory, such as TPCO, BAO STEEL, SHA STEEL, which are best and largest raw material manufacturer in China.
d. Strict Physical/Chemical Testing Procedures: meeting the requirements of the product design and process, providing reliable testing data.
e. Short Delivery Time: If one container 15-20 days. We also stock some standard-sized tubes and rods, if you need 3-5 pcs, we can delivery soon.
f. Safe Packing: anti-rust oil be spread on tubes and rods before shipping, plastic caps on tube ends to protect inside surface, each rod be protected with cardboard tube. Finally be packed with seaworthy package or in wooden case.
g. Best After-Sale Service: Over 60% products are sold to the Southeast Asia, Middle East and Europe, and all products are trusted by domestic and foreign customers.
Our Services
Ø Provide the technical design and solutions;
Ø Designing and manufacturing of non-standard equipment;
Ø Professional technical training and guidance on site according to the contract;
Ø Supply accessories at any time;
Ø Tele-technical consulting and services;
Ø Other special technical service according to client's requirements.
Ø Designing and manufacturing of non-standard equipment;
Ø Professional technical training and guidance on site according to the contract;
Ø Supply accessories at any time;
Ø Tele-technical consulting and services;
Ø Other special technical service according to client's requirements.
FAQ
1. Are you a manufacturer, trading company or a third party?
A: We are a manufacturer, and we have builded up our company since 2008.
2. Where is your factory located?
A: Our factory address is : No. 122, Xizhang Road, GushanTown, JiangyinCity, Jiangsu Province, P. R. China
3. How can I get to your factory?
A: Our factory is near shanghai Airport; we can pick you up in the airport.
4. If i will need to stay in your place for few days, is that possible to book the hotel for me?
A: It's always my pleasure; hotel booking service is available.
5. What is your minimum order quantity, can you send me samples?
A: Our minimum quantity is 1 PC. We can send small value free samples. However, nost samples are charged. Warmly welcome you to
come visit our company.
6. Is your price competitive?
A: Only good quality product we supply. Surely we will give you best factory price based on superior product and service.
7. Can the products be customized as our need, such as put on our logo?
A: Surely our products can be customized as your need. Put on your logo is also available.
8. May I know which payment will be accepted by your company?
A: So far 100%T/T before shipment. And 30% deposit paid by T/T, balance paid by L/C are acceptable.
9. How can I get the after-service?
A: We will send you the spare parts by free if the problems caused by us. If it is the men-made problems, we also send the spare
parts; however it is charged. Any problem, you can call us directly.
Please feel free to contact below for your detailed requirements. You would be satisfied with our services.
Sherry Gao
Mob: +86 19901425830
WhatsApp: +86 19901425830
Wechat: +86 19901425830
E-mail: sherry@chinaxizuan.com
Website: http://www.chinaxizuan.com
Add: No. 122, Xizhang Road, Gushan Town, Jiangyin City, Jiangsu Province, P. R. China
A: We are a manufacturer, and we have builded up our company since 2008.
2. Where is your factory located?
A: Our factory address is : No. 122, Xizhang Road, GushanTown, JiangyinCity, Jiangsu Province, P. R. China
3. How can I get to your factory?
A: Our factory is near shanghai Airport; we can pick you up in the airport.
4. If i will need to stay in your place for few days, is that possible to book the hotel for me?
A: It's always my pleasure; hotel booking service is available.
5. What is your minimum order quantity, can you send me samples?
A: Our minimum quantity is 1 PC. We can send small value free samples. However, nost samples are charged. Warmly welcome you to
come visit our company.
6. Is your price competitive?
A: Only good quality product we supply. Surely we will give you best factory price based on superior product and service.
7. Can the products be customized as our need, such as put on our logo?
A: Surely our products can be customized as your need. Put on your logo is also available.
8. May I know which payment will be accepted by your company?
A: So far 100%T/T before shipment. And 30% deposit paid by T/T, balance paid by L/C are acceptable.
9. How can I get the after-service?
A: We will send you the spare parts by free if the problems caused by us. If it is the men-made problems, we also send the spare
parts; however it is charged. Any problem, you can call us directly.
Please feel free to contact below for your detailed requirements. You would be satisfied with our services.
Sherry Gao
Mob: +86 19901425830
WhatsApp: +86 19901425830
Wechat: +86 19901425830
E-mail: sherry@chinaxizuan.com
Website: http://www.chinaxizuan.com
Add: No. 122, Xizhang Road, Gushan Town, Jiangyin City, Jiangsu Province, P. R. China
