1/1.8 '8 МП 4K 3,6 11 мм 3X моторизованный вариофокальный зум объектив с быстрой фокусировкой

Product Overview

Description







High Speed Motorized zoom 3.6-11mm 3X Zoom Lens Support near-infrared Day &night  zoom Camera Lens

Product Advantage:

1, Support 1/1.8’’ 4K Varifocal Camera

2, Work with High Speed Camera Lens CCTV

3, Compact Construction, Fast High Speed Auto Focus

4, 4K 8 Megapixel high resolution Lens, Auto Iris Lenses

5, F 1.2 Aperture Lens, starlight Lens



Motorized zoom 3.6-11mm 3X Zoom Lens Support near-infrared Day & night F1.36-2.0 4K 8MP CCTV zoom Lens

China 3X Zoom vari-focal Lens 3.6-11mm Motorized zoom camera module  novel goobuy

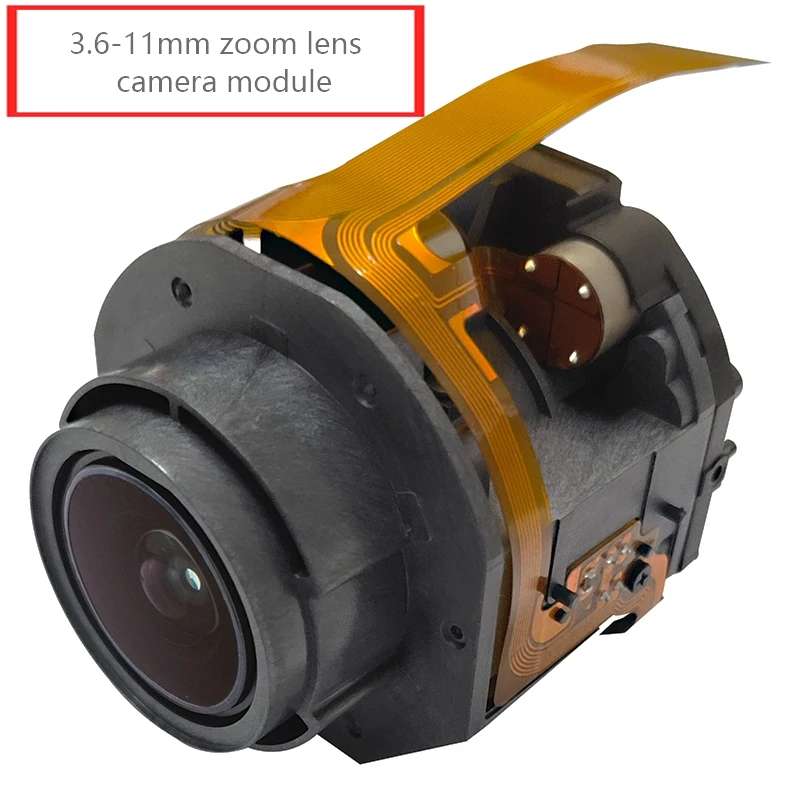

1/1.8'' 8mp 4K 3.6-11mm 3X auto focus camera zoom lens module

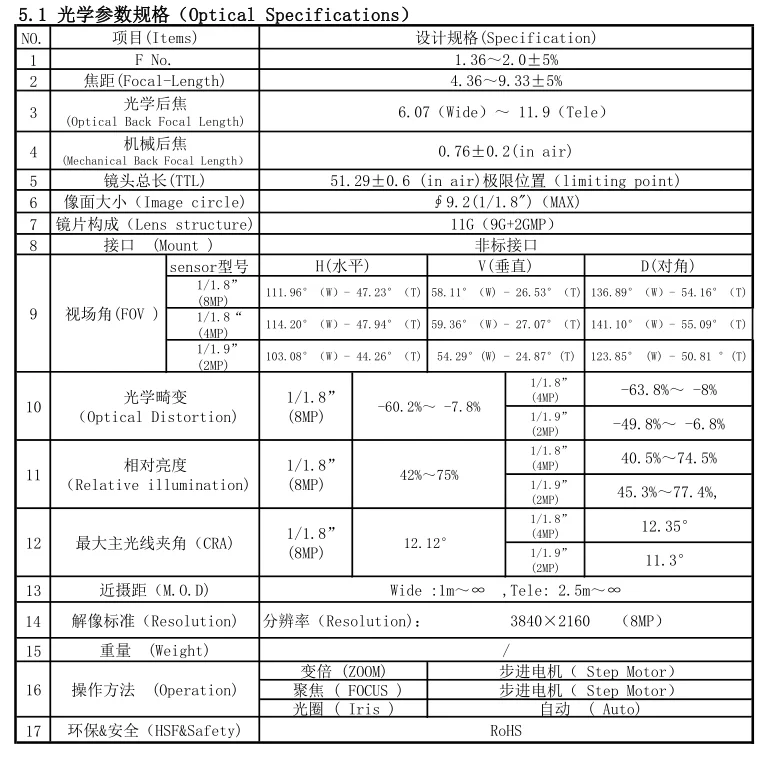

Product Specification

optical specification of 1/1.8'' 3.6-11mm zoom module lens

1, EffectFocal length:  4.36~9.33±5%

2, Aperture F/No:  1.36~2.0±5%

3, Optical back focal length (OBFL):   6.07(Wide)~ 11.9(Tele)

4. Mechanical back focal length (MBFL):   0.76±0.2(in air)

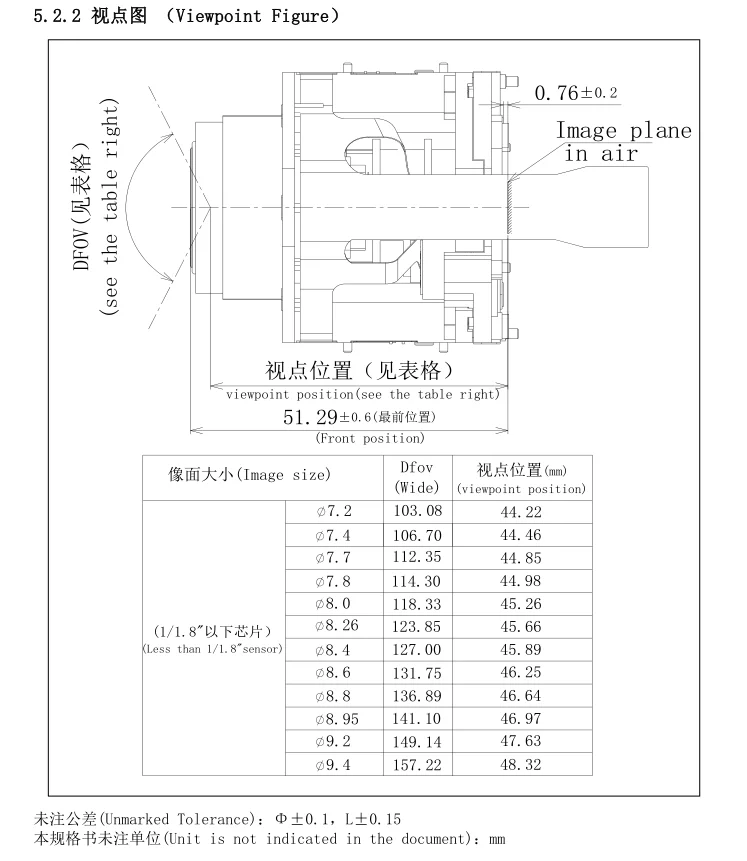

5. TTL:   51.29±0.6 (in air)(limiting point)

6, Max image circle:   9.2(1/1.8")(MAX)

7, Lens structure:   11G(9G+2GMP)

8, Mount type:   not standard mount type

9, Clamp Force:    60-600gf-cm

10, FOV (D/H/V)1/1.8”(8MP) sensor

HFOV  111.96°(W)- 47.23°(T)

VFOV  58.11°(W) - 26.53°(T)

DFOV  136.89°(W)- 54.16°(T)

11, Optical Distortion:  1/1.8”(8MP)sensor  -60.2%~ -7.8%

12, Relative illumination:  1/1.8”(8MP)sensor  42%~75%

13, CRA:   1/1.8”(8MP)12.12°

14, M.O,D.: Wide :  1m~∞ ,Tele: 2.5m~∞

15, MTF resolution:   3840×2160 (8MP)

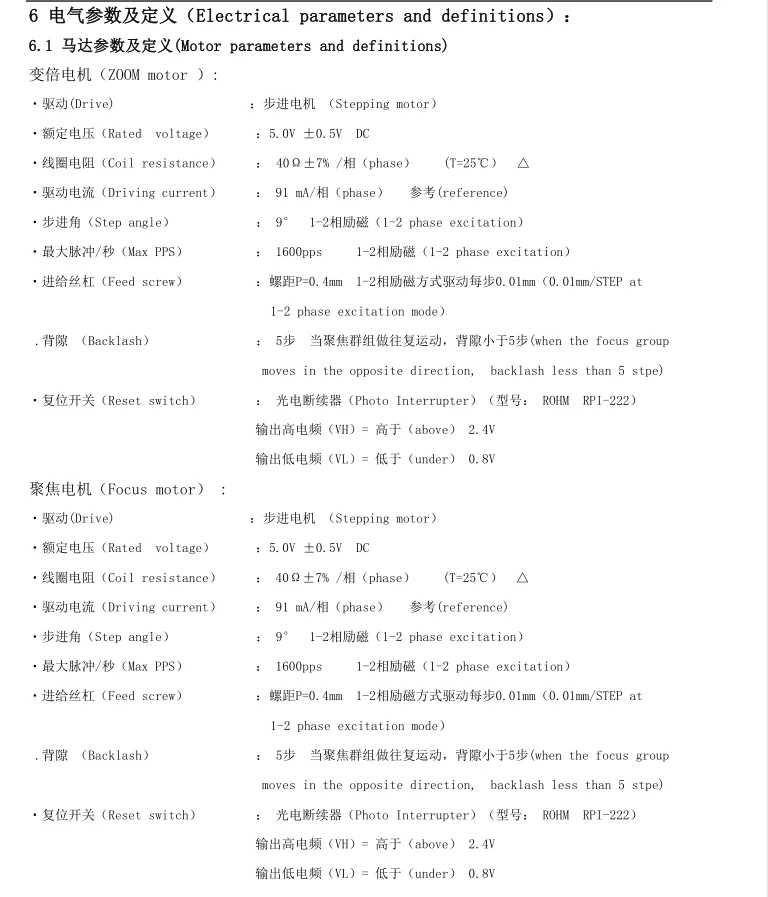

16, Zoom operation: step motor,

Focus operation: step motor,

high speed AF Auto Focus

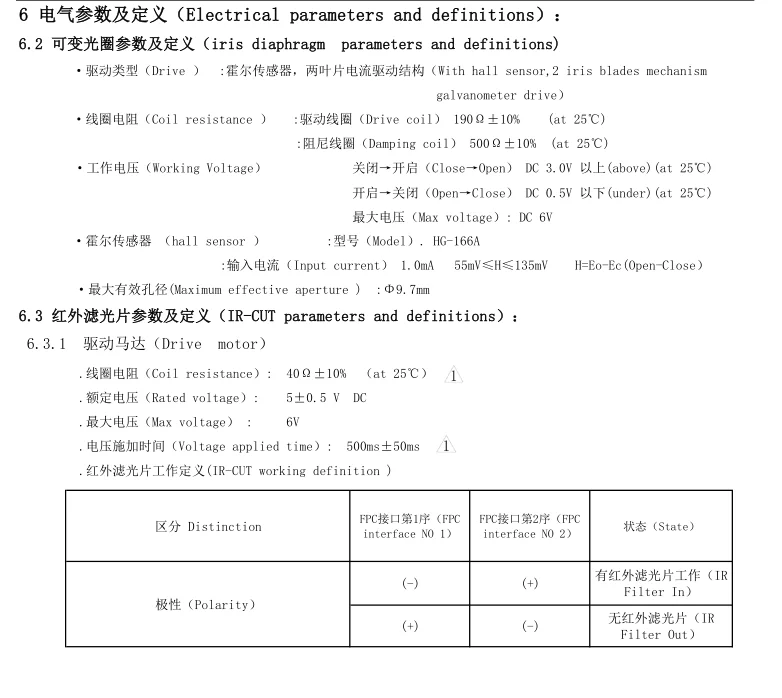

Iris operation: Auto

17, HSF&safety: RoHS







keying technical data



focal length;  3.6-11mm vari-focal  motorized zoom

F No:  F1.36-2.0 vary

Format:  9.2mm ( 1/1.8'')

Mechanical back focal length: 0.76mm

Mount: built-in specal / not standard mount

FOV  1/1.8'' cmos sensor  HFOV  111.96-47.23 degree,   VFOV  58.11-26.53 degree     DFOV  136.89-54.16 degree

Resolution:  8MPX ( 4K)

working cmos sensor:  1/1.8'' and below ok

lens constructure:  All glasses 11G ( 9G+2GMP)

Auto IRIS:  support

Auto focus:  step motor
