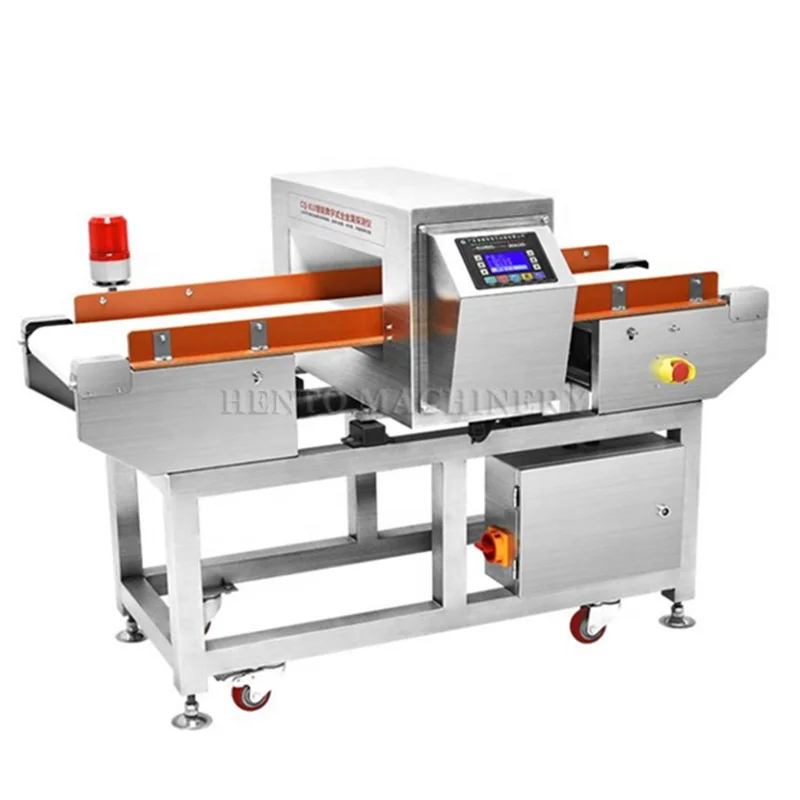

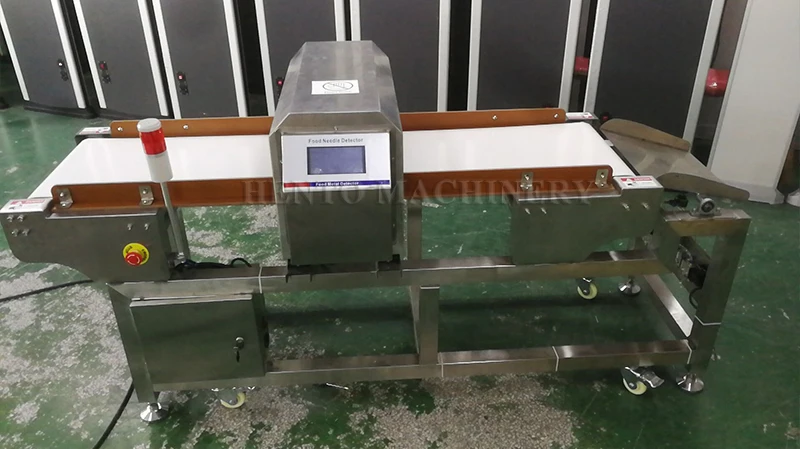

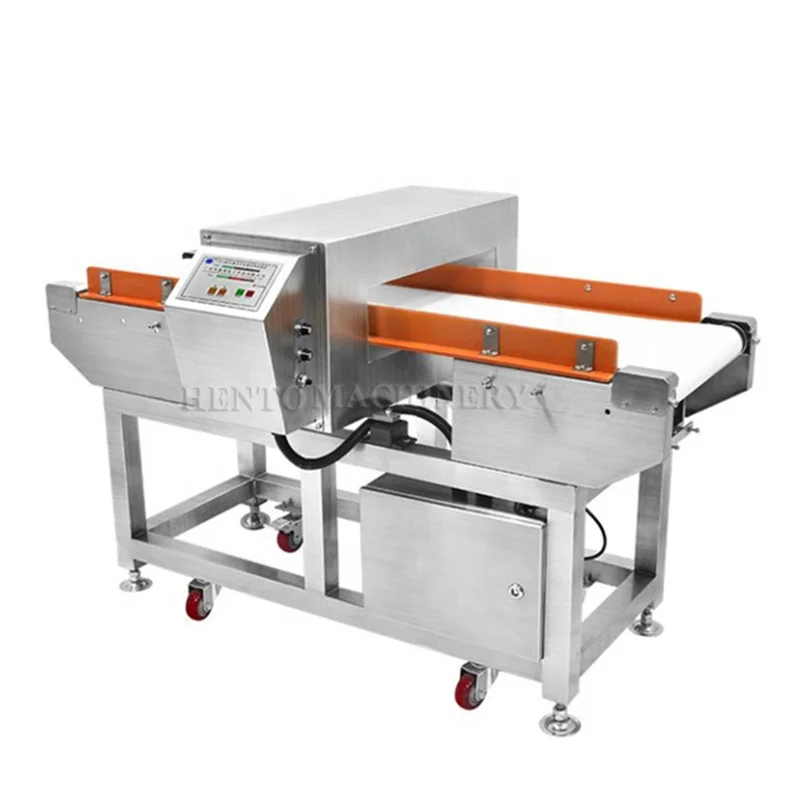

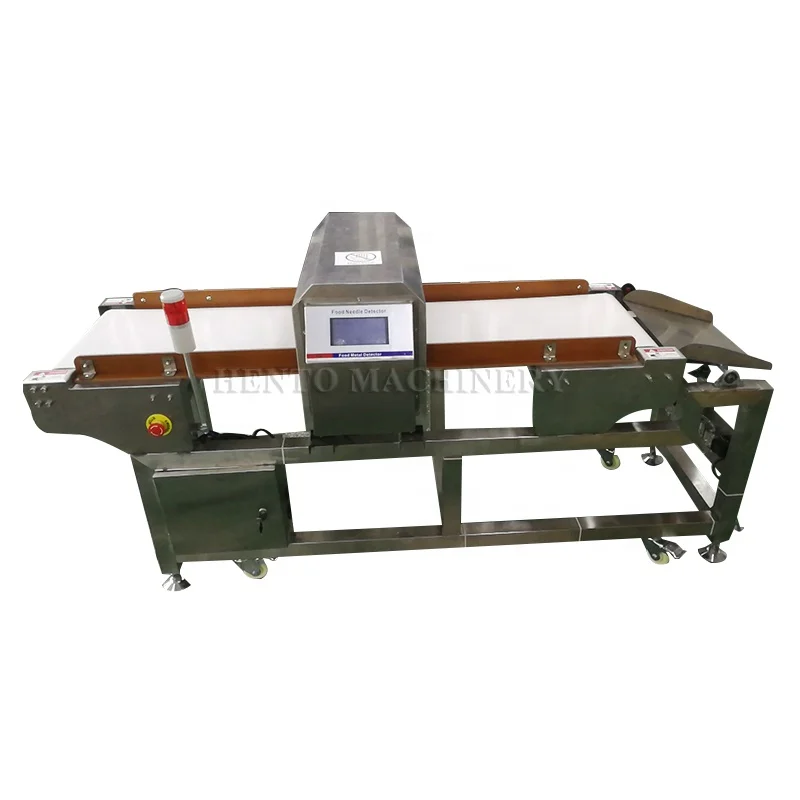

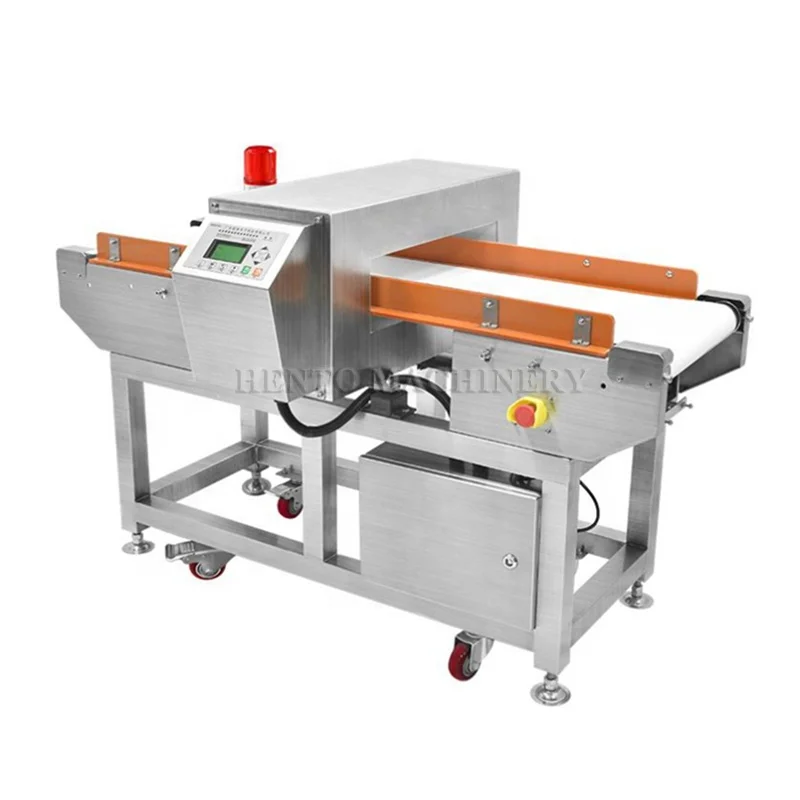

Alloy Impurity Detection / Drug Metal Detector / Food Metal Detector
1. The metal detector adopts the more balanced principle of foreign metal detection equipment, with more stability, reliability and better performance
2. Phase adjustment technology, product adjustment, effective suppression of product effects
3. DSP and single chip microcomputer combine the test signal for data sampling and data processing to improve the detection effect
4. Good man-machine interface
5. It can detect nonferrous metals such as iron, stainless steel, copper, aluminum, etc., and has self-learning function to expand the scope of materials
6. With memory function, it can store 20 kinds of product detection parameters
7. The sensitivity can be adjusted conveniently, and the detection sensitivity can reach stainless steel SUS to Φ 2.0mm, iron FE to Φ 1.0mm index (500mm * 120mm window)
8. Conform to HACCP certification standard
Product use
1. It is specially used for the detection of ferrous metal, nonferrous metal and alloy impurities in food and medicine
2. Detection of various metal chips in chemical raw materials, rubber products and paper products
Model | HT-CQ808 |
Detection window height | 12cm, 15cm, 20cm (or customize) |
Detection window width | 40cm (or custom) |
Body length | 140cm (or custom) |
Maximum load | 10kg (or customize) |
Material | Material 201 stainless steel |
Empty machine belt surface condition detection sensitivity | FE φ 1.0-2.5mm, CU φ 2.0-3.0mm, SUS φ 2.5-4.0mm |
Conveying speed | sound and light alarm, and automatic |
Alarm mode | sound and light alarm, and automatic s |
Dimensions | 1400 × 840 × 1005MM |
Weight | 200kg |



If you need further information, please contact us freely, we will do our best to cooperate with you.
