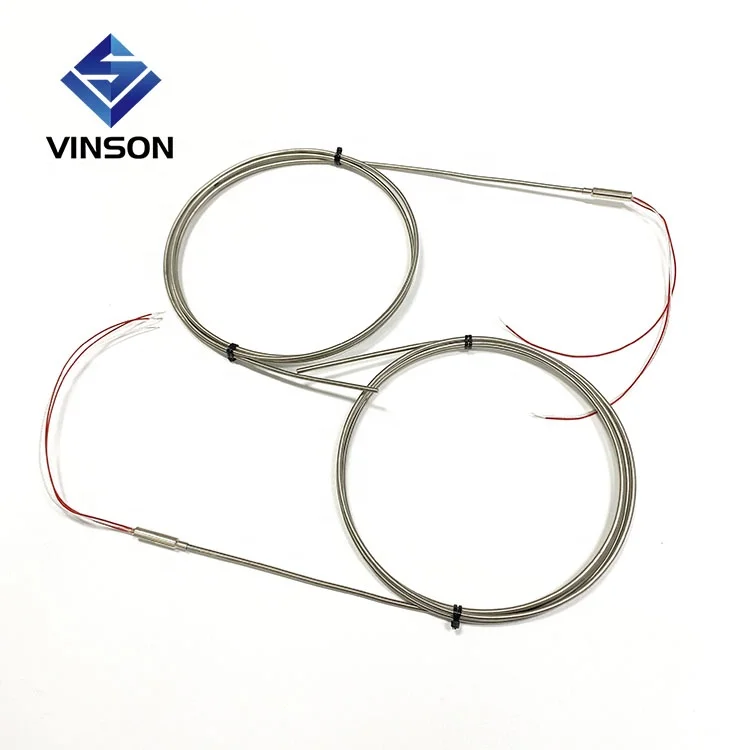

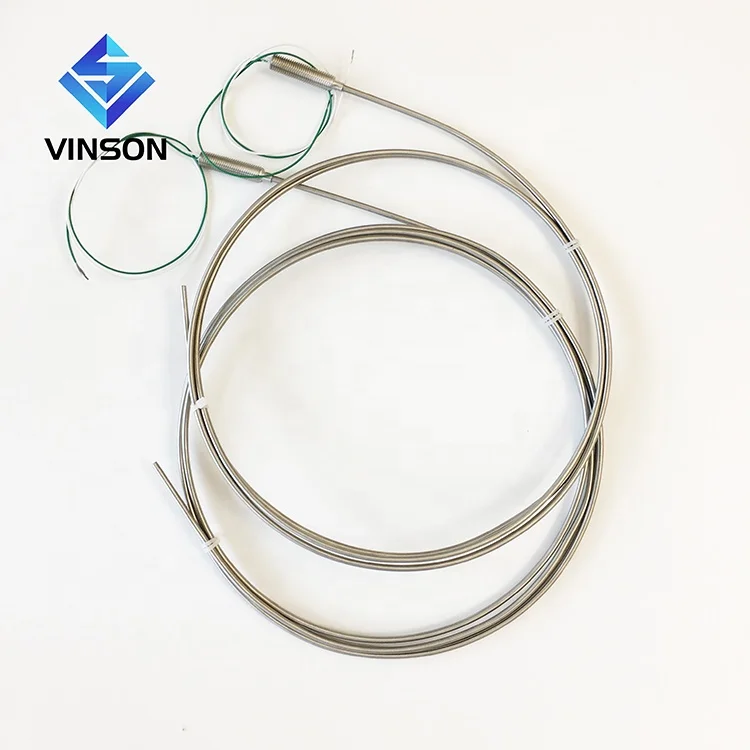

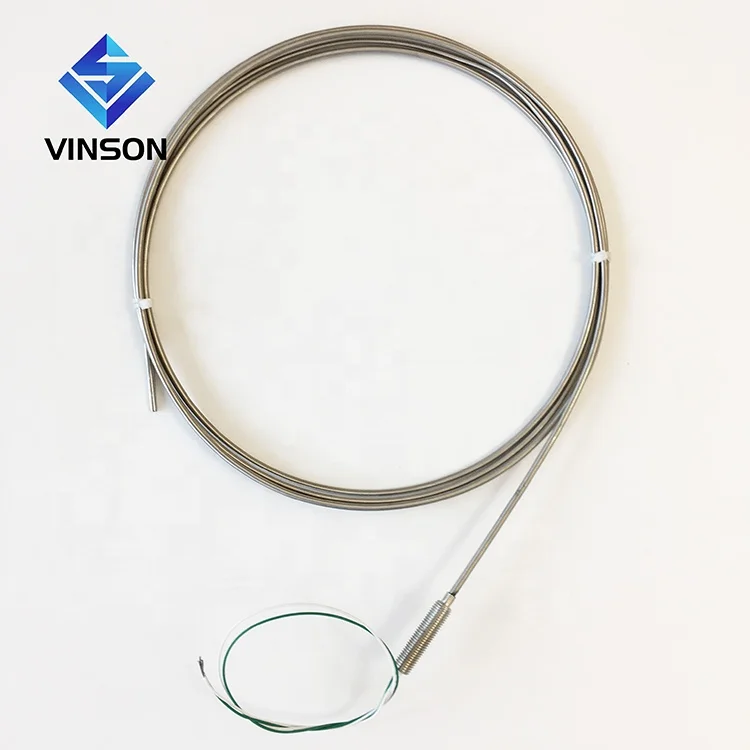

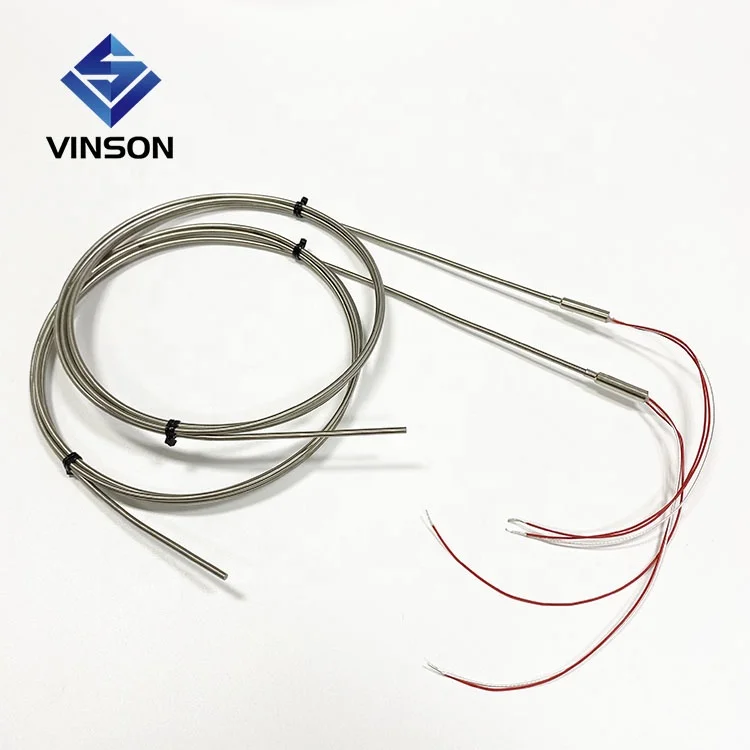

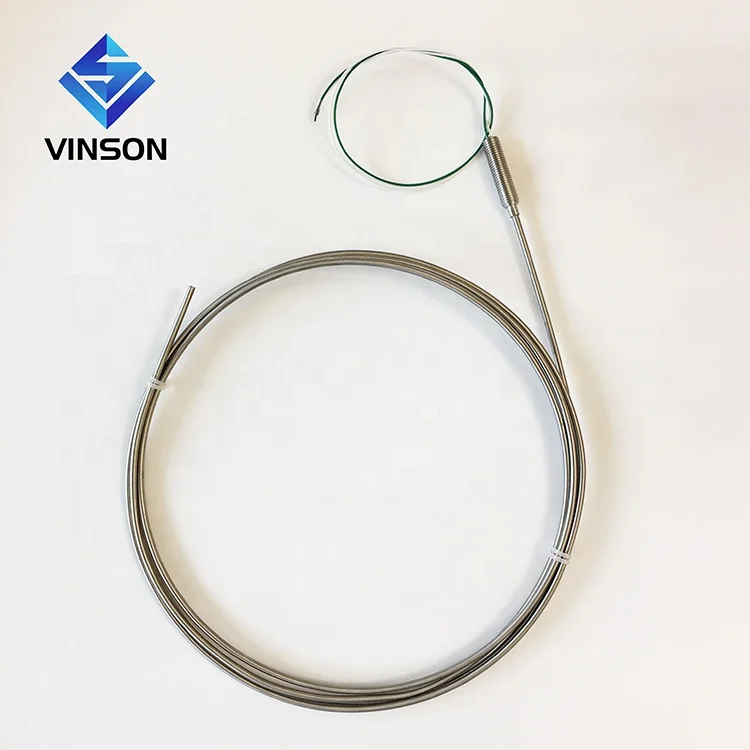

Mineral Insulated 3 wire RTD Pt100 temperature sensor dia 3mm PT1000 sensor SS316 material with PTFE lead wire
- Category: >>>
- Supplier: Yancheng Vinson Technology Co. Ltd.
Share on (62527065619):
Product Overview
Description
Product Description
Mineral Insulated 3 wire RTD Pt100 temperature sensor dia 3mm PT1000 sensor SS316 material with PTFE lead wire
A thermocouple is a temperature-measuring device consisting of two dissimilar conductors that contact each other at one or more spots. It produces a voltage when the temperature of one of the spots differs from the reference temperature at other parts of the circuit. Thermocouples are a widely used type of temperature sensorfor measurement and control,and can also convert a temperature gradient into electricity. Commercial thermocouples are inexpensive,interchangeable, are supplied with standard connectors, and can measure a wide range of temperatures. In contrast to most other methods of temperature measurement, thermocouples are self powered and require no external form of excitation
Model | Graduation mark | Temperature measured | Mounting& Fixing |
WRK | K | 0-1300°C | 1.without Fixing Device 2.Threaded Connector 3.Movable Flange 4.Fixed Flange 5.Elbow Tube Connection 6.Threaded Cone Connection 7.Straight Tube Connection 8.Fixed Threaded Tube Connection 9.Movable Threaded Tube Connection |
WRE | E | 0-700°C | |
WRJ | J | 0-600°C | |
WRT | T | 0-400°C | |
WRS | S | 0-1600°C | |
WRR | R | 0-1600°C | |
WRB | B | 0-1800°C | |
WRM | N | 0-1100°C |
Classification | Type | Standard Model | Features | Temperature | Material | Use Requirement | Note |
Resistance | C | WZP | Special | 0~2300℃ | W/Re | Vacuum field | ceramics Tube |
PT10 | WZP | Normal | -200~650℃ | Pt | Stable | SS304,316L Tube | |
PT100 | WZP | Normal | -200~500℃ | Pt | With Different Range | ||
PT1000 | WZC | -200~500℃ | Pt | ||||
Cu50 | WZC | Normal | -50~100℃ | Cu | Temperature range | ||
Cu100 | WZC | -50~100℃ | Cu | ||||
PT500 | WZP | Special | -200~650℃ | Pt | |||
PT200 | WZP | -200~650℃ | Pt | ||||
Thermistor | NTC | Low Accurcy |
Application of 3mm diameter SS304 MI cable Probe Type Thermocouple with standard handle
1. Widely Used In Science and Industry
2. Temperature Measurement for kilns
3.Gas Turbine Exhaust Application
4. Used For Diesel Engines and Other Industrial Processes
Cusomized of K N J E T type temperature sensor thermocouple
Type: K/J/PT100/PT1000/Cu50...
Diameter and length of probe
Material of probe
Size of thread
Material and length of lead wire
Certifications
Related Products

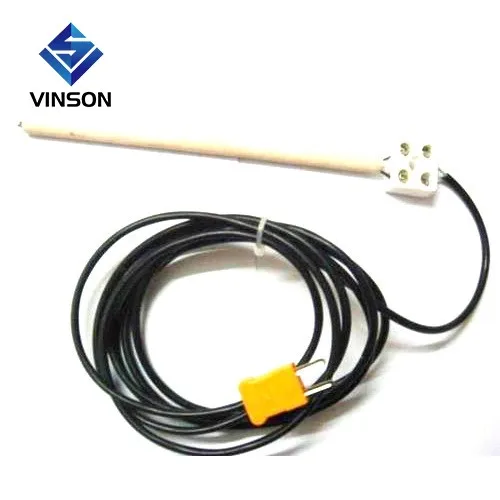

Thermocouple with head
98% Response Rate
PTFE thermocouple
98% Response Rate
Thread thermocouple
98% Response Rate
Packing & Delivery
Packaging | ||
Size | 40(L) * 30 (W) * 30 (D) | |
Weight | 20KG of Mineral Insulated 3 wire RTD Pt100 temperature sensor dia 3mm PT1000 sensor SS316 material with PTFE lead wire | |
Packaging Details | The normal package is carton box(Size: L*W*H)for Mineral Insulated 3 wire RTD Pt100 temperature sensor dia 3mm PT1000 sensor SS316 material with PTFE lead wire | |
