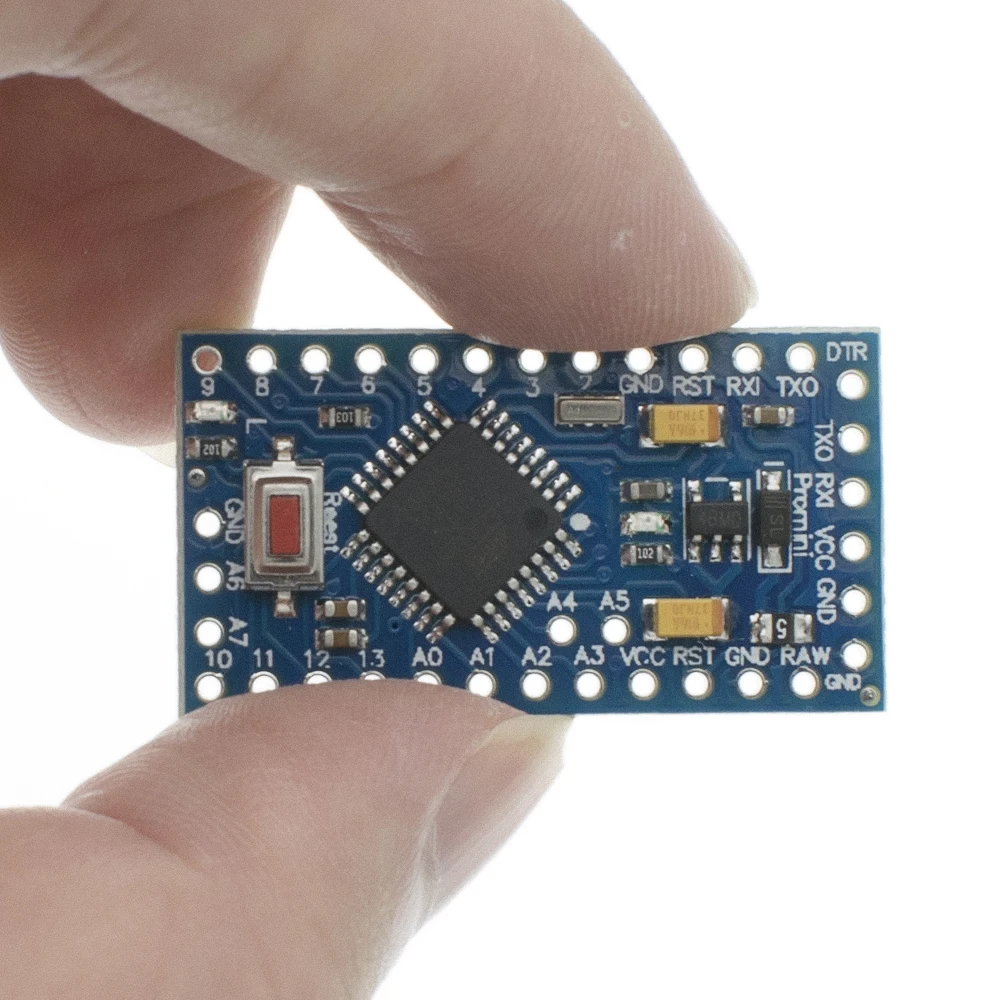

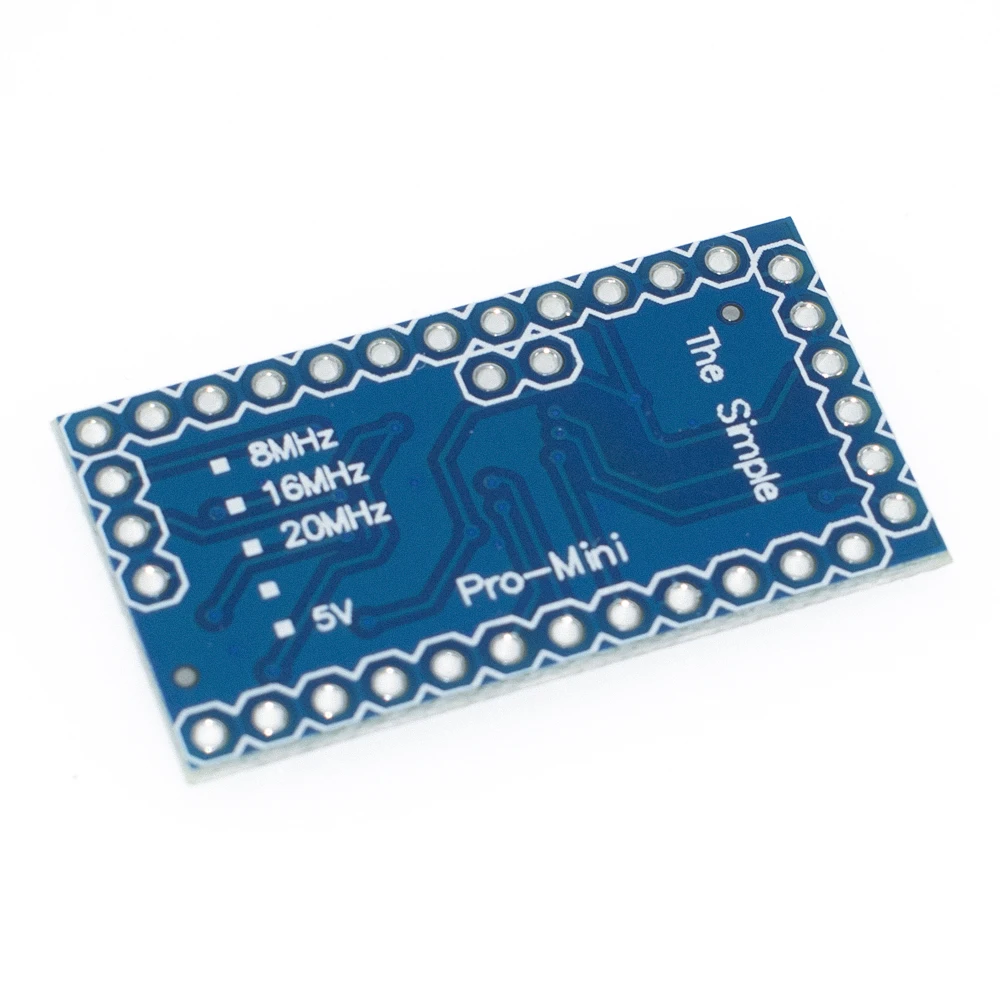

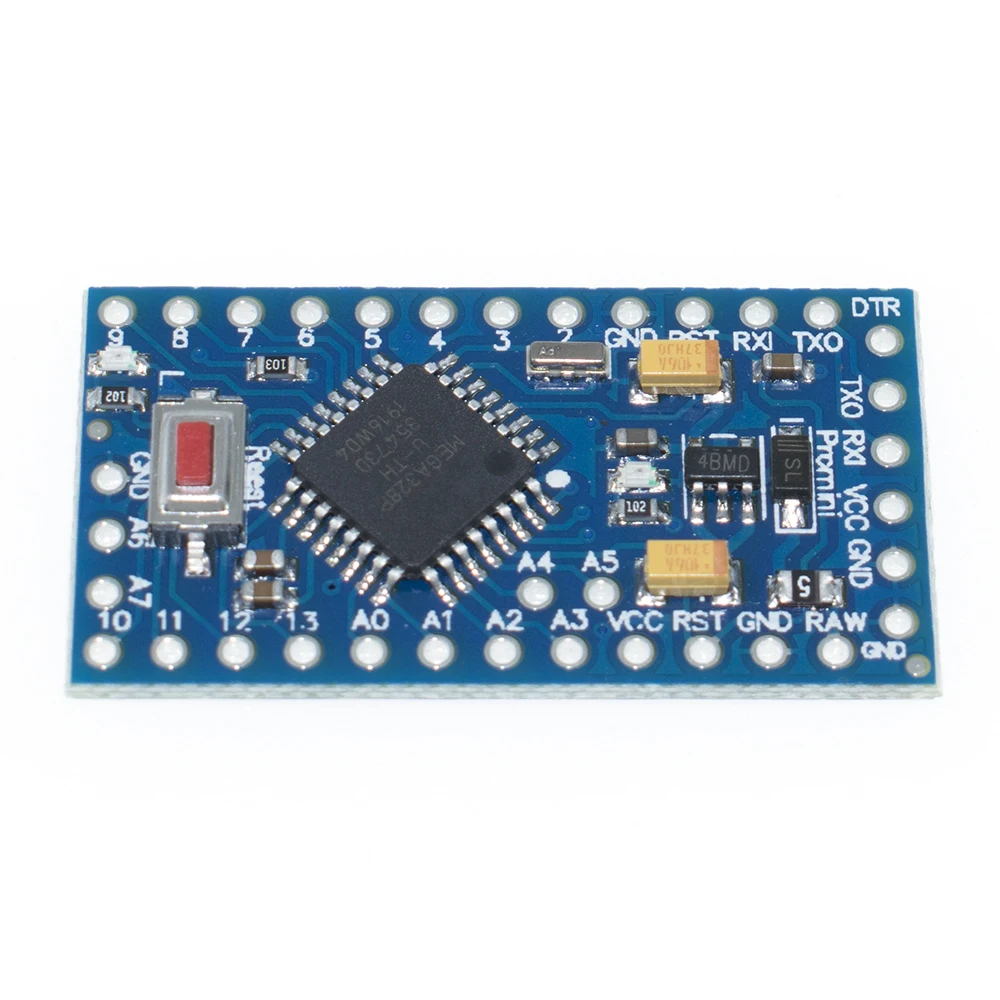

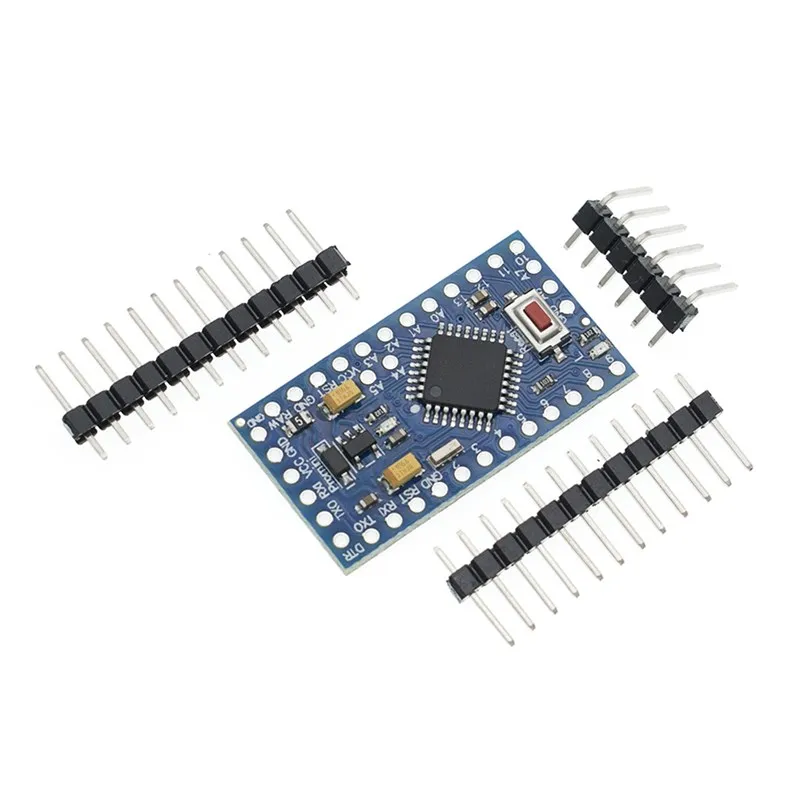

RDS Electronics Pro mini Atmega328 Pro Mini 328 Mini ATMEGA328 3.3V 8MHz 5V 16Mhz microcontroller board
RDS Electronics- Pro mini Atmega328 Pro Mini 328 Mini ATMEGA328 3.3V 8MHz 5V 16Mhz microcontroller board
RDS Electronics- Pro mini Atmega328 Pro Mini 328 Mini ATMEGA328 3.3V 8MHz 5V 16Mhz microcontroller board
RDS Electronics- Pro mini Atmega328 Pro Mini 328 Mini ATMEGA328 3.3V 8MHz 5V 16Mhz microcontroller board
RDS Electronics- Pro mini Atmega328 Pro Mini 328 Mini ATMEGA328 3.3V 8MHz 5V 16Mhz microcontroller board

RDS Electronics Pro mini Atmega328 Pro Mini 328 Mini ATMEGA328 3.3V 8MHz 5V 16Mhz microcontroller board

Share on (62527351685):


Price:

Quantity:


Product Overview

Description


Welcome to R.D.S Electronics














Product Description



This is the professional version of the Mini Pro is a microcontroller board, has its good burn Bootloader, without the user having to buy ISP burner were burning, easy to use. It has 14 digital input / output pins (of which 6 can be used as PWM outputs), 8 analog inputs (increase A6 A7 with two analog input ports than the regular version), an 8MHz resonator, a reset button, the installation hole pin head.



Technical parameters:



1.14 digital input / output port RX, TX, D2 ~ D13,

2.8 analog inputs A0 ~ A7

3.1 pairs TTL level serial port transceiver RX / TX

4.6 PWM ports, D3, D5, D6, D9, D10, D11

5. Microcontroller using Atmel Atmega328P-AU

6. Support serial download

7. Support for external 3.5V ~ 12V DC power supply (using RAW and GND power port)

8. Support 9V battery

9. 8MHz clock frequency

10. Dimensions: 33.3 * 18.0 (mm)
