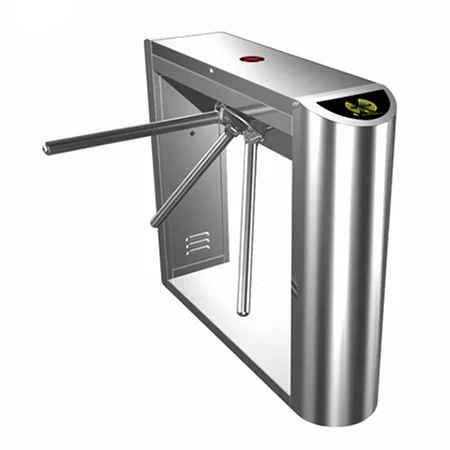

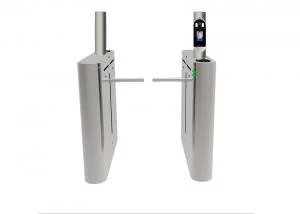

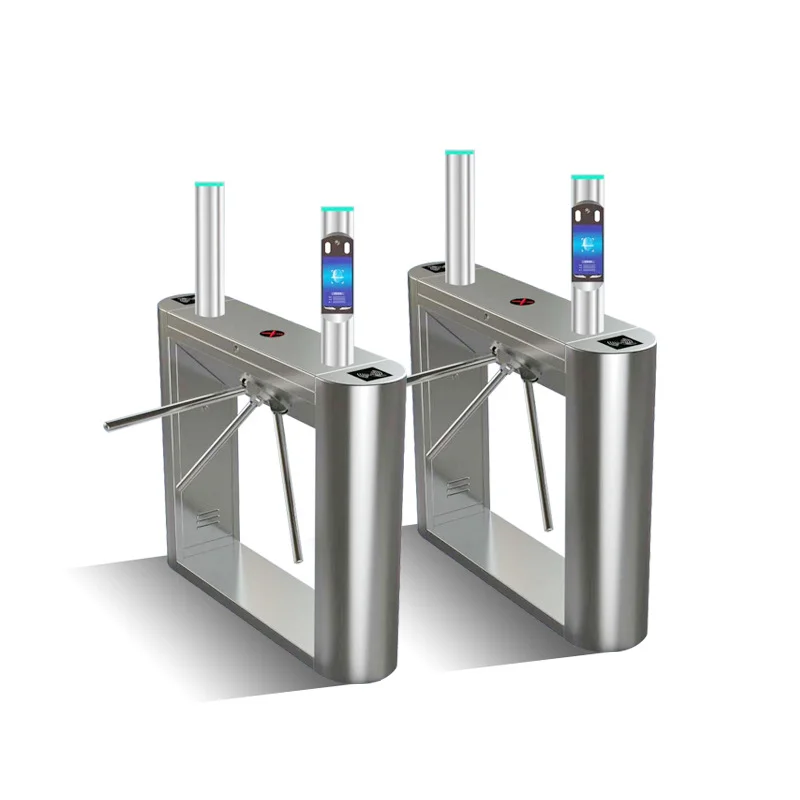

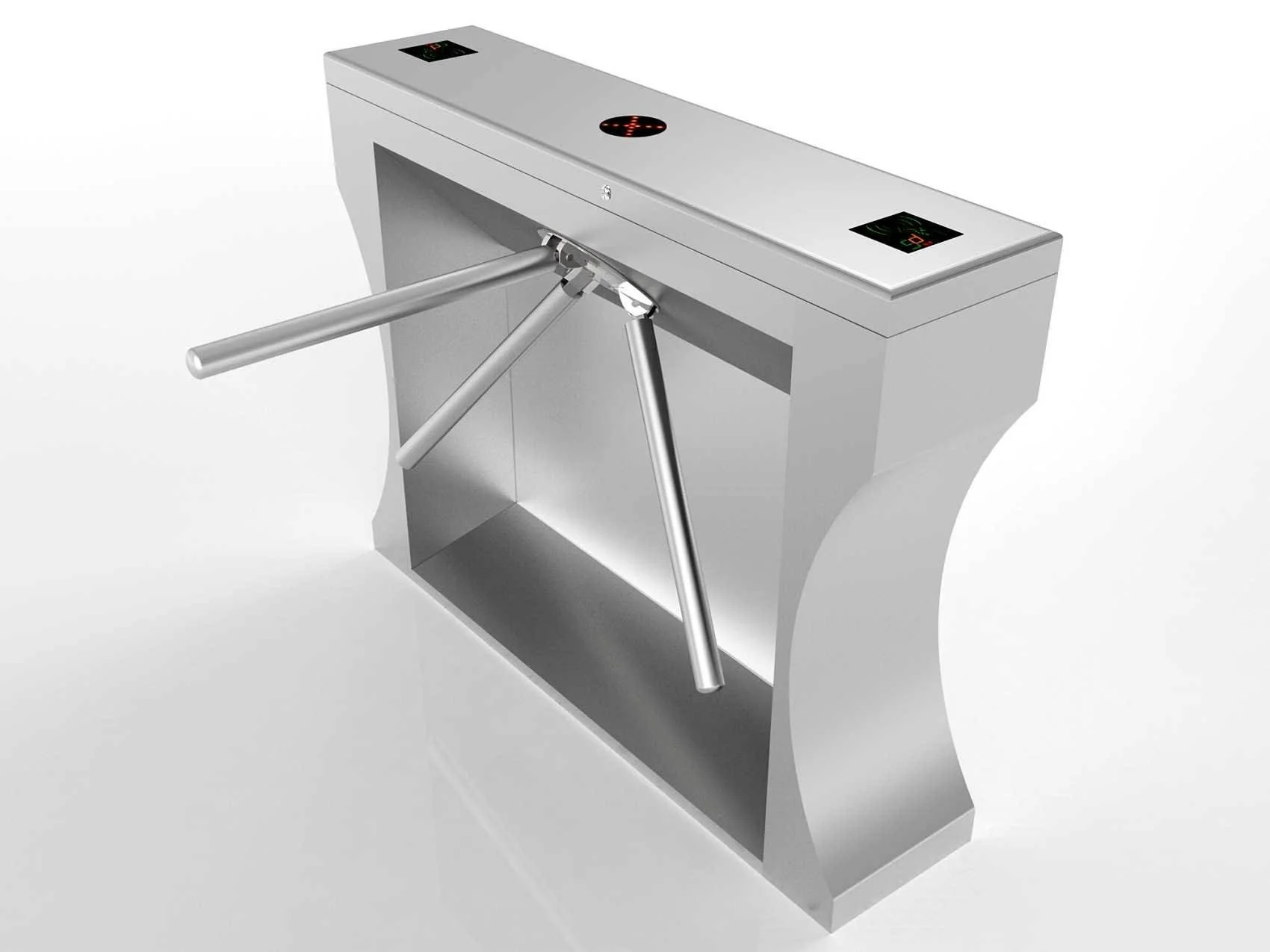

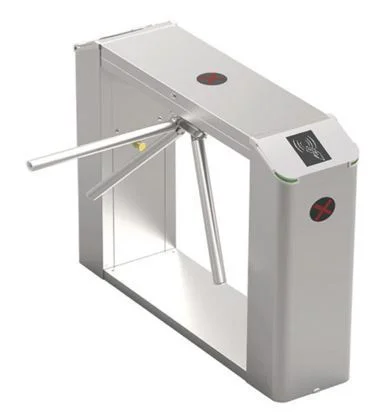

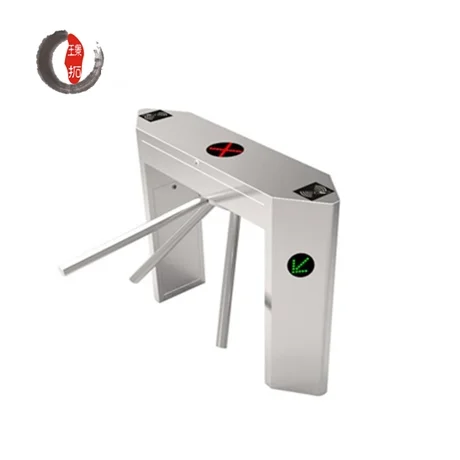

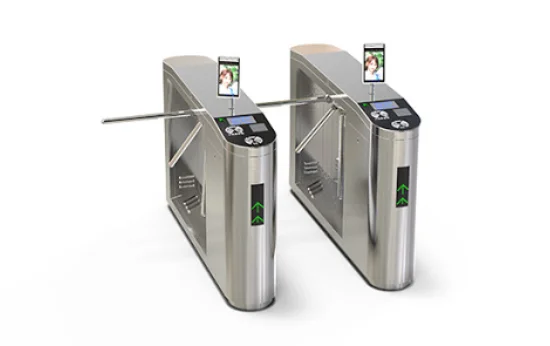

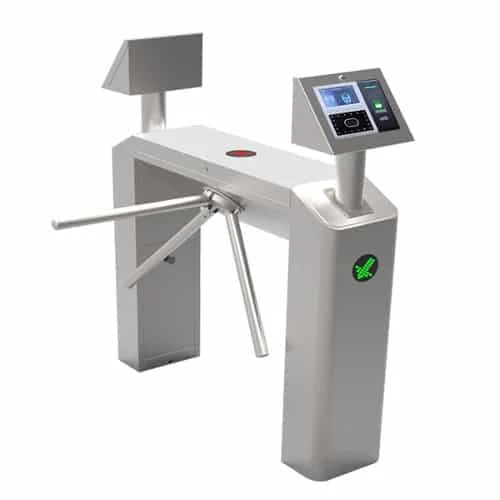

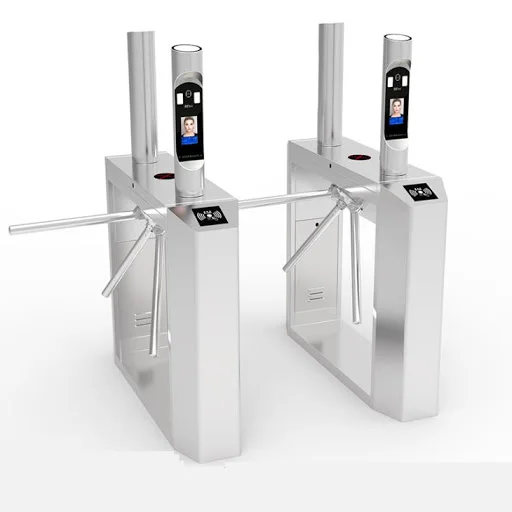

Face recogntion access control system security device RFID card entrance machine tripod turnstile

Parameters:

 Material: 304stainless steel

 Specification:1200*280*990 mm

work voltage: AC220V±10% 50HZ±10%

Core: DC24V  solenoid valve

Size: 1200×280×99 mm

Arm length: 500mm

Max bearing force : 80KG

Max lane width: 550MM

Rotation direction for arm: left or right, or bi-directional

Led direction indicator

Card reading window: standard or customized

Work environment: indoor or outdoor, 10℃~70℃ ,  relative humidity: :≤90%, no condensation

Barrier open time: 0.2s

Transit speed: 30 people/minute

Emergency : auto drop for arm

Normal work life: 3,000,000 times

Communication interface: RS 485, distance ≤1200m

Input interface: relay switch signal, 12V level signal or 12V pulse signal, pulse width>100ms,drive current >10mA

Functions:

Application:

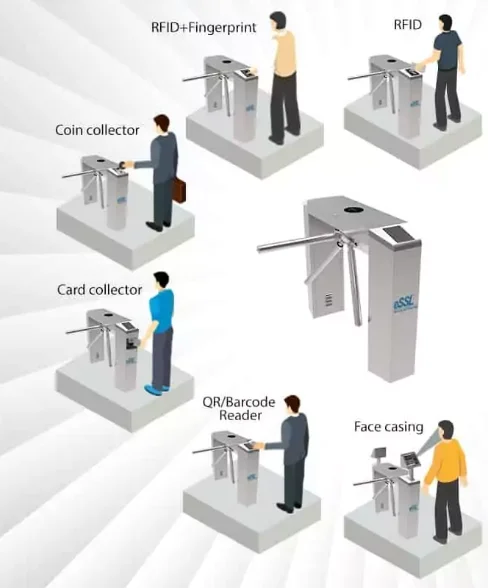

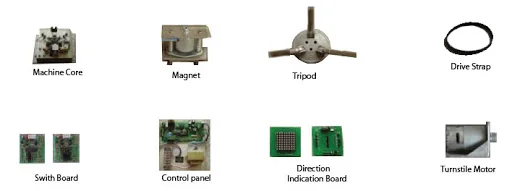

This equipment is integrated with mechanism, electric and micro-controller and various kinds of identification technologies, compatible with IC, ID, barcode, fingerprint reader and so on to provide intelligent control and management to flow control. Durable, anti-rusty. Provide orderly passage to people, anti-illegal entry or exit, smooth operation, low noise. Arm drops off in condition of emergencies.

This model is widely used in bus station, port, subway, factory, mansion, residential area, hotel, and companies and so on any place that requires a smart flow control.
