Euro type hot air hopper drying honeycomb dehumidfying automatic feeding three in one compact dryer
The TCD series "All-in-One" compact dryers combine drying,dehumidifying,and two-stage conveying functions in a single unit.They are suitable for drying hygroscopic engineering plastic,such as PA,PC,PBT,PET etc. A honeycomb rotor is used in the dehumidifying section.
Features:

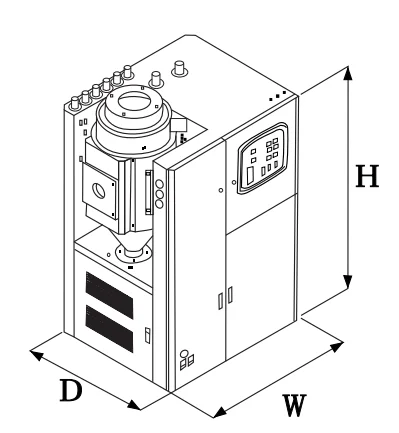

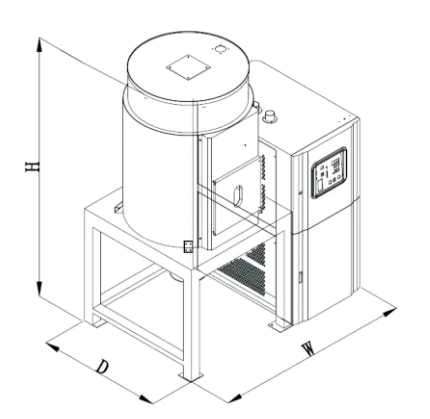

1. TCD series with two kinds of design: Fully-integral and semi-integral depending on the size.
2. Dry air down-blowing and cyclone exhaust design.
3. Closed-loop conveying system.
4. Low return air temperature and low dew-point.
5. Equipped with pneumatic shut-off valve to ensure no material remains in the material line after each loading cycle.

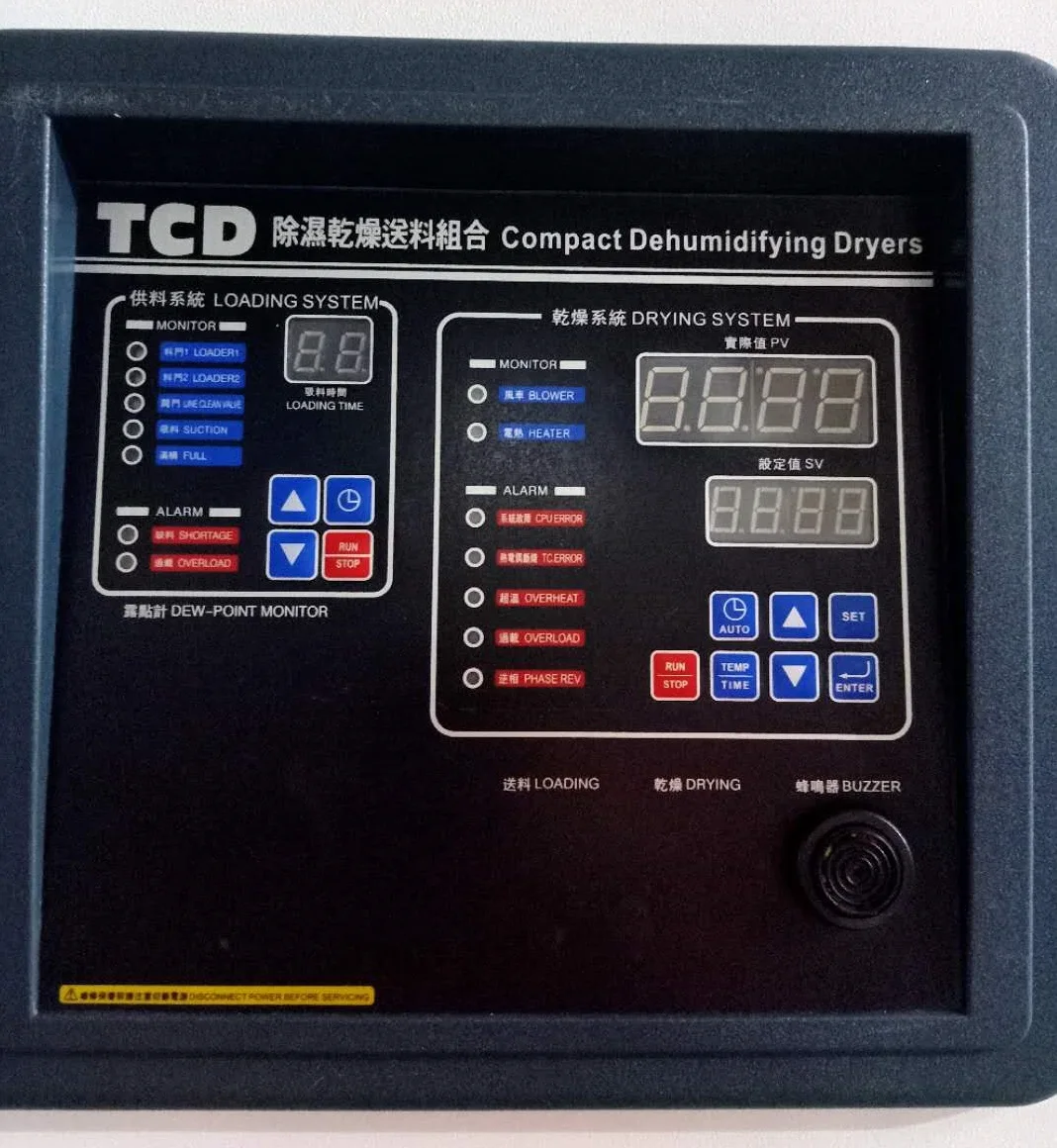

6. Material processing is controlled via microprocessor.
7. Touch screen PLC control as an option for centralized and automatic operation.
8. Dew-point monitor can be fitted to monitor and display dry air dew-point.

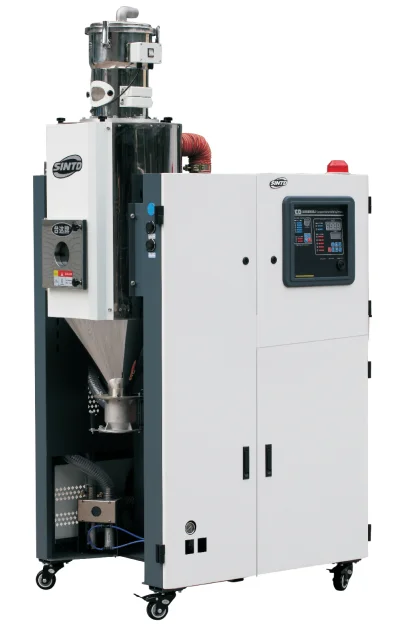

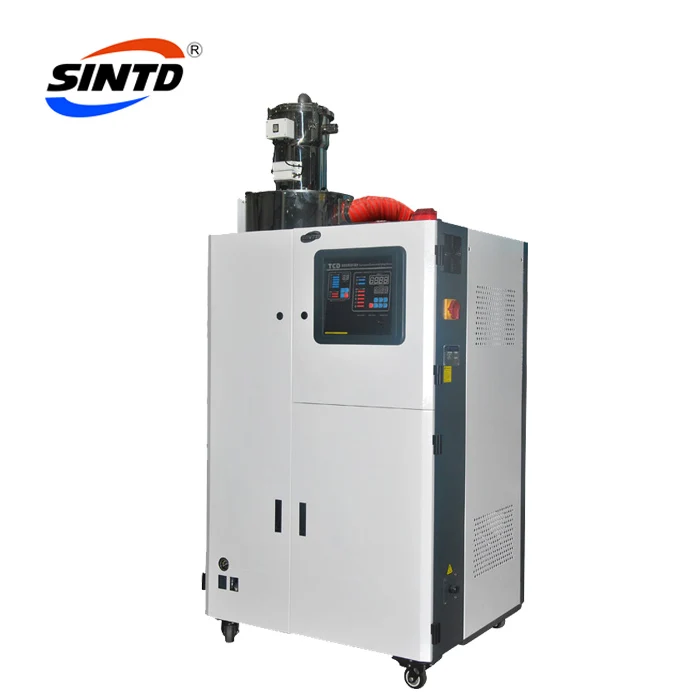

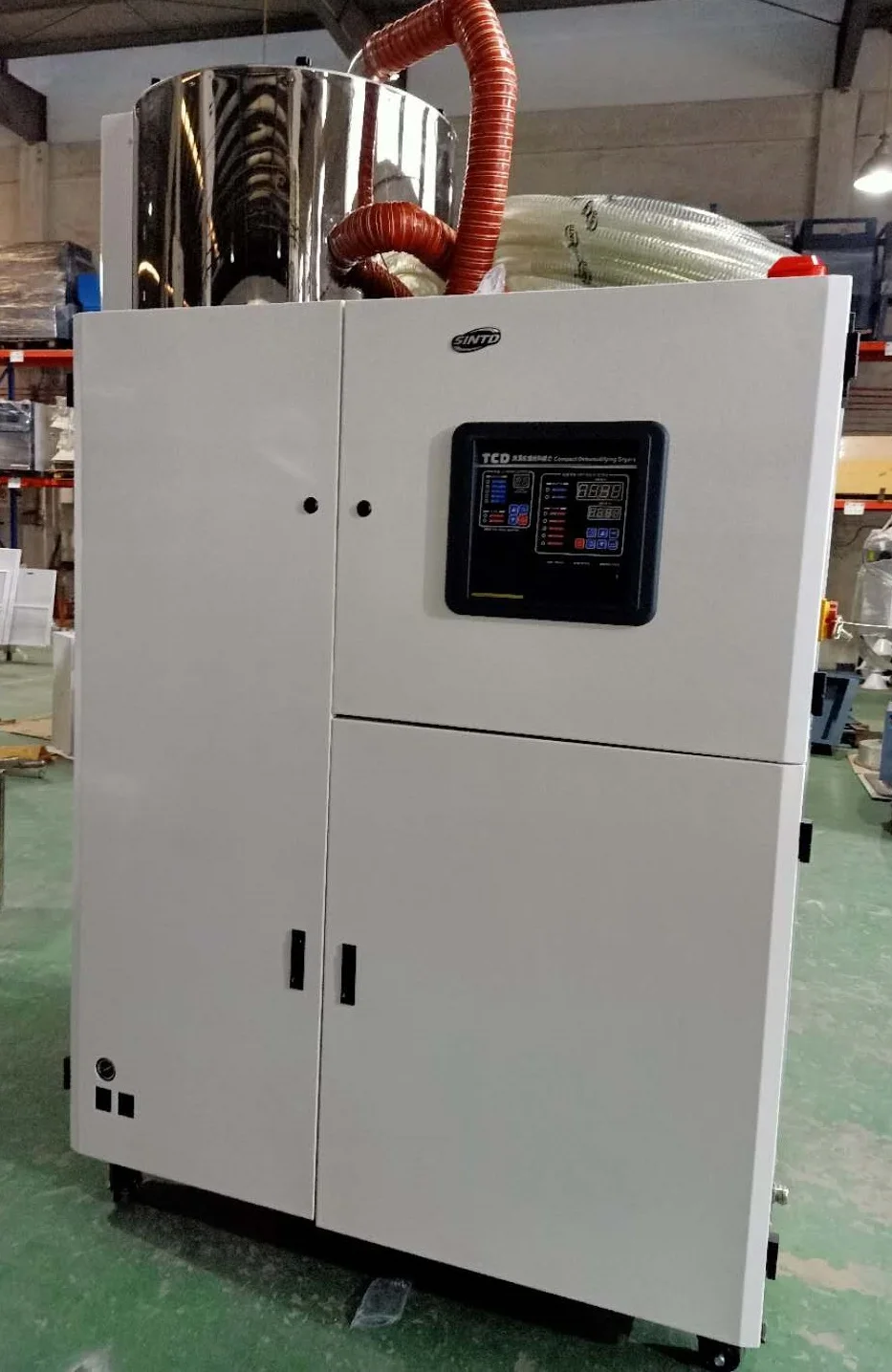

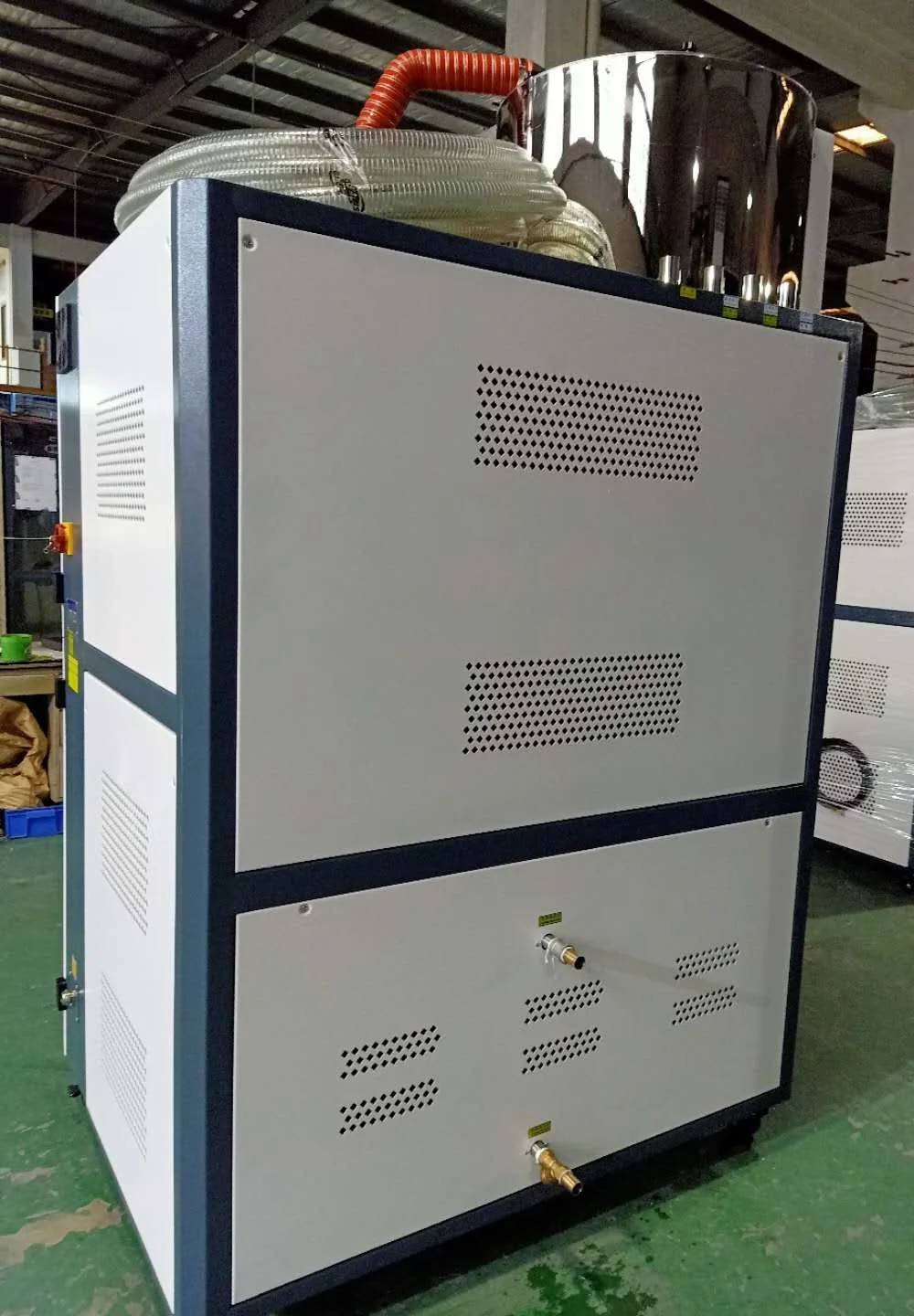

Details Images

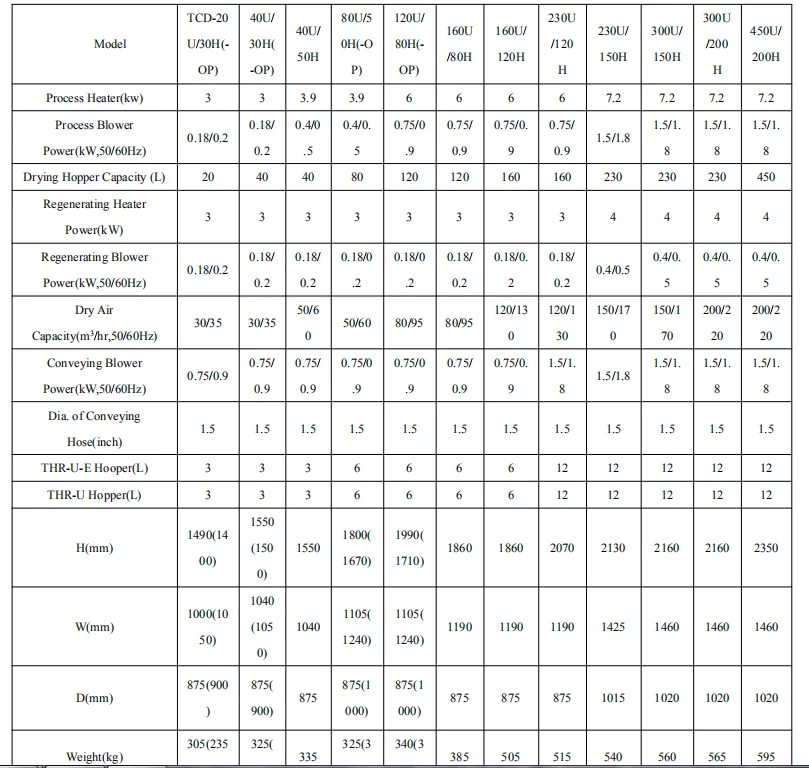

Product Paramenters
Certifications
Packing & Delivery
Packaging
Size(mm)
800(L) * 600 (W) * 1150(H)
Weight(kg)
65
Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries, the wooden box will be fumigated.
