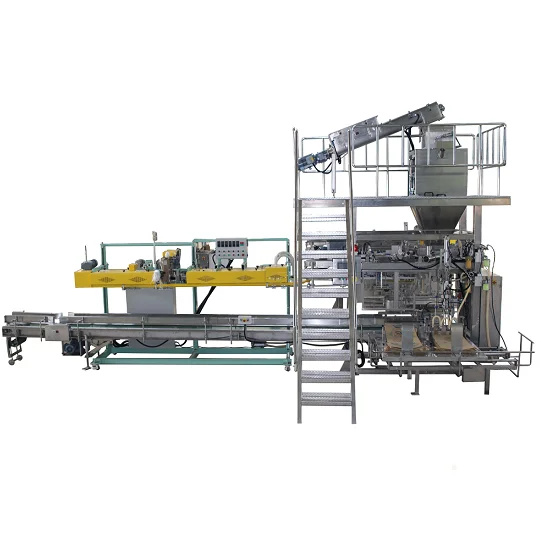

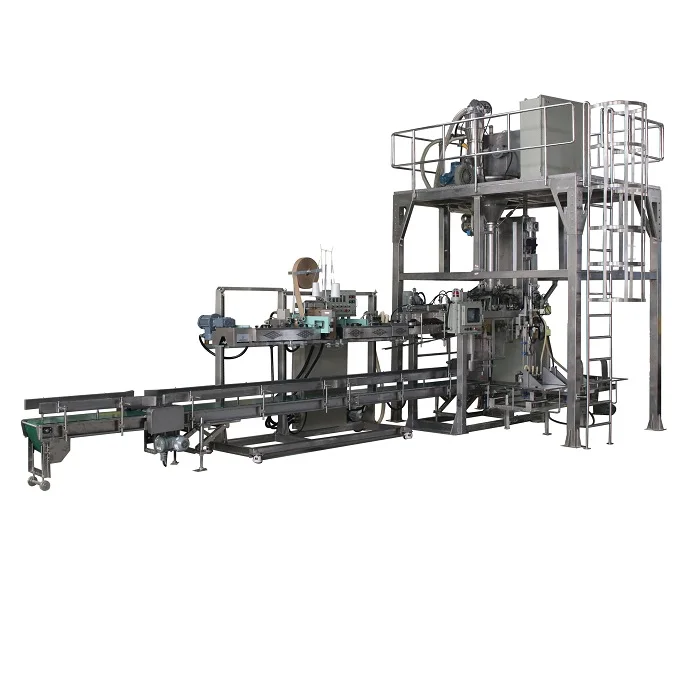

This series bag placer is designed for bagging all types of free flowing materials into plastic,paper or poly-woven open-mouth bags.It can handle pillow-type or side gusseted bags of various sizes at capacities of maximum up to 10 bags per minute.
The staff only needs to put a set of bags on the table. Open mouth bag will be sent to a filling position from a bag magazine via a vacuum chuck. Then opens the bag and places it under the filling spout.Filling your bags becomes a fast and reliable operation.

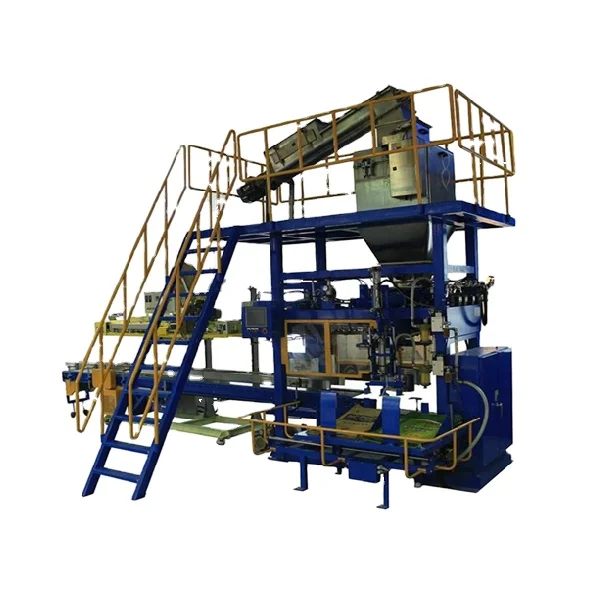

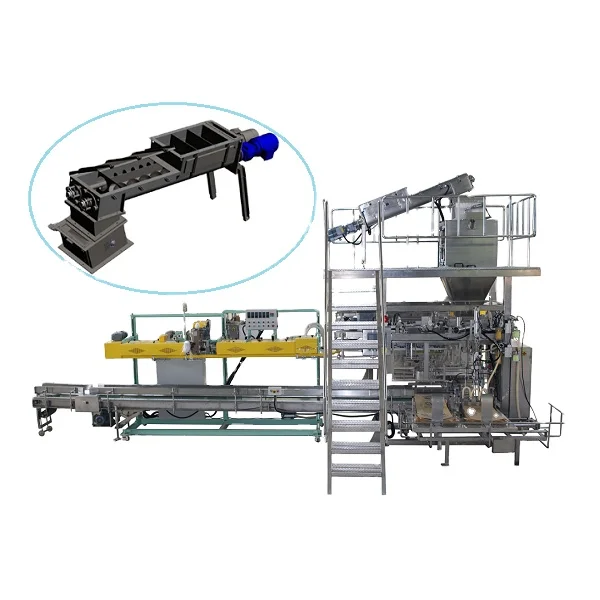

It combines with sewing and sealing machine creating a complete filling, sealing to palletizing line.

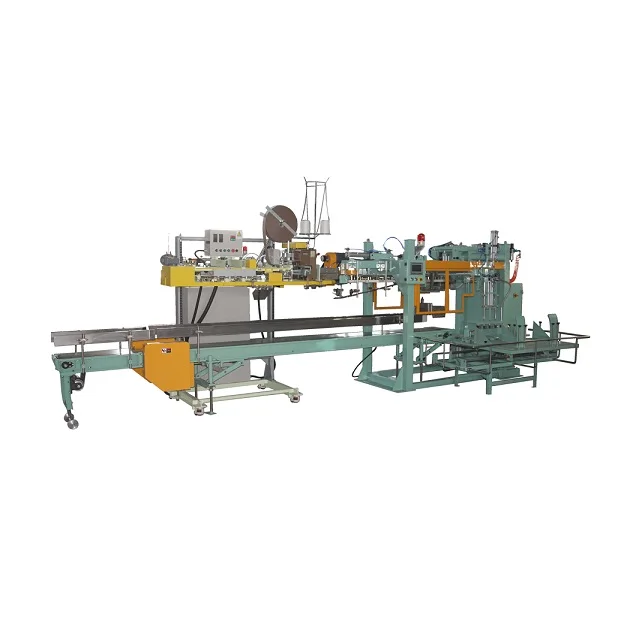

JBB-G1-1A auto bagging machine
Model
JBB-G1-1A
Bag size
L600-1050mm
W420-520mm
Speed
5-6bags/min
Air consumption
750cm³/min
PLC
Mitsubishi
Touch screen
Schneider
Pneumatic component
SMC
Electric component
Schneider
Approach switch
Omron
Material
Contacting material part SUS304
Belt conveyor
Belt length
7200mm
Belt width
260mm
Gear motor
Nord
Power
5KW
Material
Carbon steel with powder coating
Our Services
Our Services
Company Information
Company Info:
JCN is a 20 years experence packaging machine manufacture,with 30,000 sqm workshop, and 200 talented enginner.
Warmly welcome you for a visit.
FAQ
FAQS:
1.How can i choose the right machine?
Pls send your requirement by chat,we will choose and then mails to you.
2.What servise you can provide?
Design,overall solution,draft,produce video,produce follow up,aftersales etc.
3.Payment terms?
T/T 30% deposit,70% before shipping if>1,000USD.
4.Delivery date and time?
Normally 45 days,possiblly 30 days according to your project.
5.How can i test my machines before shipping?
We will send test videos to you,also welcome to our factory test by yourself.
Packaging & Shipping
Packaging:
* Machine packing inside is plastic films and outside is fumigation wooden case.
* Our wooden case is very strong,it can bear long time shipping on the sea.
* And machine with preservative film,it can stop the salt sea water enter into the machine and make the machine corrosion.
Shipping:
* Upon receipt of delivery payment , delivery date will be in 3-15days
* By Air, by Sea or by Express (DHL etc)
* Shipment cost will depend on the destination, shipment way,size and the weight of the goods.
