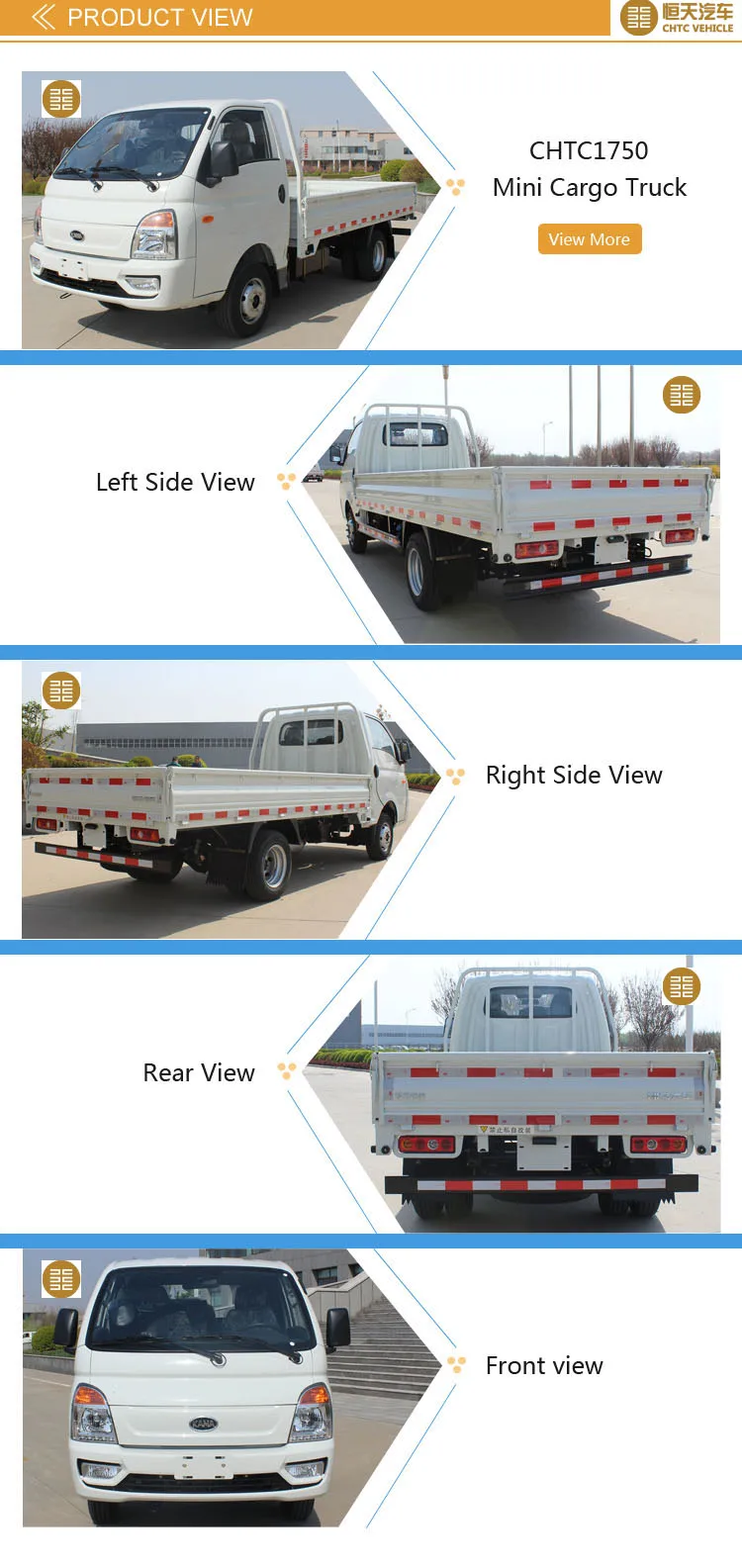

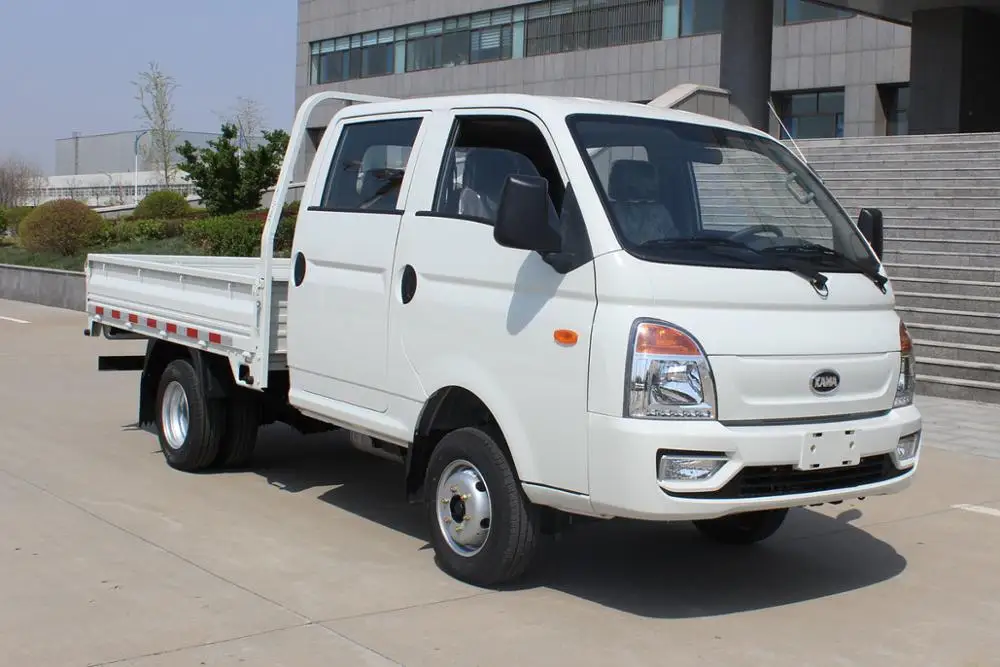

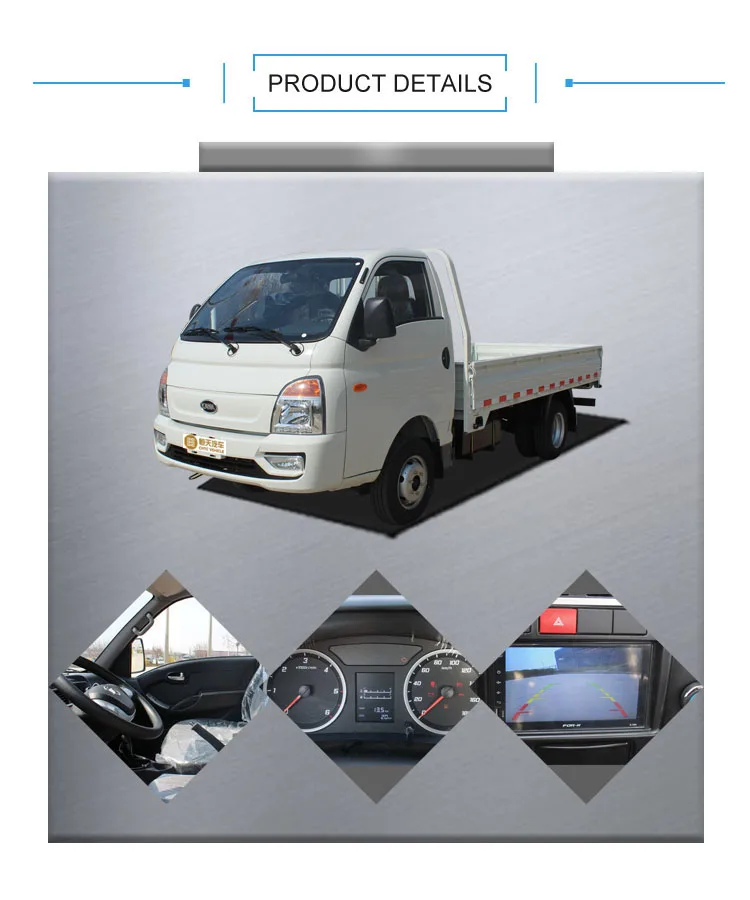

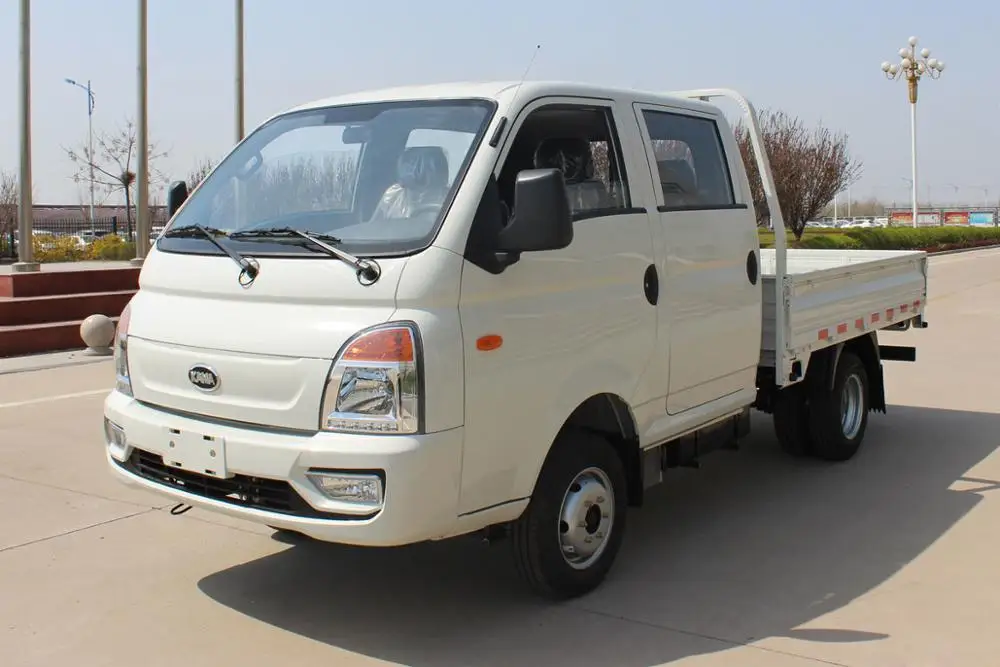

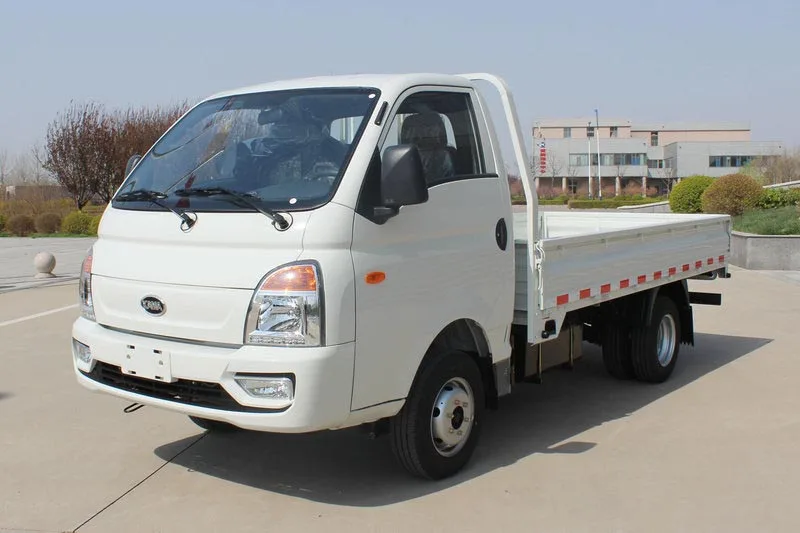

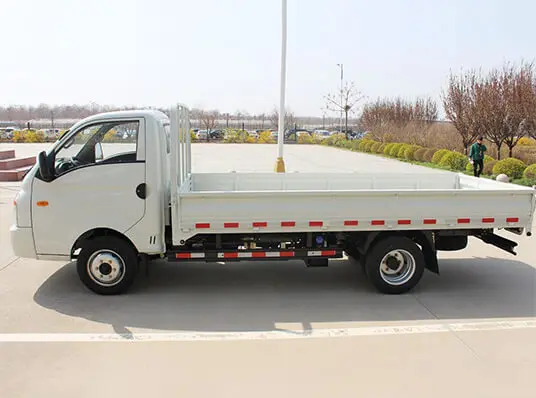

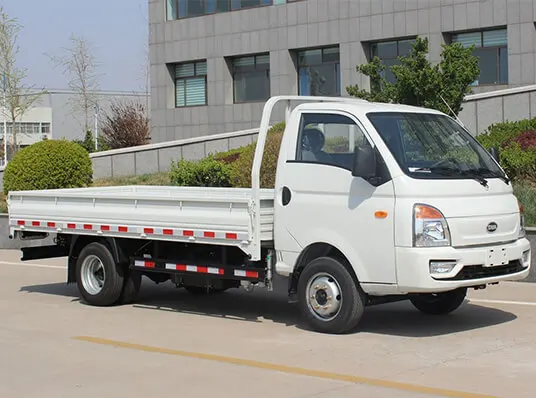

CHTC 1750 series 4x2 gasoline/diesel single/double cabin 2T mini cargo truck
CHTC 1750 SERIES
Fuel type
DIESEL TYPE
DIESEL TYPE
GASOLINE TYPE
Model
KMC1043H318D4
KMC1043H318D5
KMC1033HQ32D5
Emission
E-IV
E-V
Suggested payload
2T
2T
1.5T
Cabin
single cab
single cab
single cab
Wheel Base(mm)
2850
2850
2850
Overall dimensions(mm)
5585*1840*2070
5585*1840*2070
5585*1840*2070
Cargo Box Size(mm)
3575*1750*360
3575*1750*360
3575*1750*360
Curb Weight (Kg)
2850
2850
1245
Load Weight(Kg)
2000
2000
2000
QTY of wheels
6+1
6+1
6+1
Max.Speed(Km/h)
95
95
95
Brake system
Hydyaulic brake
Hydyaulic brake
Hydyaulic brake
Parking brake
Central drum type
Central drum type
Central drum type
Clutch model
Single plate, Dry type
Single plate,Dry type
Single plate,Dry type
Gearshift
5+1 speed,manually
5+1speed,manually
5+1speed,manually
CONFIGURATIONS
Power steering
with
with
with
MP3&radio player
with
with
with
A/C
with
with
with
Power window
with
with
with
Central lock
O
O
O
LSPV
with
with
with
ENGINE POWER
Engin Model
ISUZU 493
WP2.3Q110E50/D19TC1E1
LJ4A15Q
Displacement(cc)
2771
2290/1910
1499
Power(KW)/Rpm
80/3400
81/3200.75/3600
79.5/5800
Torque(N.m)/Rpm
260/2000
280/1600-2400,250/1600-2600
146/3750-4250
Company Information
Our Services
1.We are promised to reply your message within 24 hours in working days.
2. Your requirement will be solved very soon within our sales team and technology specilists team.
3.We are very glad to meet you in our factory in Zhengzhou, Henan, China. You can required to have a appointment with us in our facotry, then we will lead you to see all over the factory zone.
4. For every customer whoes visited our facotry in china, we are kindly offer a China trandional gift, free airport pickup transportation supplied for all clients.
5. We will give a excellent guide citytour once you reached our city, hope you can enjoy your business trip with us!
Packaging & Shipping
1,Attached parts and tools put into standard export box. 2,Truck semi trailer will be cleaned and covered with wax before delivery. 3,Truck semi trailer will be covered by waterproof cloth at the departure port. 4,Roll-on/Roll-off ship or bulk cargo ship is optional according to the customers' requirements. 5,Some small truck semi trailer can be put into container according to its overall dimensions.
We can ship construction machinery by various transportation tools.
(1) For 90% of our shipment, we will go by sea, to all main continents such as Middle East, Africa, Oceania and Europe, South America,etc. Either by container or RoRo/Bulk shipment.
(2) For neighborhood countries, such as Russia, Mongolia, Kazakhstan, Uzbekistanetc.
We can ship construction machinery by road or railway.
