Product Overview
Description

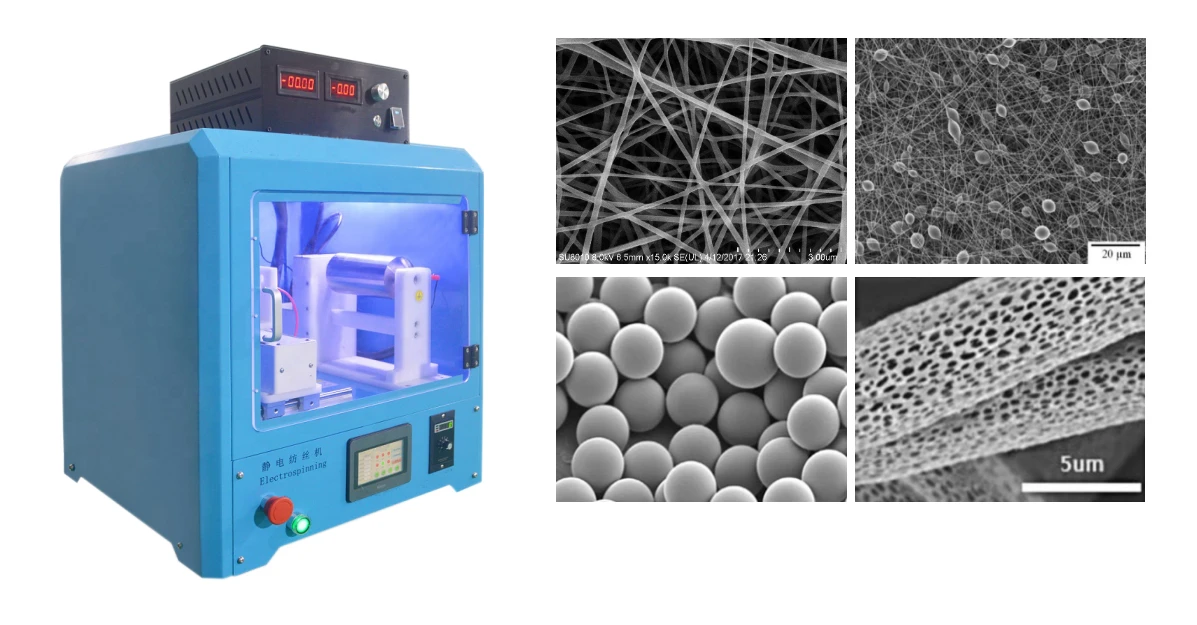

Introduction of Electrospinning Machine
The Electrospinning Machine E02-001 provides a desktop experimental platform for creating uniform nanofiber membranes in the laboratory. For the research of materials science, technical textiles, and membranes, the device is small and compact, so it is suitable for placement on the laboratory bench and is easy to use. It is an economical and practical electrospinning machine.
Features
-Desktop style, small size, low price.
-Integrated function, lab-scale professional, simple and easy to use.
-Superior performance, the device can adjust temperature and humidity.
-Nanofiber diameter range: 20-1000nm.
-More than 100 spinning materials can be used.
-Single-needle & multiple needles & coaxial needles are available.
-Various nanofiber collectors.
-CE&FCC Certification.
-Integrated function, lab-scale professional, simple and easy to use.
-Superior performance, the device can adjust temperature and humidity.
-Nanofiber diameter range: 20-1000nm.
-More than 100 spinning materials can be used.
-Single-needle & multiple needles & coaxial needles are available.
-Various nanofiber collectors.
-CE&FCC Certification.
Application
- It is very suitable for laboratory research on nanofiber membranes. It can be used for research and expansion of new materials in the fields of air filtration, water filtration, biomedicine, and new energy.
- Aims to promote research and exploration in basic materials science and help the continuous progress of new material processes.
- Aims to promote research and exploration in basic materials science and help the continuous progress of new material processes.
Technical parameter
Item | Parameters and configuration |
High voltage power supply | Output voltage DC: 0~ + 30KV, current<1mA |
CNC operating system | The 4.3-inch touch screen communicates with the control system. Control function: integrated control (operation of nozzle moving device, liquid supply system, heating, exhaust, timing, lighting, etc.) and monitoring of the status of each part. |
Liquid supply pump system | - Liquid supply mode: one push three (three-channel syringe pump); -Maximum solution volume: 20ml; -13-34G needles can be replaced at will; -Automatic liquid supply speed range: 0.01 ~ 80ml/h; -Manual liquid supply speed range: 1 ~ 20ml/min; -Applicable syringe specifications: 1, 3, 5, 10, 20ml |
Nanofiber Receiving System | -Roller collection: effective length 150mm, ø80mm; speed: 100～1000r/min; -Flat collection method: L-shaped 180mm*220mm |

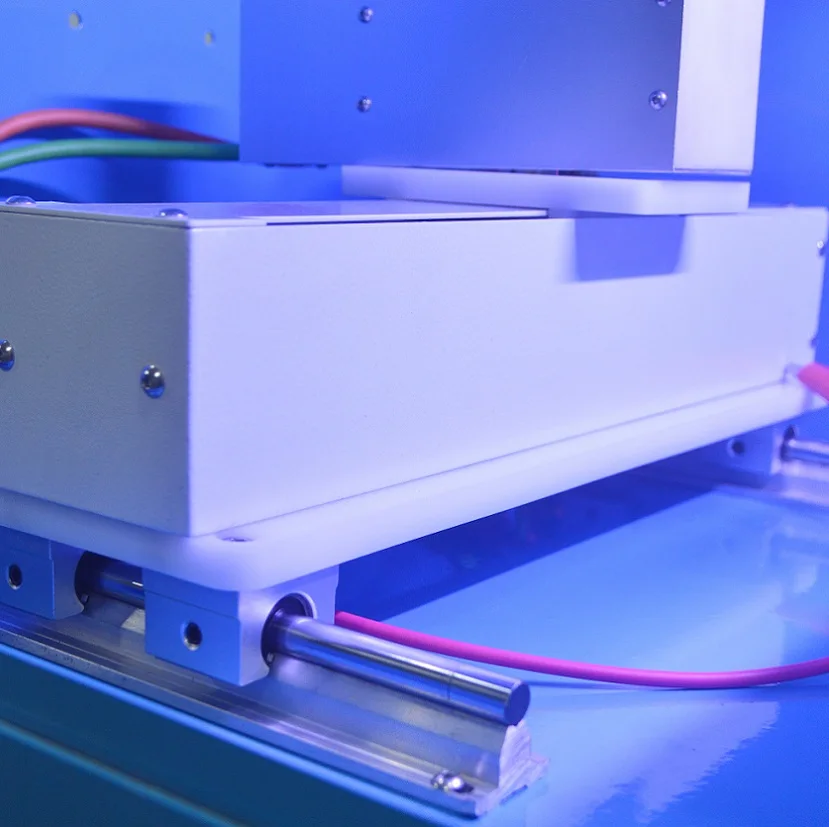

X-Y axis displacement motion system | -X-axis displacement spinning stroke: 50～200mm; -Y-axis automatic motion module: effective stroke 150mm, positioning accuracy ±0.05mm, maximum speed 24mm/s. |
Exhaust device | The exhaust air volume of the exhaust fan: 0.5m³/min. |
Heating equipment | Heating system: temperature range, room temperature ~ 40 ℃. |
Security system | -Discharge short circuit protection; running indicator light; safety signal; -Organic exhaust emission: avoid electric shock, fire, explosion, and other accidents caused by the accumulation of electric charges. |
Specifications | - Overall size of the equipment: 520mm*570mm*750mm; -Net weight: 52KG; - Color: light blue; - Doors are transparent. |
Device consumables and distribution materials
Consumables | Specifications |
1 inlet, 4outlets needle | T4A-01-00D |
22G needle | 22G |
Debug solution | PVA 20ml |
Syringe | 1、3、5、10、20ml |
Repair tool Allen wrench | Standard |
Optional
Please note: the following non-standard configurations, additional charges will be required for additional configurations
Item | Remarks | Unit Price |
Four-needle dual-channel spinneret | -Mixed spinning of two materials is possible, -Higher spinning efficiency | ¥1500 / ＄240 |
Double Coaxial Needle | Preparation of core-shell structures | ¥900 / ＄142 |
Device detail

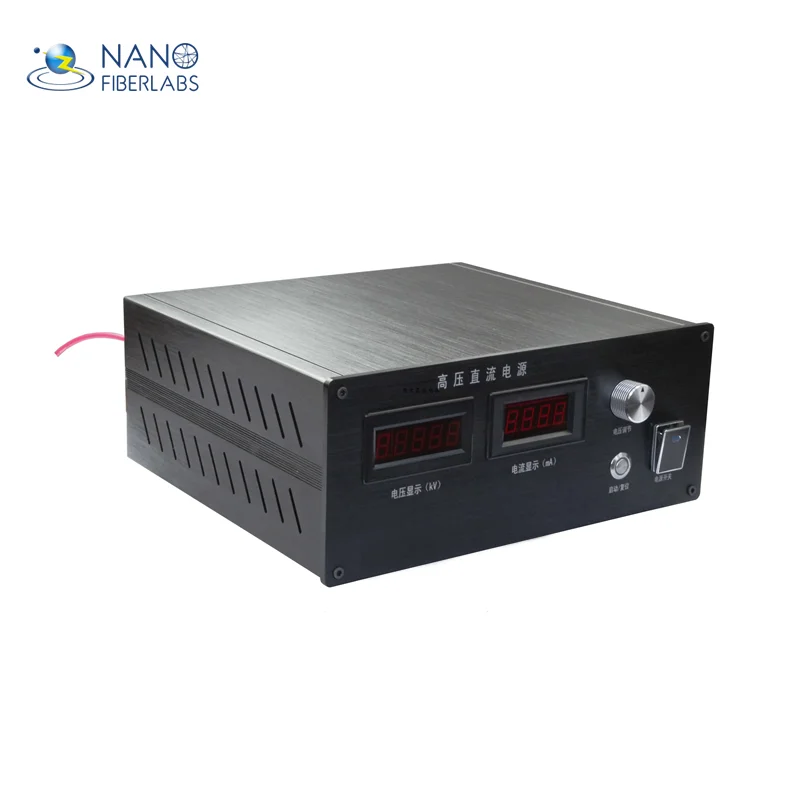

High voltage power supply
-Designed with metal shell, stable output, and strong anti-interference ability.
-Overvoltage, overcurrent, arc extinguishing, short circuit protection, better security.
-Overvoltage, overcurrent, arc extinguishing, short circuit protection, better security.

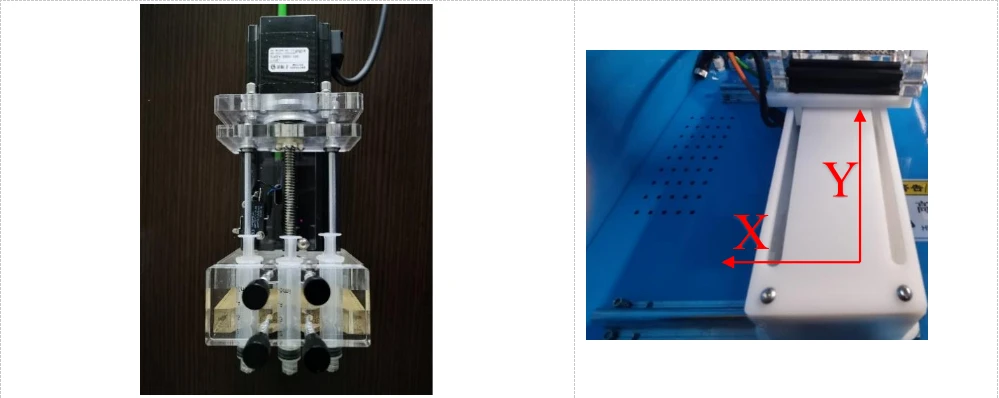

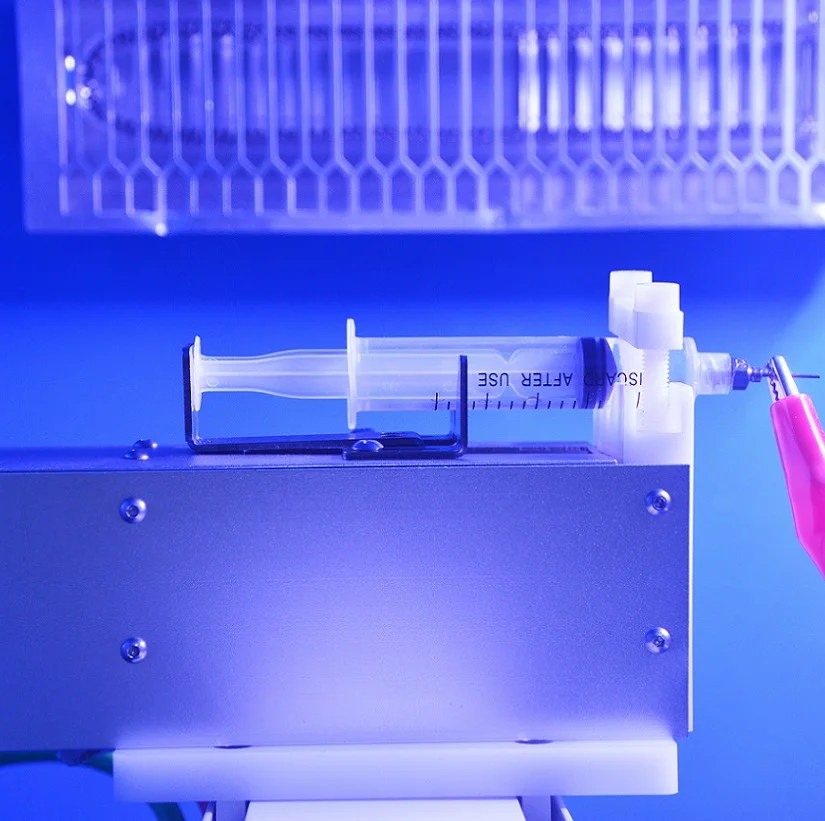

Syringe pump for electrospinning
- Syringe pump can be controlled independently, for one push three (three channel) syringe pump.
-1, 3, 5, 10, 20ml syringe pumps can be used.
- Automatic liquid supply speed: 0.01～600ml/h, manual liquid supply speed: 1～20ml/min.
- Nozzle reciprocating stroke: 50mm-200mm, spinning distance: up to 150mm.
- Large thrust, suitable for high viscosity solutions.
-It has a good isolation effect from the solution and has a long service life.
- Configured on the X-Y axis moving slide.
-1, 3, 5, 10, 20ml syringe pumps can be used.
- Automatic liquid supply speed: 0.01～600ml/h, manual liquid supply speed: 1～20ml/min.
- Nozzle reciprocating stroke: 50mm-200mm, spinning distance: up to 150mm.
- Large thrust, suitable for high viscosity solutions.
-It has a good isolation effect from the solution and has a long service life.
- Configured on the X-Y axis moving slide.

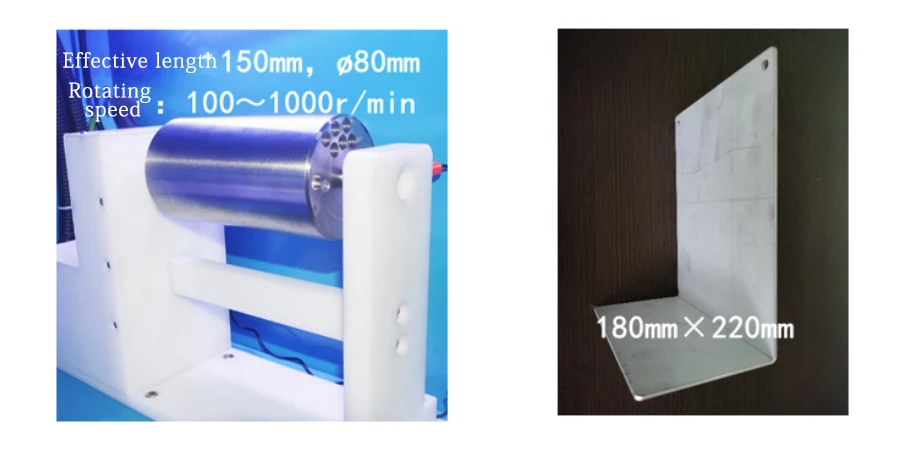

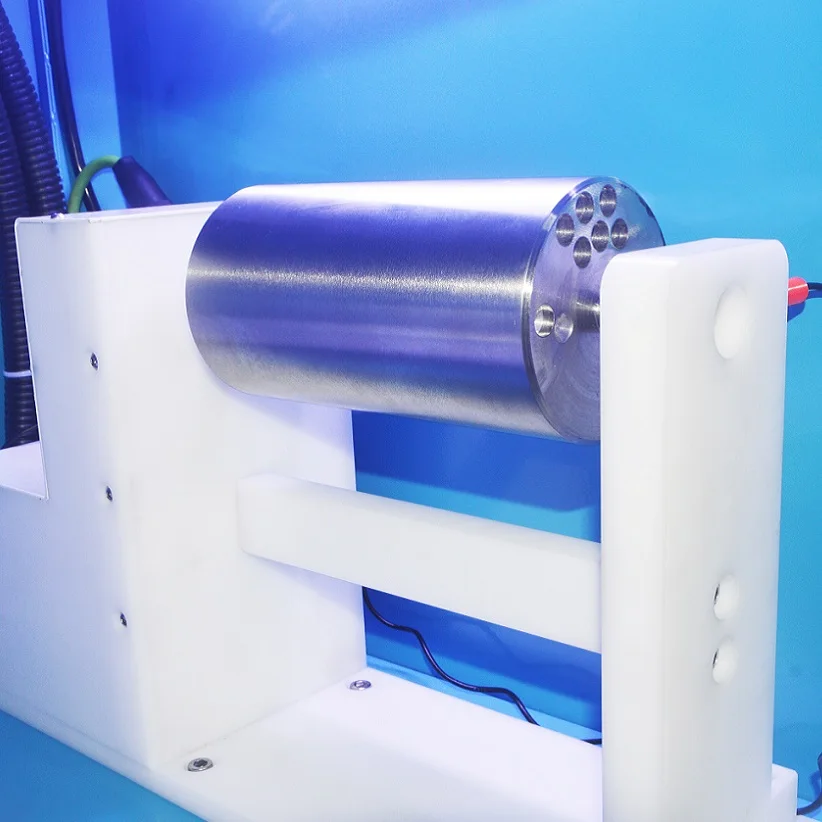

Nanofiber collector
- Equipped with roller collector and L-shaped flat collector.
-The roller is controlled by a motor, with high speed and high precision; using material SS316.
- Roller collection: effective length 150mm, straight ø80mm; speed: 100～1000r/min.
-Flat collection method: L-shaped 180mm*220mm.
-The roller is controlled by a motor, with high speed and high precision; using material SS316.
- Roller collection: effective length 150mm, straight ø80mm; speed: 100～1000r/min.
-Flat collection method: L-shaped 180mm*220mm.

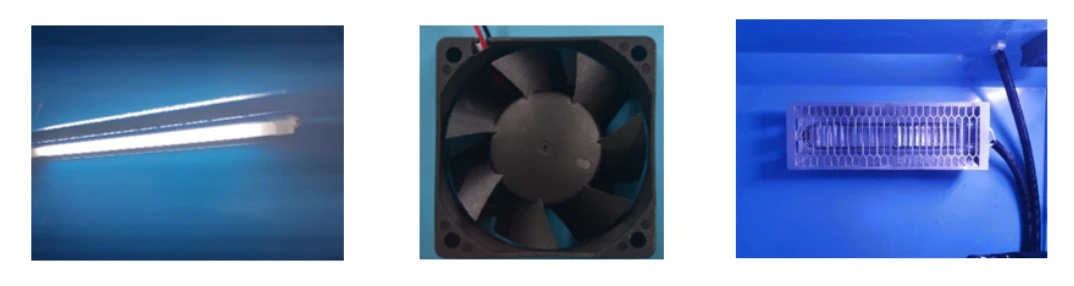

Device internal environmental control
-LED light source, the spinning process is visible.
-Built-in exhaust fan is used to cool the interior during the working process and help the solvent to evaporate.

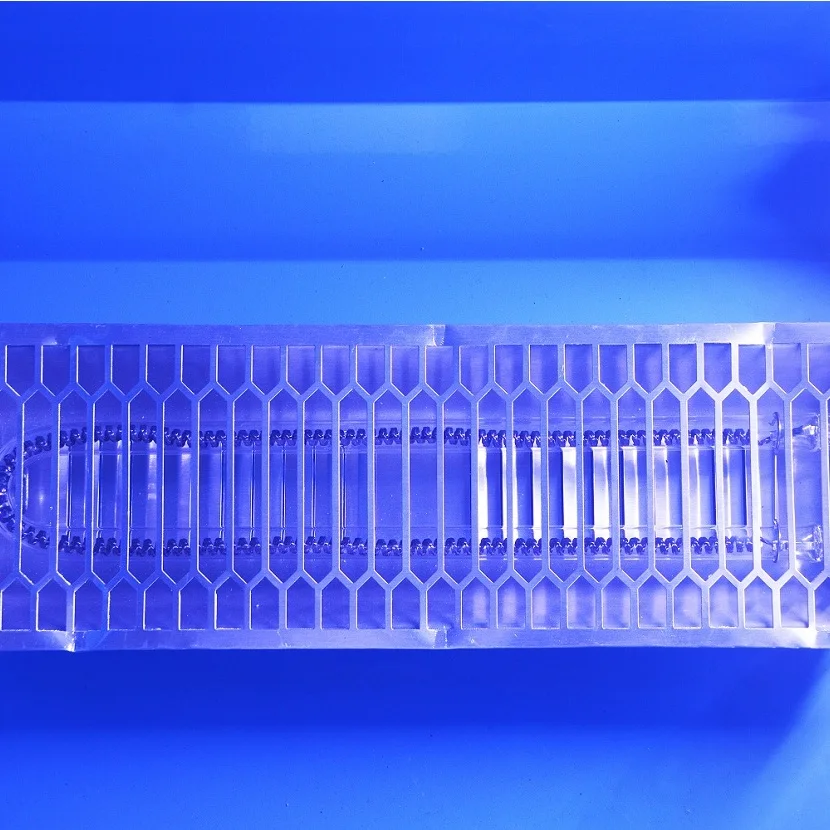

-The heater temperature can reach 40℃, the temperature is adjustable, the accuracy is ±1℃, and it has the function of dehumidification.
-Built-in exhaust fan is used to cool the interior during the working process and help the solvent to evaporate.
-The heater temperature can reach 40℃, the temperature is adjustable, the accuracy is ±1℃, and it has the function of dehumidification.

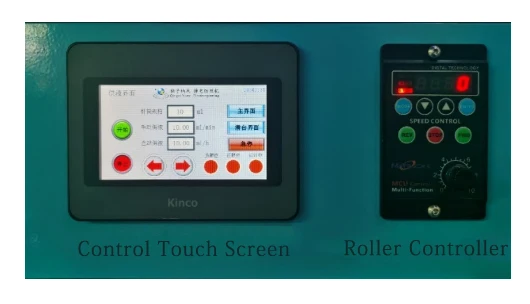

Device operation panel
- The control function of the device is integrated into the device panel.
- Detect the operation of each part of the system during equipment operation.
- Detect the operation of each part of the system during equipment operation.
Consumables and Accessories Details

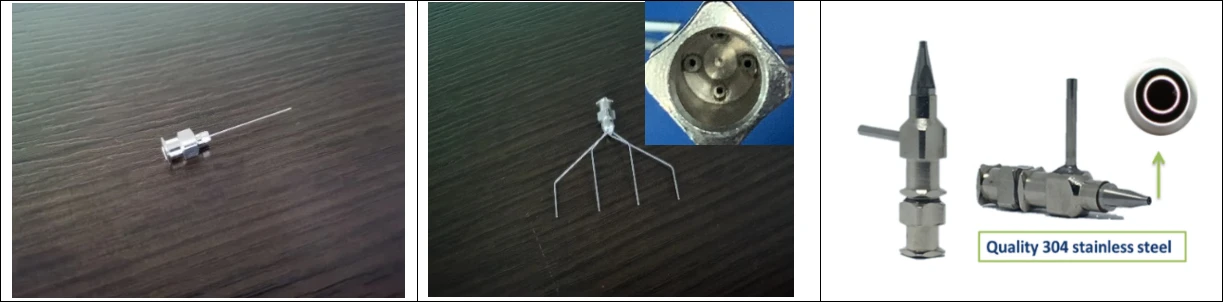

22G electrospinning needle 1 inlet, 4outlets needle Coaxial needle

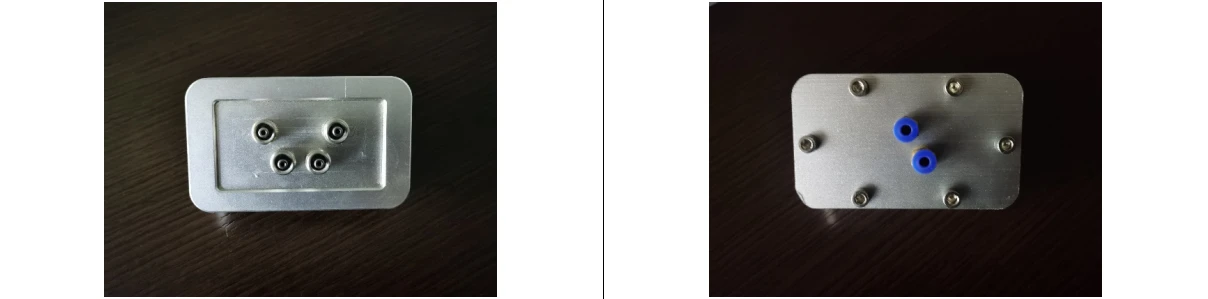

four-needle dual-channel spinneret
