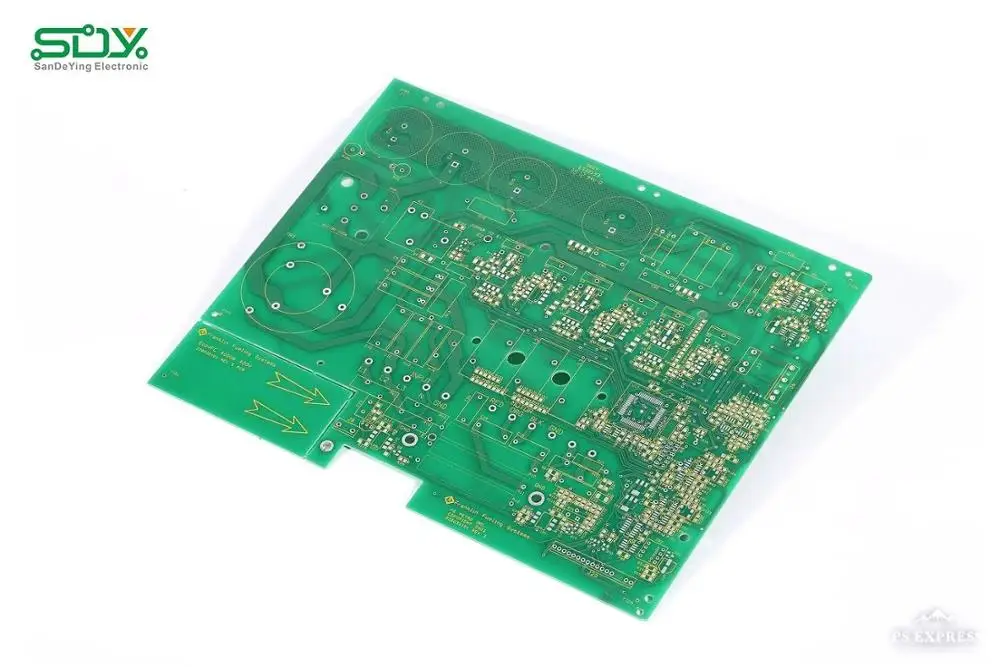

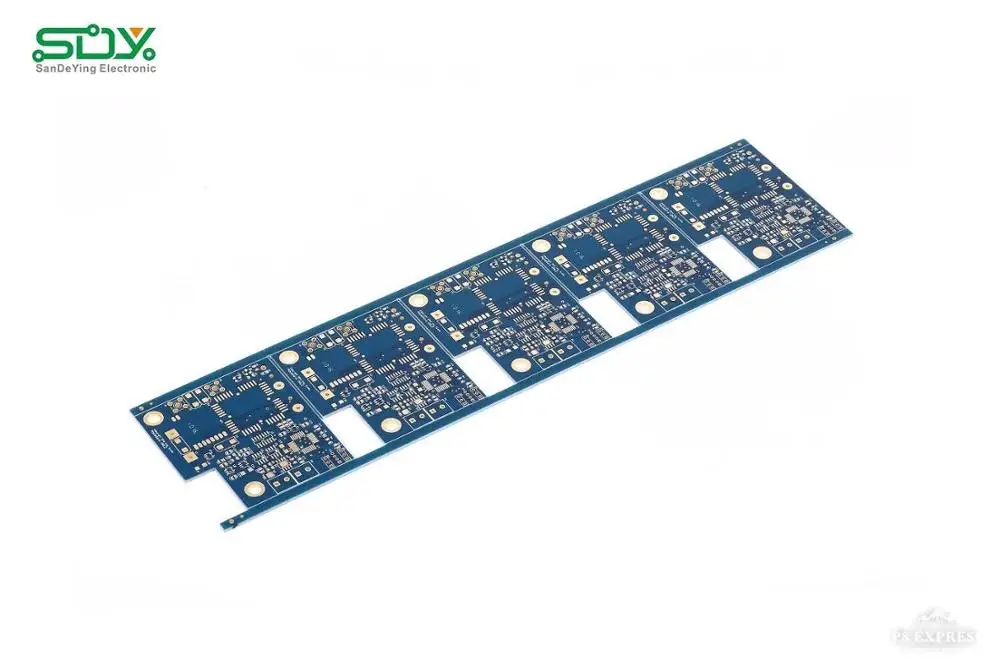

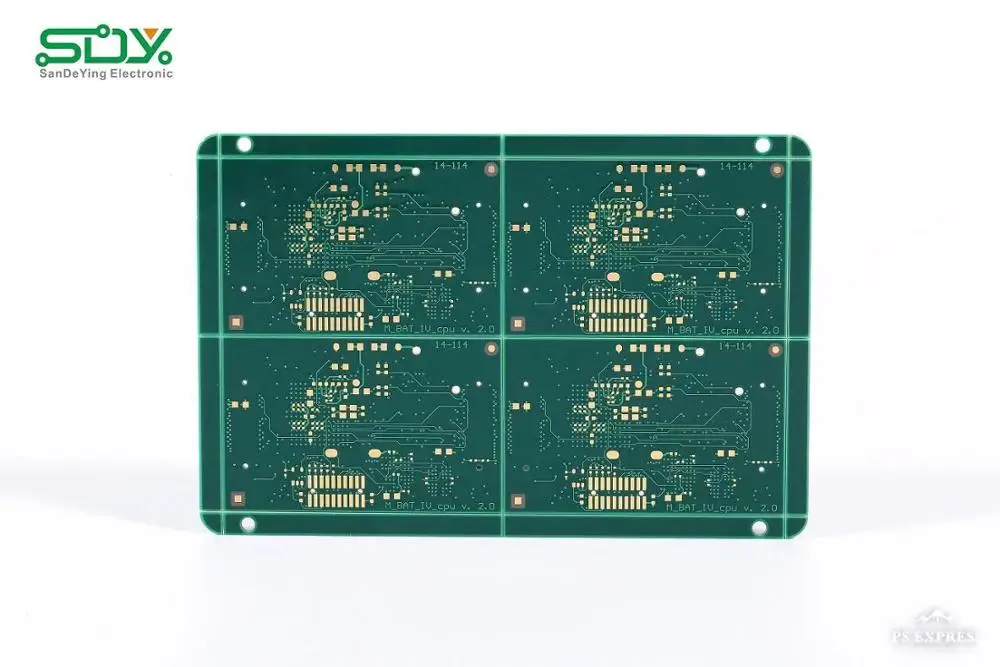

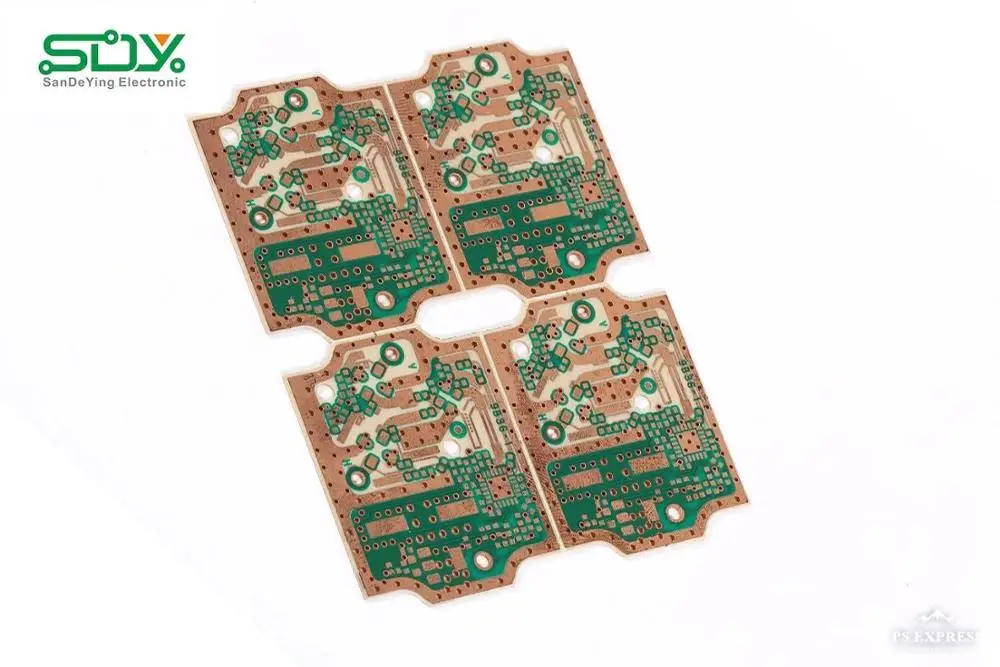

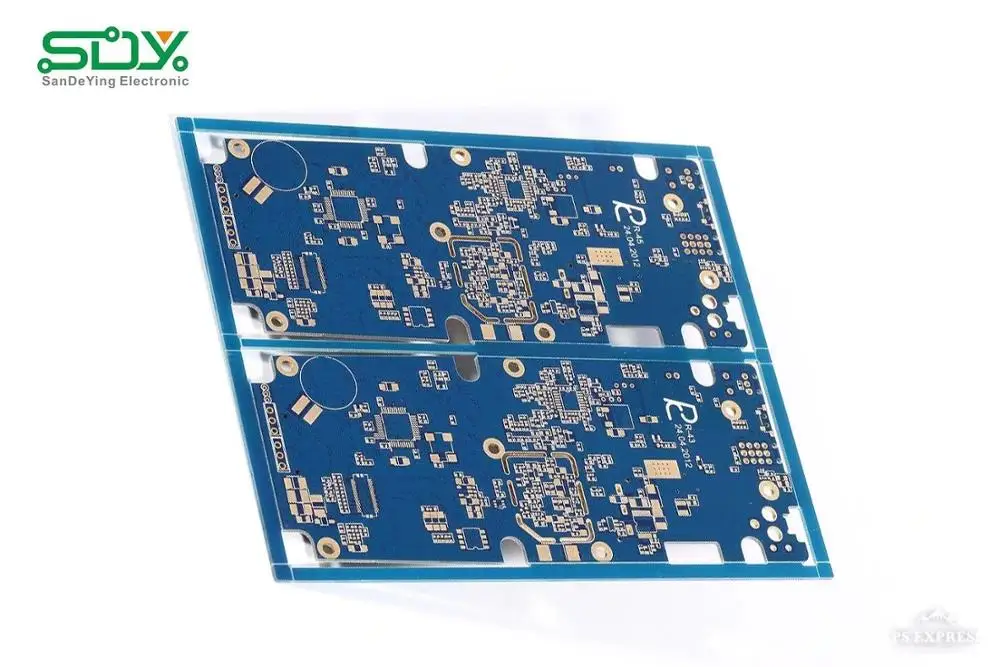

Shenzhen OEM Electronics Printed Circuit Board Clone Board PCB Board Low Cost PCB
- Category: >>>
- Supplier: Shenzhen Sandeying Electronic Co. Ltd.
Share on (62528285368):
Product Overview
Description
Product Description
Why choose us
Quality
ISO, TS16949 and UL certified factory, manufactures RoHS compliant PCB products.
Optimized supply chain management ensures good quality of raw materials.
Experience
More than 12 years experience in PCB production.
Experienced professional engineers to manage the production and offer professional suggestions to reduce cost and improve quality.
Experienced sales person to arrange quotation, order, shipment and after sell feedback.

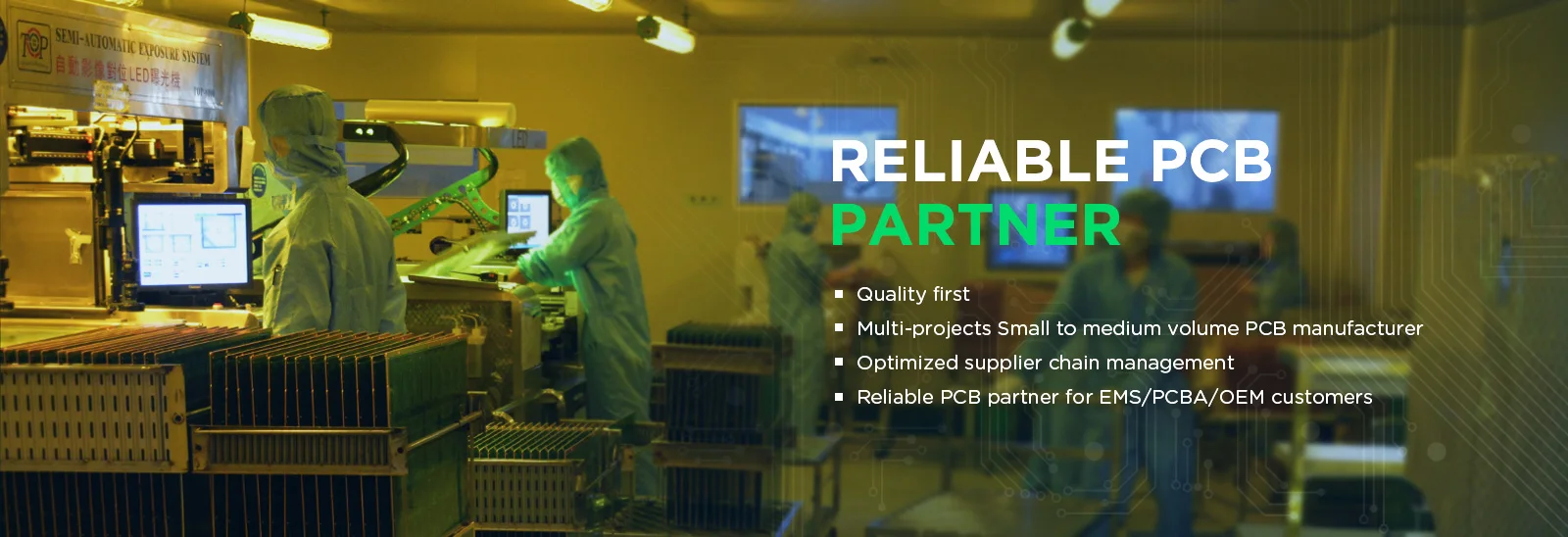

Equipment
Advanced automation production facilities greatly improve production efficiency and products quality.
Complete production line to finish all PCBs in factory.
Service
Quick response and take actions immediately for any queries or feedback.
Quick turn and multi-projects small to medium volume production service.
All round technical support from design to production and shipment.
Responsible after sell service on customer feedback.

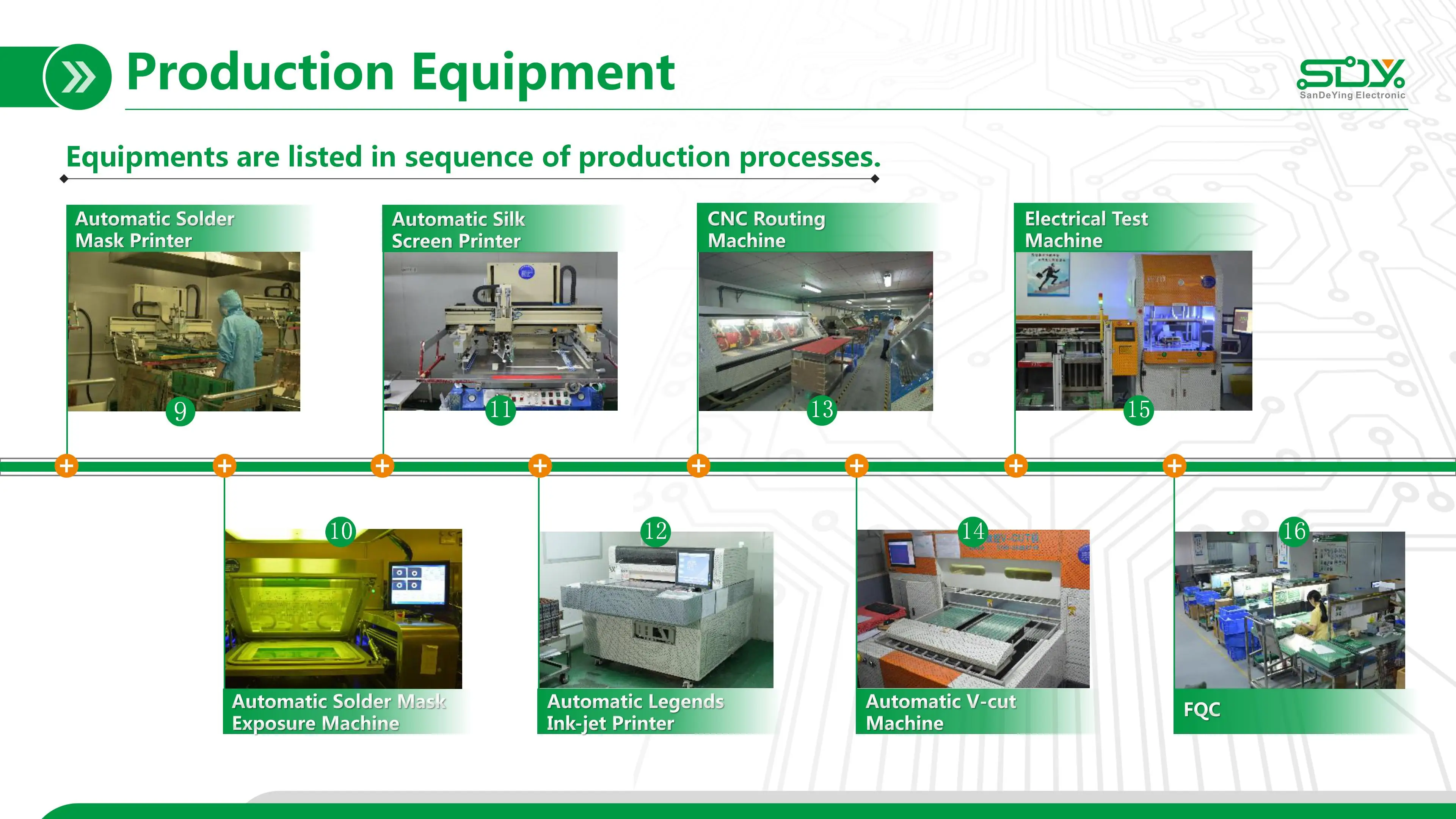

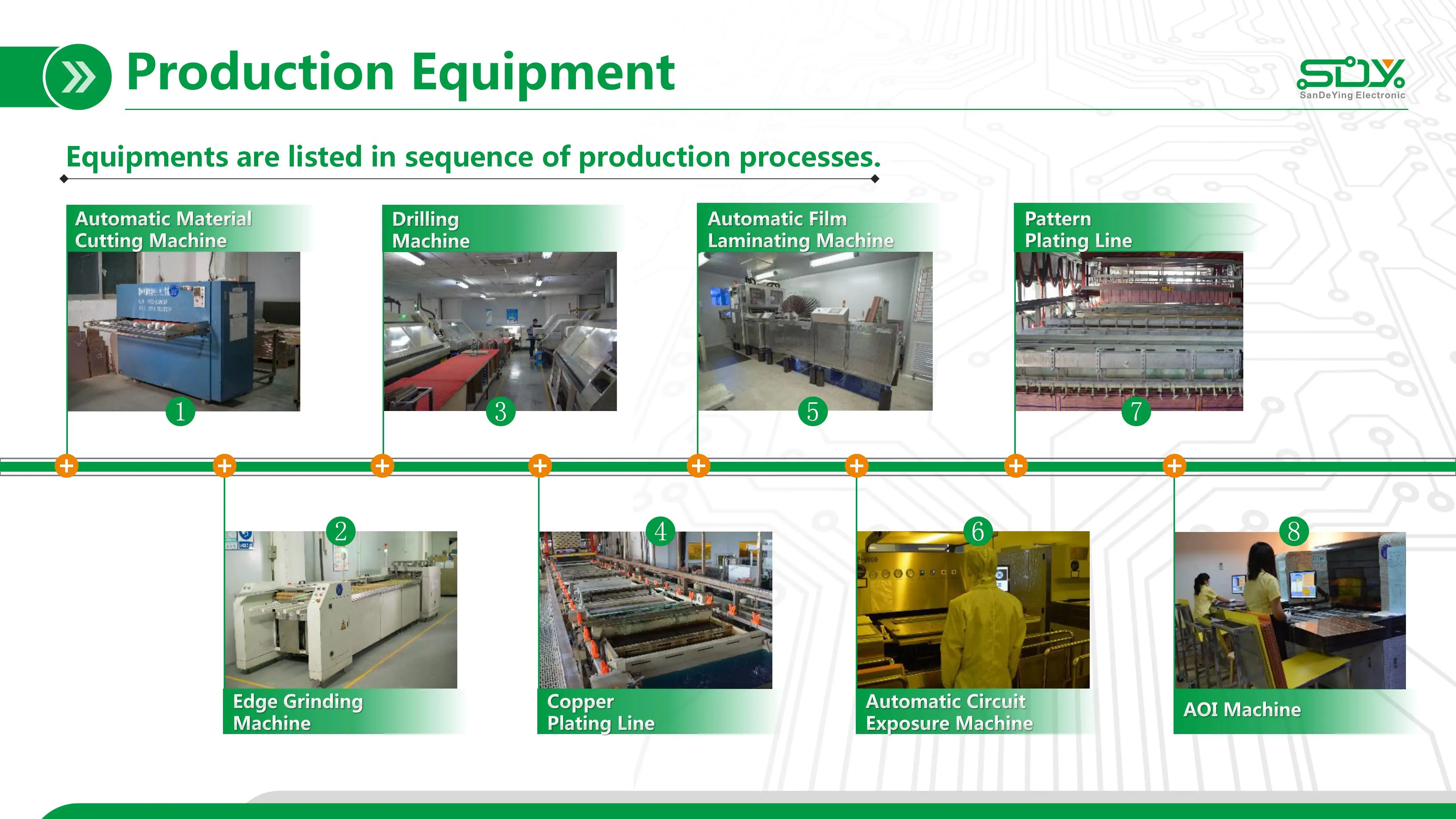

Production Equipment

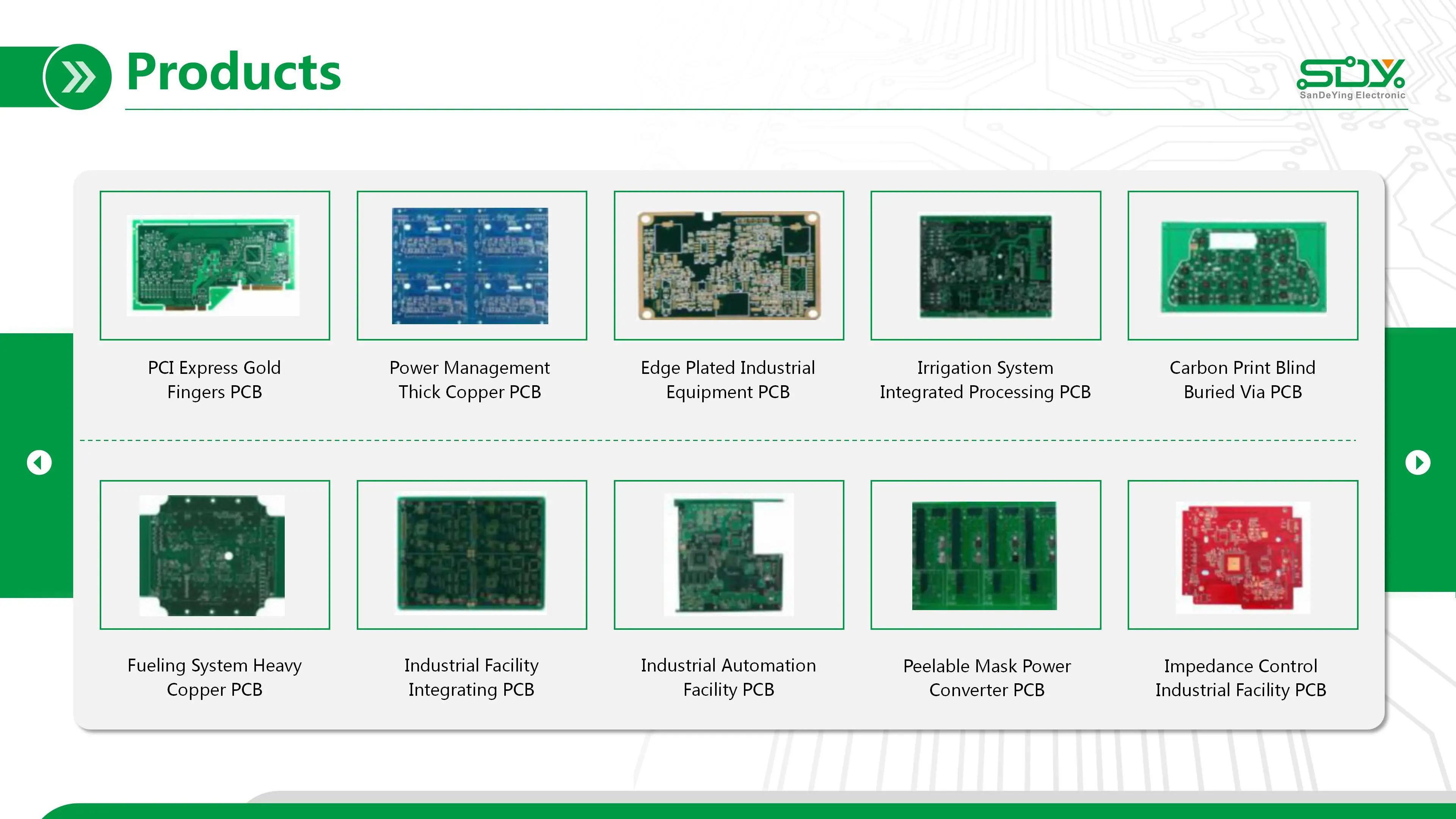

Related Products
Item | Capability | ||||||
Monthly capability | 25000sqm/month | ||||||
Layer | 1-14 Layers | ||||||
Board types | Normal FR-4 PCB, high TG FR-4 PCB, heavy copper PCB, impedance control PCB, high frequency PCB, FPC, rigid-flex PCB, aluminum PCB, copper based PCB, ceramic based PCB, ultra-thin PCB, and so on. | ||||||
Surface treatment | HASL, RoHS-HASL, Immersion gold, Plating gold, Gold fingers, OSP, Immersion Silver, Chemical Tin | ||||||
Solder mask colour | Green, Blue, Red, Black, Yellow, White | ||||||
Silk screen colour | White, Black, Yellow, Blue, Red, Purple | ||||||
Tolerance | Min board thickness tolerance: +/-0.1mm | ||||||
PTH diameter tolerance: +/-0.05mm NPTH diameter tolerance: +/-0.025mm Hole location tolerance: +/-0.05mm | |||||||
Min outline tolerance: +/-0.1mm | |||||||
V-cut dept tolerance: +/-0.1mm | |||||||
Technical Specification | Min line width/space: 0.05/0.05mm | ||||||
Max PTH copper thickness: 35um | |||||||
Min hole diameter: 0.1mm | |||||||
Min pad ring: 0.05mm | |||||||
Max copper thickness: 6oz | |||||||
Max board size: 1200*560mm | |||||||
Board thickness: 0.1-7.0mm | |||||||
Solder mask bridge: ≥0.08mm | |||||||
Aspect ratio: 10:1 | |||||||
Via plugging capacity: 0.2-0.6mm | |||||||
Board bow and twist: ≤0.5% | |||||||
Au, Ni, HASL thickness: 1, Immersion gold: Au 1-4u” 2, Gold fingers: Au 1-50u” 3, Plating gold: Au 1-5u” 4, Ni thickness: 100-200u” 5, HASL thickness: 1-50um 6, OSP thickness: 0.3-0.5um | |||||||

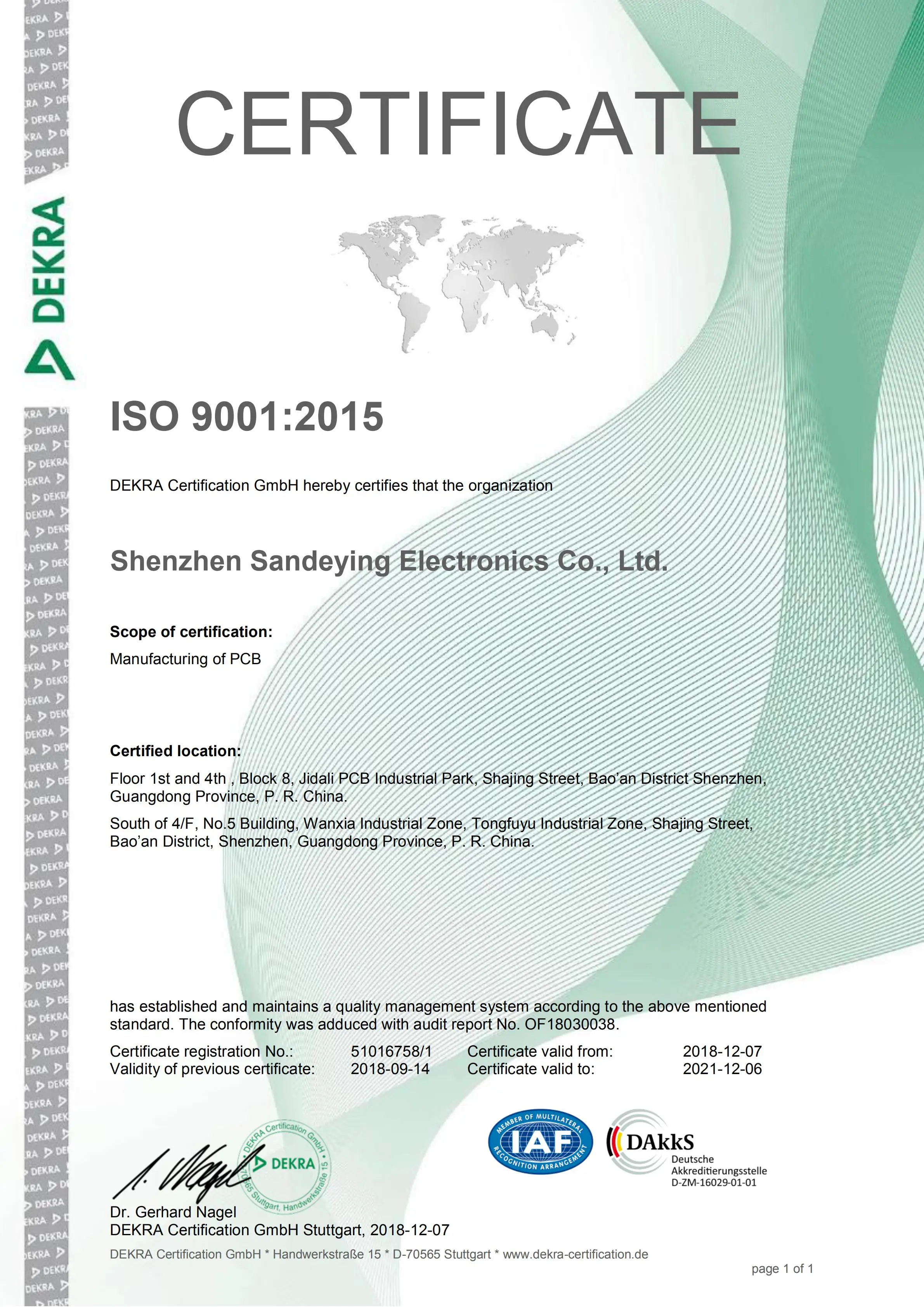

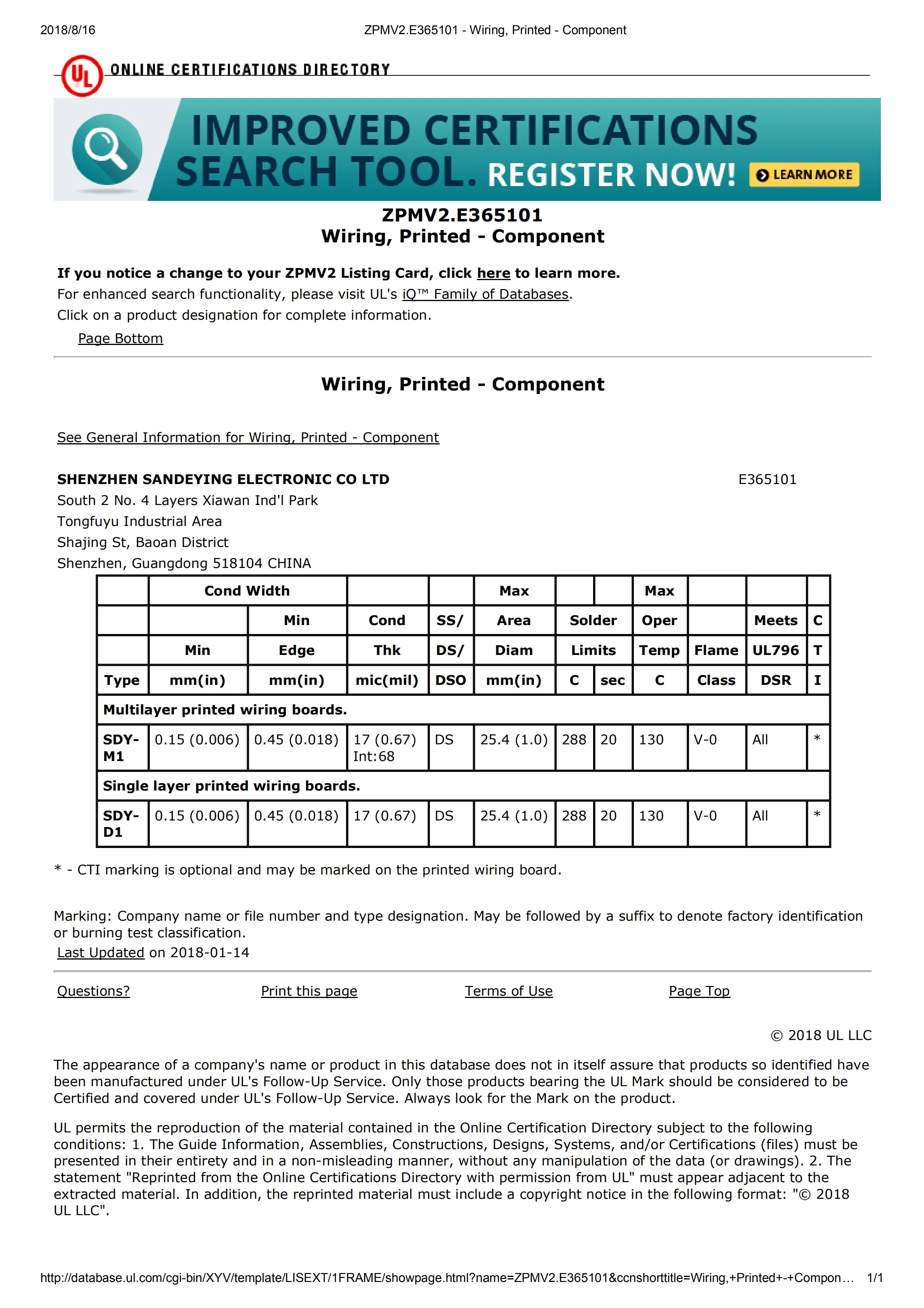

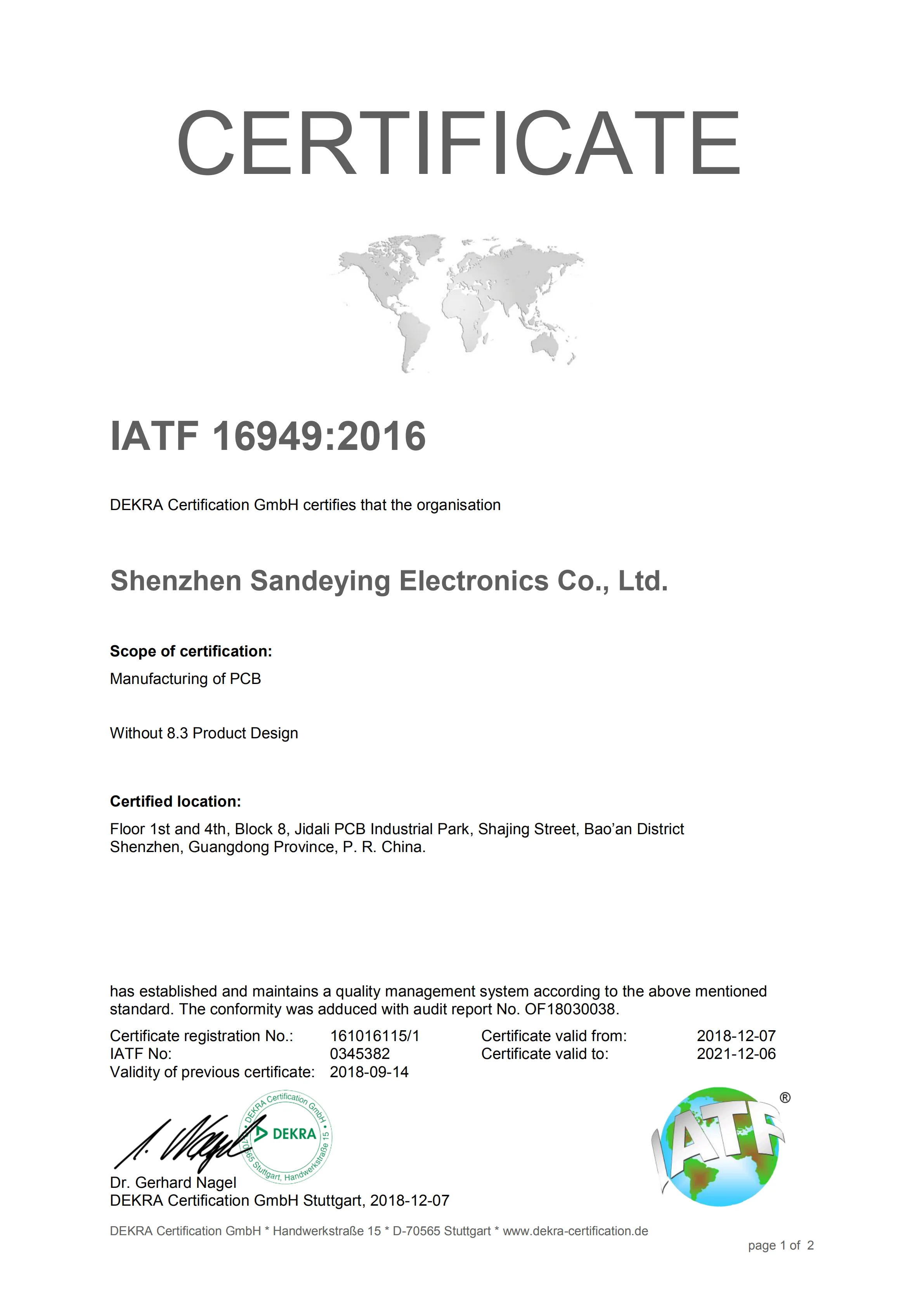

Certificate
Shipping Method and Payment terms:
1. By DHL, UPS, FedEx, TNT using clients account.
2. We suggest you using our DHL, UPS, FedEx, TNT forwarder.
3. By EMS (Usually for Russia Clients), price is high.
4. By sea for mass quantity according to customer's requirement.
5. By customer's Forwarder
6.By Paypal,T/T,West Union,etc.
We sincerely hope to establish longtime and friendly business relationship with you. If you have interest in our product, please don't hesitate to contact us
1. By DHL, UPS, FedEx, TNT using clients account.
2. We suggest you using our DHL, UPS, FedEx, TNT forwarder.
3. By EMS (Usually for Russia Clients), price is high.
4. By sea for mass quantity according to customer's requirement.
5. By customer's Forwarder
6.By Paypal,T/T,West Union,etc.
We sincerely hope to establish longtime and friendly business relationship with you. If you have interest in our product, please don't hesitate to contact us
