3300W BYCON DMP 352 diamond 3 speed power core drilling machine
- Category: >>>
- Supplier: Hangzhou Bycon Industry Co. Ltd.
Share on (62528294565):
Product Overview
Description

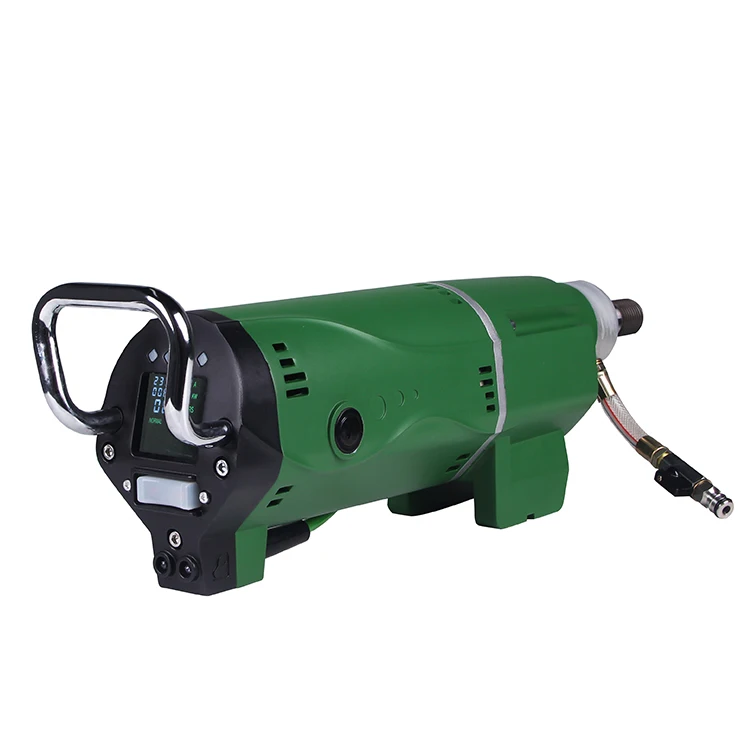

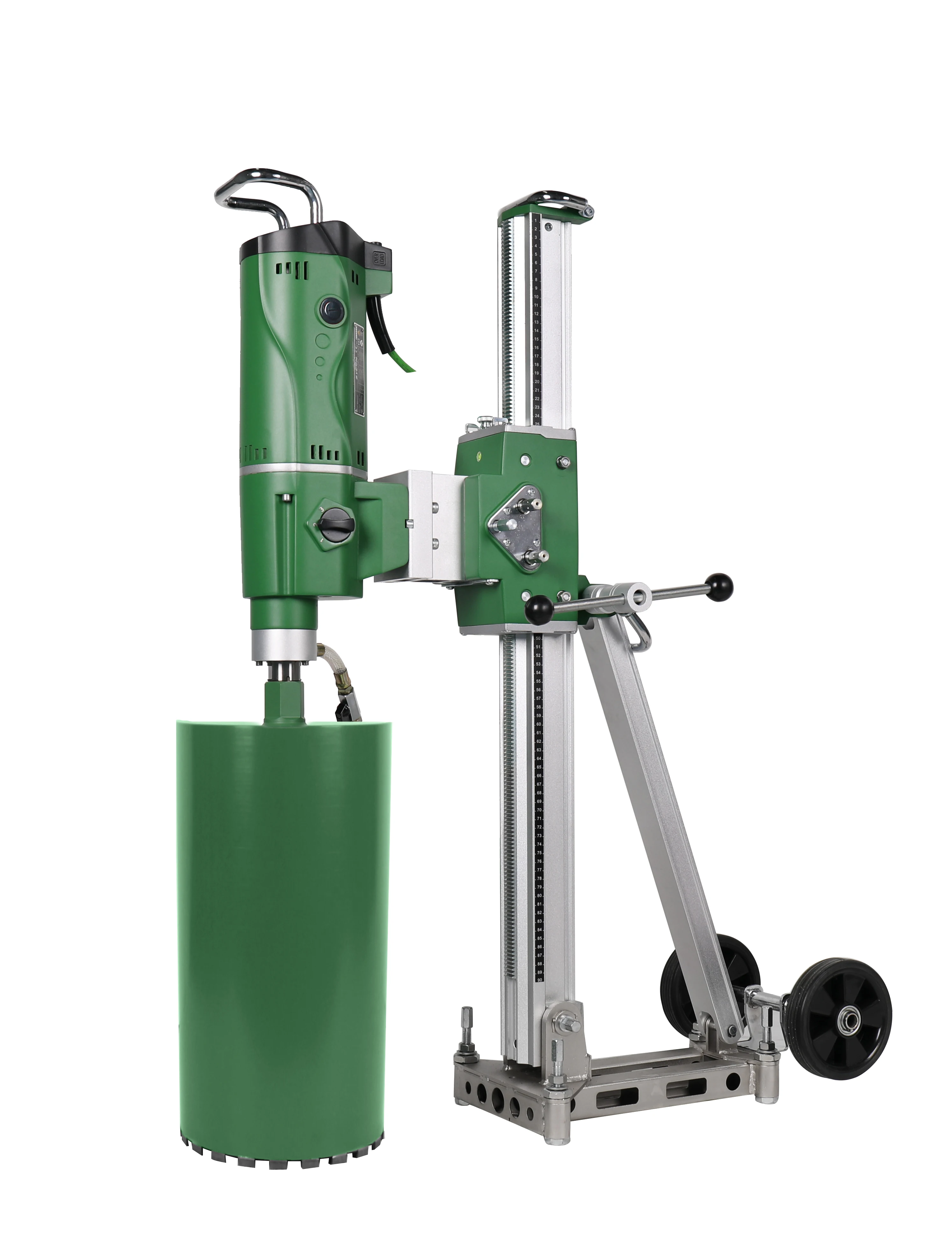

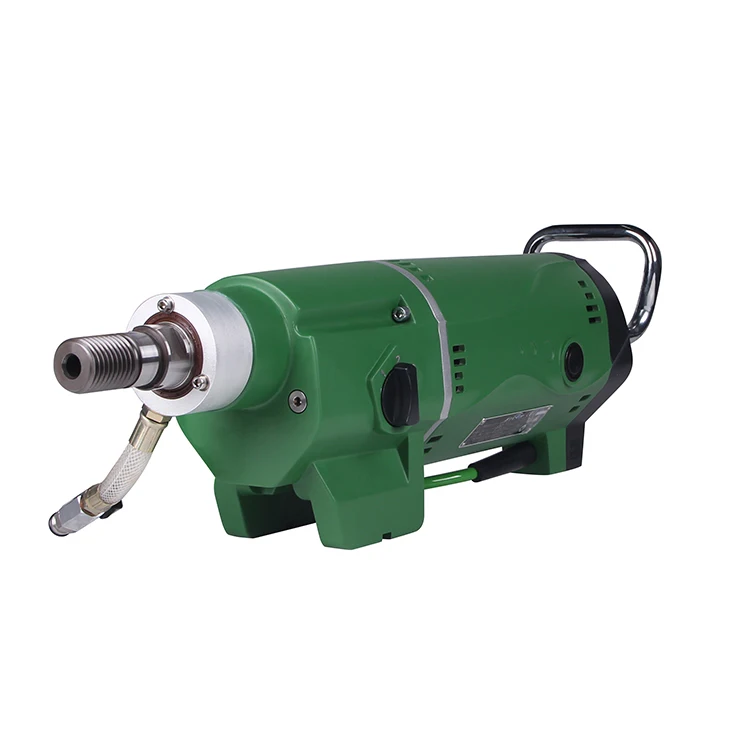

3300W BYCON DMP-352 diamond 3 speed power core drilling machine
Product Description
Specification:
Model | DMP-352 |
Art number | 1123352 |
Input power | 3300W |
Output power | 2100W |
Voltage | 230V,50HZ / 120V,60HZ |
No load speed | 350/700/1100 RPM |
Max.ø concrete | 402mm |
Spindle thread | 1 1/4" -7 UNC |
N.W | 13.5KG |
Features:
1. Oil base three-speed gear regulation
2. Electronic smart control for motor: our motor is equipped with Soft Start, PRCD, Overloading protection. Soft start helps the motor start slowly and then reach to no load speed in a few seconds. Also, it has the function to make motor stop working if the currency overloading.
3. Mechanical slipping clutch equipped: as a pro concrete core drill motor, it is one of the irreplaceable parts in machines. Mechanical gives more safety to operators, if the electronic protector out off work, it will work for protection. Maximize motor safety.
4. External carbon brushes: say no to the complex replacement of carbon brushes. Our carbon brushes inserted in the shell even can use a coin to open its cover.
5. New material armature: a conductive coil, bigger than the common in the market.
6. KHGEARS gears: polished gears with high abrasive resistance. In the function of better cooling and increase motors durability.
7. Mounting holes distance 79 x 41mm: this is a standard size for most leading core drill machine brands in Europe. So our core drill motor (stand) can be used with other Europe brands without changes.

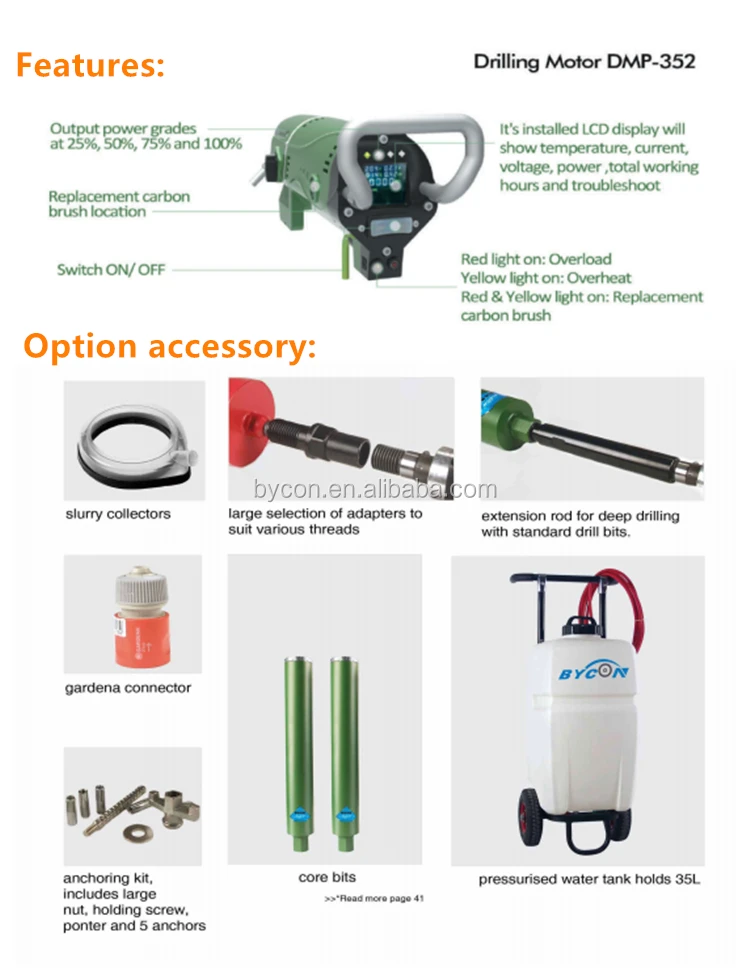

8. LCD display: It's installed LCD display will show temperature, current, voltage overlad protection and carbon brush replacement.
9.LED indicator light: showing repair warning of overloading and carbon brush replacement.
10. Magnesium alloy for shell: for lightweight.
2. Electronic smart control for motor: our motor is equipped with Soft Start, PRCD, Overloading protection. Soft start helps the motor start slowly and then reach to no load speed in a few seconds. Also, it has the function to make motor stop working if the currency overloading.
3. Mechanical slipping clutch equipped: as a pro concrete core drill motor, it is one of the irreplaceable parts in machines. Mechanical gives more safety to operators, if the electronic protector out off work, it will work for protection. Maximize motor safety.
4. External carbon brushes: say no to the complex replacement of carbon brushes. Our carbon brushes inserted in the shell even can use a coin to open its cover.
5. New material armature: a conductive coil, bigger than the common in the market.
6. KHGEARS gears: polished gears with high abrasive resistance. In the function of better cooling and increase motors durability.
7. Mounting holes distance 79 x 41mm: this is a standard size for most leading core drill machine brands in Europe. So our core drill motor (stand) can be used with other Europe brands without changes.
8. LCD display: It's installed LCD display will show temperature, current, voltage overlad protection and carbon brush replacement.
9.LED indicator light: showing repair warning of overloading and carbon brush replacement.
10. Magnesium alloy for shell: for lightweight.
Packaging & Shipping

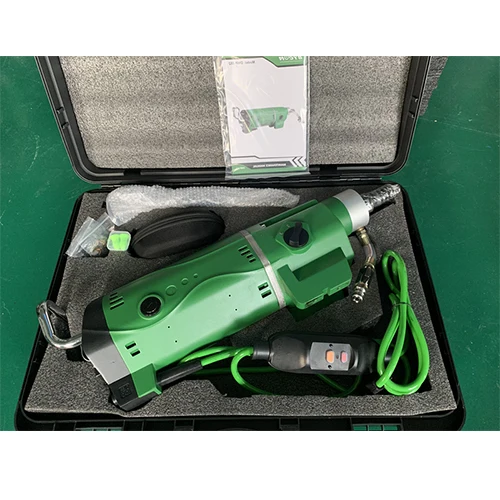

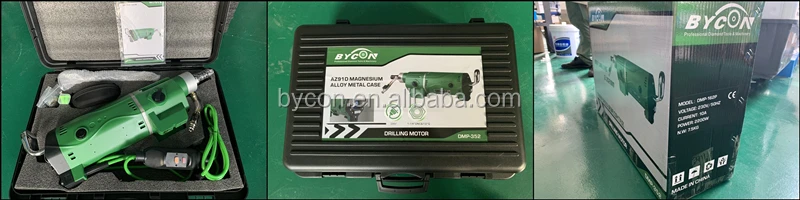

Packing: BMC carry case 63.6*46.3*22cm
Shipping:
Shipping Notice:
1.Less than 45 KG , Door to Door express (DHL, FedEx, TNT, etc.) is better
Sending details warehouse address for checking cost
2.More than 45 KG, Air freight is more cost-efficient
Sending nearest airport name for checking cost
3.Heavy duty or bulk order, sea freight is normally selection
Sending nearest seaport name for checking cost
Our Services
SALES & SERVICE
AS a customer-oriented company, we try to put ourself in customer's position and carry out daily operations in an efficient manner.
To us,sold a machines is not the end of the deal but the start of a partnership and friendship.
* A well organized professional sales-support team
* Export to more than 40 countries
* OEM orders and customers' drawing are welcome
* NO MOQ
* Up to 1 year quality warranty
* Quick response
* Rapid parts supply for after service
We are keen to listen to our customers' voice and meet their demands,wore more flexible and react more quickly,we keep building reputation for honest and reliable business conduct among our worldwide customers. If you need more details about our products, please feel free to let us know.
To us, your satisfaction is our final purpose.
Company Information
In the 2005s a German came to China and brought the latest German technology in diamond core drilling industry. Then a new China-Germany joint venture company was established in 2005.
Armed with little more than determination we produced our first professional core drill rig and core drill motor with German design and technology.
As the years passed,we continued the tradition of innovation and technical achievements, now we have two brands in our company. Bycon for diamond tools and construction machinery. Thrall for petrol tools include petrol post driver, petrol breaker, petrol hammer drill...
FAQ
1.Could I put my LOGO on it?
Yes, As long as the order quantity reach to the MOQ.
2.Could I paint my own color?
Yes, As long as the order quantity reach to the MOQ.
3.Could I order trail small order?
Yes,we have no MOQ for standard version products. The price is different from different order quantity.
4.What is the delivery time?
Normally 15-30 days after payment in general condition.
5.What points need to be confirmed before placing the order?
Voltage and frequency,Plug type.
