LR LINK PCIe v3.0 x8 10Gb Quad Port 4*SFP 10 Gigabit Ethernet network card Fiber Server Adapter
- Category: Network Cards >>>
- Supplier: Shenzhen,Lianrui,Electronics,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Latest 10gb SFP+ Ethernet network adapter nic Marvell Qlogic quad multi port lan card
Overview:
LRES1005PF-4SFP+ is a PCI Express v3.0 x8 quad optical port 10G Ethernet server adapter. based on the Qlogic QL41104A solution. Designed for high-volume converged network applications, the adapter is backward compatible with PCIe v2.1/v2.0/v1.1. The adapter delivers dual-port duplex throughput of up to 40GB in a PCI Express v3.0 x8 slot.
This Ethernet fiber-optic network card (LRES1005PF-4SFP+) supports stateful and stateless offloading, and includes functions such as network virtualization offloading, storage offloading, etc., and can be simplified with the switch through FastLinQ SmartAN without user intervention.
Supports CIFS, NFS for network storage and RoCE, iWARP to support RDMA applications and use cases, supporting all offload traffic types on each port. This feature offload provides outstanding storage and network performance, as well as low CPU utilization, which significantly improves system performance. The sideband interface (NC-SI) of the network controller is also supported. Communication between the host and the management controller (BMC) is supported on top of the NC-SI to allow high-speed communication between the localhost and the BMC or management controller (MC).
Features
·Quad SFP+ Connectivity
·PCI Express (PCIe) v3.0 (8.0GT/s) x8 lanes
·Network Virtualization
·Boot support (PXE, UEFI, iSCSI, FCoE)
·IEEE 802.1q VLAN support with VLAN tag insertion
·Low profile & full-height bracket
Specification
Controller | Qlogic QL41104A |
Baffle Height | Full height & half height |
Fiber Type | 10GBase-SR,10GBase-LR,10GBase-ER, 10GBase-ZR,10GBase-LRM,10GBase-Cu |
Power Consumption | 11.8W |
System Support | Windows 10 |
Windows Server 2008 R2/2012 R2/2016 R2/2019 R2 | |
CentOS / RHEL 7.4 or later | |
Ubuntu 16.10 or later | |
Linux Kernel 4.x/5.x or later | |
VMware ESXi 6.x or later | |
Bus Type | PCI Express v3.0 (8.0GT/s) x8 , compatible x16 |
Data Rate per Port | 10000MbE |
Connector | 4*SFP+ |
Standards Compliant | IEEE 802.3ae 10GBase-X IEEE 802.3x Full Duplex and flow control IEEE 802.3az Energy Efficient Ethernet (EEE) IEEE 802.3ad IEEE 802.1Q VLAN IEEE 802.1Qaz IEEE 802.1Qbb IEEE 802.1AS IEEE 802.1AX |
RDMA(RoCE,iWARP) | Yes |
iSCSI | No |
WoL | No |
Jumbo Frames | Yes |
DPDK | Yes |
PXE | Yes |
FCoE | No |
VMDq,SR-IOV | Yes |
IPsec | Yes |
Network Virtualization | VXLAN,geneve,NVGRE |
Operating Temperature | 0 ℃ to 55 ℃ (-13 ℉ to 158 ℉) |
Storage Temperature | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉) |
Storage Humidity | Maximum: 90% non-condensing relative humidity at 35 ℃ |
Size (mm) | 163.6*120*21 |
Weight (g) | * |
LED Indicators | Yellow Link + Green Blink |

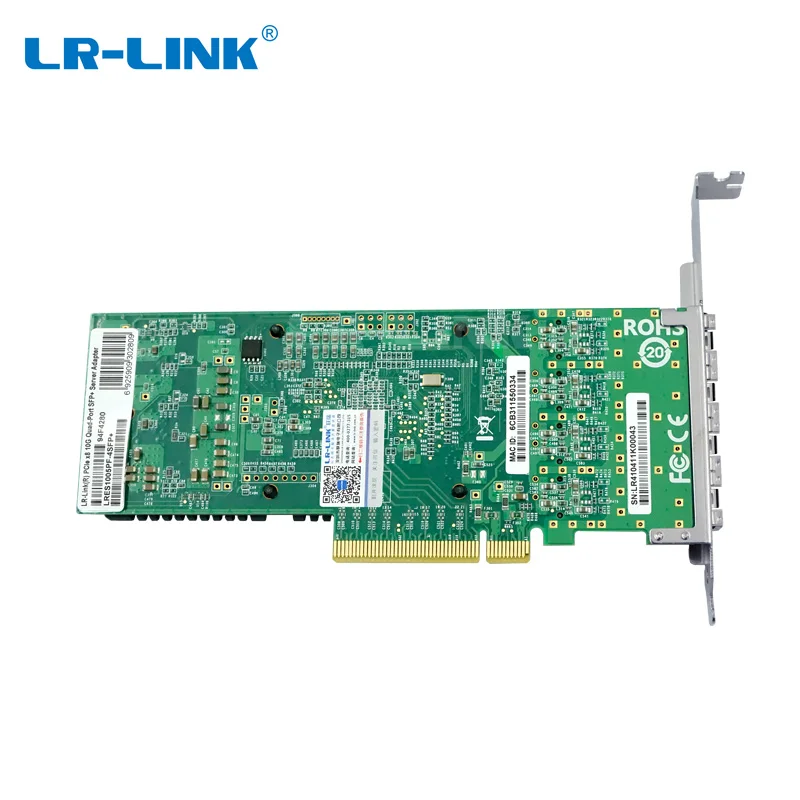

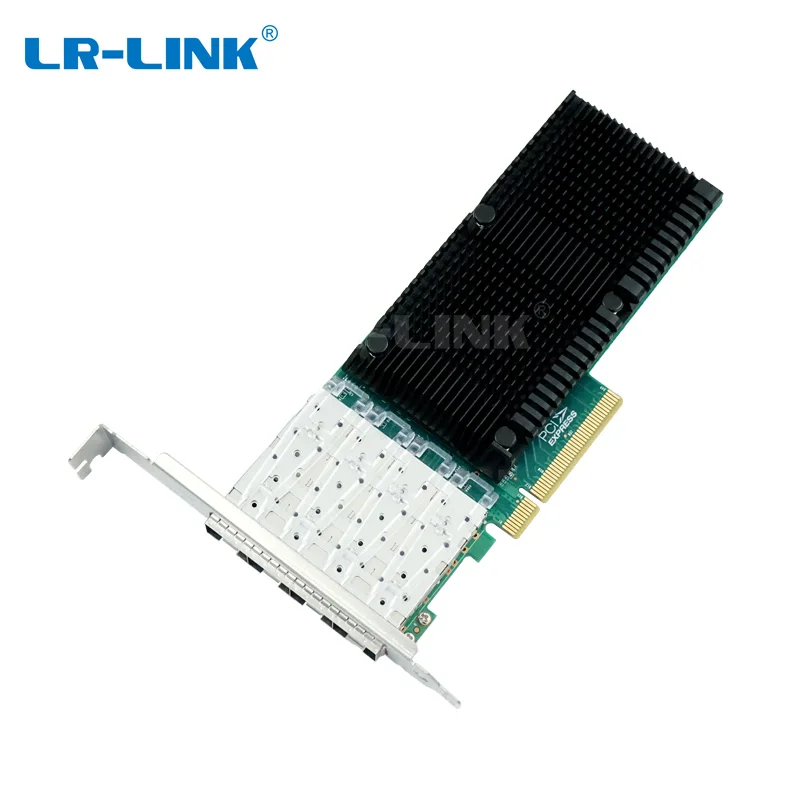

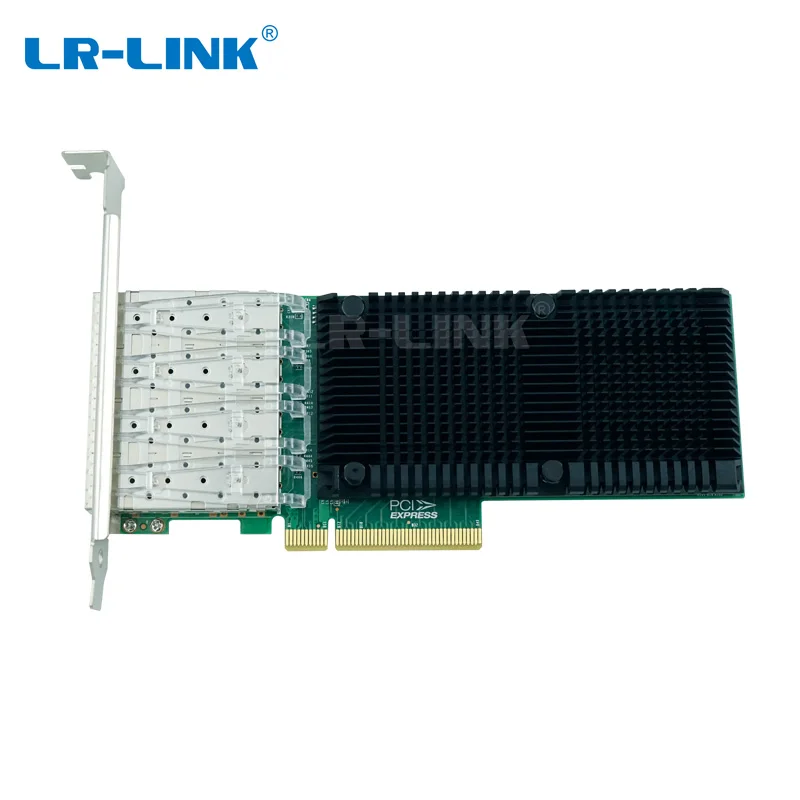

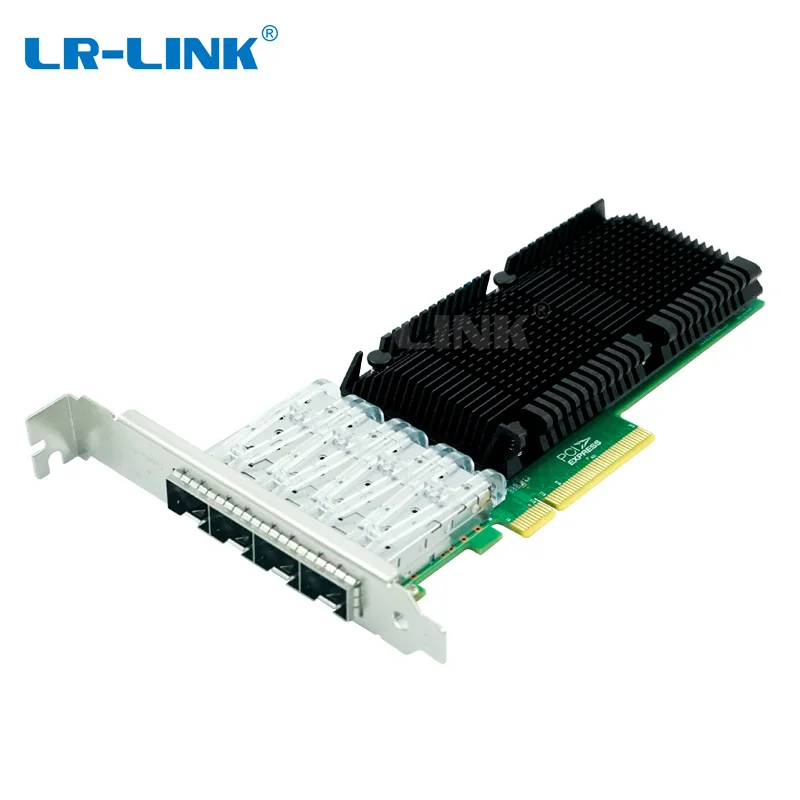

Detail Show
