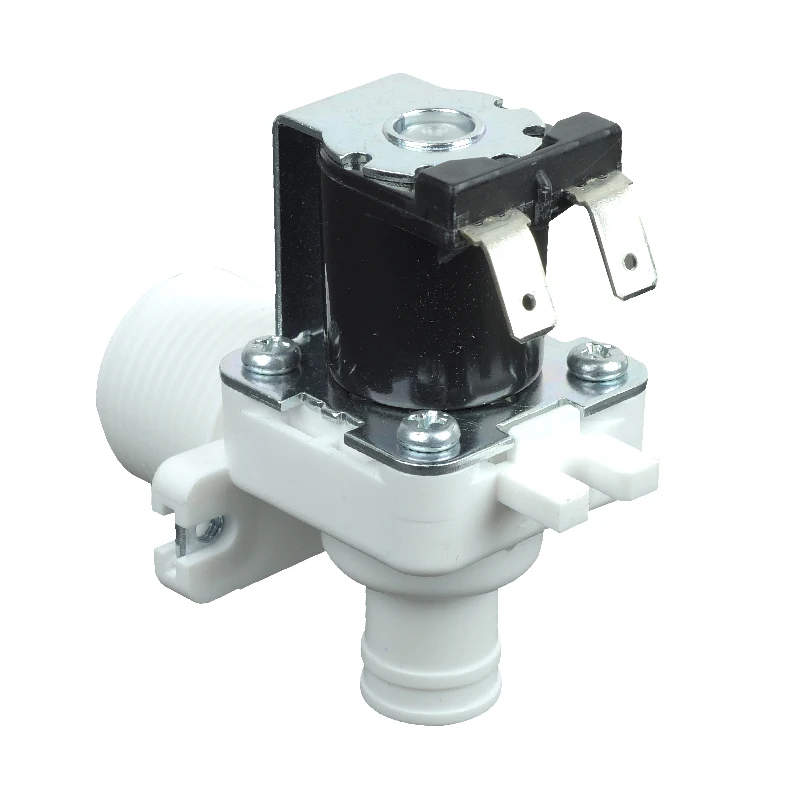

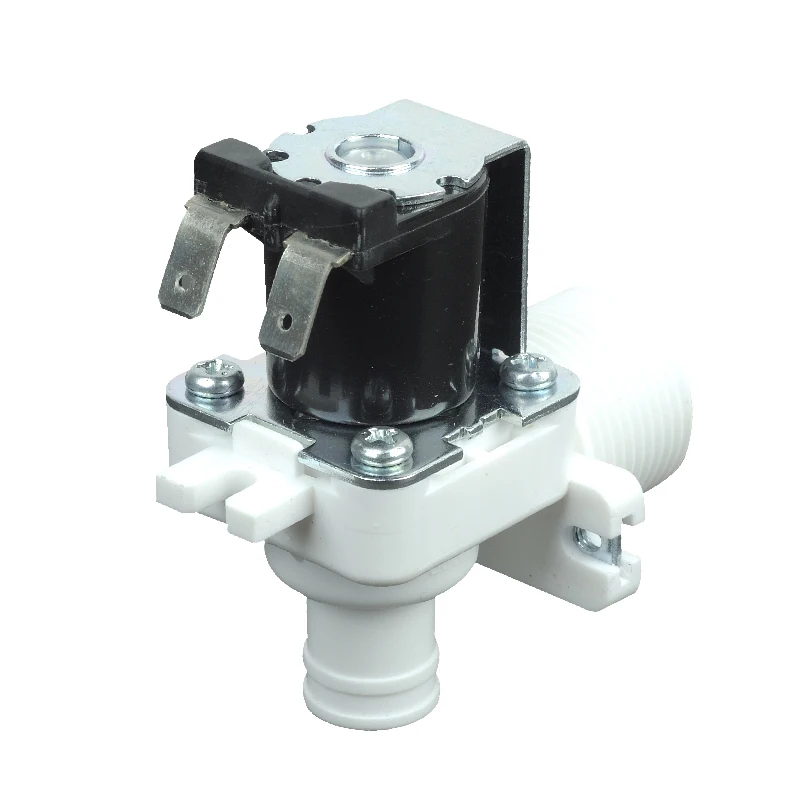

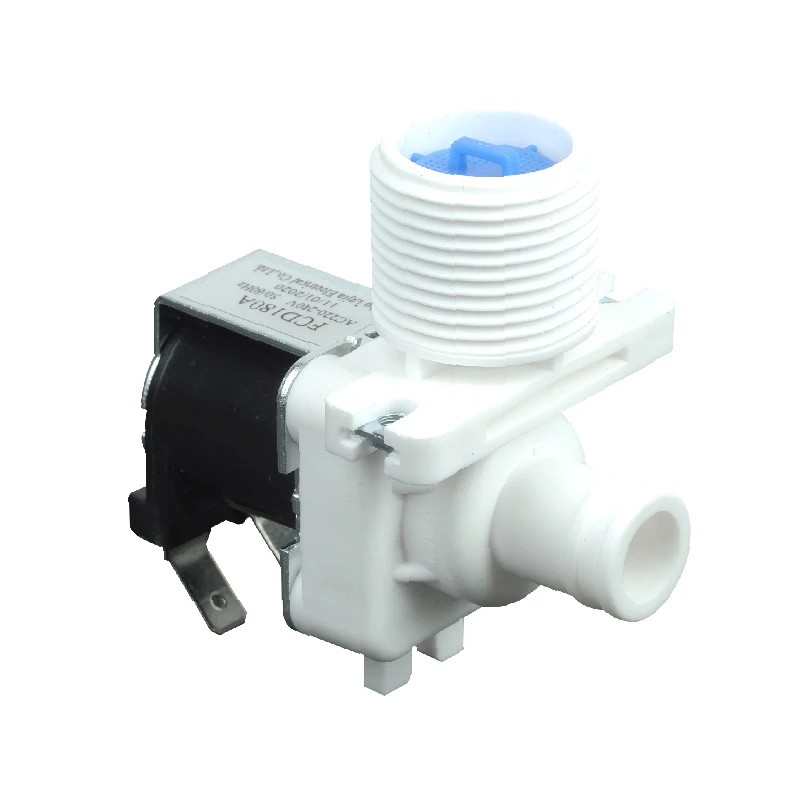

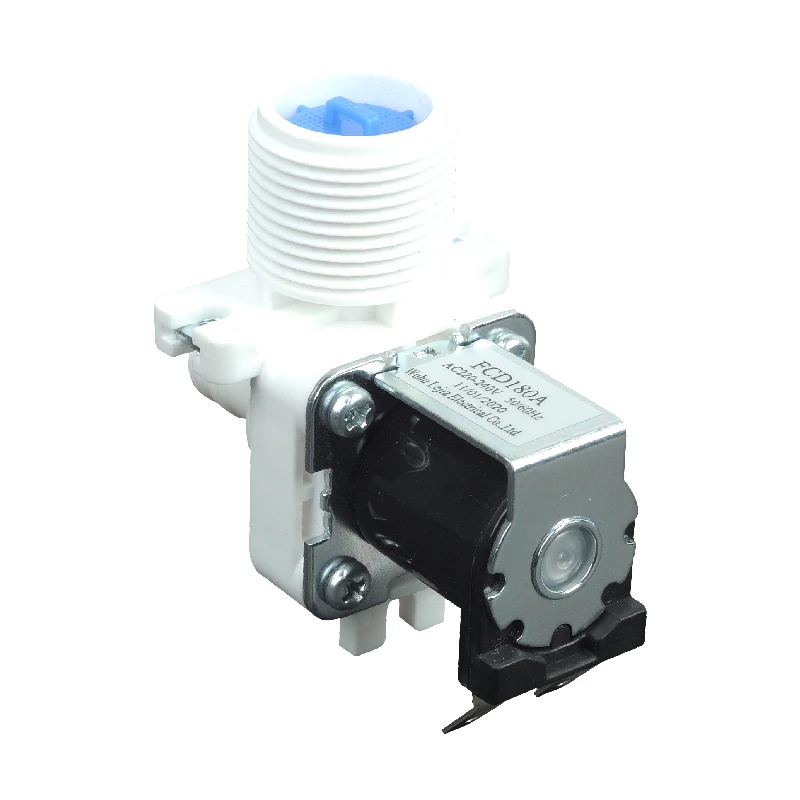

DC12V 24V Water Solenoid Valve Water Inlet Valve for Washing Machine AC220V 240V Water purifier Spare parts

Temp of working environment

1℃±60℃

Permissible limiting pressure

 (water pressure)

<1.2Mpa

Humidity of working environment

35%-90%RH(No condensation state)

Mounting direction

It is mounted in vertical direction, the inclination doesn’t exceed 15 degrees

Storage temp

-5±80℃(No freezing state)

Storage humidity

25%-95%RH(No condensation state)

The strength test

Static pressure 1.6Mpa

Withstand voltage pressure

1.2Mpa/5min

No-load test

Voltage V*0.9

Permissible limiting voltage

V*1.15

High water pressure startup and closing

At water pressure 0.8Mpa, voltage V*0.9,the solenoid valve can be started and closed normally

Low water pressure startup and closing

At water pressure 0.02Mpa, voltage V*0.9,the solenoid valve can be started and closed normally

Leakage upon high water pressure

1.2Mpa zero leakage

Leakage upon low water pressure

0.02Mpa leakage <0.1ml/min

Electric strength

Among the conductive part, mounting hole and nonconductive metal, it can withstand 1500V/50Hz, leakage current 0.75mA for 1min without the breakdown

Insluation resistance

The resistance between the charged part and nonconductive metallic part teated by the megohmmeter of 500V≥100Ω

Sealing test

Static pressure

Air

High pressure

1Mpa

Low pressure

0.02Mpa

Cold water

High pressure

1.2Mpa

Low pressure

0.02Mpa

Hot water

High pressure

0.8Mpa

Low pressure

0.02Mpa

Pressure(Mpa)

0.02

0.05

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

Average flow rate (L/min)

3

8

12

16

20

23

27

30

32

34
