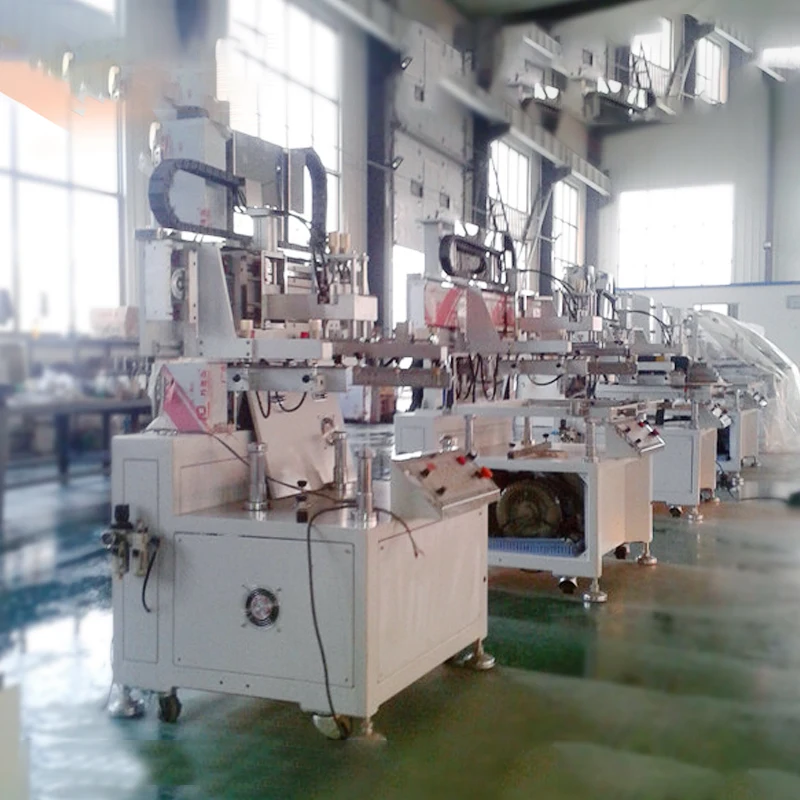

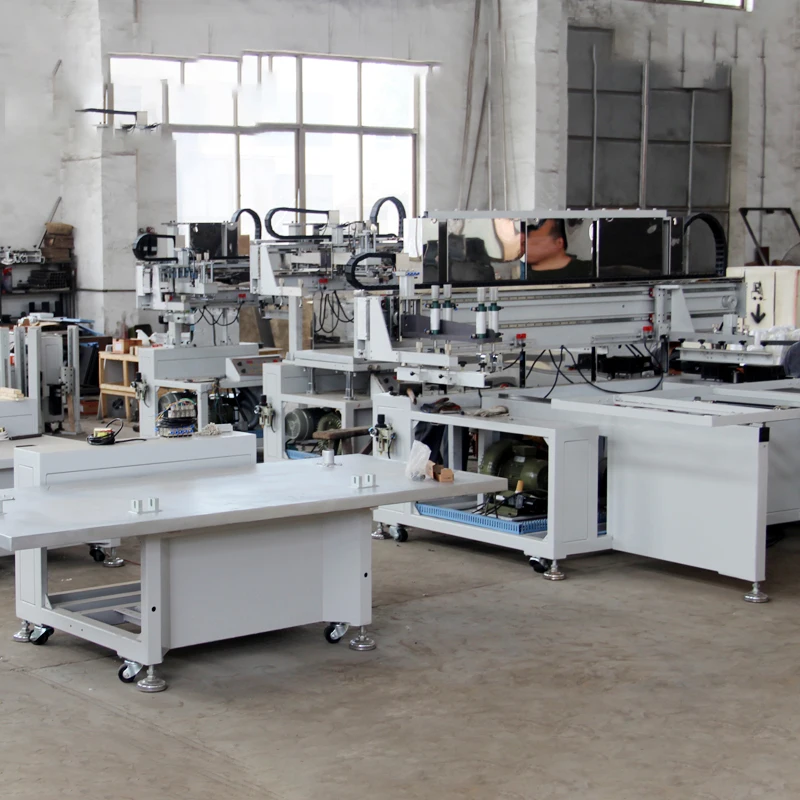

non woven fabric silk screen printing machine price

1. Scope of application:

1)This silk screen printer series are widely used in the electronics, advertising, package printing, sports equipment, toys, stationary gifts, metal processing industries.

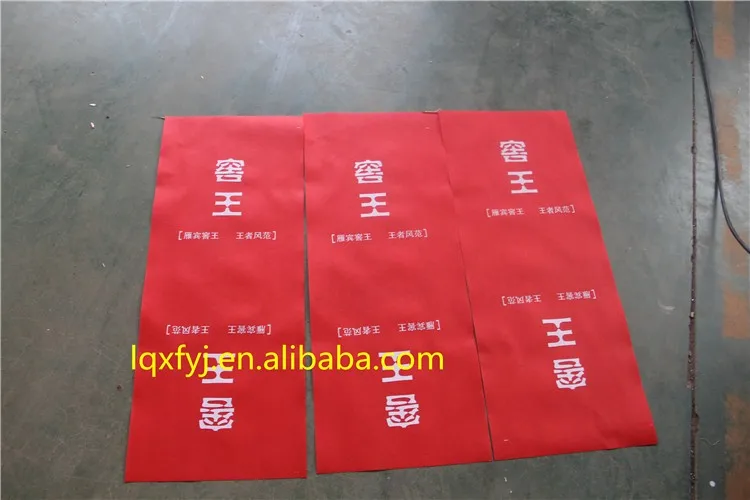

2)Suitable for printing on all kinds of flat materials, print on metal, glass, wood, paper, plastics, membranes switch, PCB, PET,DC card,nameplate ,also printing on bags,non-woven fabrics, ceramic decals, glazing plate glass,light guide plate, label and panel , refrigerator and air-conditioner decals,plastic sheet, and other products with the material of  PVC, which have high requirement in overprinting.

2. Feature:

1).The platform is adjustable and moveable, which make it convenient to take the material.

2).vertical structure, printing plate moves up and down vertically, printing stroke is driven by imported electrical components.

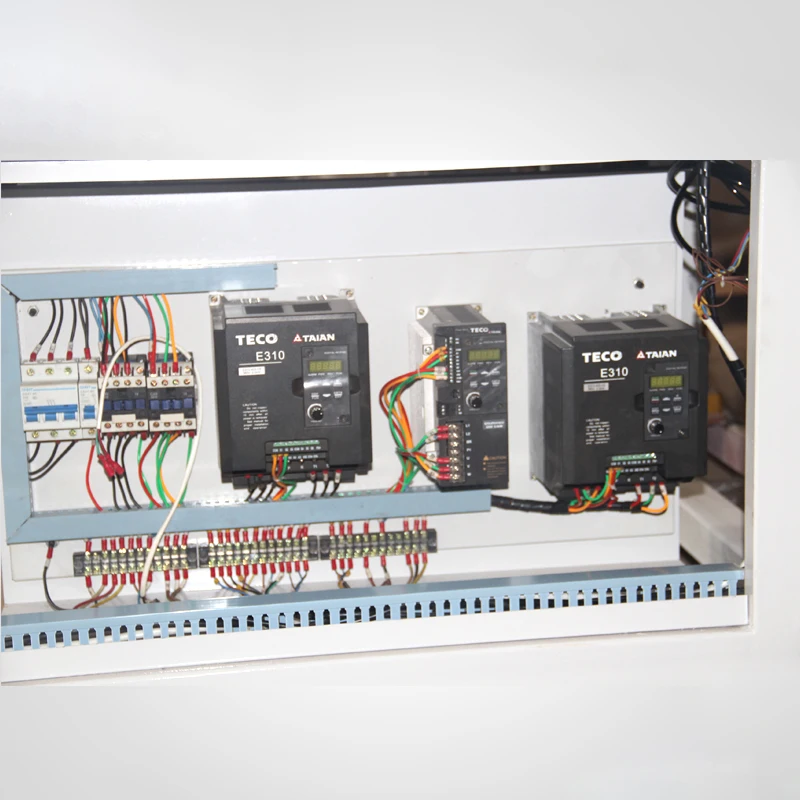

3).The screen printing machine adopts Japanese Mitsubishi PLC control circuit, printing and plate moving up &down are driven by independent Current Source.

4).Screen Printing blade moving up and down is pneumatic controlled, printing stroke is controlled by photoelectric eyes, with independent adjustment.

5).Procedures set three-mode, manual / semi-automatic /automatic settings, the time interval during printing is digital controlled.

6).Independent designed machine head moves up and down, which makes it easy to unload and clean the printing plate, scraper / ink reclaiming blade.

7).Double guide column master the clamps arm, and install the adjusting device to adjust the distance between plates at the same time, which is convenient to tune.

3. Product details:

Payment & shipping terms

 After-sale service:

1) According to the requests of the consumers,install & debug product.

2) According to the requests of the consumers, the use and other aspects of technical guidance.

3) To ensure the supply of repair parts.

4) Responsible for the repair service.

5) On the product of "Three Guarantees".

Model

XF-4060

XF-5070

XF-6090

XF-80120

 XF-70140

XF-10200

Max Printing area(mm)

400*600

500*700

600*900

800*1200

 700*1400

 1000*2000

Printing table size(mm)

500*700

600*800

700*1000

900*1300

 800*1500

 1100*2100

Max frame(mm)

650*930

700*1100

850*1300

950*1630

 900*1600

 1350*2430

Flat precision(mm)

±0.05

±0.05

±0.05

±0.01

±0.01

±0.01

Printing thickness

(mm)

30

30

30

30

 30

 30

Over print accuracy

(mm)

0.01

0.01

0.01

0.01

 0.01

 0.01

Printing pressure

 kg/cm2

0.6-0.8

0.6-0.8

0.6-0.8

0.6-0.8

 0.6-0.8

 0.6-0.8

Printing frequency /Hr

1150

1050

950

850

 850

 700

Voltage/power V/kw

380/2.1

380/2.45

380/2.45

380/4.15

 380/4.15

 380/5.6

Equipment weight kg

380

450

500

580

 630

 750

Overall dimensions

(L*W*H)(mm)

1130*1050*1620

1280*1100*1620

1500*1160*1620

1860*1400*1900

 2060*1300*1900

 2600*1500*1680
