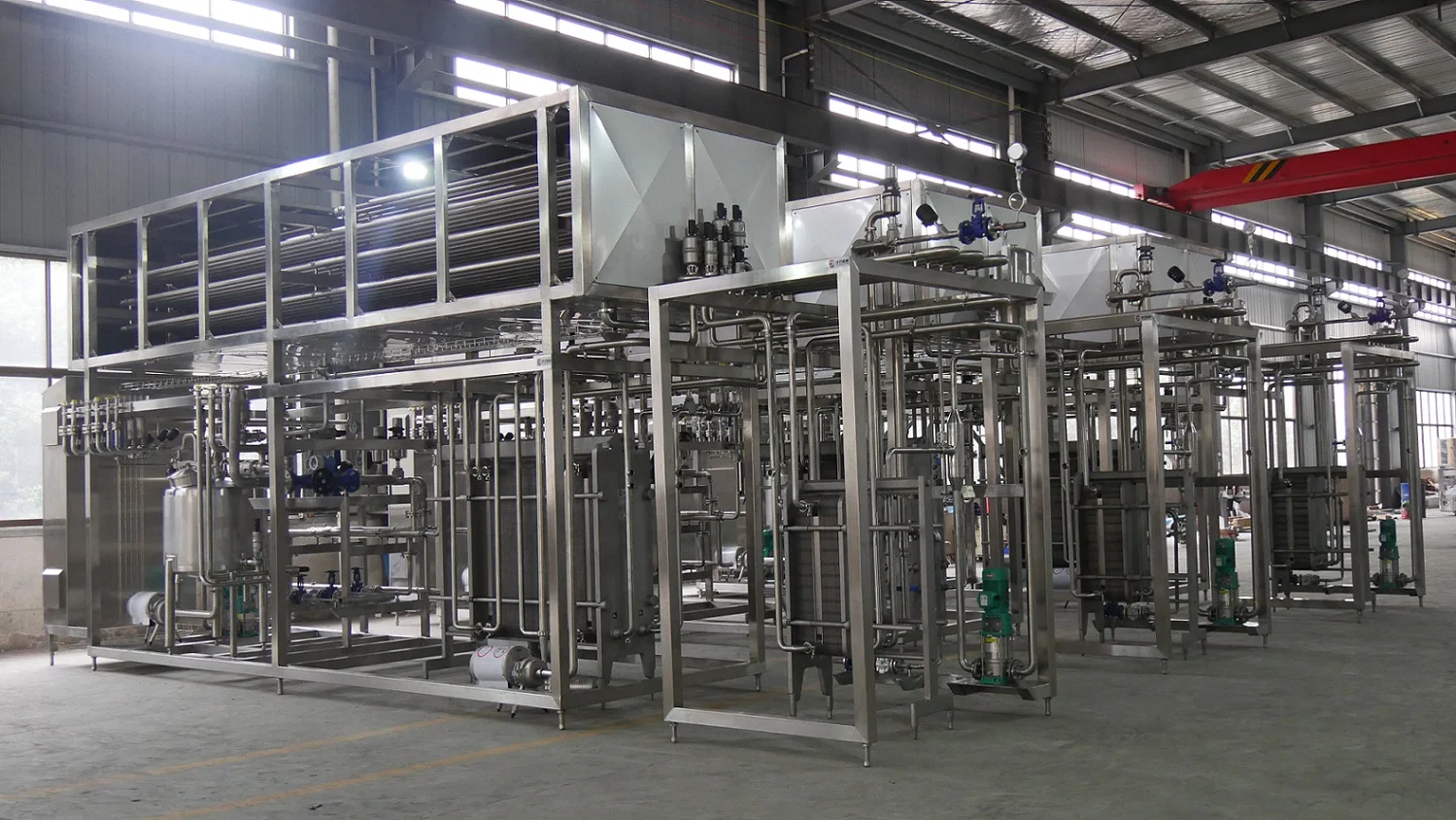

Beer, Juice, Gelato Flash Pasteurizer Prices
Beer,juice ,gelato flash pasteurizer aplicable to heating, sterilization, heat preservation and cooling, etc. Technology requirements of fresh milk, fruit beverage and alcohol etc heat sensitive liquids. The requirement has such features as high recovery, energy saving and low consumption, compact structure, simple operation and convenient maintenance etc.
Control method: semi-automatic control, fully automatic control(PLC control, touch screen display)
Main accessories: material pump, buffer tank, hot water tank, temperature controller and recorder, electric control system, etc.
Product capacity: 500L/H-50T/H
Sterilizing temperature: 65-95 degree celsius
Heat preservation period: 15-30S
Function of beer flash pasteurizer
Pasteurized machine is mainly used for low-temperature sterilization of beverage, milk, beer and other food. Whether the product contains pulp and fiber or not, pasteurized machine is a reasonable and economical processing method and could guarantee to gain a stable quality of the products.
Detailed Images

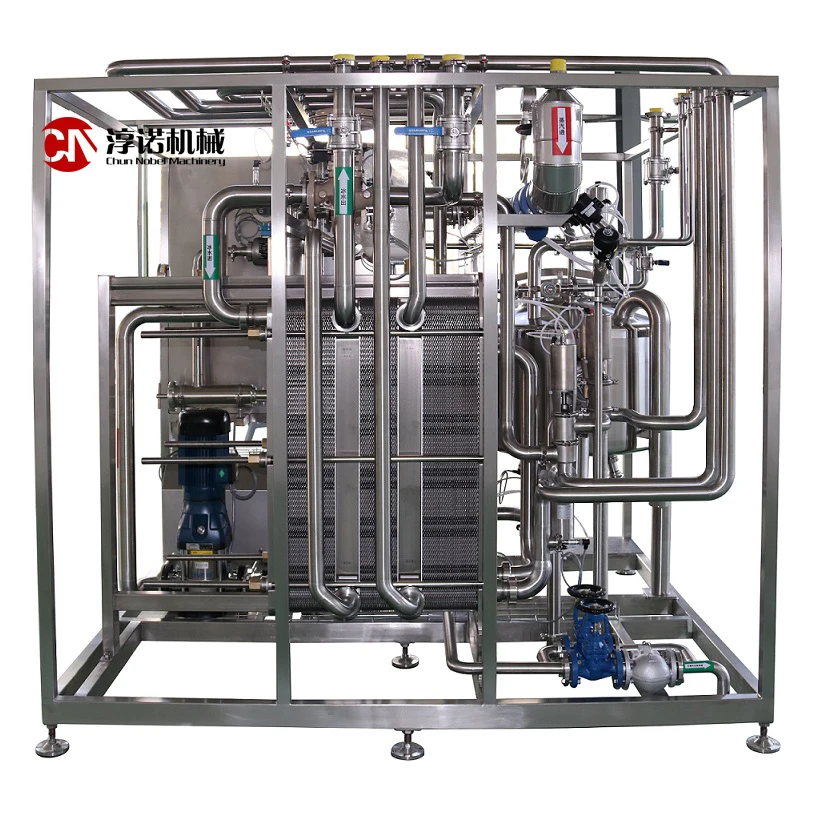

Heating and cooling process explain
1. Heating process.
Using steam to heat the water (water changed to hot water)-----Using hot water to heat product (We have designed the quantity of the plate so that the product sterilizing temperature can reach the customer requirements
2. Cooling section
Hot water become cooled water when heating the product----- Using cooled water to cool down the product ( hot energy recycle)----using tower water to cool down the product----using iced water to cooling down the product.

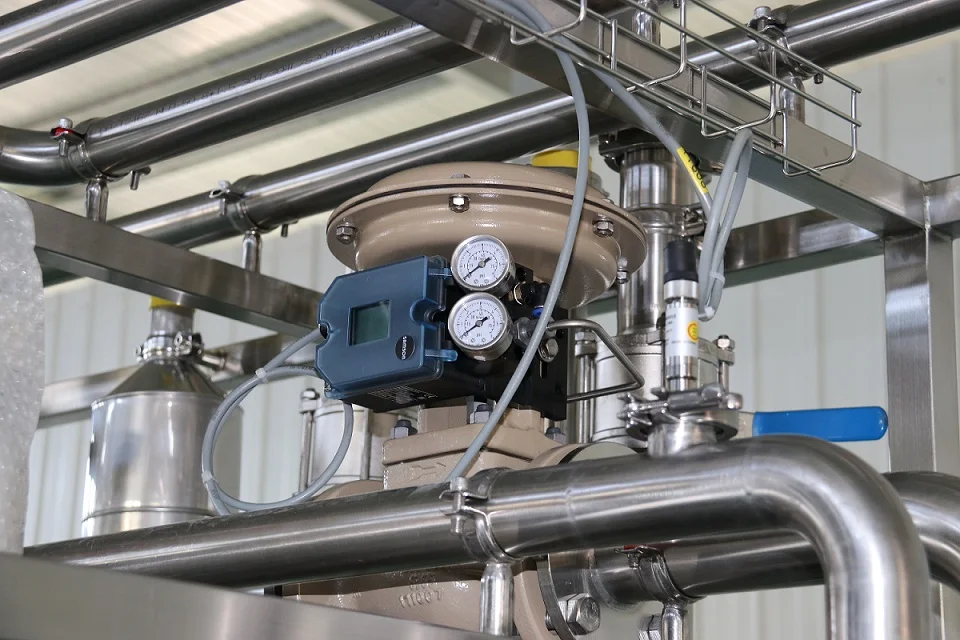

Steam System Valves
For steam control system we adopts Samson or Spirax Sarco brand. Other valves such as butterfly valves, seat valves, we also choose internation famous brand. Sealing materials are configured with high temperature and corrosion resistant sealing rings according to customer product characteristics.

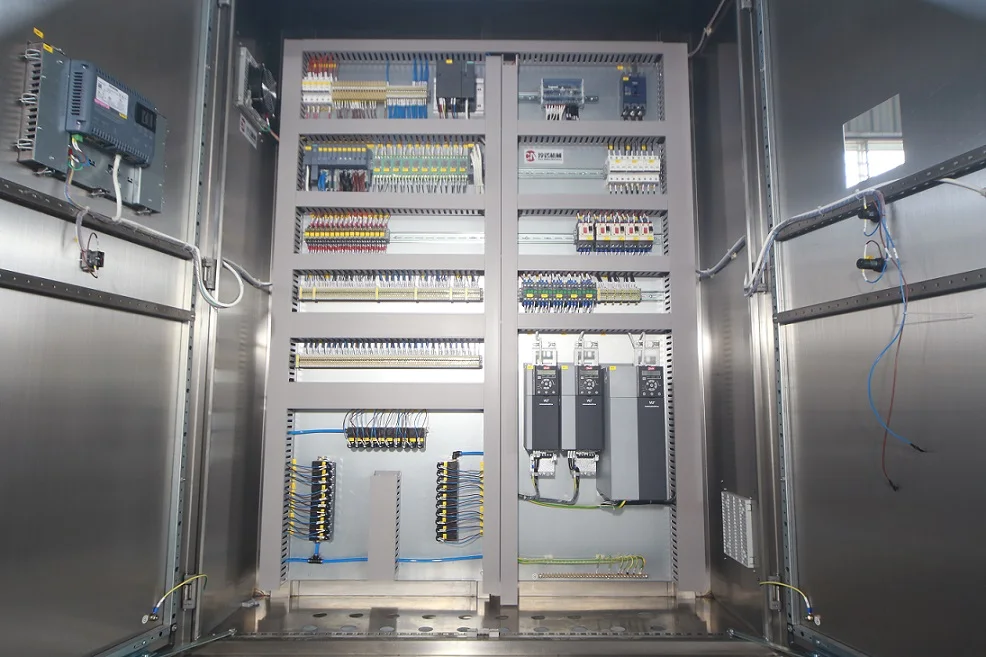

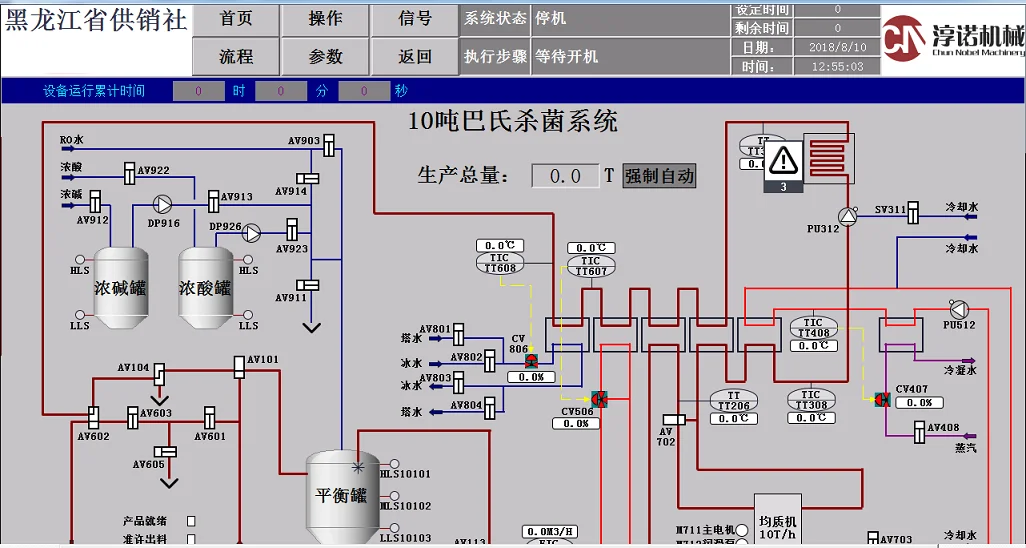

Pasteurizer machine control
The Siemens 1500 series PLC and HMI are used to realize the perfect combination of customer performance and use of equipment through functions such as self-developed data records, production reports, CIP reports, and alarm independent query reports, which can be remotely maintained in real time.
High efficiency of our pasteurization machine
1. We have purchased a complete set of calculation software of international food engineering design organization (equipment flow rate, pressure drop, pipe selection, etc.)
2. According to the scientific process design, we combine with the supplier's product parameters to select economic and stable components.
3. We use the standard multi-functional module to write the program, and develop the function of each component independently, so that it can meet the process changes.

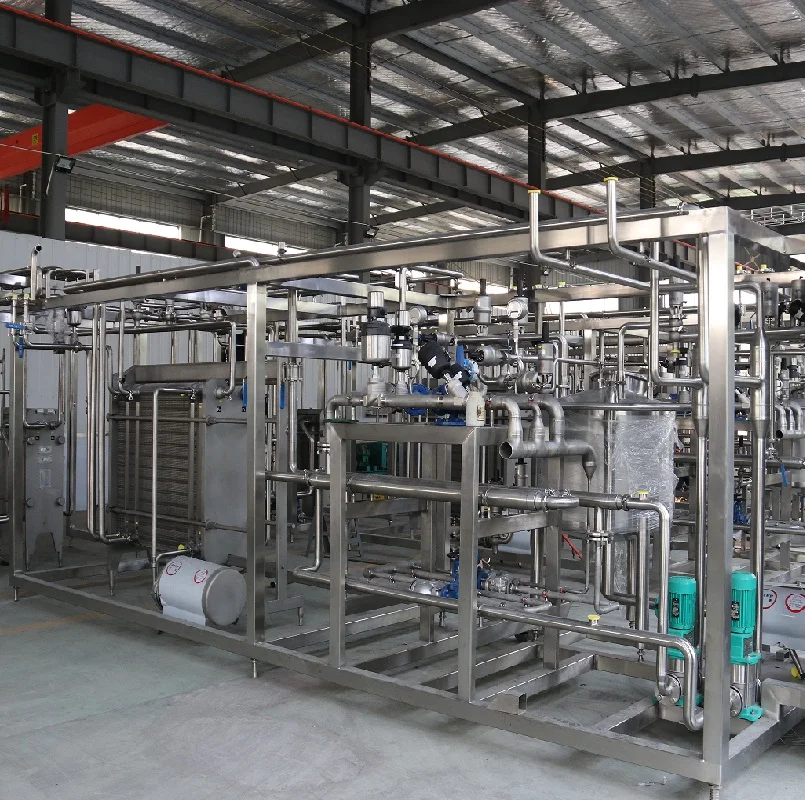

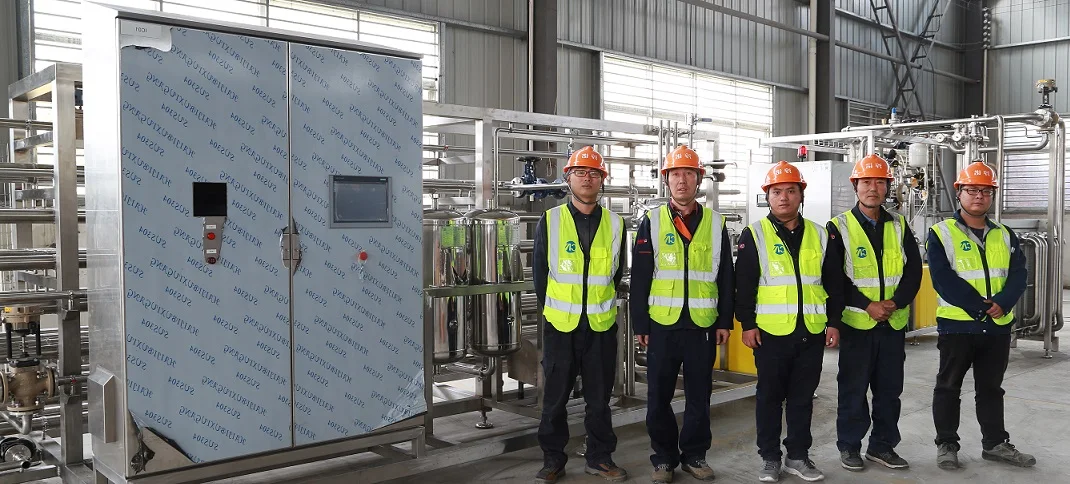

Chun Nobel Installation Team for Pasteurizer
We have our own design and installation team for milk pasteurizer.

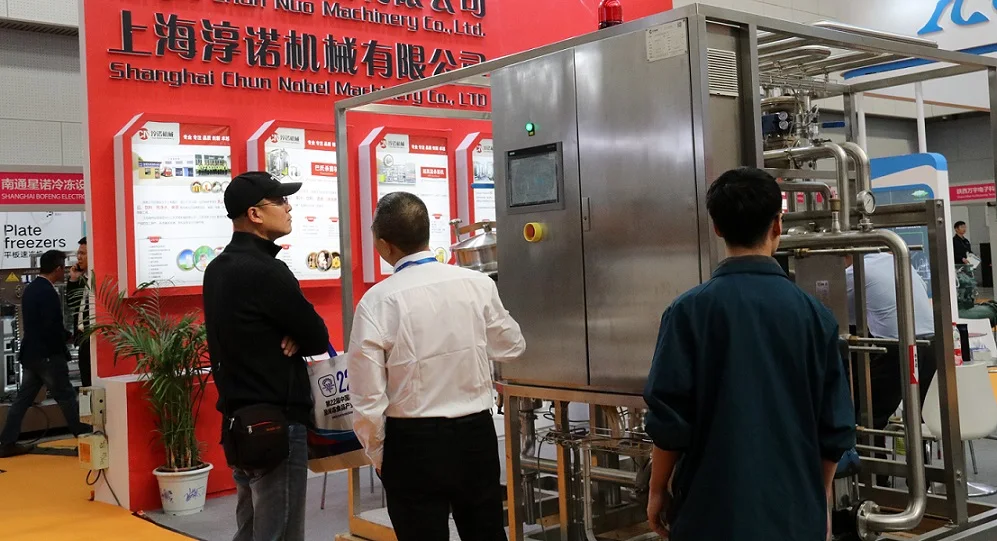

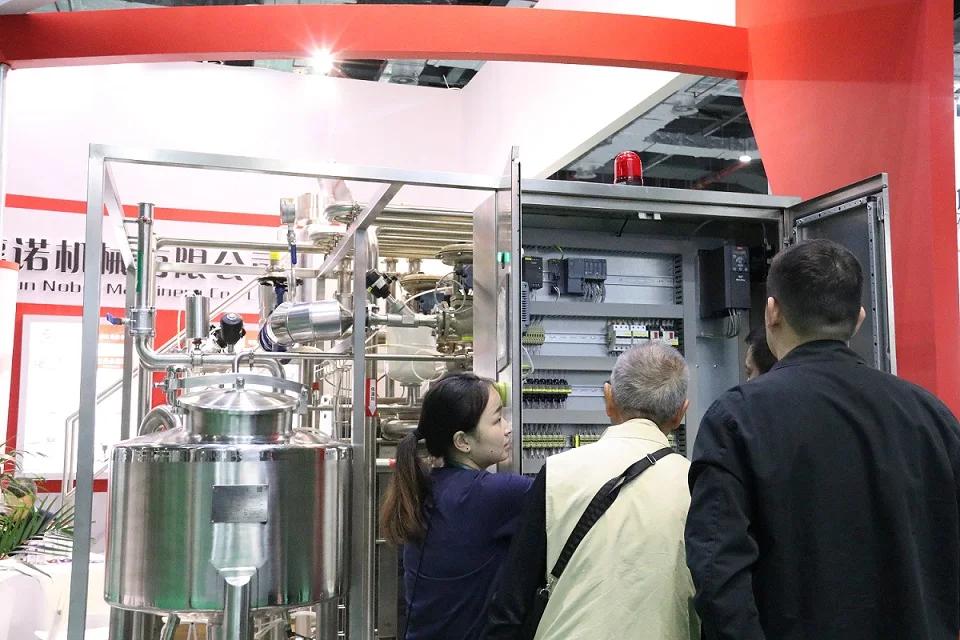

Chun Nobel Exhibition for Pasteurizer Machine
We have participated in various domestic food processing and packaging exhibitions, and participated in foreign food processing and packaging exhibitions including Thailand, Algeria and so on.
Size Information
Model | Capacity | Size | Weight | Total Power | Iced Water consumption | Steam Consumption |
CNBS-0.5 | 500L/H | 1800*1600*2000 mm | 800KG | 1.87KW | 0.5-1.5T/H | 100-150KG/H |
CNBS-1 | 1000L/H | 1950*1750*2000 mm | 900KG | 3.8KW | 2-3T/H | 120-200KG/H |
CNBS-2 | 2000L/H | 2000*1750*2000 mm | 1000KG | 5.6KW | 4-6T/H | 200-250KG/H |
CNBS-3 | 3000L/H | 2100*1800*2000 mm | 1100KG | 7.5KW | 7-8T/H | 280-350KG/H |
CNBS-5 | 5000L/H | 2200*1850*2200 mm | 1400KG | 8KW | 10-12.5T/H | 300-500KG/H |
CNBS-6 | 6000L/H | 2200*1850*2000 mm | 1700KG | 9.5KW | 12-15T/H | 400-650KG/H |
CNBS-9 | 9000L/H | 2600*1900*2000 mm | 2200KG | 11KW | 15-20T/H | 1200KG/H-1400KG/H |
CNBS-10 | 10000L/H | 2600*1900*2000 mm | 2400KG | 13KW | 15/20T/H | 1300-1500KG/H |
