HM ZD6418G Automatic Rigid Box machine for watch boxes(Special shaped box (optional))

Product Overview

Description

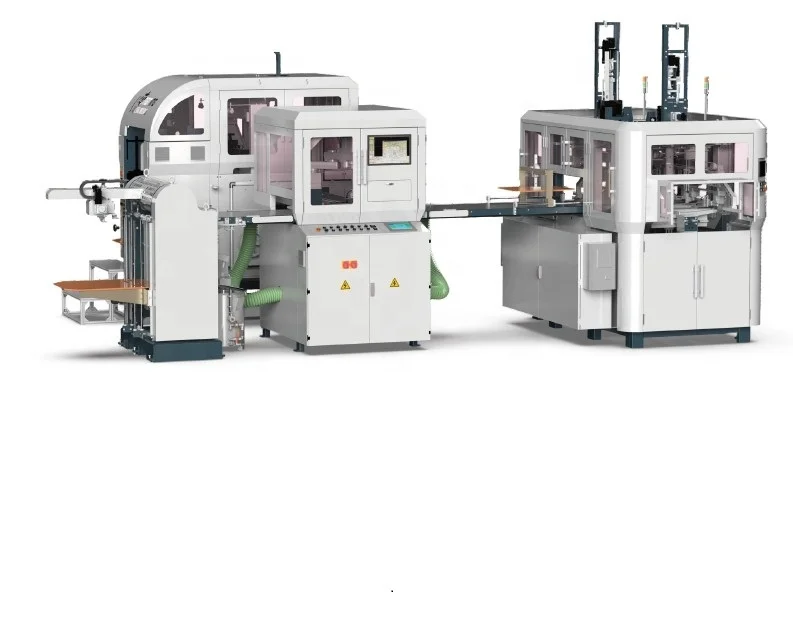

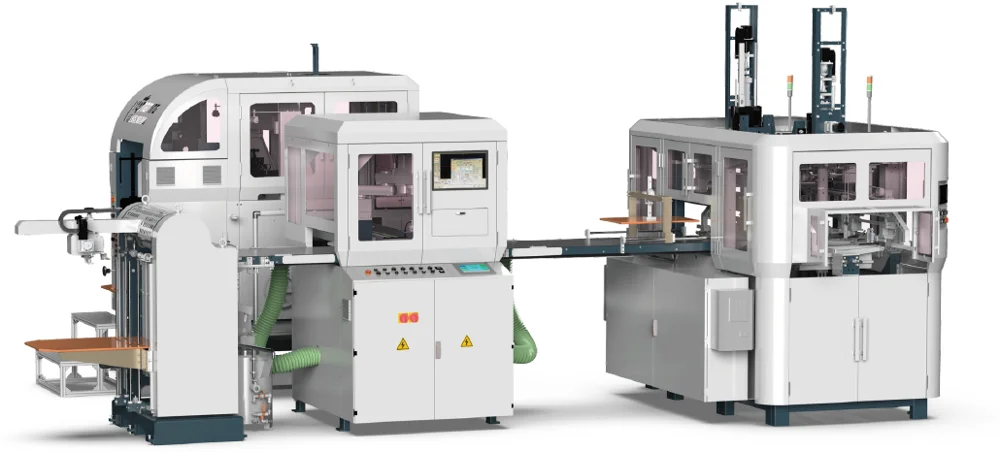

HM-ZD6418G Automatic Rigid Box machine for watch boxes

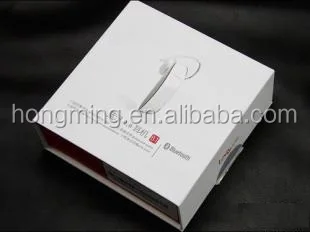

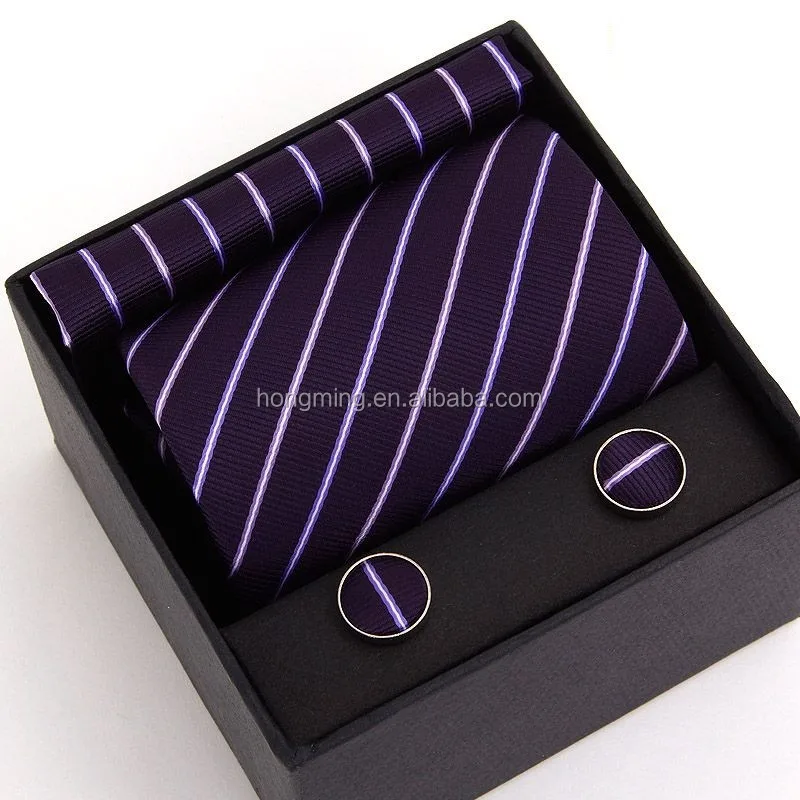

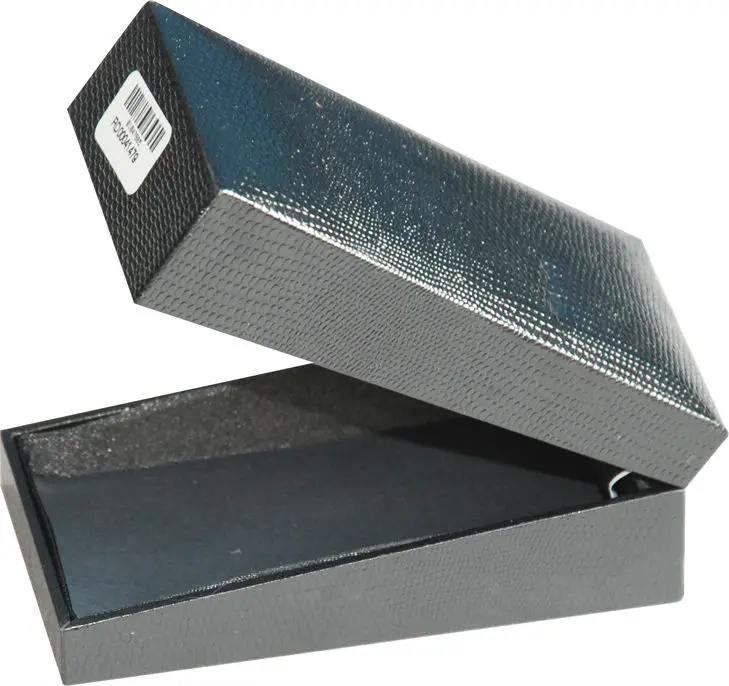

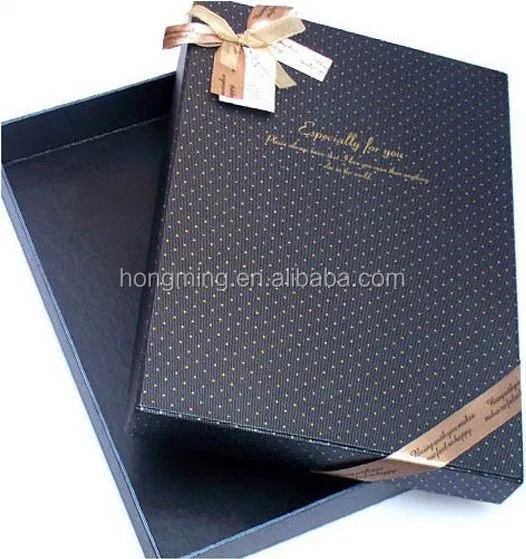

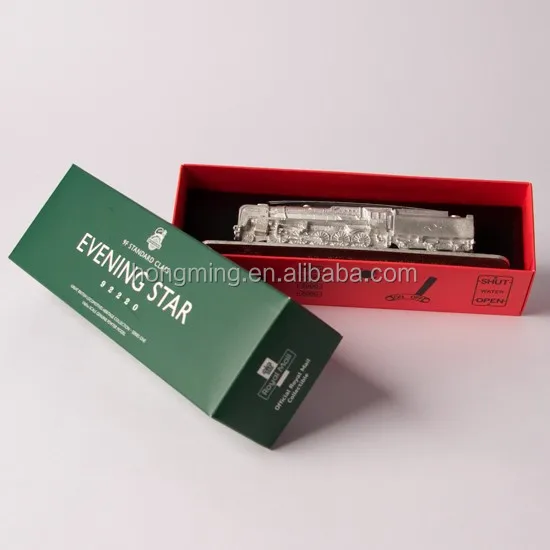

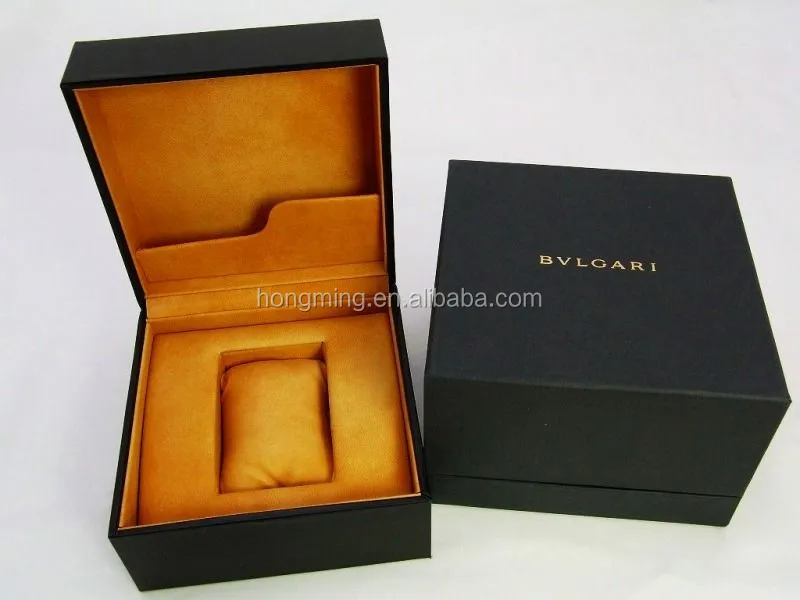

HM-ZD6418G Automatic Rigid Box machine for watch boxes with double wrapper, which designed for big-size premium boxes. It is suitable to make various types of boxesfor mass production, such as mobile phone boxes, gift boxes, cosmetic boxes, watch boxes, etc. Size range is more bigger, more suitable for current packaging market. Machine's apperarance is new design which is safer and more beautiful.

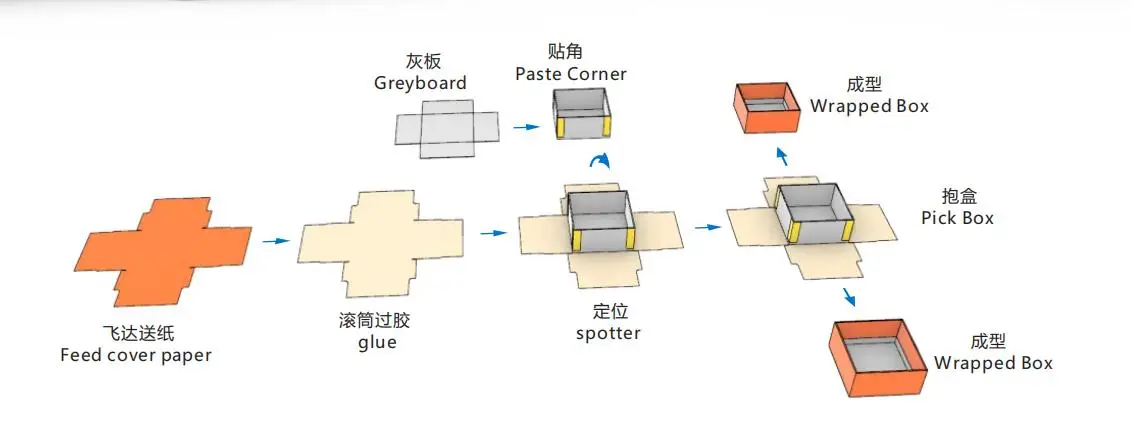

 HM-ZD6418D adopts PLC and man-manchine control, camera tracing system, and can automatically feed cover paper, feed greyboard, paste four corners, spot greyboard, lift box, wrap box, fold corner edges and form box.

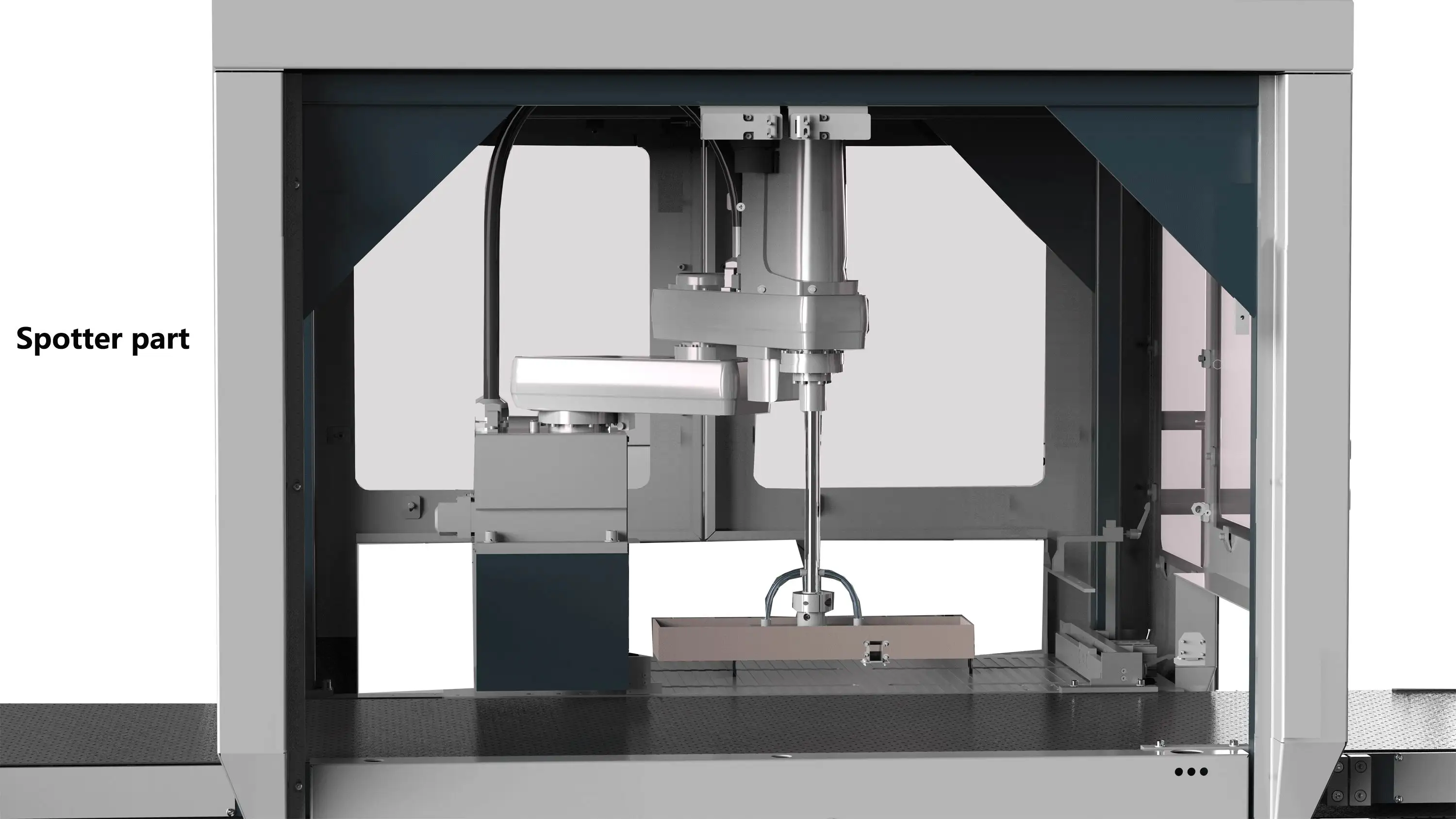

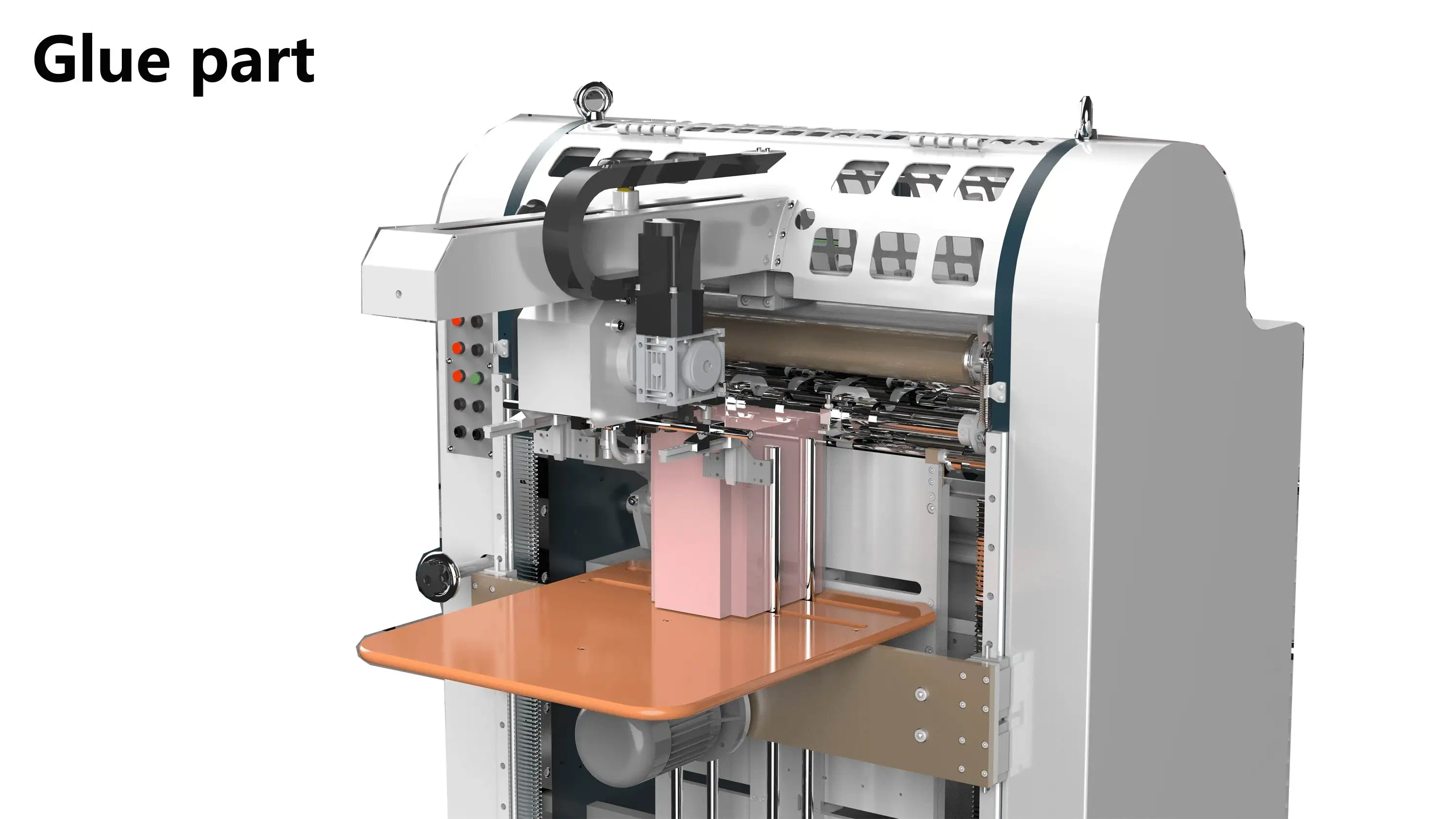

 The feeder, the gluer and the converyor are driven by well known servos which have continuously variable transmission, and enjoys high accuracy, easy adjusting, and high efficiency. The corner unit can be attached to the tape of different lengths according to the need; The spotting unit adopts camera tracing system and robot arm to pick and spot the greyboard, enhancing the spotter accuracy to ±0.05mm, and its spotting and adjustiong is more faster: The forming unit employs Japan THK linear slider and virtual electronic can driving system, guaranteeing the stable quality and fluent movement and enlarge the folding-in depth and corner edges.

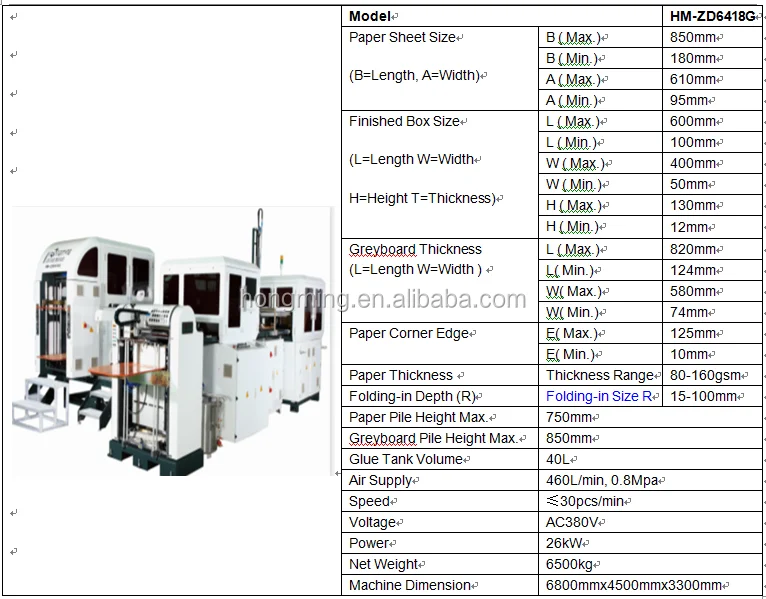

 HM-ZD6418G Automatic Rigid Box machine for gift boxes's Technical Parameters:

Model		HM-ZD6418G
Greyboard Size (D-Length, C=Width)	D(Max)	820mm
	D(Min.)	124mm
	C(Max.)	580mm
	C(Min,)	92mm
	Thickness(T)	1-3mm
Paper Size B=Length, A=Width	A(Max.)	850mm
	A(Min.)	180mm
	B(Max.)	610mm
	B(Min.)	95mm
	Thickness	80-160gsm
Finished Box Size	L(Max.)	600mm
	L(Min.)	100mm
	W(Max.)	400mm
	W(Min.)	50mm
	H(Max.)	130mm
	H(Min.)	12mm
Paper Corner Edge	E	10-125mm
Folding-in Depth	Folding-in Size R	15-100mm
Paper Stacker High Max.	750mm
Greyboard Stacker High Max.	850mm
Glue Tank Volume	40L
Air Supply	460L/min, 0.8MPa
Speed	≤30pcs/min
Power/Voltage	37kW/AC380V
Power Consumption	9.5Kw/h
Net Weight	6500kg
Machine Dimension	6800 x 4500 x 3300mm





HM-ZD6418G Automatic Rigid Box machine for watch boxes's Features and function:

1. Suit to all kinds of rigid boxes in mass production

2. Parameter adopts computer digital setting

3. Auto error stop and display

4. Automatically feed paper and greyboard

5.24-hours control for glue pre-heating

6. Wrapper can input 300 product formulas

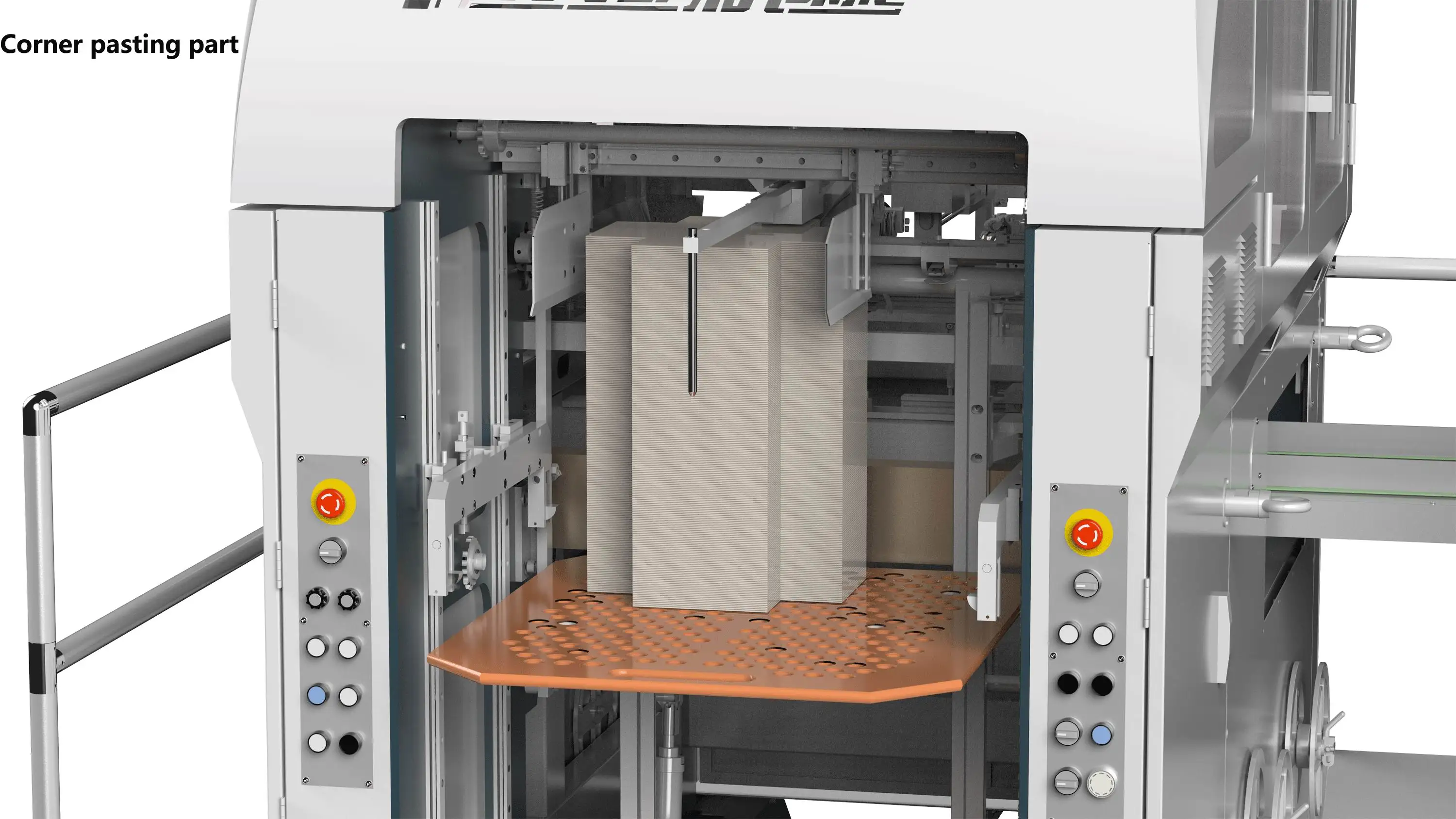

7. Corner pasting part with independent man-manchine control and heating system

8. Adopts YASKAWA servo control system]9. Spotter by camera tracing system and SCARA(Selective Compliance Assembly Robot Arm)(spotting inaccuracy ±0.05mm)

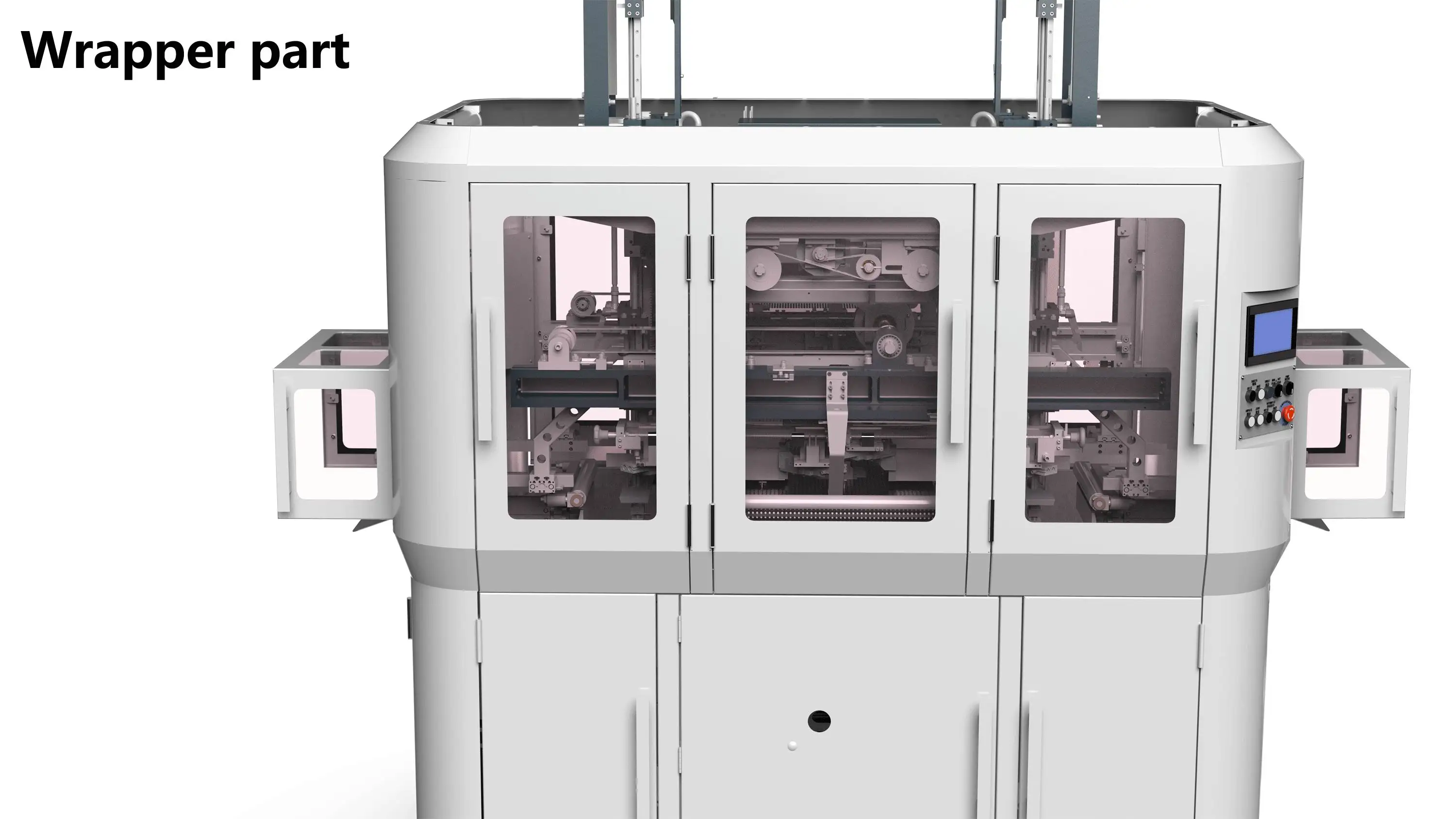

10. Wrapper can automatic lift and wrap box

11. Automatic control system for glue viscosity (optional)



Note:

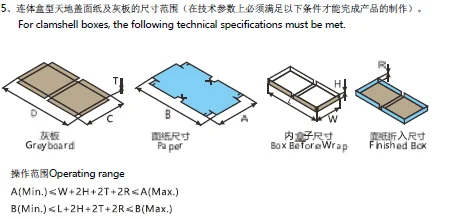

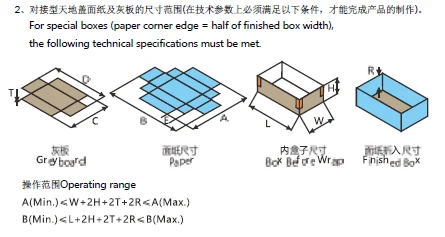

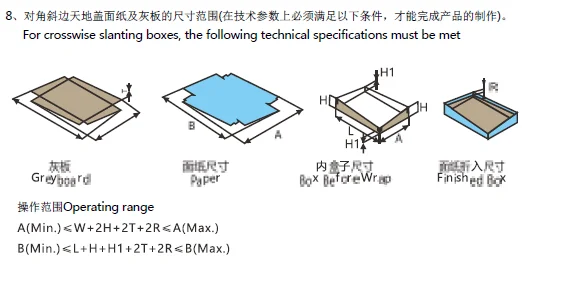

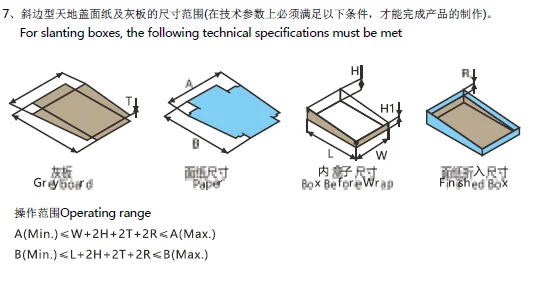

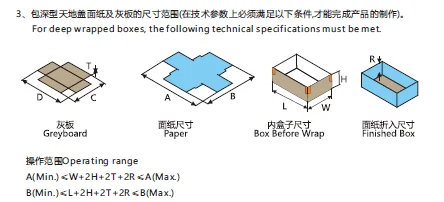

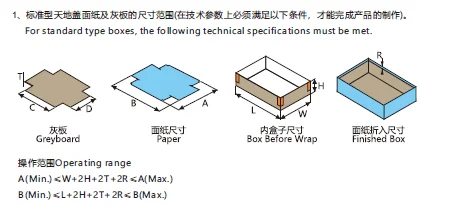

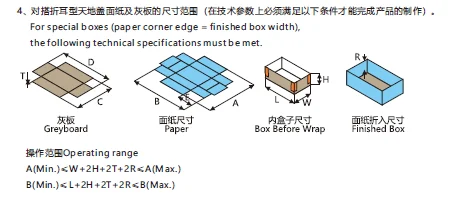

1,The Finished Box Max. sizes are determined by paper size.A(Min.)≤W+2H+2T+2R≤A(Max.); B(Min.)≤L+2H+2T+2R≤B(Max.)
2,Either the Max. Sizes or the Min. Sizes can not be fulfilled on the same box.
3,The production speed of the rigid box machine is determined by the box size,
the paper and the greyboard materials.
4,Seller doesn't provide air compressor. (8atm=0.808MPa, 7.5kW compressor is needed)
