Portable hydrogen sulfide H2S gas detector Explosion proof h2s monitor with micro clip h2s gas analyzer H2S sensor

Share on (62528704939):


Price:

Quantity:


Product Overview

Description



Detector Description


        Portable voice type single gas detector

      Our portable single gas detector with a large LCD. The instrument with audio/visual and vibratory indicators, rechargeable battery, and simple use.

      It is widely used in the area where explosion-proof is required or toxic gas leaks, like underground channels or mining industry, so as to protect the workers' life and avoid damage on the relevant equipments.






Main Features


1.Advanced MCU control with low power consumption
2. Advanced integrated circuit technology, embedded microcomputer control
3.Adjustable low and high alarm level
4. Adjustable calibrating level
5. High concentration protection
6. Self test for the single gas sensor
7. Low battery indication
8. Self-adjustment function
9. Visual and audible alarm with vibration
10. Advanced self-examination and self-renovation function
11. Password management to avoid wrong operation
12. Explosive proof housing

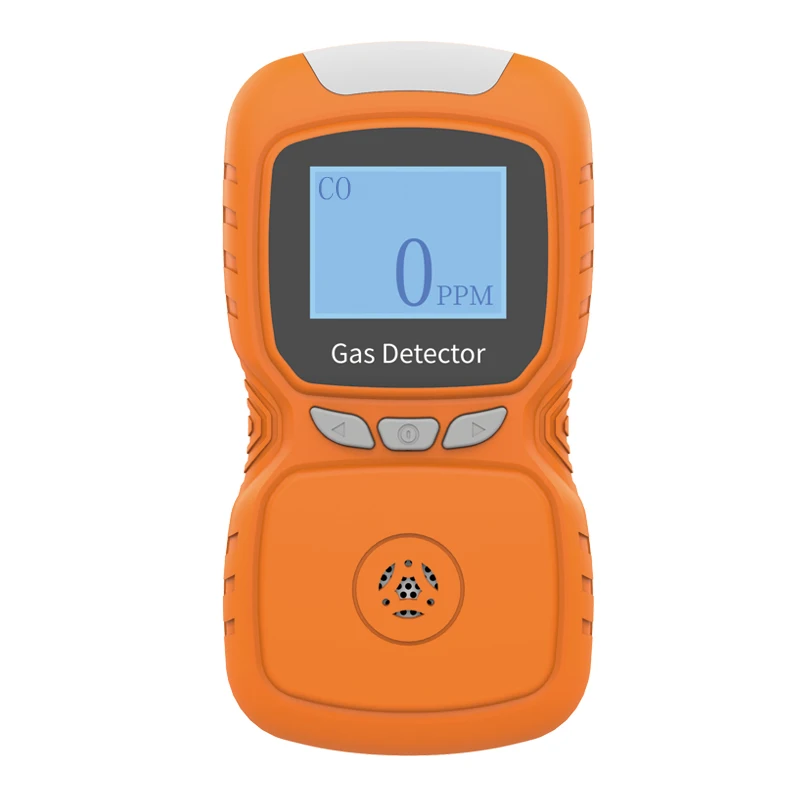

Big LCD Screen
This product uses dot matrix LCD display, supports English interface and English voice prompt, so as to understand the product more quickly, use and maintain Jiandan

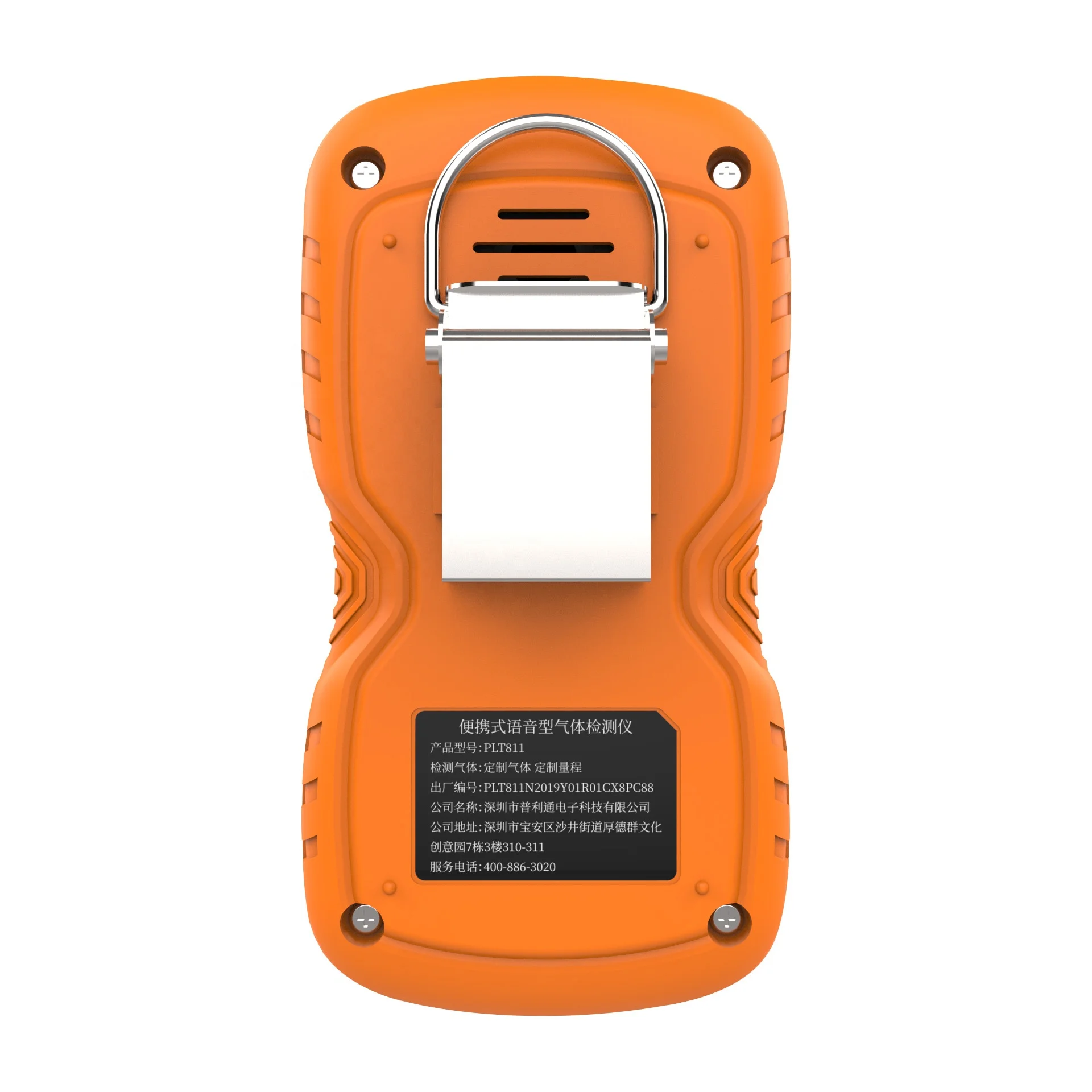

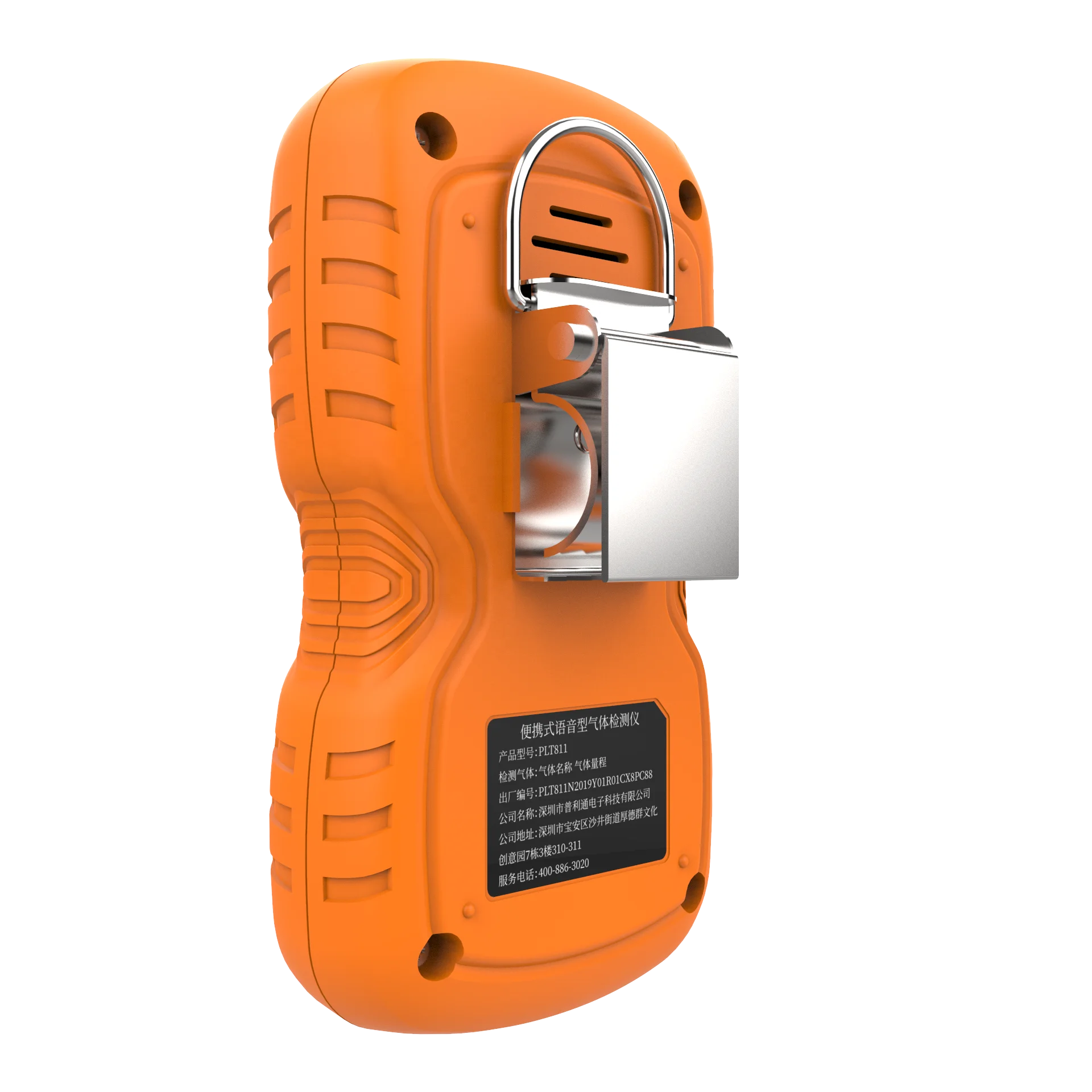

Protable Clip

The back of the product is equipped with a small clip, which can be fixed on the outside of the work clothes and is not easy to fall. Easy to carry.



Gas detection hole
The sensor adopts high quality gas sensor, advanced integrated circuit technology, embedded microcomputer control, with excellent sensitivity and excellent repeatability.

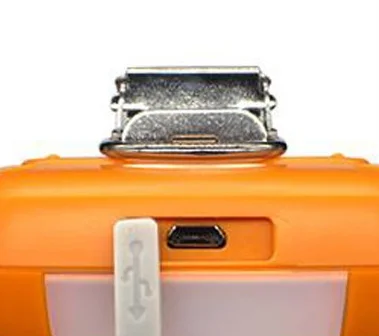

USB Charging Port

The product adopts rechargeable lithium battery and universal charging port, which is convenient for charging. Charging time: 4h-6h, the battery can be used for 12 hours under full power condition.


Size Comparison






Analyzer Parameters


Operating & Storage Environment
Temperature: -20°C~50°C (-4F~122F)
Humidity: <95% (Relative humidity non-condensing)
Pressure: 95~110kPa
Sampling method
Diffusion type


Detecting Range
H2S:
0-50PPM/0-100PPM
0-200PPM/0-500PPM/0-1000PPM
0-5000PPM/0-10000PPM
Any of the following ranges can be selected,
Different measuring range, different price
Please consult customer service for prices.
Alarm Type
low & high alarm, multiple gas alarm, sensor alarm, battery low alarm, prompt tone, automatic shutdown alarm
Resolution
1PPM
Sensor life
2 years
Accuracy
<5% F.S
Response time
<30s
Repeatability
1%
Zero drift
1%
Display
Alphanumeric large LCD displays the real time gas concentration and alarm stage
Backlight
Automatically activated when working in poor lighting environment or the alarm sounding or the button is knobbed down.
Self-checking Function
Self-checking Battery power, display, sensor, hardware failure
Explosion-proof
EXiaIICT4
Protection grade
IP65
Power Supply
Rechargeable lithium battery
Dimensions
114mm*60mm*26mm


Analyzer Application




Measurable Gas Meter


No.
 Detected              Gas
Detecting Scope
     Optional Range
    Resolution
 Low/High Alarm Point
1
        EX
 0-100%lel
0-100%vol(Infrared)
1%lel/1%vol
20%lel/50%lel
2
O2
0-30%vol
0-30%vol
0.1%vol
19.5%vol/23.5%vol
3
H2S
0-100ppm
0-50/200/1000ppm
0.1ppm
10ppm/20ppm
4
CO
0-1000ppm
0-500/2000/5000ppm
1ppm
50ppm/150ppm
5
CO2
0-5000ppm
0-1%/5%/10%vol(Infrared)
1ppm/0.1%vol
1000%vol/2000%vol
6
NO
0-250ppm
0-500/1000ppm
1ppm
50ppm/150ppm
7
NO2
0-20ppm
0-50/1000ppm
0.1ppm
5ppm/10ppm
8
SO2
0-20ppm
0-50/1000ppm
0.1/1ppm
5ppm/10ppm
9
CL2
0-20ppm
0-100/1000ppm
0.1ppm
5ppm/10ppm
10
H2
0-1000ppm
0-5000ppm
1ppm
50ppm/150ppm
11
NH3
0-100ppm
0-50/500/1000ppm
0.1/1ppm
20ppm/50ppm
12
PH3
0-20ppm
0-20/1000ppm
0.1ppm
5ppm/10ppm
13
HCL
0-20ppm
0-20/500/1000ppm
0.001/0.1ppm
5ppm/10ppm
14
CLO2
0-50ppm
0-10/100ppm
0.1ppm
5ppm/10ppm
15
HCN
0-50ppm
0-100ppm
0.1/0.01ppm
10ppm/20ppm
16
C2H4O
0-100ppm
0-100ppm
1/0.1ppm
20ppm/50ppm
17
O3
0-10ppm
0-20/100ppm
0.1ppm
2ppm/5ppm
18
CH2O
0-20ppm
0-50/100ppm
1/0.1ppm
5ppm/10ppm
19
HF
0-100ppm
0-1/10/50/100ppm
0.01/0.1ppm
2ppm/5ppm


Note: The above table is a general parameter. If you need other gas and range, please contact our online customer service.



About Puliton




                                                                          Scope of Business

      Puliton was founded in 2014, specializing in the development and production of gas detectors, gas analyzers and rangefinder. At present, our research and development instruments have been spread all over the world.





                                                                               R&D and Production

      Puliton has always strictly implemented the ISO9001 quality management system. We adhere to the high standards of product quality, strict requirements, adopting the world-class production equipment, advanced management and production experience, developing the high-quality testing equipment.



Certifications






Why Choose Us?
1. We are a factory,quality is more reliable, and the price is more lower.
2. Support OEM andODM, printing your Logo.(>500pcs)
3. All products will have been strictly Quality Checked before packing.
4. All our products have 1or 2 years warranty. And we sure the product will be free from maintenance within warranty period.
5.100% QC inspection Before Shipping.
6. If you found any inferior-quality products from us, we will send new ones to replace for free in your next order after confirmed.


FAQ
 1.Q:Can I have a sample order to test quality?
      A: Yes, we re commend and welcome sample order to test and check before order.

2. Q: What is the lead time?

      A: Sample needs 1-3 days, mass production time needs 7-15 days for order<=5000pcs.

3. Q: Do you have any MOQ limit?
      A: We don't have a MOQ limit, 1 pc are also welcome.

4. Q: Do you offer guarantee for the products?
      A: Yes, we offer 1 or 2 years guarantee for the products.

5. Q: If I order big quantity, Can I have a cheaper price?
      A: We will reduce the price according to the specific quantity and your requirements for the product.

6.Q: How does your I factory do regarding the quality control?
     A: Quality is priority, Our factory has passed ISO 9001 with annual audit.Established a procedure to check products at all stages of the manufacturing process-raw materials, in process materials.validated or tested materials, finished goods.etc.
