40W Day Night Solar AC DC Lighting 300mm Square Type Shaftless LED Skylight Pure White Color Wall Lamp Ceiling Panel LED Light
- Category: >>>
- Supplier: Jiangmen Sunny Photoelectricity Technology Limited
Share on (62528920962):
Product Overview
Description
Product Description
It looks like a commonly installed 300x300mm square shape LED panel light to supply day-night indoor lighting, but our system here is special, and it contains Solar Panel, Inbuilt Battery & Smart System Controller to breakthrough any conventional grid consumed lighting kit as well as any off-grid window skylight / tubular skylight / LED skylight in the market, aiming to bring you new type more practical, reliable & energy saving best alternative lighting solutions!
PRODUCT PART DISPLAY:

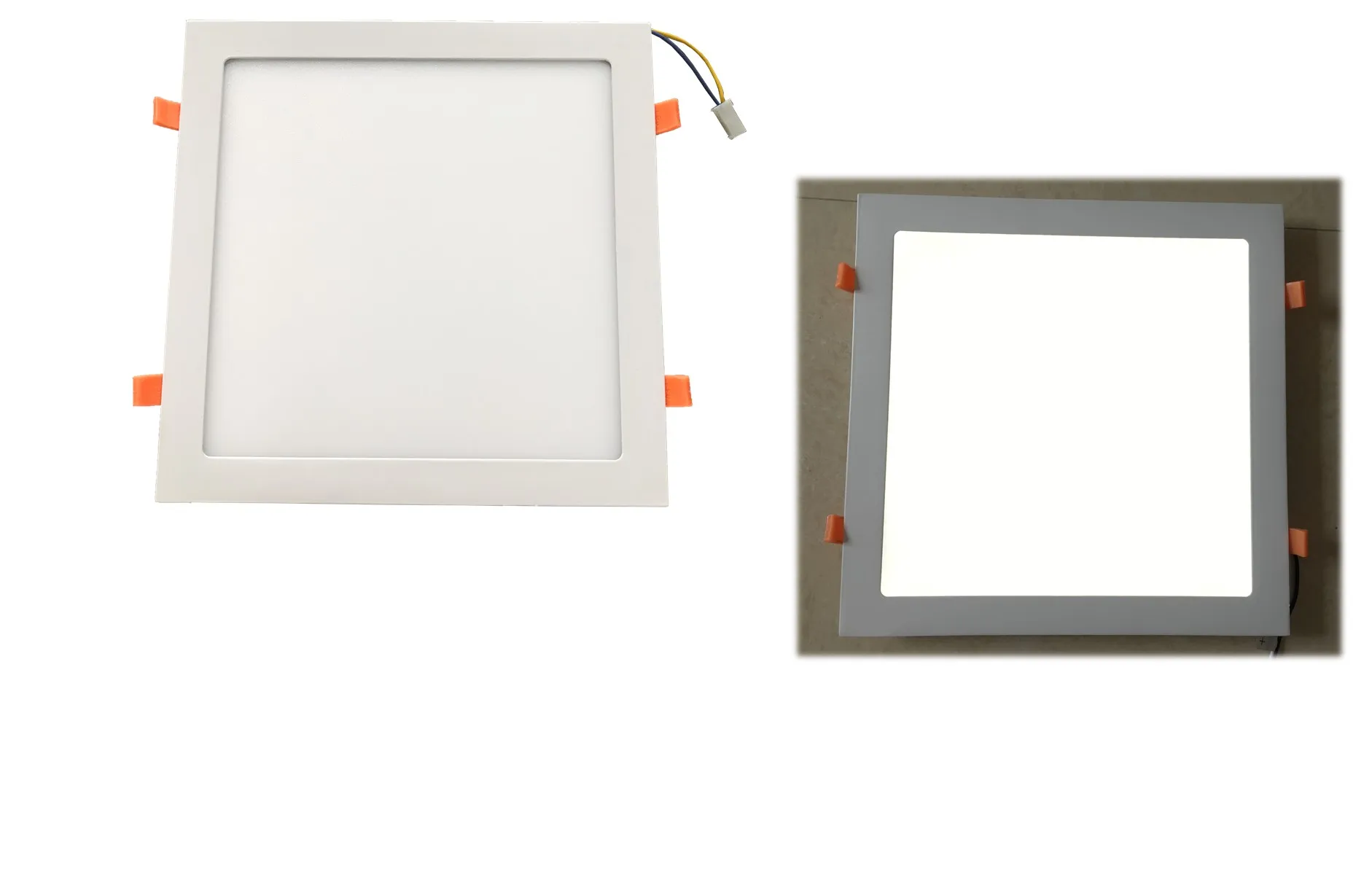

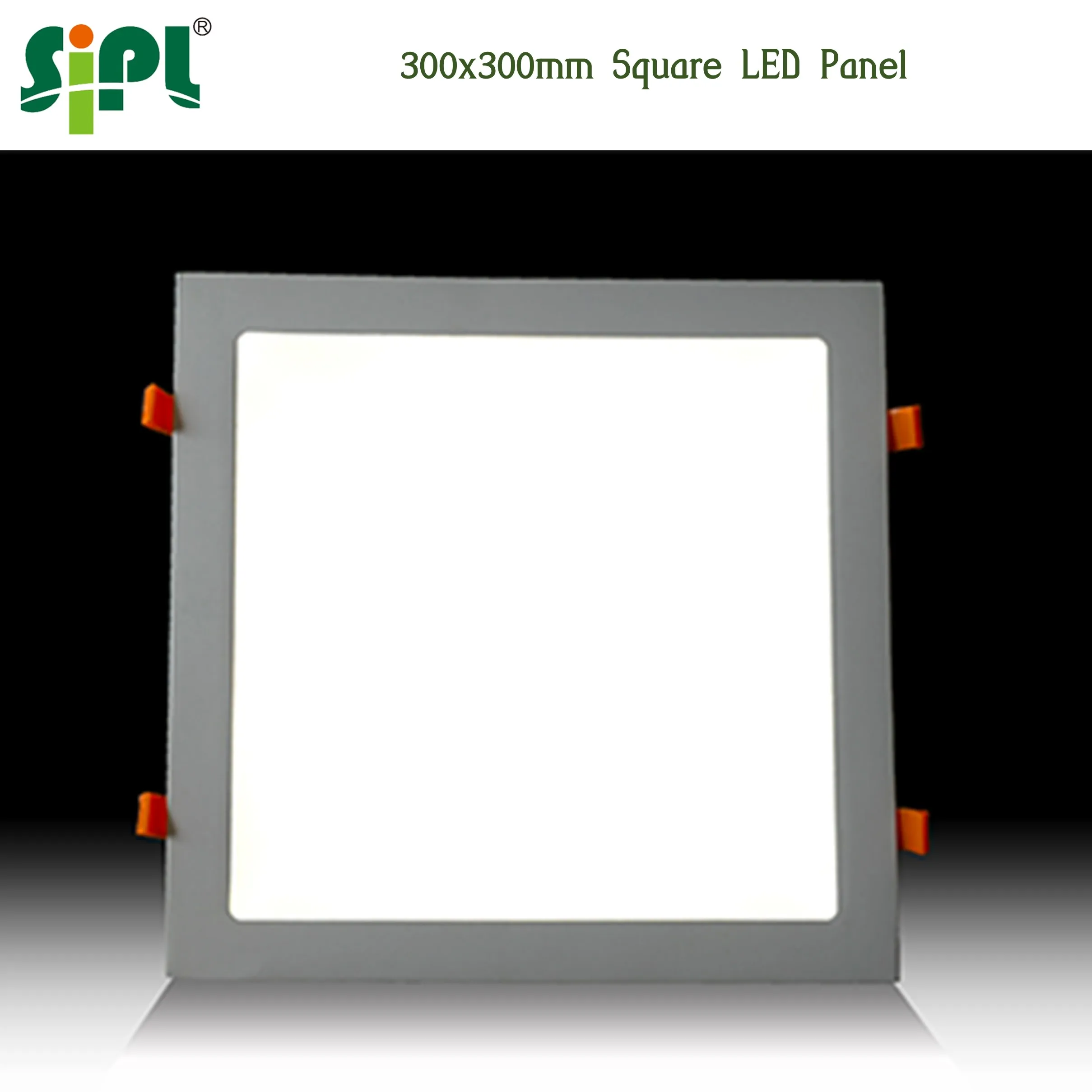

Lighting Fixture: LED Panel Light
* 300x300x12mm, carries 30cm cable
* Color Temperature: 5000~5500K (Pure White)
* Color Temperature: 5000~5500K (Pure White)
* embedded mount into ceiling
* Luminous Flux is maximum 1658 lm in the day time, and be controlled maximum 1094 lm in the night time
Power Source: Solar Panel Battery Kit
* 30W poly solar panel, 415x495x62mm:
- 15W/21V to power LED directly in day time
- 15W/24V to charge battery in day time
* 3.2Ah 19.2V battery is assembled at the back side of solar panel
- battery can be charged full in about 5.2 strong sun hours
- battery can backup about 5.8 continuous sunless hours
(battery can be optionally made as 6.4Ah to backup 11.6 sunless hours after charged fully in about 10.3 strong sun hours)
* PV angle is adjustable, includes a full set of mounting kit, carries 10m cable

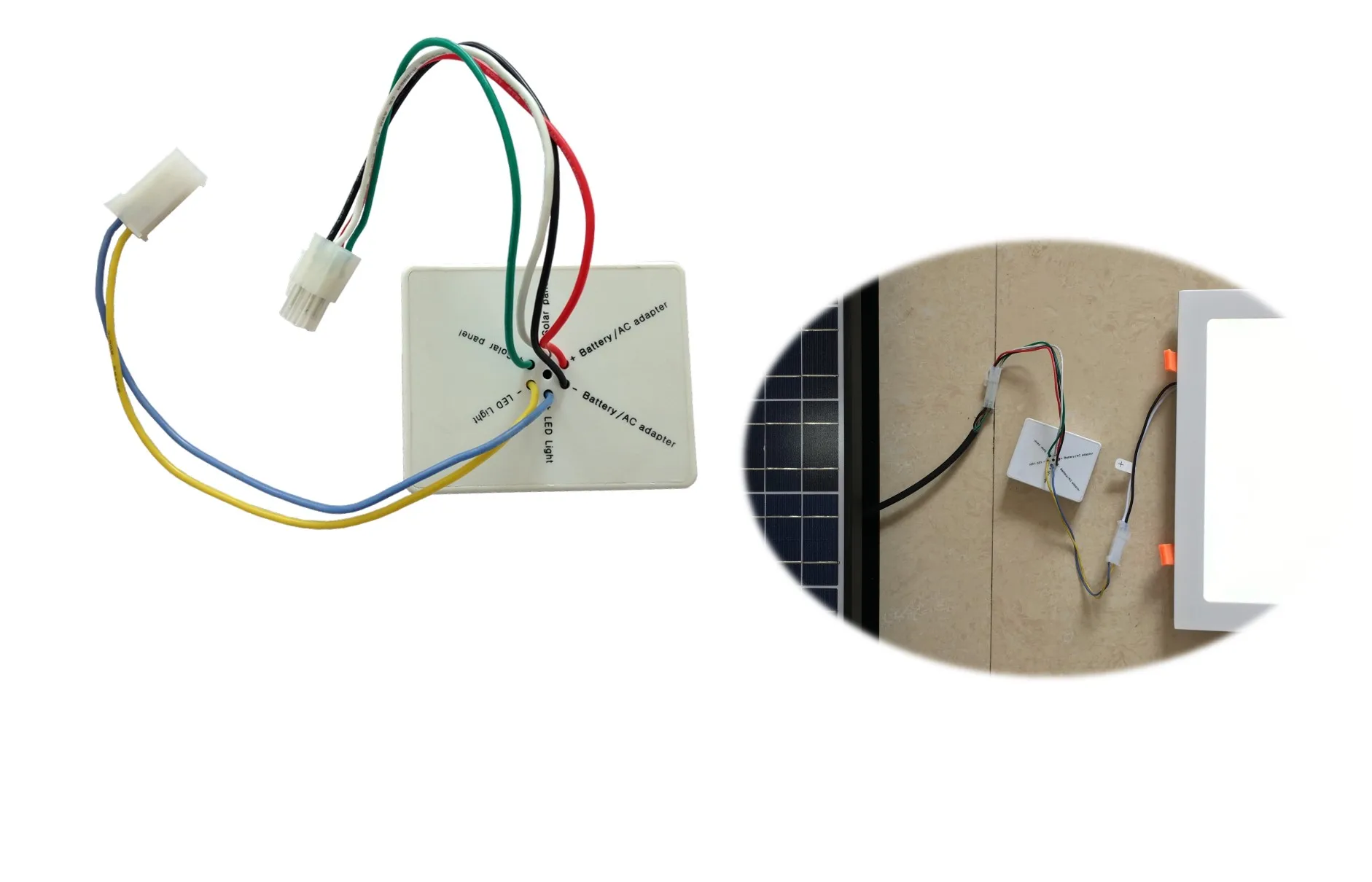

System Controller: Radar Sensor Kit
* a small white box to joint up all electric circuits
* includes radar induction function:
- LED panel stays "ON" all the time of sunny day time
- LED panel be "ON/OFF" smartly in sunless periods
* ON only when human is in an activity
* OFF when people have left the house or are sleeping static for more than 10 mins
* includes radar induction function:
- LED panel stays "ON" all the time of sunny day time
- LED panel be "ON/OFF" smartly in sunless periods
* ON only when human is in an activity
* OFF when people have left the house or are sleeping static for more than 10 mins
System Performance Display (LED Light ON/OFF Smartly)
Such a smart solar lighting system will be benefitial to install anywhere, and it will be essentially interesting when you or your families go to the kitchen / toliet at deep night,
cause you don't need to find out the light switch nor waste electricity should you have forgotten to turn the light off!
Warm Tips to the System Controller (Radar Sensor Controller):
Metal will affect the function of Radar Sensor, so this white box must be positioned correctly
* if plaster board ceiling installation
- radar sensor box can not be put on top of the LED panel
- it is better to put the controller box away from any metal piece
* if metal ceiling board installation
- radar sensor box is suggested to put outside underneth the ceiling board
- you need to drill a small hole for the wires to penetrate the ceiling board
- it is better to put the controller box away from any metal piece
* if metal ceiling board installation
- radar sensor box is suggested to put outside underneth the ceiling board
- you need to drill a small hole for the wires to penetrate the ceiling board
OPTIONAL REMOTE CONTROLLER:
Our solar LED skylights are designed to perfrom automatically without user control. But the fact being that manual-control is sometimes wanted, so we now also provide Remote Controller for your choices:
* to control solar LED light off/on flexibly
* to dim/brighten solar LED light flexibly
(of 10 levels dimming function)
Smartly interestingly, our designed remote control will maintain for 12 hours only:
* to control solar LED light off/on flexibly
* to dim/brighten solar LED light flexibly
(of 10 levels dimming function)
Smartly interestingly, our designed remote control will maintain for 12 hours only:
* LED panel will resume default working automatically after 12 hours from the remote setting time
This is beneficial in case you've forgotten to turn the light on, or in case the remote controller was missing...
This is beneficial in case you've forgotten to turn the light on, or in case the remote controller was missing...
PRACTICAL FUNCTION EXTENSIONS:
* a series of operation options:
1. solar panel + LED light: light-on every seconds of day time
2. solar panel + battery + LED light: light on/off automatically depending on whether human is there or not
3. solar panel + LED light + battery: light-on every seconds of day time & light on/off automatically at night
1. solar panel + LED light: light-on every seconds of day time
2. solar panel + battery + LED light: light on/off automatically depending on whether human is there or not
3. solar panel + LED light + battery: light-on every seconds of day time & light on/off automatically at night
4. solar panel + LED light + AC/DC power adapter: light-on every seconds of day time & light on/off automatically at night
* different solar light system is for different application purpose:
- if day lighting is enough, option 1 is recommended: SN2016012
- if day & night lighting is needed, options 2 SN2016032 / 3 / 4 SN2016012+SN2016030 are considerable, but they have differences, and you can choose according to necessities
* different solar light system is for different application purpose:
- if day lighting is enough, option 1 is recommended: SN2016012
- if day & night lighting is needed, options 2 SN2016032 / 3 / 4 SN2016012+SN2016030 are considerable, but they have differences, and you can choose according to necessities
BROAD APPLICATIONS (suitable for any place even any corner lighting):
MANY OTHER OPTIONS:
FLEXIBLE COMBINATIONS:
1 PV for Several LED
Own to their easy installation benefits, we can tailor-make any solar lighting system by using 1 solar panel to power several LED panels together, while the mixed LED panel sizes can be different!
Own to their easy installation benefits, we can tailor-make any solar lighting system by using 1 solar panel to power several LED panels together, while the mixed LED panel sizes can be different!
1 PV for Both LED & Fans
We can even use 1 solar panel to power different skylights & fans together!
Just any demand that you would have for the house, SIPL can realize it smartly perfectly!
We can even use 1 solar panel to power different skylights & fans together!
Just any demand that you would have for the house, SIPL can realize it smartly perfectly!
Quality & Warranty
LED Panel | designed lifespan > 10 years | warranty: 5 years |
Solar Panel | designed lifespan > 25 years | warranty: 15 years |
Battery | designed lifespan > 8 years | warranty: 2 years |
System Controller | designed lifespan > 10 years | warranty: 2 years |
other electronic components | designed lifespan > 10 years | warranty: 5 years |
if Remote Controller | designed lifespan > 10 years | warranty: 2 years |
if AC/DC Power Adapter | designed lifespan > 10 years | warranty: 5 years |
* the above warranty terms are based on the products be used indoor and in normal environments, no corrosive substance surrounded
