PX PYB Three Way Quick Connect One Touch Air fittings Pneumatic Male Thread Brass Nickel Plated Y Tee Pipe Fitting
- Category: >>>
- Supplier: Taizhou Chenming Automation Technology Co. Ltd.
Share on (62529003083):
Product Overview
Description

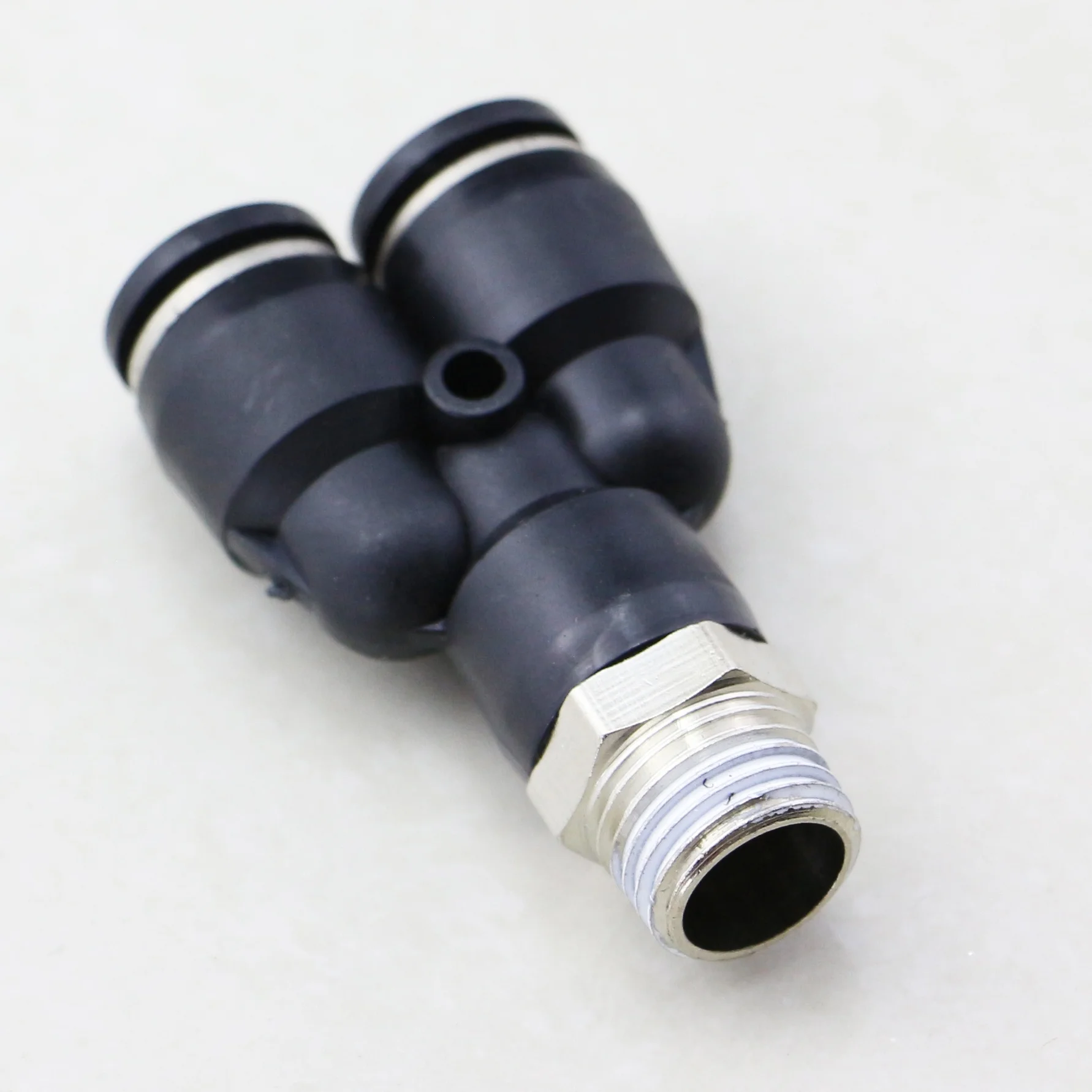

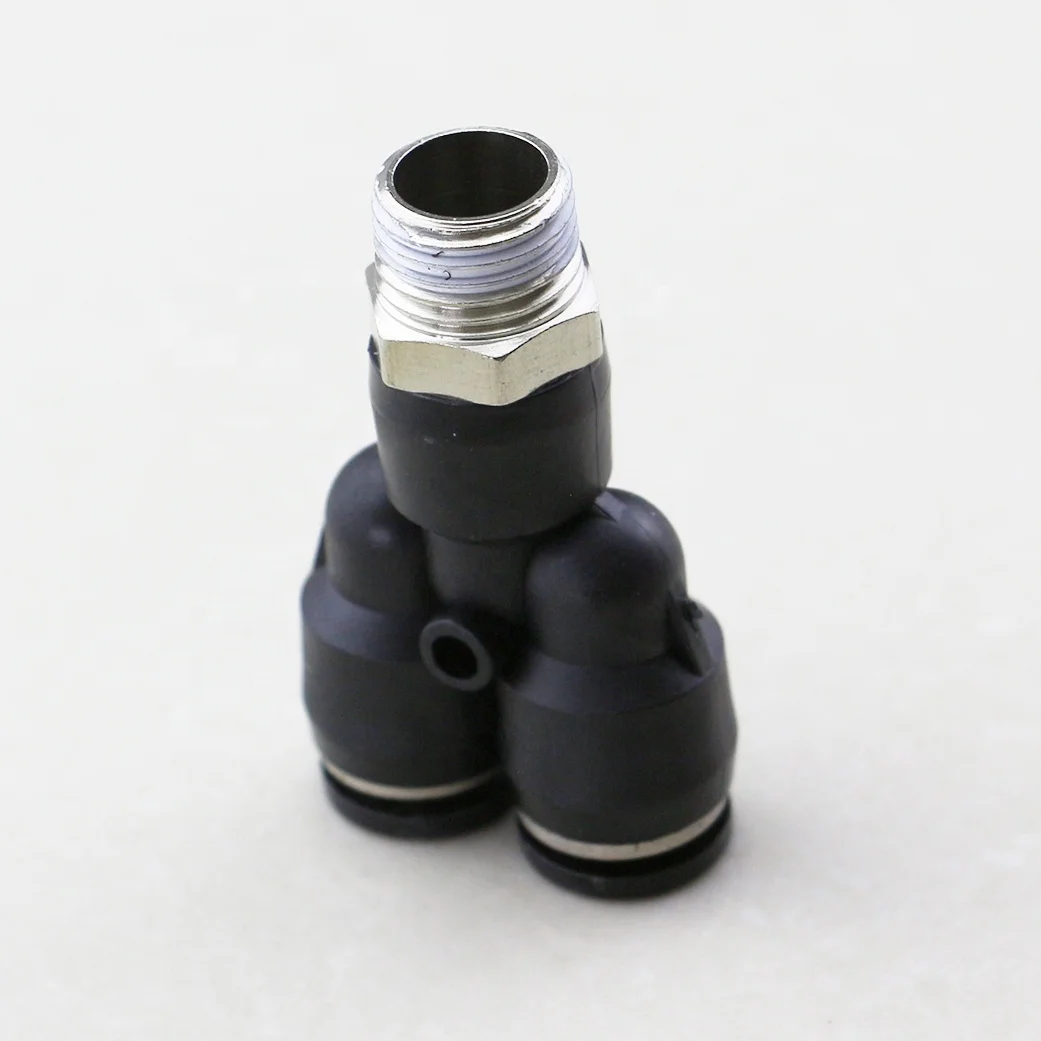

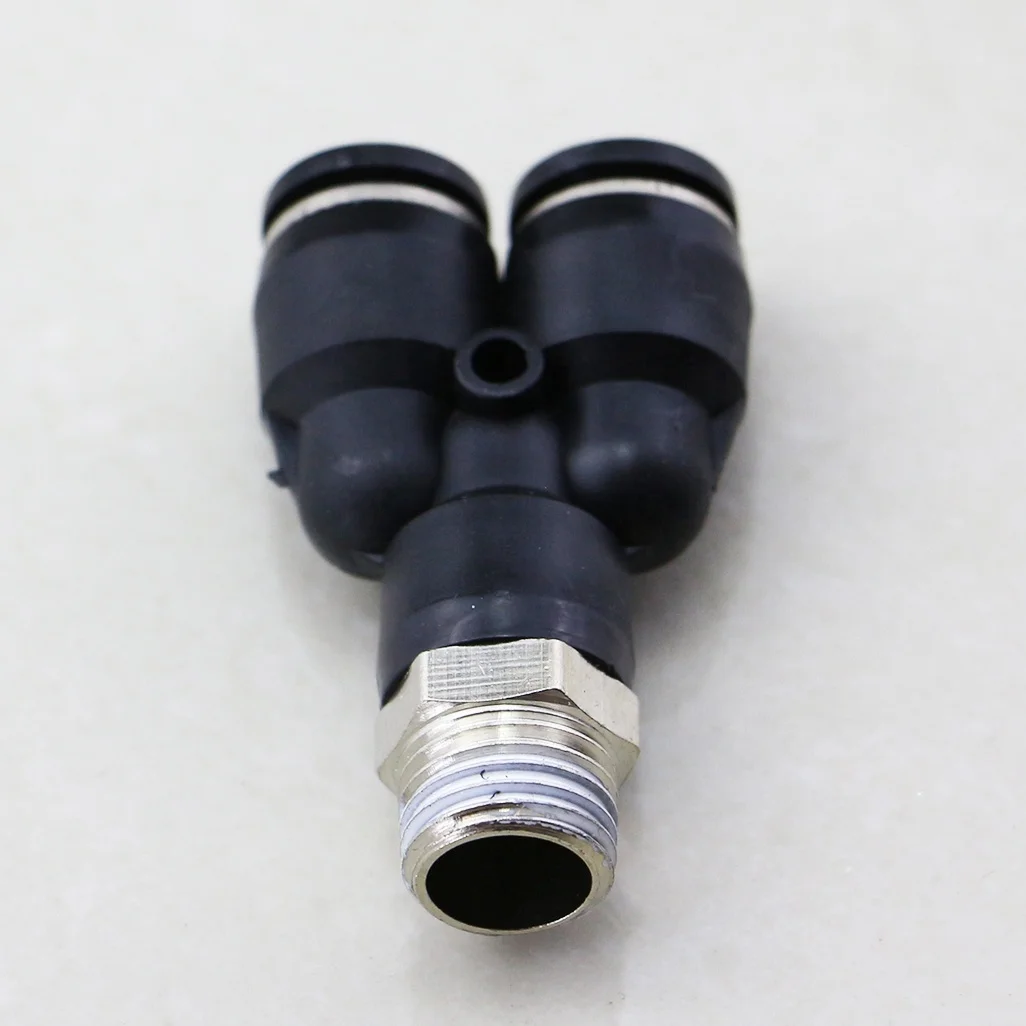

PX PYB Three Way Quick Connect One Touch Air fittings Pneumatic Male Thread Brass Nickel Plated Y Tee Pipe Fitting
Product Description

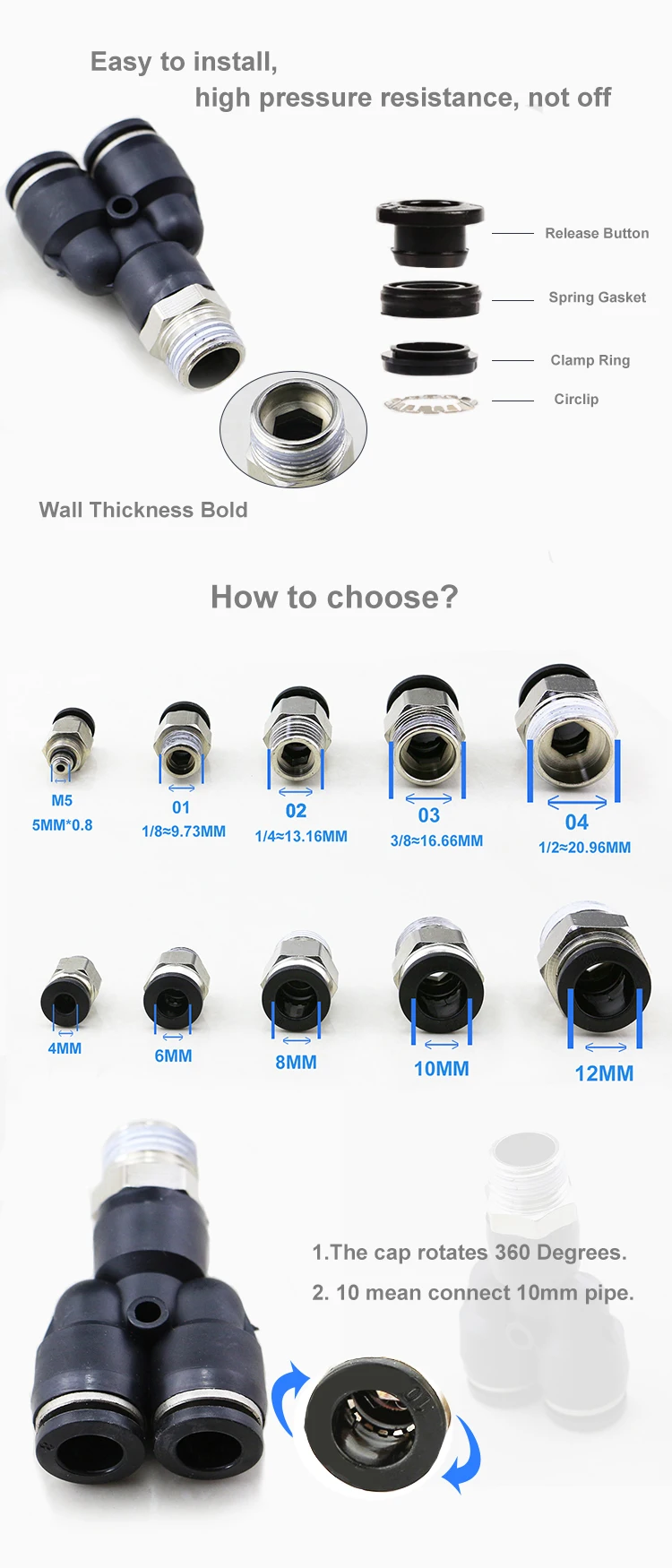

Ordering Code:
PX 6 - 01
Model Port size Thread size
PX 4mm M5: M5
6mm 01: 1/8''
8mm 02: 1/4''
10mm 03: 3/8''
12mm 04: 1/2''
Specifications
| Operating Pressure Range | 0-1.0MPa | 0-145psi |
| Operating Temperature | -20~70℃ |
| Applicable Tube | PU / PA / PE / PVC |
| Features | 1. Designed for Polyurethane or Nylon tubing. 2. Simple installation pneumatic push in connector. |
| Note | 1.Due to the difference between different monitors, the picture may not reflect the actual |

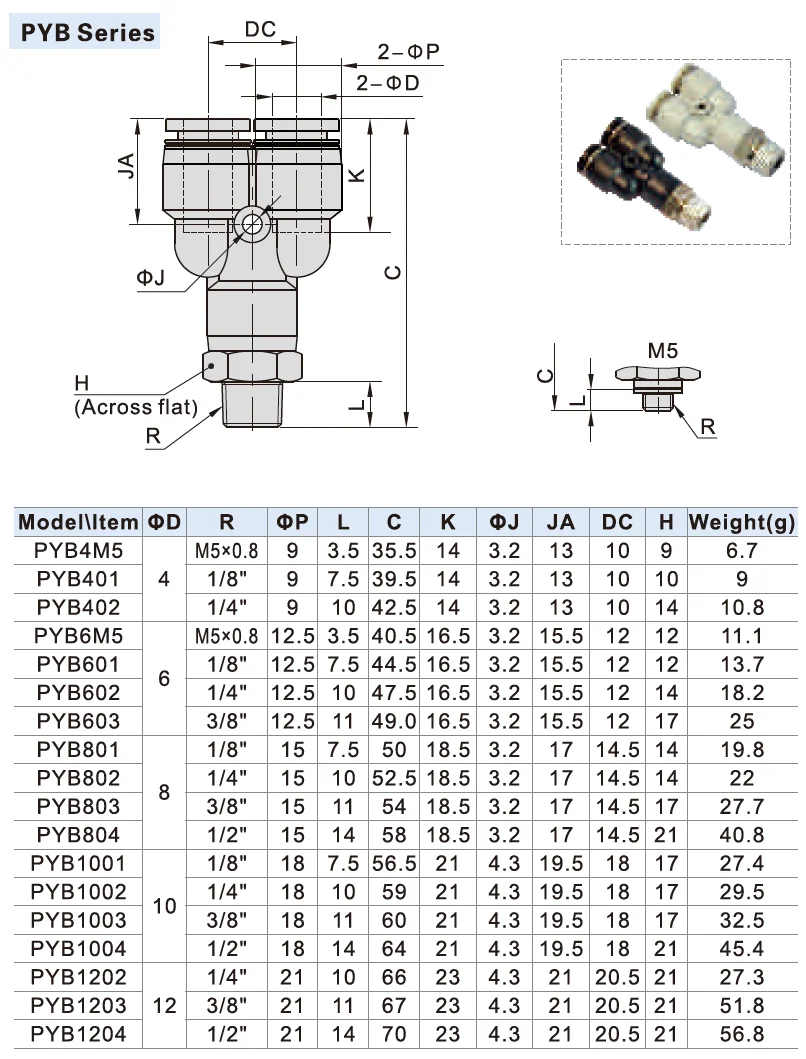

Dimension
Product Details
More Selection
Main Product
Company Information
Our Service
FAQ
Q: What is your MOQ?
A: 50pcs for MOQ.
Q: What is your packing?
A: We are packing by plastic bag.
Q: Can you do free sample?
A: Yes,We can, But shipping cost by your side.
Q:What is your quality?
A: Sample will tell you what you want.
Q: What is your warranty?
A: One year under normally used.
Q: Can you do OEM?
A: Yes, we can.
