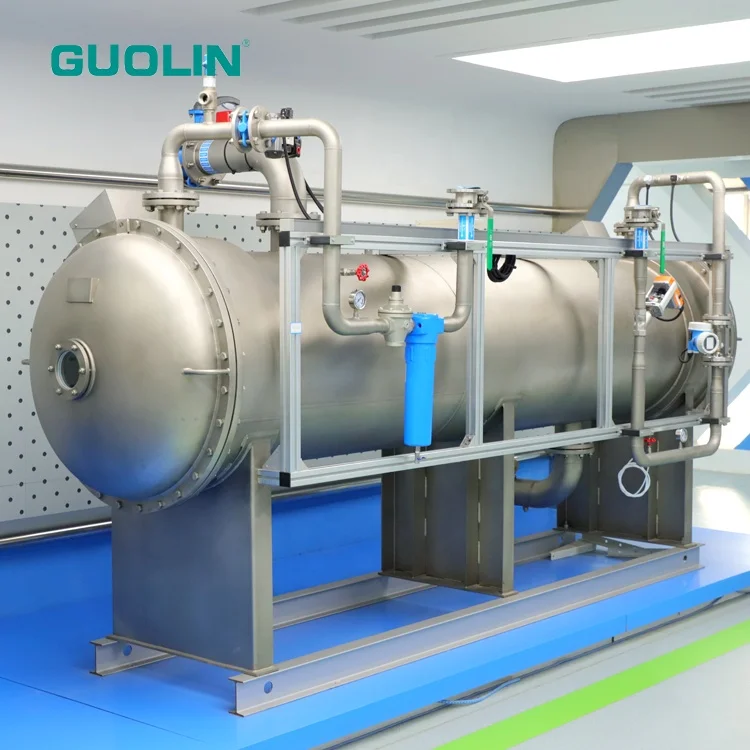

Китайский промышленный генератор озона 15 кг/ч для очистки воды, дезинфекции, удаления трески

Share on (62529103847):


Price:9 849 980,30 ₽ - 9 999 980,00 ₽

Quantity:


Product Overview

Description





Product Description

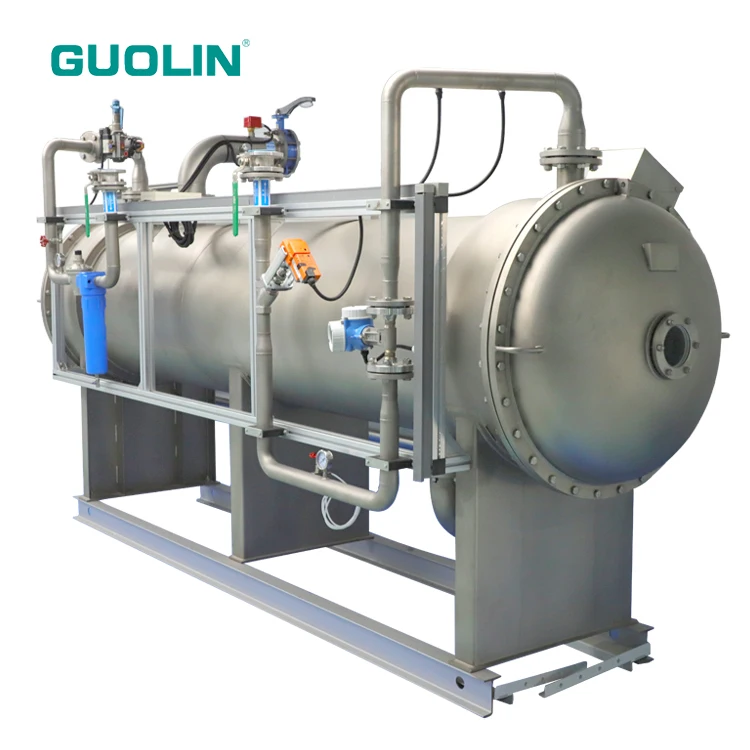

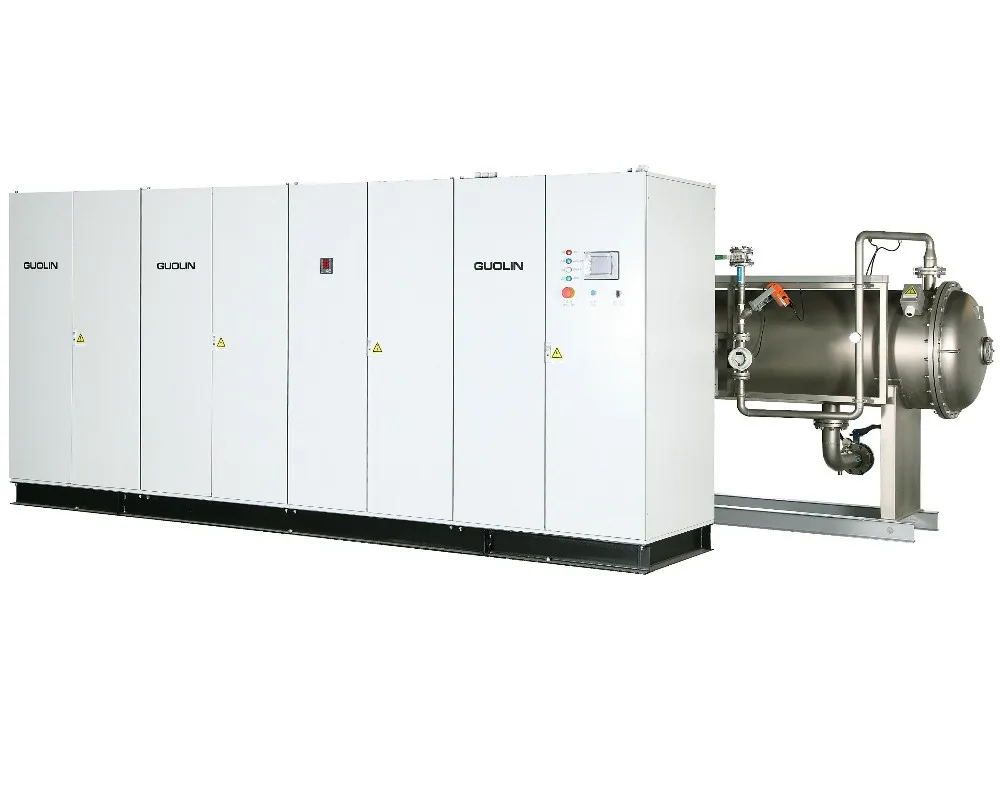

China 15kg/h Industrial Ozone Generator For Water Treatment Disinfection COD Removal



As oxidant, disinfectant, cleaning agent and catalyst, ozone has been widely used in municipal water treatment, flue gas treatment, fine chemical oxidation, food and beverage industry, swimming pool disinfection, space disinfection, preservation, paper-making industry, packaging film, aquaculture industry and semiconductor cleaning, etc.
Ozone could remove toxic substances in the water, such as metal ions, organic toxicant, cyanide, sulfide and a variety of pesticides so that it can reduce the organic carcinogen in the water, such as halohydrocarbons, thus solving the problem of quality of drinking water. Ozone also can be used for fresh-keeping. It can effectively inhibit the respiration of fruit trees, slow down the metabolic process and inhibit the growth and spread of pathogenic bacteria, thereby play a important role in fresh-keeping and storage.-China 15kg/h ozone generator for water treatment







Main Features-China 15kg/h ozone generator for water treatment

1 Water cooling mode. Multi-stage cooling structure design ensures the cooling efficiency to be increased by 20%. Equipment can be running continuously for 24hrs;
2 Electrode tube is made of 316L stainless steel; imported medium coating material is used for dielectric tube;
3.Ozone capacity could be regulated with range of 10%-100%; high ozone concentration, large ozone capacity, more stable performance and longer life time;
4.Equipment has operation monitoring functions to current, voltage, temperature, flow rate, gas pressure and operation status and protection functions;
5. Control method includes manual control and automatic control for option.



Ozone generator with air source


Type
Ozone capacity
Feed gas flow
Ozone concentration
Cooling water flow
Power consumption
Dimension
Weight
(kg/h)
(Nm3/h)
wt%
(m³/h)
(kwh/kgo3)
mm
T
CF-G-2-10KG
10
309.4-387
2-2.5
30-40
14-16
4400*1260*2200
4800*1000*2120
7.9
CF-G-2-15KG
15
464-580.5
2-2.5
45-60
14-16
4600*1560*2480
5400*1200*2200
12.1
CF-G-2-20KG
20
618.7-774
2-2.5
60-80
14-16
4800*3600*2600
6000*1400*2400
14.5
CF-G-2-30KG
30
928.1-1161
2-2.5
90-120
14-16
6000*4000*2700
6000*1400*2400
21
CF-G-2-40KG
40
1237.4-1548
2-2.5
120-160
14-16
6000*4400*2800
7200*1700*2400
24
CF-G-2-50KG
50
1546.8-1935
2-2.5
150-200
14-16
7200*4800*2900
7200*1400*2400
28
CF-G-2-60KG
60
1856.1-2322
2-2.5
180-240
14-16
7200*5000*3400
7200*1400*2400
35


Ozone generator with oxygen source


Type
Ozone capacity
Feed gas flow
Ozone concentration
Cooling water flow
Power consumption
Dimension
Weight
(kg/h)
(Nm3/h)
wt%
(m³/h)
(kwh/kgo3)
mm
T
CF-G-2-10KG
10
67.6-85.1
8-10
17-20
6-8
4000*900*1950
3600*800*2120
3.9
CF-G-2-15KG
15
101.5-127.7
8-10
25.5-30
6-8
4100*1000*2000
3600*800*2120
5.0
CF-G-2-20KG
20
135.5-170.2
8-10
34-40
6-8
4250*1150*2000
4800*1000*2160
6.9
CF-G-2-30KG
30
203.0-255.3
8-10
51-60
6-8
4300*1300*2250
5400*1200*2160
9.4
CF-G-2-40KG
40
270.6-340.4
8-10
68-80
6-8
4300*1450*2300
5400*1200*2160
10.7
CF-G-2-50KG
50
338.3-425.5
8-10
85-100
6-8
4300*1500*2400
6000*1400*2400
13.8
CF-G-2-60KG
60
405.9-510.6
8-10
102-120
6-8
4300*1650*2600
6000*1400*2400
15.5
CF-G-2-80KG
80
541.3-680.8
8-10
136-160
6-8
4400*1850*3000
7200*1400*2400
20.7


Core Technology


Core Technology

------International leading glass and non-glass discharge dielectric technology
------Capacitive load high power inverter resonant power supply technology
------Capacitive load high power dry type high voltage transformer technology
------Power control technology based on IP core and digital logic circuit
------Embedded on-line detection and remote monitoring technology of ozone system
