DZBS1135 Steam Shrink Tunnel Machine For Bottle Label
- Category: >>>
- Supplier: Shandong Ecan Machinery Manufacturing Co. Ltd.
Share on (62529130399):
Product Overview
Description
Product Description
Introduction of Lable shrink packing machine
This series lable shrink machine are mainly use to shrink label of product in bottle shape, can shape or barrel shape with glass bottle, plastic bottle or paper cup.
The label either on the top, in the middle, at bottom of bottle or wrapping the whole battle is able to be shrank with different type model. It is widely applied in the industry of food, medicine, cosmetic and pesticide,etc.
BSS-1538C label shrink machine is only to shrink label on the top of bottle.
Parameters of Lable shrink packing machine

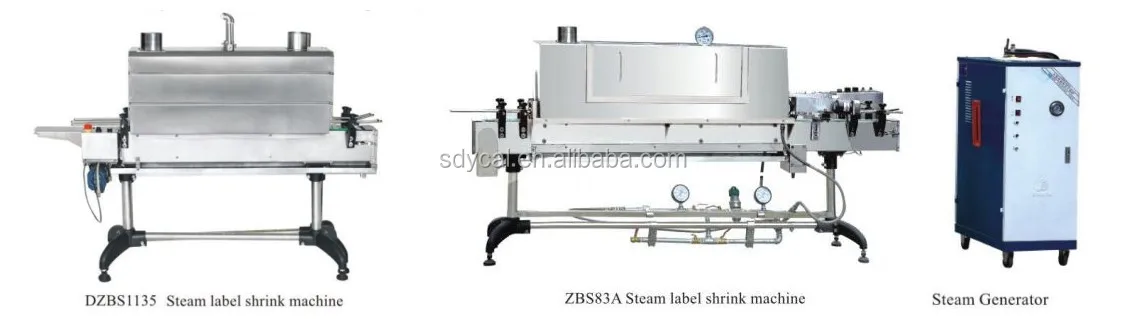

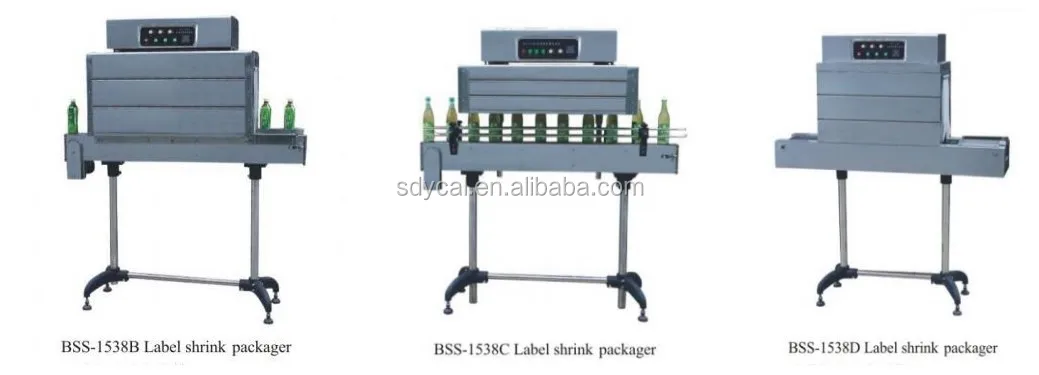

Model | BSS-1538B | BSS-1538C | BSS-1538D | DZBS1135 | ZBS83A |
Voltage | 220V/50-60Hz | 220V/50-60Hz | 220V/50-60Hz | 220V/50-60Hz | 220V/50-60Hz |
Power | 8kw | 6kw | 6kw | 150w | 150w |
Tunnel size | 1000* 150* 380 | 1000*150*150 | 800*200*400 | 1000*110*350 | 1350*180*380 |
Max. packing size (mm) | 105*350H | 105*350H | 160*350H | 80*300 | 120*350H |
Conveyor motor | AC90W/ 220V | AC90W/ 220V | DC50W/220V | AC120W | AC120W |
Conveyor speed | 0-10m/min | ||||
Max. loading | 15kgs | ||||
Shrink film | POF,PVC,PP | ||||
Machine weight | 96kg | 90kg | 66kg | 68kg | 150kg |
Dimension (mm) | 1500* 350*1500 | 1500* 350* 1500 | 1500* 400* 1620 | 1520* 400* 1250 | 2400* 430* 1350 |
Images of Lable shrink packing machine
