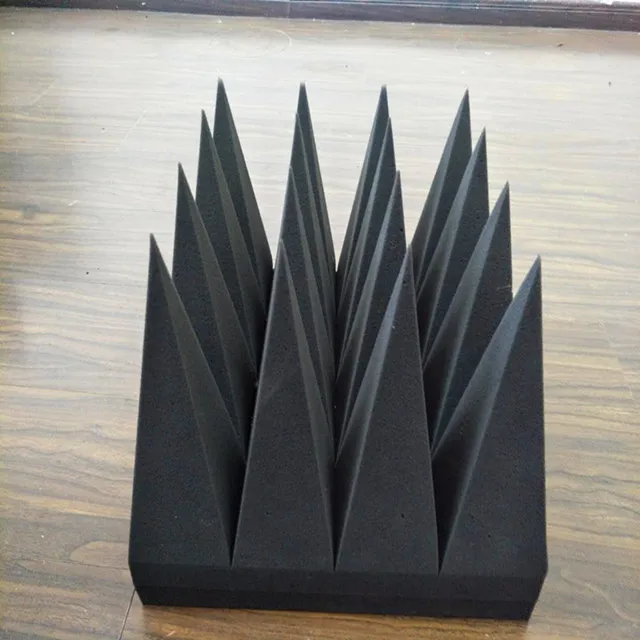

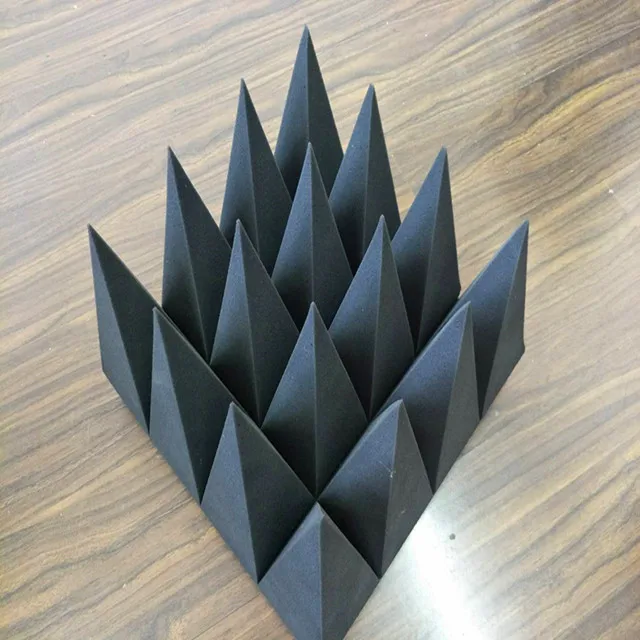

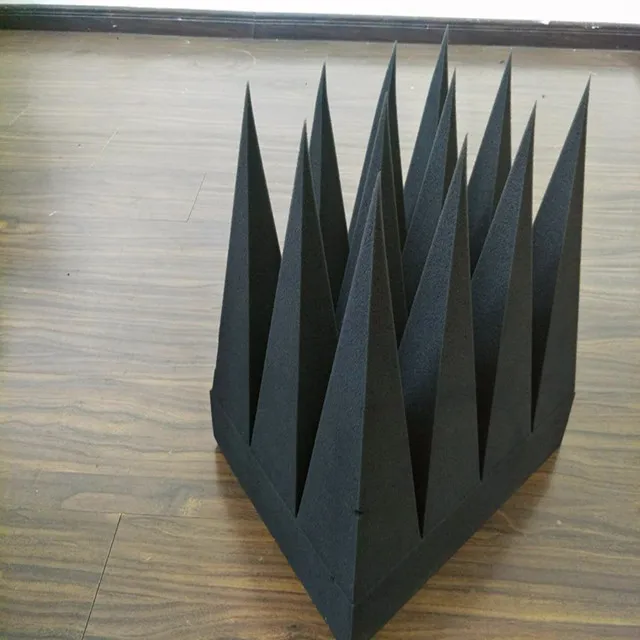

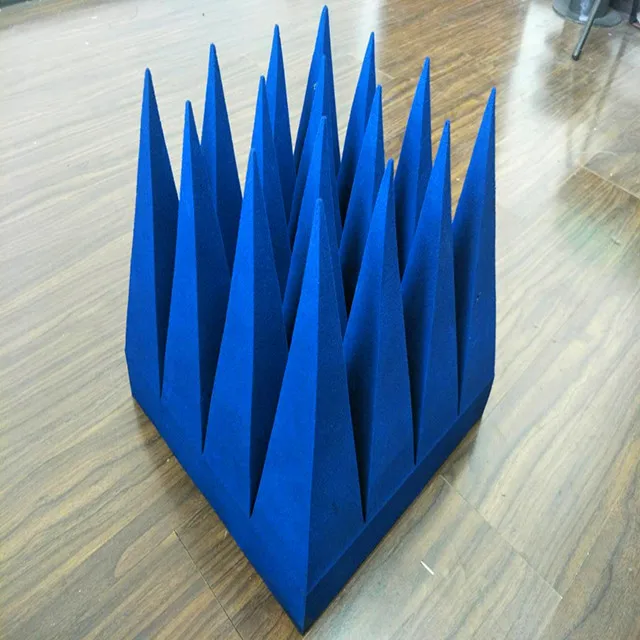

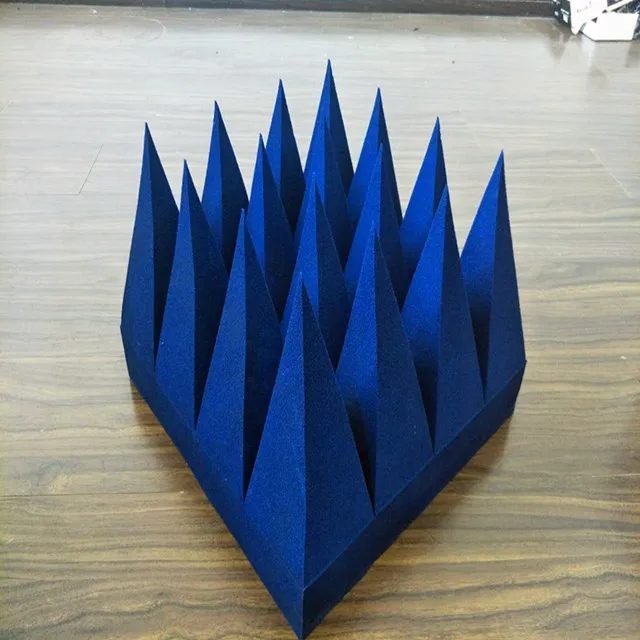

Конструкция с открытыми ячейками прочный высеченный 70 дБ радар абсорбирующий материал
- Category: >>>
- Supplier: Changzhou Haozhuo Electronic Co. Ltd.
Share on (62529134414):
Product Overview
Description
RF Foam Absorber Types
· Rubber sheet micromave absorber
· Carbon-based foam microwave absorber
· Honeycomb & high power microwave absorber
· Sprayable microwave absorber
· Rigid and castable microwave absorber
RF Foam Absorber Basic Information
· Base size: 500*500mm, customized acceptable
· Standard height: 30,50,100,150,200,300,400,500,700,800,1000mm
RF Foam Absorber Features
· The traditional material for anechoic chambers
· Outstanding absorbing over a wide frequency range
· Flexible
TYPE | BASE SIZE | NUMBER OF PYRAMIDAL | WEIGHT | TOTAL HEIGHT | BASE HEIGHT | PYRAMIDAL HEIGHT | PYRAMIDAL WIDTH |
HZ-30 | 500*500 | 36*36 | 1.1 | 30 | 15 | 15 | 14 |
HZ-50 | 500*500 | 20*20 | 1.8 | 50 | 20 | 30 | 25 |
HZ-70 | 500*500 | 20*20 | 2.5 | 70 | 20 | 50 | 25 |
HZ-100 | 500*500 | 13*13 | 3.3 | 100 | 25 | 75 | 38 |
HZ-150 | 500*500 | 9*9 | 4.8 | 150 | 30 | 120 | 56 |
HZ-200 | 500*500 | 7*7 | 6.3 | 200 | 40 | 160 | 71 |
HZ-300 | 500*500 | 5*5 | 9 | 300 | 60 | 240 | 100 |
HZ-400 | 500*500 | 4*4 | 12 | 400 | 70 | 330 | 125 |
HZ-500 | 500*500 | 3*3 | 15 | 500 | 80 | 420 | 167 |
HZ-600 | 400*400 | 2*2 | 18 | 600 | 90 | 510 | 200 |
HZ-700 | 250*500 | 1*2 | 21 | 700 | 100 | 600 | 250 |
HZ-800 | 250*500 | 1*2 | 24 | 800 | 100 | 700 | 250 |
HZ-1000 | 334*334 | 1*1 | 30 | 1000 | 150 | 850 | 3 |
TYPE | HEIGHT | REFLECTIVITY | ||||||||
40 | 15 | 10 | 3 | 1.5 | 0.5 | 0.3 | 0.2 | 0.15 | ||
HZ-100 | 100 | 50 | 45 | 40 | 30 | 20 |
|
|
|
|
HZ-150 | 150 | 50 | 50 | 45 | 33 | 25 |
|
|
|
|
HZ-200 | 200 | 50 | 50 | 50 | 37 | 30 | 17 |
|
|
|
HZ-300 | 300 | 50 | 50 | 50 | 40 | 33 | 20 |
|
|
|
HZ-400 | 400 | 50 | 50 | 50 | 45 | 40 | 25 | 17 |
|
|
HZ-500 | 500 | 50 | 50 | 50 | 45 | 40 | 30 | 20 | 17 |
|
HZ-600 | 600 | 50 | 50 | 50 | 50 | 40 | 30 | 25 | 20 |
|
HZ-700 | 700 | 50 | 50 | 50 | 50 | 43 | 35 | 30 | 20 | 17 |
HZ-800 | 800 | 50 | 50 | 50 | 50 | 45 | 36 | 30 | 20 | 17 |
HZ-1000 | 1000 | 50 | 50 | 50 | 50 | 45 | 38 | 35 | 25 | 20 |
