Double Motors Double Heads Thread Trimming Machine
- Category: >>>
- Supplier: Foshan Quanjiu Industry Automation Equipment Co. Ltd.
Share on (62529161515):
Product Overview
Description
Double Motors Double Heads Thread Trimming Machine:

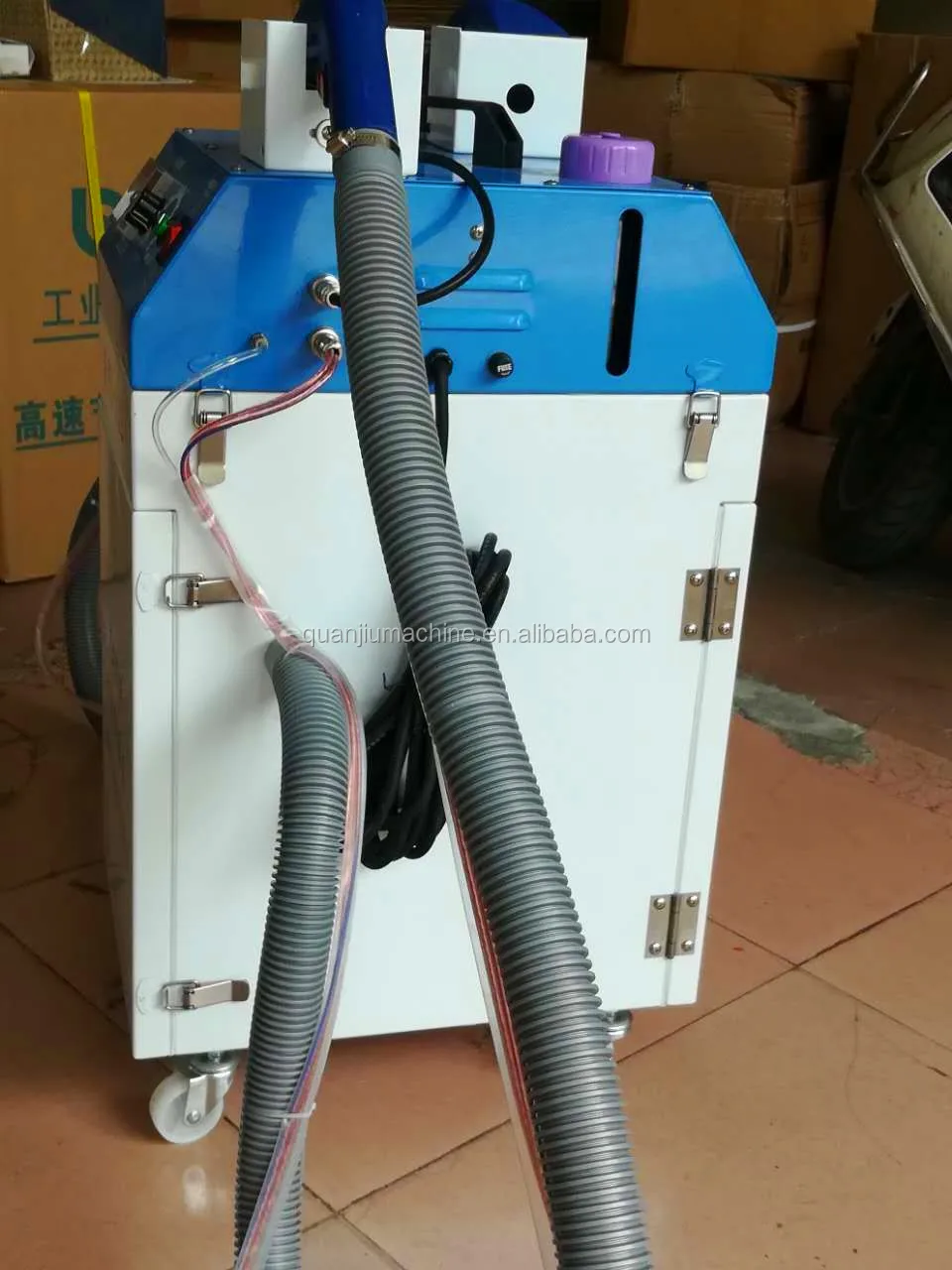

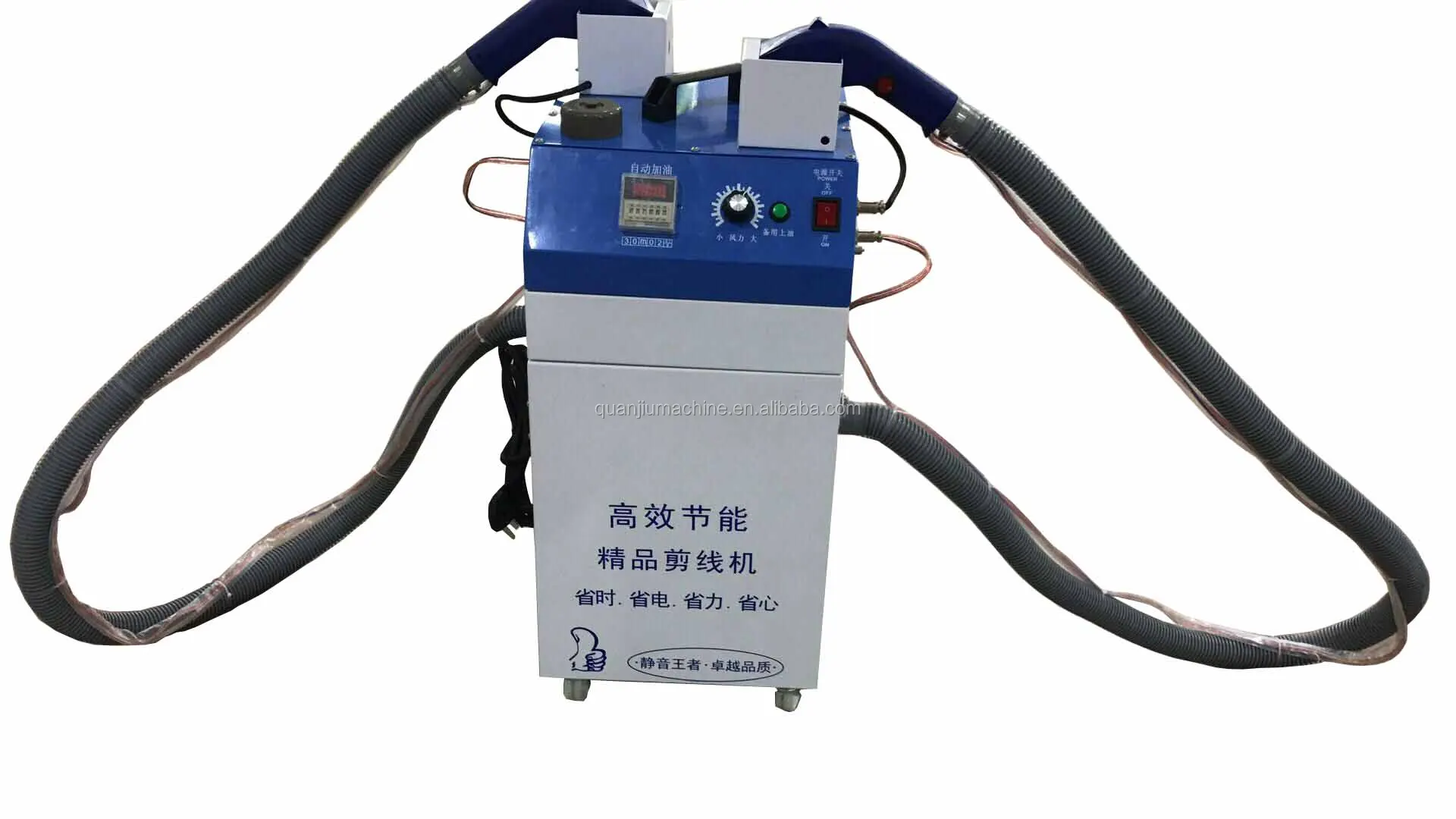

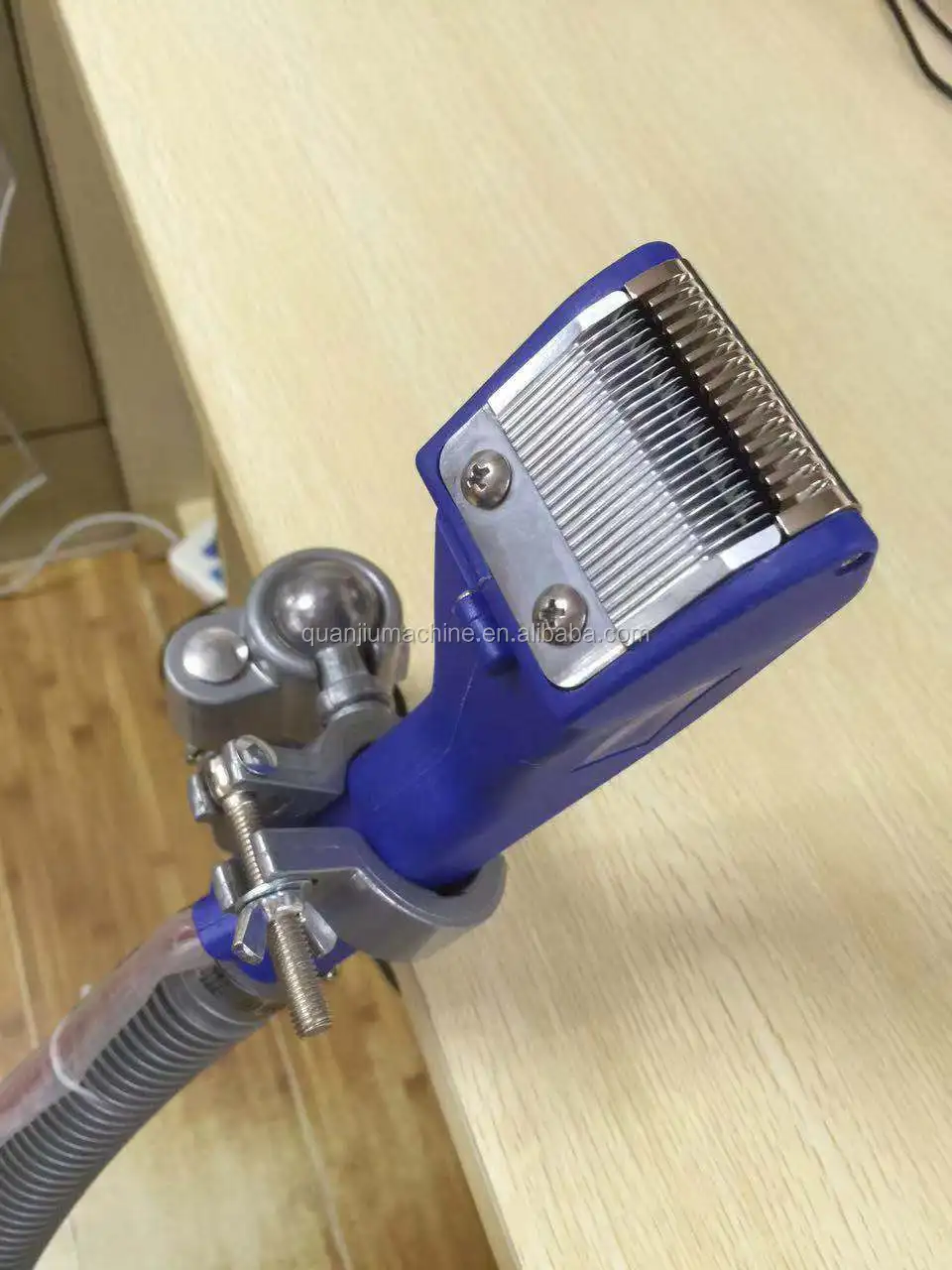

Machine Pictures:
Machine Main Features:
1. Improved version, reliable and stable;
2. Double heads, two workers use one machine to work at the same time;
3. Automatic oil filling;
4. Wind is adjustable;
4. Wind is adjustable;
5. Cost economic.
Machine Specifications:
1. Double heads single motor, two workers can use one machine to work at the same time;
2. Motor Power: 650W
3. Power Supply: Single Phase, 220V, 50/60HZ
4. Dimension: L30*W30*H57cm
5. Net Weight: 27kgs
Gross Weight: 28kgs
Gross Weight: 28kgs

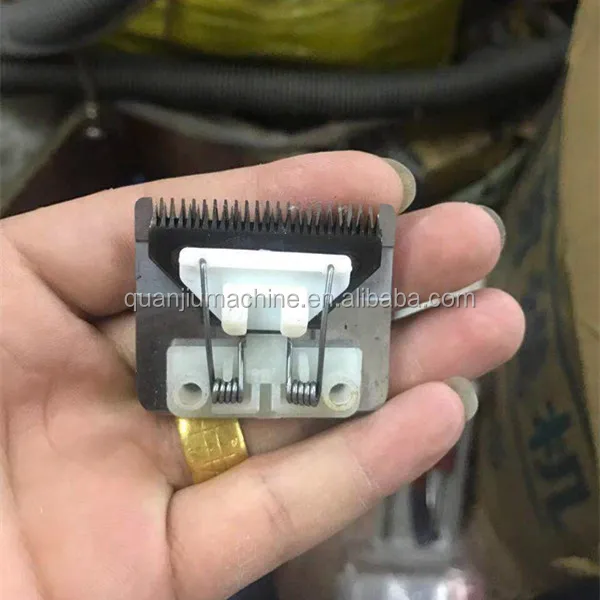

6. Consumable Part1: Blade
Consumable Part2: Carbon Brush
7. One 20" container can load 170pcs.Consumable Part2: Carbon Brush
Operation:
1)Plug in the power, turn on the switch.
2)Adjust the wind speed, then press the manual oil feeding switch. 3)Adjust the suction wind (less than inhaling the fabric). The product is leveled, and the head seam line can be cut to achieve the desired trimming effect. (It is better to lift 0.5-1cm of the front part of the cutter head).
Maintenance:
1)When starting work, clean the thread in the bucket and the cutter head (removing the blade).
Note: The blade cannot be pressed on the thread in slot, otherwise it will hurt the clothes.
2)Check and make sure there is oil in the oil pipe every day.
3) Check if there is thread in the cool wind outlet, if there is thread block, need to use wind pipe to blow away the thread.

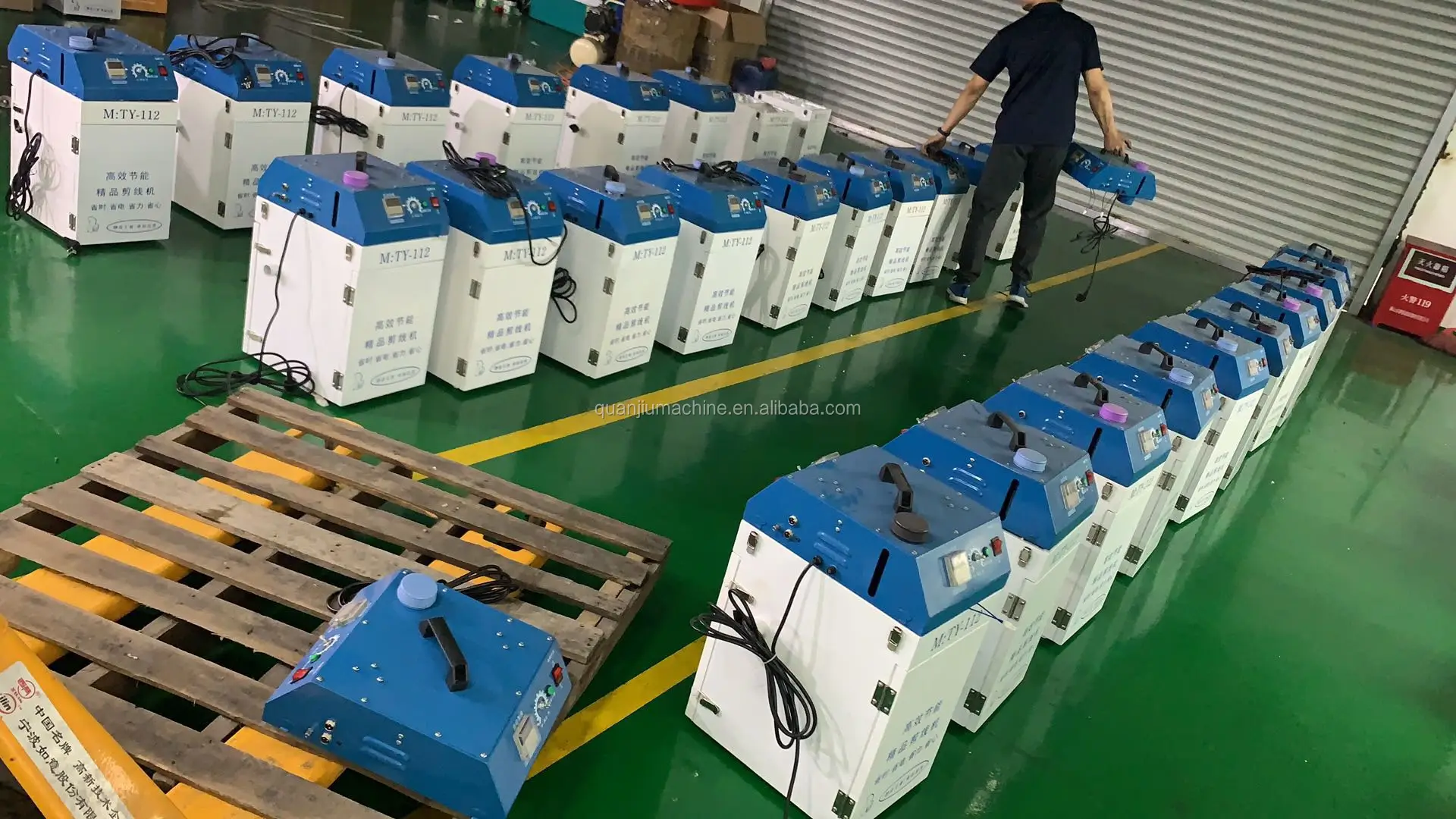

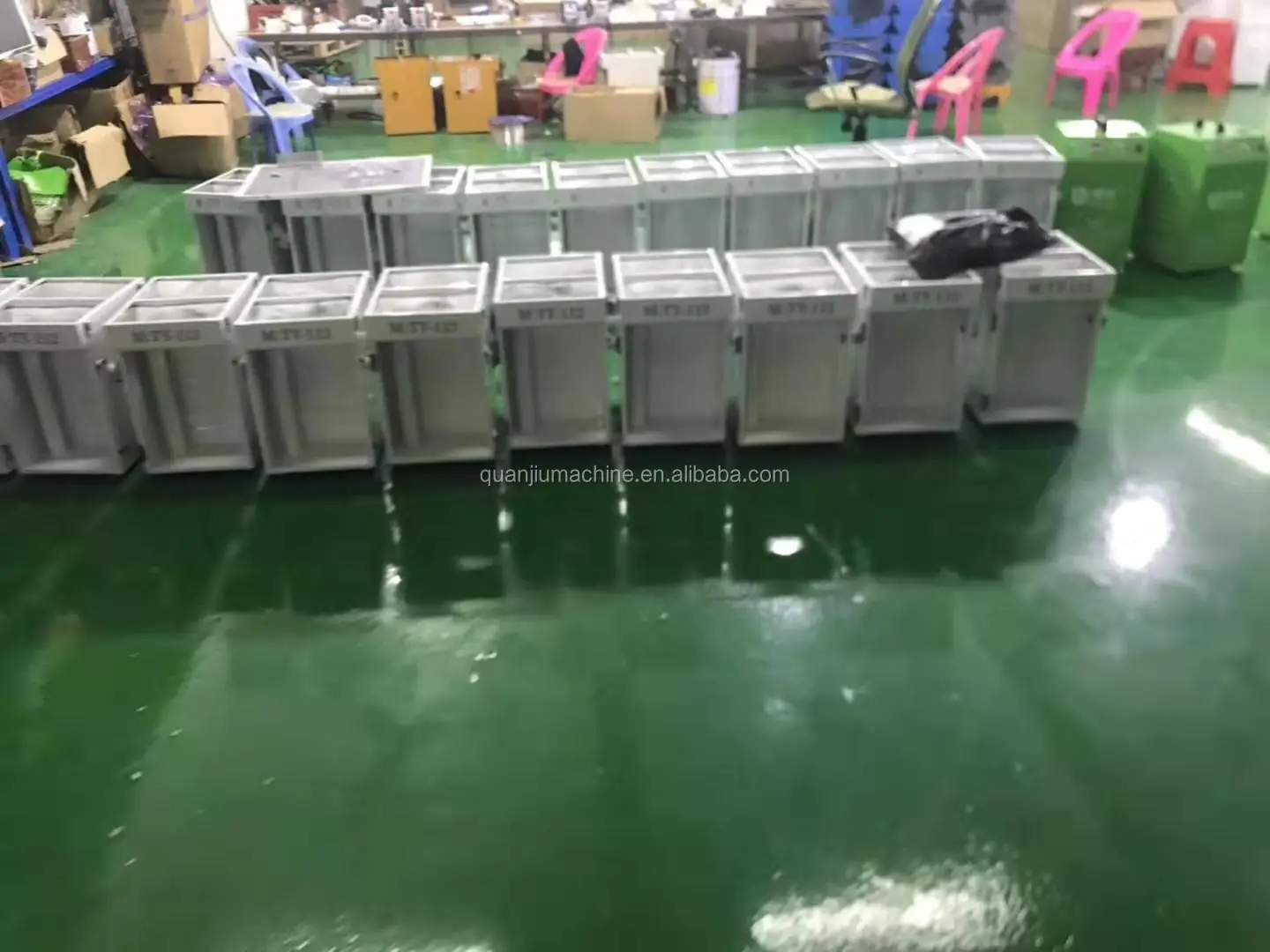

Our Workshop:
Our vision:
We are factory manufacturer located in Foshan. We have been working hard to
provide reliable quality machine with reasonable price and qualified service for
our worldwide customers!
Our Advantages:
High quality parts, Compact Machine Structure, High Stability and Reliability.
We have professional teams experting in production, design and R&D for over 10 years to
meet clients' different demands.
High precison and excellent performance for producing all kinds of machines.
Machine test run (at least for one week) before we ship the machine, in an effort to insure
every mechanical and electrical parts are in perfect condition.
After order placed, we accept to adjust the products according to customer's demand,
and remain the program and tool settings on machine in order to insure a quick
start of machine once customer receive it.

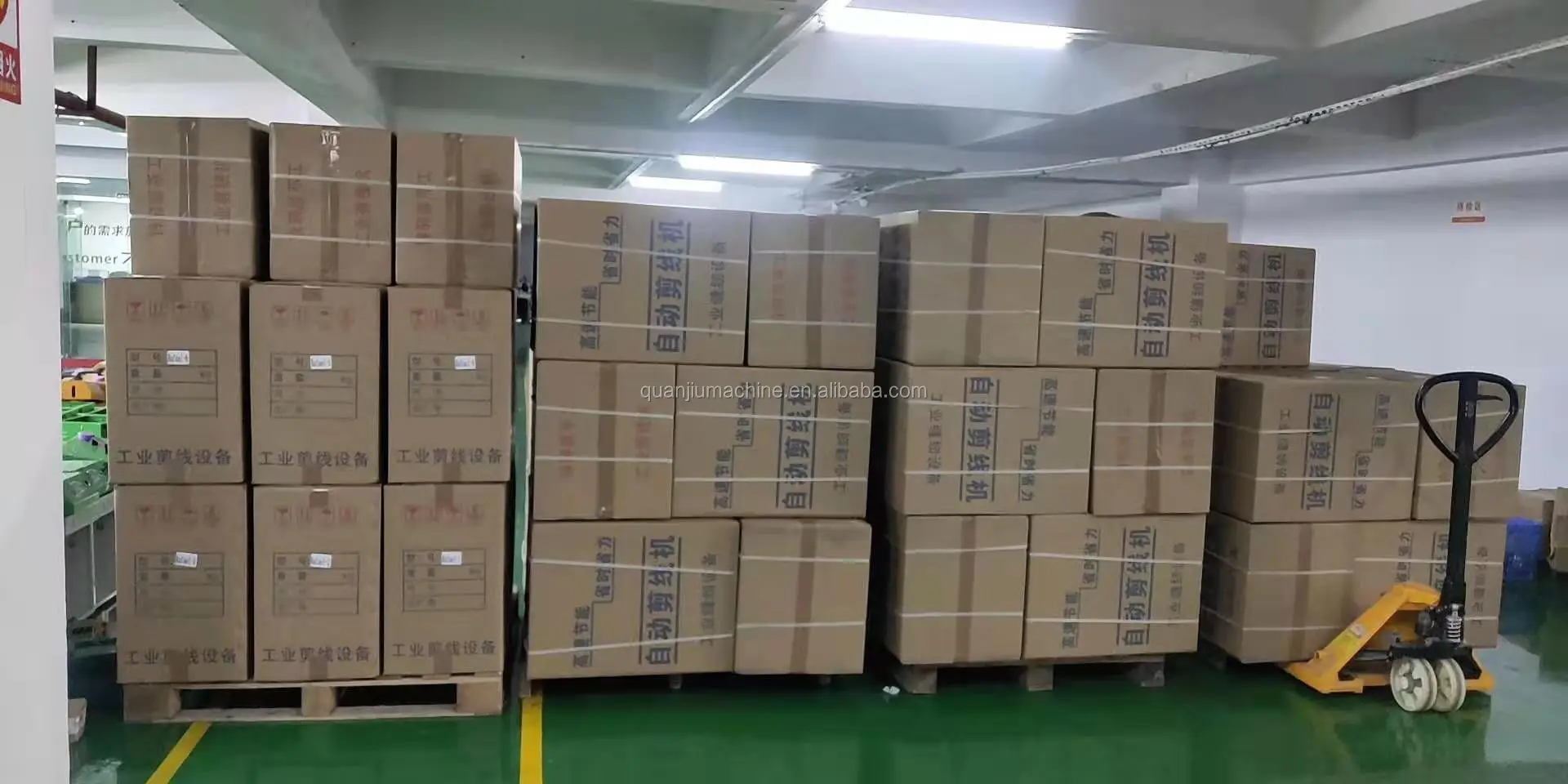

Packaging & Shipping:
Standard Export Polywood Package Case
Our Certificates:
As a professional thread trimming machinery manufacturer, we will try our best to
supply you not only high quality machine and very competitive price, but also good service.
We also hope we can make friendly cooperation with you!
FAQ:
Q1: What does your factory produce ?
A: We produce and export all kinds of thread trimming machine
with butt welding. We also can design and develop thread trimming machines according to your requirements.
Q2: What about your standard delivery date ?
A: Usually 7-10 days.
Q3: Does your factory sale directly ?
A: Yes. Our factory sells directly and we have competitive price with high quality and
excellent after-sale service.
Our quality products have been export to many countries, such as Germany, Russia,
USA, Canada, Argentina, Peru, Turkey, Iran, Brazil, Spain, South Asia and Middle
East countries.
Q4: Can you export machines by your factory?
A: Yes, we can.
Q5: Where are your factory?
A: Our factory is located in FoShan City , Guangdong Province,China.
Q6: Will you send engineer to help installing the machine?
A : Yes, if you need, we can send our engineer to go to your factory to help you install our machine, train the workers and make sure the welding machine running well before he leaves.
Q7: If the machine get damaged, what can I do ?
A: In the guarantee time (1 year) , we will send the spare parts to you for free and
provide the technical consultant for anytime. If more terrible, we can send our engineers
to your factory. We will provide same good after-sale service as the pre-sale service.
For any of your questions, we will reply within 12 hours.
