Product Overview

Description



Product Description

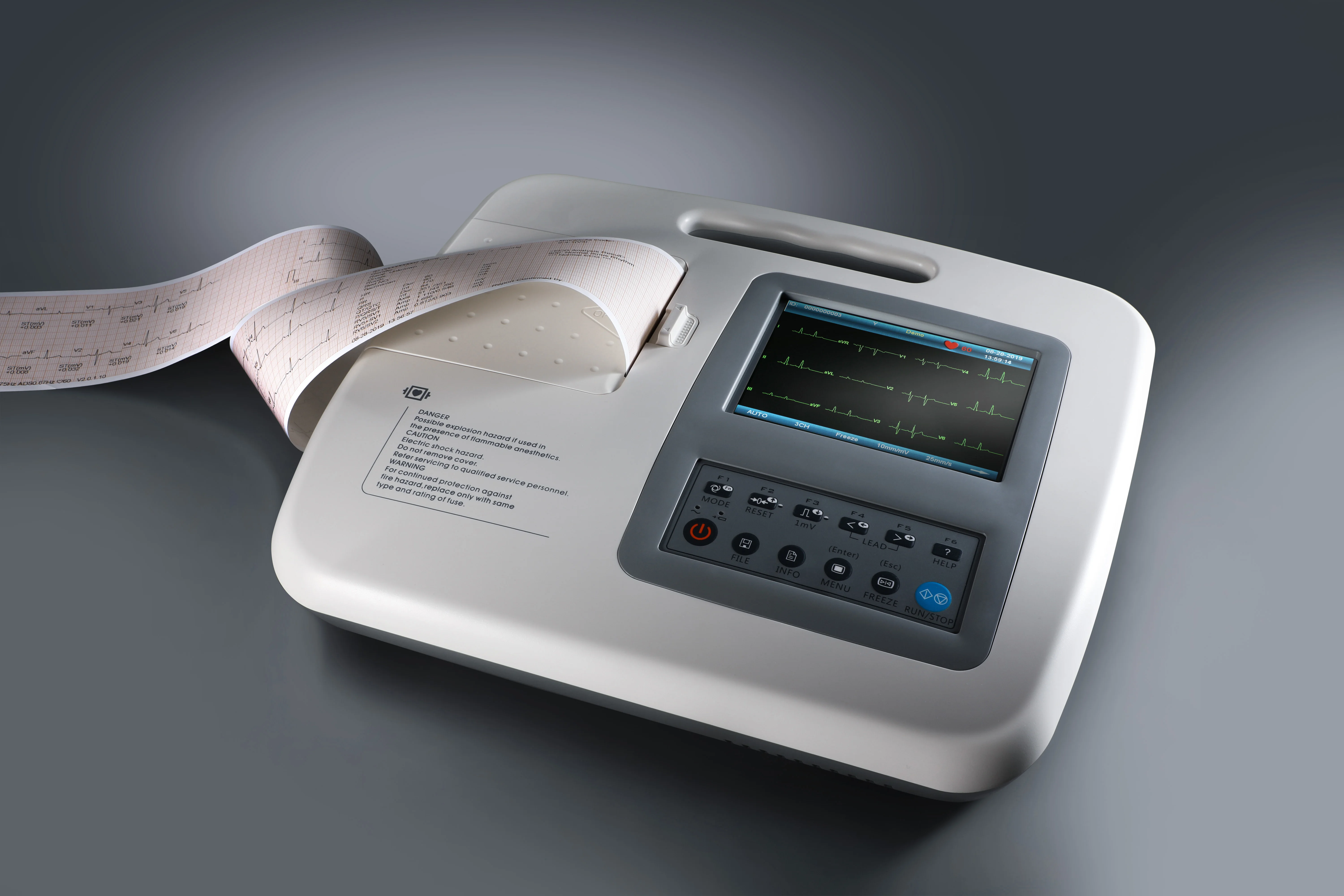

Digital Three Channel-ECG


Feature
1
5.6 inch color LCD touch screen, 12-lead simultaneously acquisition
2
5000 ECG files can be saved, more ECG files can be stored via USB port
3
Freeze, Pre-10-second print and Trigger print function to observe any abnormal ECG waveforms
4
HR detection alarm and pacemaker detection supported
5
Cine-loop function: saved ECG waveform can be played back
6
Auto-save function: users can choose whether to automatically save the files with the printout or not
7
Support magnetic card reader, bar code scanner, transferring information conveniently
8
Support external laser printer to achieve A4 size report output
9
Data management software on PC(optional)




Specifications
Input Circuit:
Floating, protection against defibrillator and pacemaker detection
Lead:
Standard 12-lead
Input Impedance:
50 Ω
Input Circuit Current：
50nA
Leakage Current：
<10µA
Calibration Voltage:
Voltage:1mV 2%
A/D Convertor:
24bits
Frequency Response:
0.05Hz~165Hz (-3dB)
Time Constant:
≥3.2s
Noise Level:
<12µVp-p
Filter:AC:
50/60Hz (-20dB); EMG:25Hz/35Hz/45Hz(-3dB);
ADS and Baseline auto-adjustment
Sensitity:
AUTO, 2.5, 5, 10, 20, 40（mm/mV ±5%）


Record Data
Measurement:
HR, PR/QT/QTC Interval, P/QRS/T Axis etc.
Patient Data:
Date, Time, ID, Name, Gender, Age, Height, Weight etc.
System Data:
Sensitivity, Speed, Institution etc.
Analysis Report:
On/Off selectable


Print System
Printer:
High speed and sensitivity thermal dot recording system
Speed:
5, 6.25, 10, 12.5, 25, 50(mm/s, ±3%)
Paper:
Roll paper112mm×20m(30m)
Power Source
AC
100V-240V(±10%)，50/60Hz(±1Hz)
DC
More than 2-hour continuous operation time with lithium battery after fully charged
Input&Output
Safety Classification
Type CF
Safety Standard
 MDD93/42/EEC,IEC60601-2-25,
IEC60601-1,IEC60601-2-51:2003,
ANSI/AAMI EC-11,EN 1441-1997
External Input
10mm V 5%;
Input Impedance 100KΩ
External Output:
10mm V ±5% Output Impedance 100Ω
