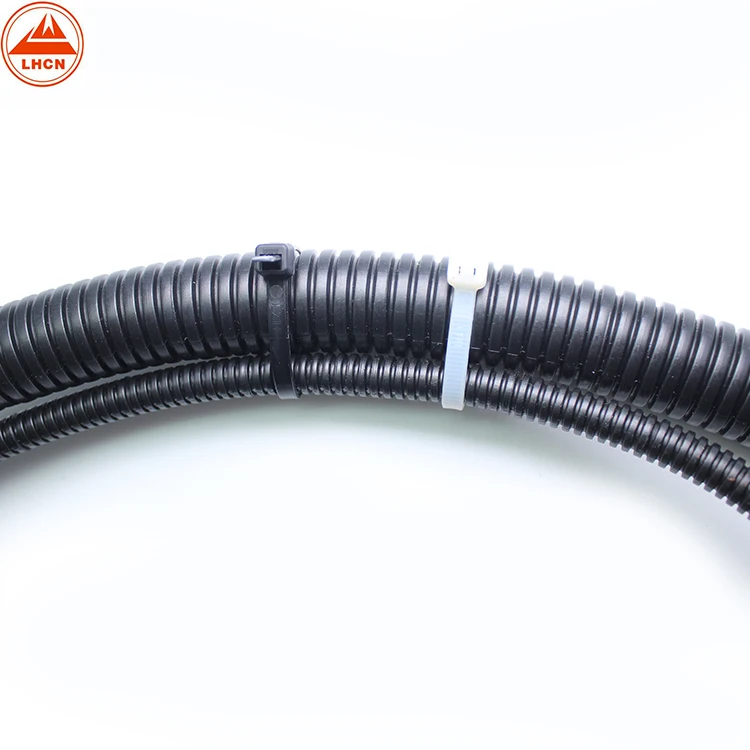

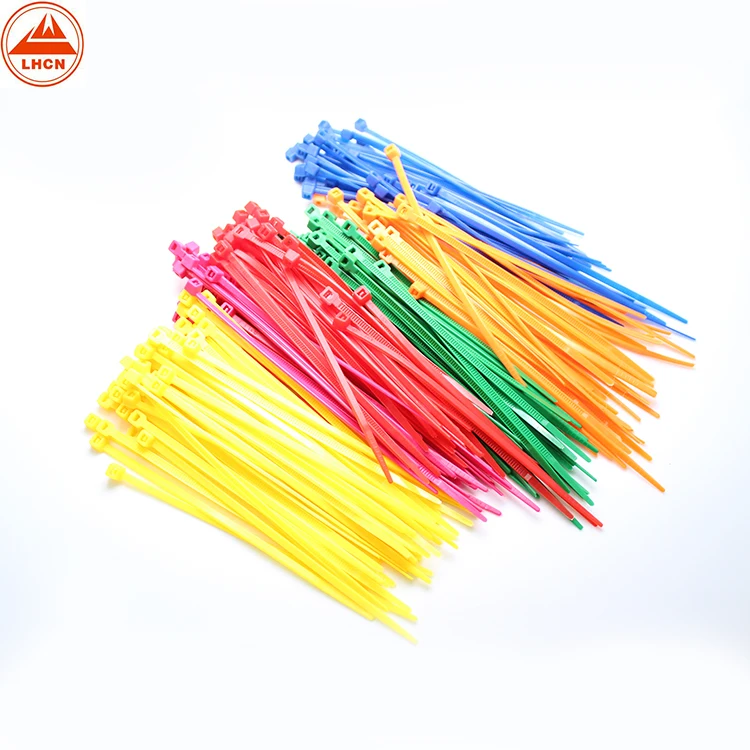

8X150MM White Uv Downs Tensile Strength Tag Storage Reusable Price Plastic Type Nylon Zip Tie
- Category: >>>
- Supplier: Wenzhou Longhua Daily Electron Co. Ltd.
Share on (62529328801):
Product Overview
Description
Material:100%Virgin(Dupont/Ascend) | Natural:Polyamide(nylon)6.6 natural |
UV Black:Polyamide(nylon)6.6+carbon black | |
colors:Polyamide(nylon)6.6 natural+colorant | |
Flammability of raw material: | UL94-V2 |
Humidity absorption: | 2.7%-2.8%(23℃-50%RH) |
Working Temperature： | -40℃-------+85℃ |
Min Installation Temperature: | -10℃ |
Max sustainable temperature for short time: | +110℃ |
Good resistance to bases,oils,greases,oil derivates,chloride solvents.Limited resistance to acids.Not resistant to phenols. | |
Certificate: | UL,CE,TUV,DNV,ROHS,PAHS,REACH |
Specification
Item NO. | Size(mm) | Size(inch) | Tensile Strength | Min Bundle Diameter(mm) | Max Bundle Diameter(mm) | Min Bundle Diameter(inch) | Max Bundle Diameter(inch) |
LH-M-080-3 | 2.5X80 | 3.2 | 80N(18lb) | 3 | 14 | 0.12 | 0.55 |
LH-M-100-4 | 2.5X100 | 4 | 80N(18lb) | 3 | 20.5 | 0.12 | 0.81 |
LH-M-120-5 | 2.5x120 | 4.7 | 80N(18lb) | 3 | 27 | 0.12 | 1.06 |
LH-M-130-5 | 2.5X130 | 5 | 80N(18lb) | 3 | 30 | 0.12 | 1.18 |
LH-M-150-6 | 2.5X150 | 6 | 80N(18lb) | 3 | 36.5 | 0.12 | 1.44 |
LH-M-160-6 | 2.5X160 | 6.3 | 80N(18lb) | 3 | 39.8 | 0.12 | 1.57 |
LH-M-200-8 | 2.5X200 | 8 | 80N(18lb) | 3 | 52.5 | 0.12 | 2.07 |
LH-M-260-10 | 2.5X260 | 10.2 | 80N(18lb) | 3 | 73 | 0.12 | 2.87 |
LH-M-380-15 | 2.5X380 | 15 | 80N(18lb) | 3 | 110 | 0.12 | 4.33 |
LH-I-140-5 | 3.6X140 | 5.5 | 180N(40lb) | 3.5 | 33 | 0.14 | 1.3 |
LH-I-150-6 | 3.6X150 | 6 | 180N(40lb) | 3.5 | 36 | 0.14 | 1.42 |
LH-I-180-7 | 3.6X180 | 7 | 180N(40lb) | 3.5 | 46 | 0.14 | 1.81 |
LH-I-200-8 | 3.6X200 | 8 | 180N(40lb) | 3.5 | 52.5 | 0.14 | 2.07 |
LH-I-250-10 | 3.6X250 | 10 | 180N(40lb) | 3.5 | 68 | 0.14 | 2.68 |
LH-I-280-11 | 3.6X280 | 11 | 180N(40lb) | 3.5 | 78 | 0.14 | 3.07 |
LH-I-300-12 | 3.6X300 | 11.8 | 180N(40lb) | 3.5 | 84 | 0.14 | 3.31 |
LH-I-370-15 | 3.6X370 | 14.5 | 180N(40lb) | 3.5 | 106 | 0.14 | 4.17 |
LH-S-120-5 | 4.6x120 | 4.7 | 230N(50lb) | 3.5 | 23.8 | 0.14 | 0.94 |
LH-S-160-6 | 4.6x160 | 6.3 | 230N(50lb) | 3.5 | 36.6 | 0.14 | 1.44 |
LH-S-180-7 | 4.6x180 | 7 | 230N(50lb) | 3.5 | 43 | 0.14 | 1.69 |
LH-S-190-8 | 4.6x190 | 7.5 | 230N(50lb) | 3.5 | 46 | 0.14 | 1.81 |
LH-S-200-8 | 4.8x200 | 8 | 230N(50lb) | 3.5 | 49.5 | 0.14 | 1.95 |
LH-S-250-10 | 4.8x250 | 10 | 230N(50lb) | 3.5 | 65 | 0.14 | 2.56 |
LH-S-280-11 | 4.8x280 | 11 | 230N(50lb) | 3.5 | 74.8 | 0.14 | 2.94 |
LH-S-300-12 | 4.8x300 | 11.8 | 230N(50lb) | 3.5 | 81 | 0.14 | 3.19 |
LH-S-350-14 | 4.8x350 | 13.7 | 230N(50lb) | 3.5 | 97 | 0.14 | 3.82 |
LH-S-360-14 | 4.8x360 | 14 | 230N(50lb) | 3.5 | 100 | 0.14 | 3.94 |
LH-S-370-15 | 4.8x370 | 14.5 | 230N(50lb) | 3.5 | 103.5 | 0.14 | 4.07 |
LH-S-380-15 | 4.8x380 | 15 | 230N(50lb) | 3.5 | 106.7 | 0.14 | 4.2 |
LH-S-390-16 | 4.8x390 | 15.3 | 230N(50lb) | 3.5 | 110 | 0.14 | 4.33 |
LH-S-400-16 | 4.8x400 | 15.7 | 230N(50lb) | 3.5 | 113 | 0.14 | 4.44 |
LH-S-430-17 | 4.8x430 | 17 | 230N(50lb) | 3.5 | 122.5 | 0.14 | 4.82 |
LH-S-450-18 | 4.8x450 | 17.7 | 230N(50lb) | 3.5 | 129 | 0.14 | 5.08 |
LH-S-500-20 | 4.8x500 | 19.7 | 230N(50lb) | 3.5 | 145 | 0.14 | 5.71 |
LH-S-550-21 | 4.8x550 | 21.6 | 230N(50lb) | 3.5 | 160 | 0.14 | 6.3 |
LH-S-610-24 | 4.8x610 | 24 | 230N(50lb) | 3.5 | 179.9 | 0.14 | 7.08 |
LH-S-740-29 | 4.8x740 | 29 | 230N(50lb) | 3.5 | 220 | 0.14 | 8.66 |
LH-S-920-36 | 4.8x920 | 36 | 230N(50lb) | 3.5 | 278 | 0.14 | 10.94 |
LH-HD-150-6 | 7.6X150 | 6 | 540N(120lb) | 8.5 | 35 | 0.33 | 1.38 |
LH-HD-200-8 | 7.6X200 | 8 | 540N(120lb) | 8.5 | 50.9 | 0.33 | 2 |
LH-HD-220-8 | 7.6X220 | 8.6 | 540N(120lb) | 8.5 | 56 | 0.33 | 2.2 |
LH-HD-250-10 | 7.6X250 | 10 | 540N(120lb) | 8.5 | 66.8 | 0.33 | 2.63 |
LH-HD-280-11 | 7.6X280 | 11 | 540N(120lb) | 8.5 | 76.4 | 0.33 | 3.01 |
LH-HD-300-12 | 7.6X300 | 11.8 | 540N(120lb) | 8.5 | 82.8 | 0.33 | 3.26 |
LH-HD-350-14 | 7.6X350 | 13.7 | 540N(120lb) | 8.5 | 98.5 | 0.33 | 3.88 |
LH-HD-365-14 | 7.6X365 | 14 | 540N(120lb) | 8.5 | 103.5 | 0.33 | 4.07 |
LH-HD-380-15 | 7.6X380 | 15 | 540N(120lb) | 8.5 | 108 | 0.33 | 4.25 |
LH-HD-400-16 | 7.6X400 | 15.7 | 540N(120lb) | 8.5 | 114.5 | 0.33 | 4.51 |
LH-HD-450-18 | 7.6X450 | 18 | 540N(120lb) | 8.5 | 130.5 | 0.33 | 5.14 |
LH-HD-500-20 | 7.6X500 | 19.7 | 540N(120lb) | 8.5 | 146 | 0.33 | 5.74 |
LH-HD-550-22 | 7.6X550 | 21.6 | 540N(120lb) | 8.5 | 162.5 | 0.33 | 6.4 |
LH-HD-610-24 | 7.6X610 | 24 | 540N(120lb) | 8.5 | 181.5 | 0.33 | 7.15 |
LH-HD-750-30 | 7.6X750 | 29.5 | 540N(120lb) | 8.5 | 226 | 0.33 | 8.9 |
LH-EHD-300-12 | 8.8X300 | 11.8 | 800N(175lb) | 8.5 | 83 | 0.33 | 3.27 |
LH-EHD-400-16 | 8.8X400 | 15.7 | 800N(175lb) | 8.5 | 115 | 0.33 | 4.53 |
LH-EHD-450-18 | 8.8X450 | 18 | 800N(175lb) | 8.5 | 130.5 | 0.33 | 5.14 |
LH-EHD-500-20 | 8.8X500 | 19.7 | 800N(175lb) | 8.5 | 146.5 | 0.33 | 5.77 |
LH-EHD-550-21 | 8.8X550 | 21.6 | 800N(175lb) | 8.5 | 163.5 | 0.33 | 6.44 |
LH-EHD-610-24 | 8.8X610 | 24 | 800N(175lb) | 8.5 | 181.5 | 0.33 | 7.15 |
LH-EHD-710-28 | 8.8X710 | 28 | 800N(175lb) | 8.5 | 195 | 0.33 | 7.68 |
LH-EHD-750-29 | 8.8X750 | 29.5 | 800N(175lb) | 8.5 | 205 | 0.33 | 8.07 |
LH-EHD-760-30 | 8.8X760 | 30 | 800N(175lb) | 8.5 | 229.5 | 0.33 | 9.04 |
LH-EHD-780-31 | 8.8X780 | 30.5 | 800N(175lb) | 8.5 | 235.5 | 0.33 | 9.27 |
LH-EHD-810-32 | 8.8X810 | 32 | 800N(175lb) | 8.5 | 245 | 0.33 | 9.65 |
LH-EHD-920-36 | 8.8X920 | 36 | 800N(175lb) | 8.5 | 280 | 0.33 | 11.02 |
LH-EHD-1020-40 | 8.8X1020 | 40.1 | 800N(175lb) | 8.5 | 295 | 0.33 | 11.61 |
LH-EHD-1168-46 | 8.8X1168 | 46 | 800N(175lb) | 8.5 | 340 | 0.33 | 13.39 |
LH-EHD-1220-48 | 8.8X1220 | 48 | 800N(175lb) | 78 | 375.5 | 0.33 | 14.78 |
LH-EHD-1530-60 | 8.8X1530 | 60 | 800N(175lb) | 160 | 450 | 0.33 | 17.72 |
LH-HSD-230-9 | 12.4X230 | 9.1 | 1200N(250lb) | 9 | 57 | 0.35 | 2.24 |
LH-HSD-290-11 | 12.4X290 | 11.4 | 1200N(250lb) | 9 | 76 | 0.35 | 2.99 |
LH-HSD-380-15 | 12.4X380 | 15 | 1200N(250lb) | 9 | 103.5 | 0.35 | 4.07 |
LH-HSD-480-19 | 12.4X480 | 18.9 | 1200N(250lb) | 9 | 136 | 0.35 | 5.35 |
LH-HSD-530-21 | 12.4X530 | 20.9 | 1200N(250lb) | 10 | 156 | 0.39 | 6.14 |
LH-HSD-580-22 | 12.4X580 | 22.8 | 1200N(250lb) | 9 | 168 | 0.35 | 6.61 |
LH-HSD-650-26 | 12.4X650 | 25.6 | 1200N(250lb) | 14 | 195 | 0.55 | 7.68 |
LH-HSD-730-28 | 12.4X730 | 28.7 | 1200N(250lb) | 9 | 216 | 0.35 | 8.5 |
LH-HSD-880-34 | 12.4X880 | 34.6 | 1200N(250lb) | 9 | 263 | 0.35 | 10.35 |
LH-HSD-1000-34 | 12.4X1000 | 39.4 | 1200N(250lb) | 18 | 315 | 0.71 | 12.4 |

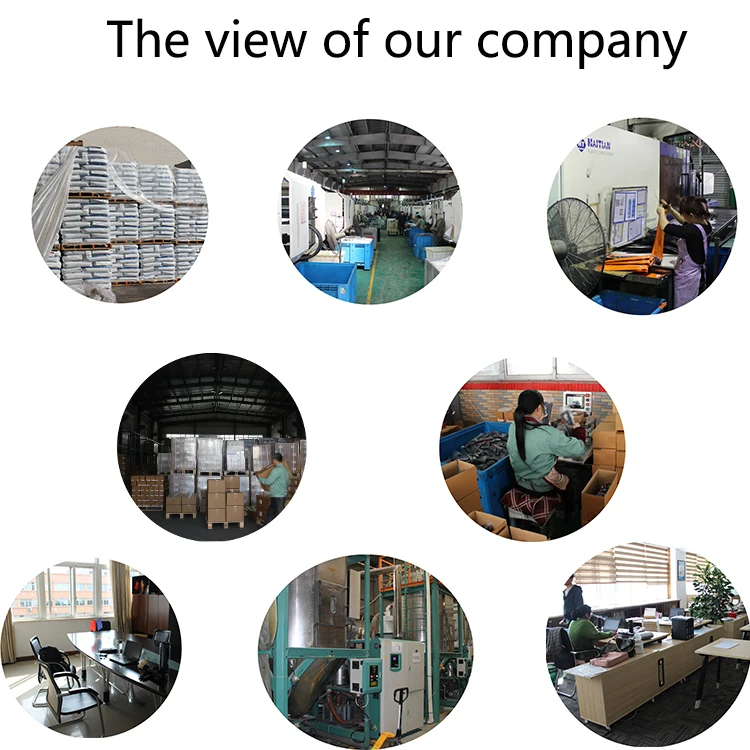

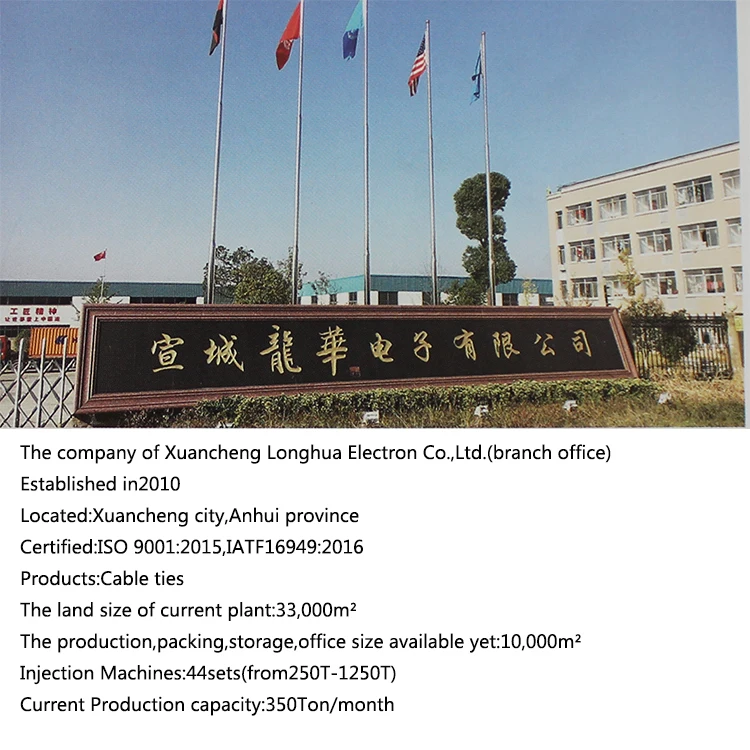

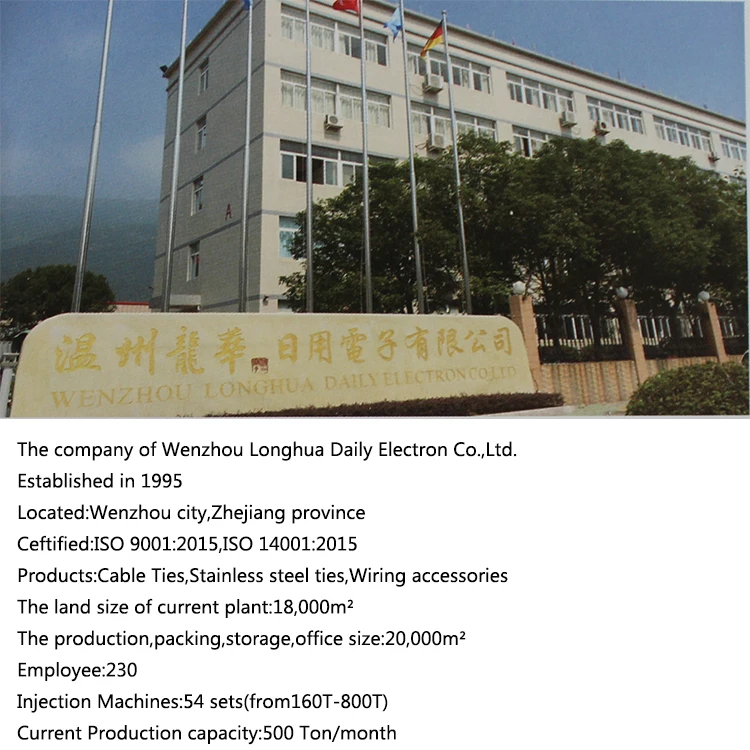

Company introduction

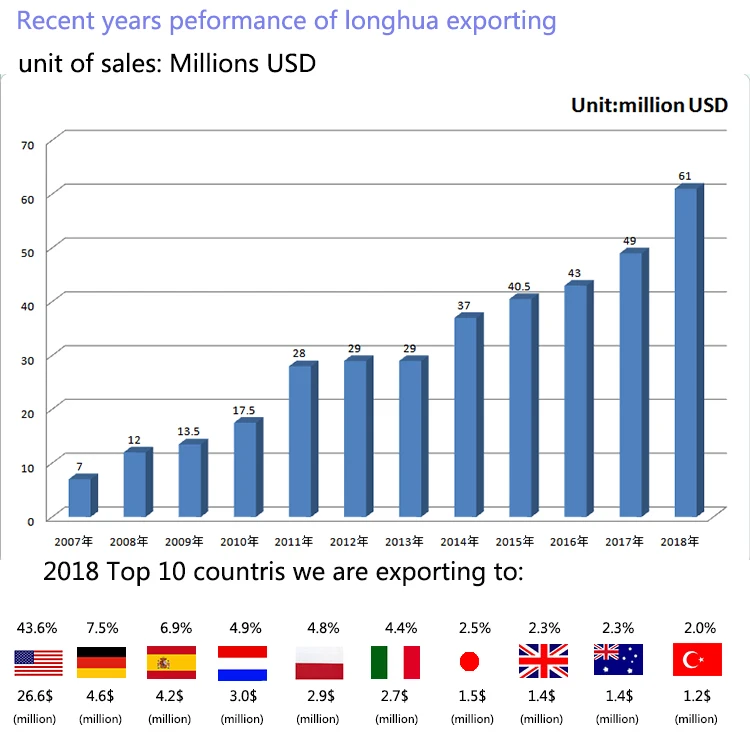

Sales statistics
Honor certificates
Product capacity

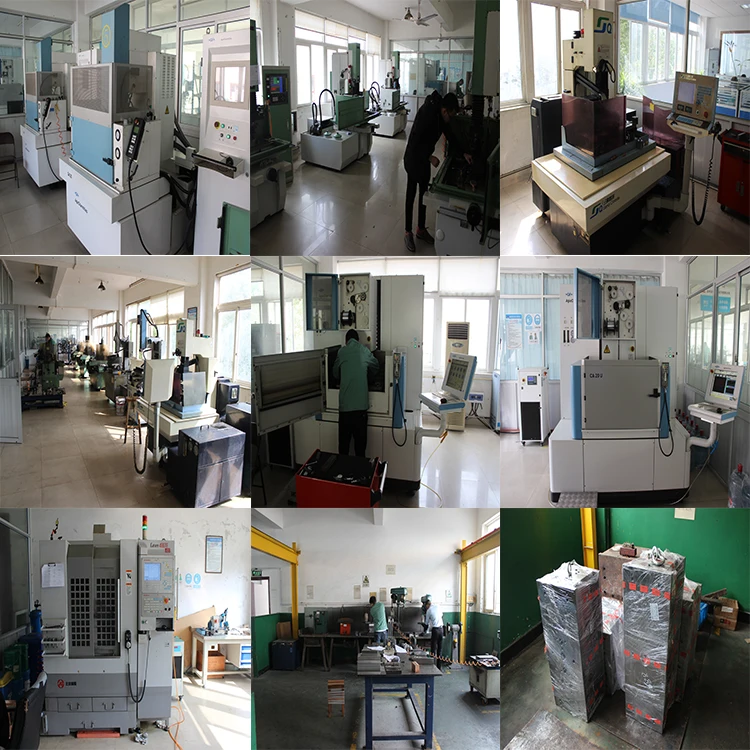

Mould design department

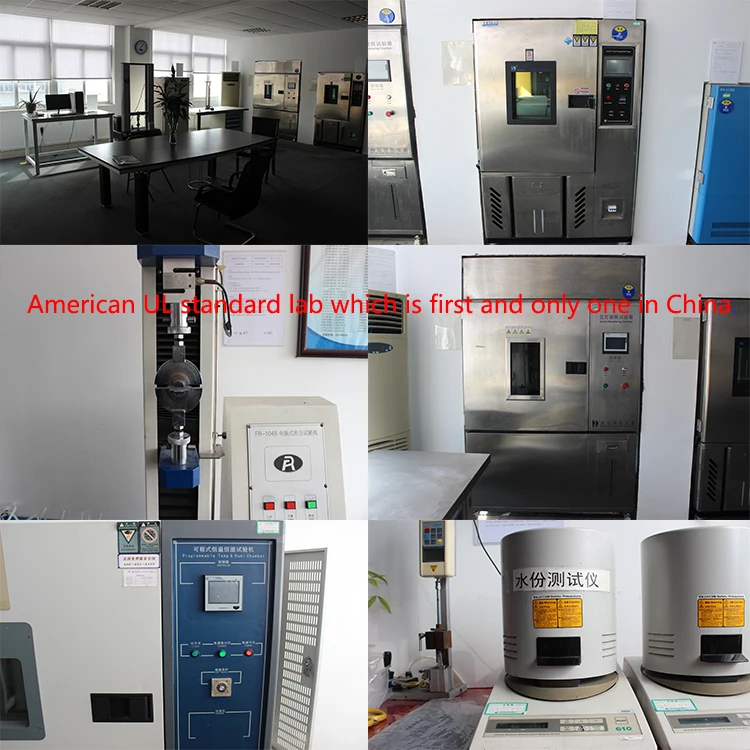

LAB
