laser faceting machine laser machine with corellaser software
Product Description
Standard Configurations of AKJ6090 laser engraving machine:
# Working area size: 1300*900mm
# 80w/90w/100w/150w/180w Beijing RECI CO2 laser tube
# Ruida control system
# Honeycomb workable/ Knife table
# Stepper motor and Leadshine driver
# Taiwan Hiwin linear guide rails
# Shanghai Fulong belt
# X Y axis with Shanghai Fulong belt transmission
# Singapore mirrors and lens
# Air pump, Water pump
# Exhaust fan 550w
# Red light point
# Manual instruction and CD

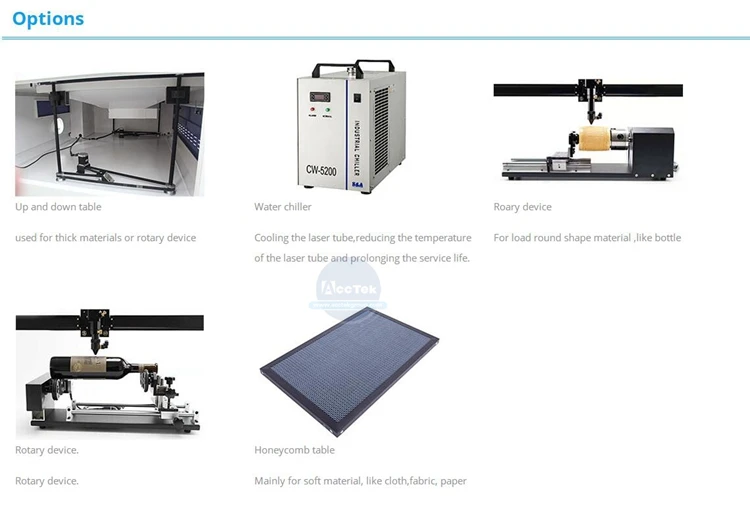

Option part:

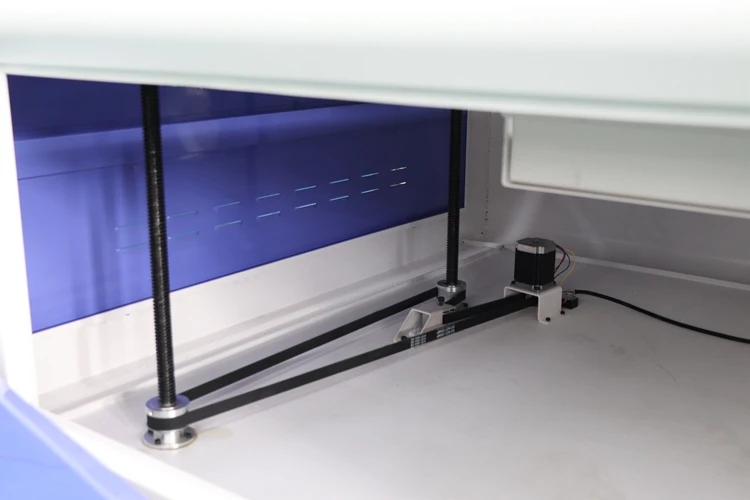

1) Motorized up and down platform(Cut or engrave more thick materials)
2) Rotary attachment (Cut or engrave cylindrical materials)
3) Filter
4) Servo motor, imported from Japan
5) CW 5000/5200 water chiller(Cooling performance better than water pump)
6) Auto-feeding device( For fabric, leather and more longer materials cut and engrave)
7) Auto-focus device
8) CCD

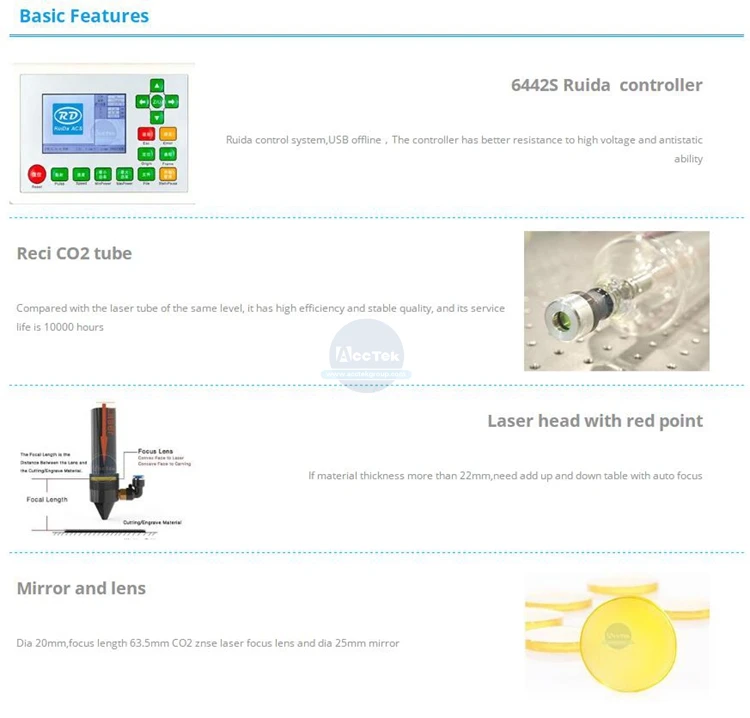

Laser engraving machine Features
1. Rdcam color touchable screen control system in English——operate easily
2. Leedshine driving system——stable
3. Hiwin guide rail from Taiwan —— high precision
4. Singapore lens and mirror——reflection and focusing, long working life.
5. Red light position system ——position precision
6. Automatic protection system——safe
All the feature of our laser engraving machine make sure its high quality and good work performance.

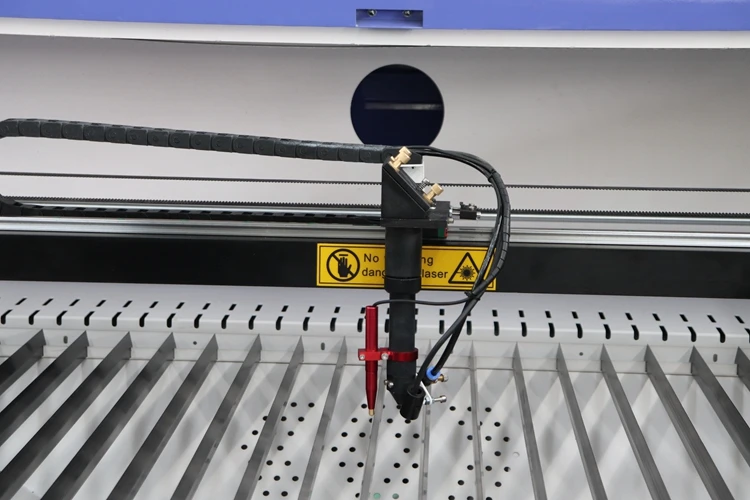

Machinery Details
These are the laser engraving machine detailed pictures, hope you can have a better understanding of our CO2 laser machine.
Technic Parameters

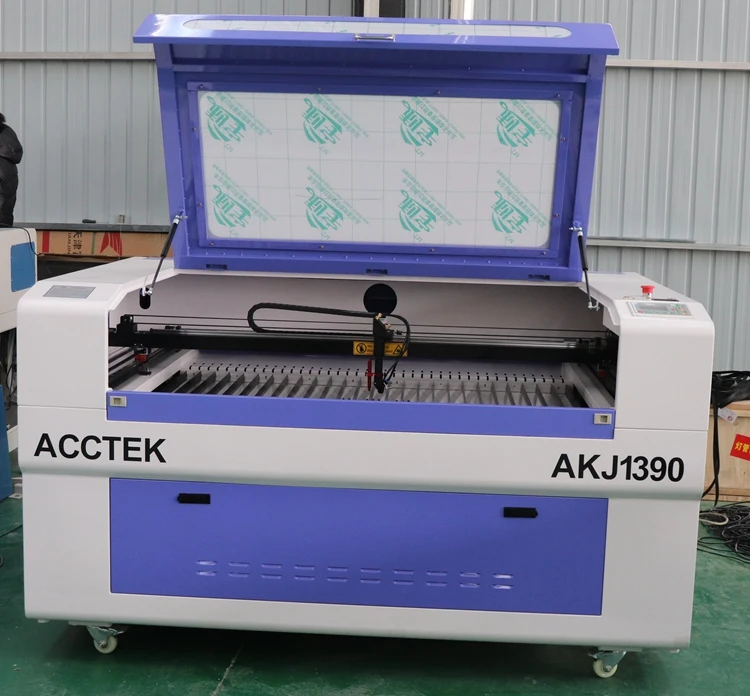

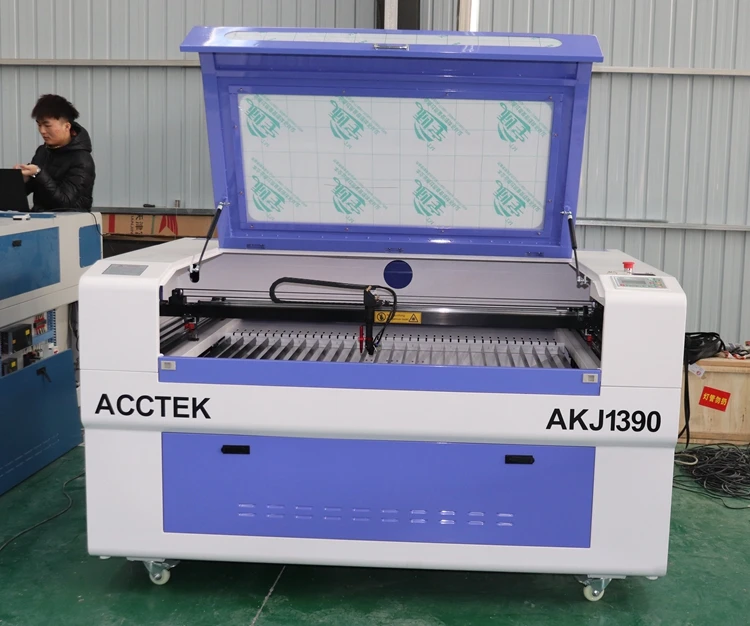

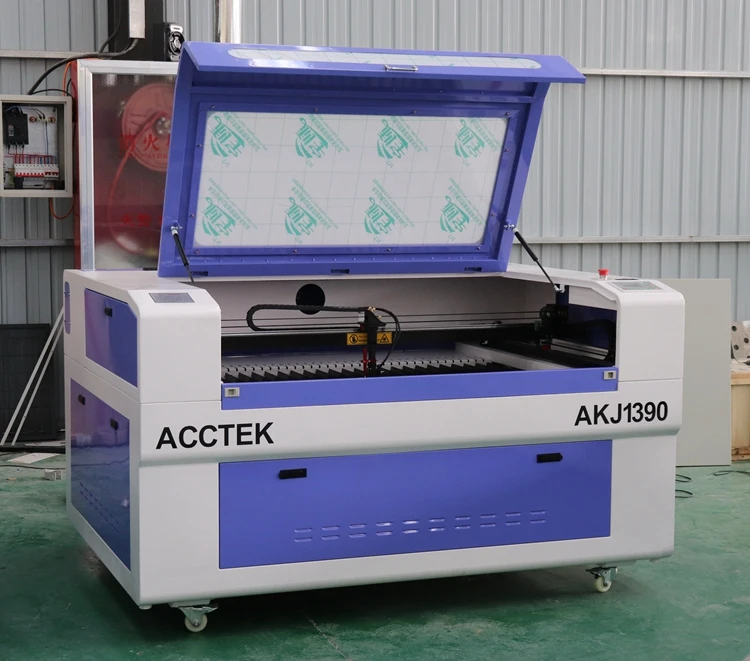

| Model | AKJ1390 laser engraving machine |
| Laser medium | CO2 |
| Working area | 1300*900mm |
| Working table | Honeycomb table/ Blade table |
| Laser power | 80W/90w/100w/130w/150w |
| Power Supply | 380v/ 220V/50Hz, 110V/60Hz |
| Min line width | ≤0.15mm |
| Positon accuracy | 0.01mm |
| Repetition accuracy | 0.02mm |
| Cutting speed | 200 mm/s |
| Guide rail | Hiwin from Taiwan |
| Transmission method | Shanghai Fulong belt |
| Drive system | Stepper motor and driving system |
| Cooling system | Water-cooling |
| Control system | Ruida control system |
| Control software | Coreldraw, Photoshop, AutoCAD, Tajima |
| Graphic format support | PLT, DXF, BMP, JPG ,AI ,ect |
| Working environment | 0-45℃, |
| Operating Humidity | 5-95% |
| Net weight | 450kg |
| Gross weight | 550kg |

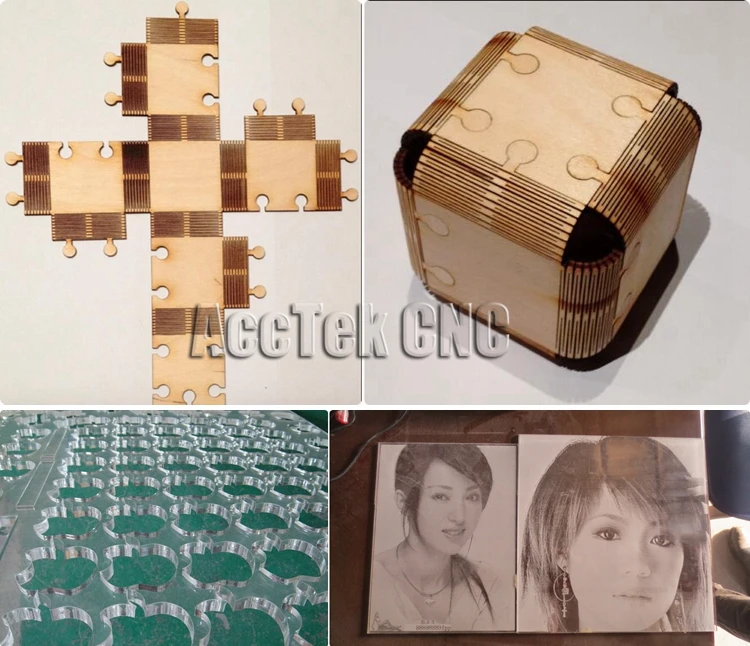

Sample
This laser engraving machine Applicable Materials:
| 1.Cutting materials | Arcylic, Wood, MDF, Plywood, Crystal, Paper, Cloth, Fabric, Leather, Textile, Plastic, Rubber,etc. |
| 2.Engraving materials | Arcylic, Wood, MDF, Plywood, Crystal, Paper, Cloth, Fabric, Leather, Textile, Plastic, Rubber, Stone/marble/granite, Bamboo, Grass, Ceramics,etc. |
Company Information
Jinan AccTek Machinery Co.,Ltd specializes in manufacturing CNC Router and Laser machines. Our main products are AccTek CNC Routers and Laser engraving and cutting machines. Stock or custom configurations are our specialty. Components for our machines are sourced from world class suppliers and innovators in machine control.
Our dedicated and highly skilled after sales service department, sales team, and thorough quality assurance procedures mean that you can buy with confidence.
Now we own two workshops,one for cnc router and another for laser machines. Which covers 3000,00 square meters. There are 40 members in manufacturing and 21 members for marketing and service.
All of our cnc machine appraoched CE Standard quality test ,America certificate
Packaging & Shipping
About the delivery.
Its need about 10-15 working days to produce the machine after get your deposit.
all thing is tested well,then we arrange the delivery.
About payment:
We accept T/T , you can pay 30% in advance, 70% before delivery.
The machine will be produced after received your deposit.after the machine is ready, we will show you the machine photos and the testing video.
After you agree, please finish the balance.Finally.we arrange the delivery.
Our Services
After sale service:
1. 12 months guarantee of the whole machine.some model machine warranty 2 years
2. Main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
3.Lifetime maintenance free of charge.
4.Our staff can be sent to your company to install or adjust if necessary.
5.technical support online whole life
