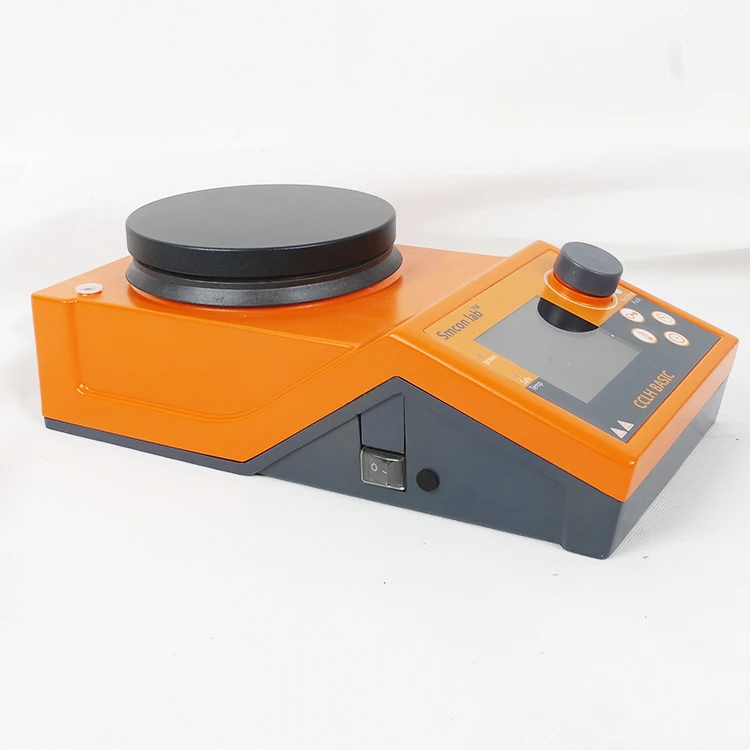

CCLH BASIC MANTLE MAGNETIC STIRRER

Product Overview

Description

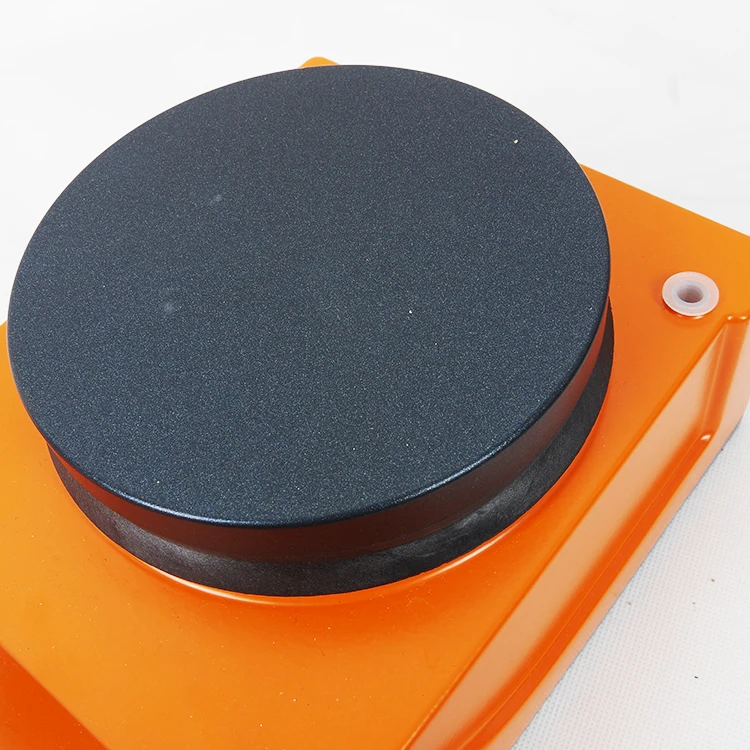

1>Aluminum alloy environment-friendly plastic-sprayed shell, surface Teflon (PTFE,F4,Polytetrafluoroetylene)aluminum heating plate.

2>The brushless DC motor has the advantages of stable performance, low noise, long service life and high safety.

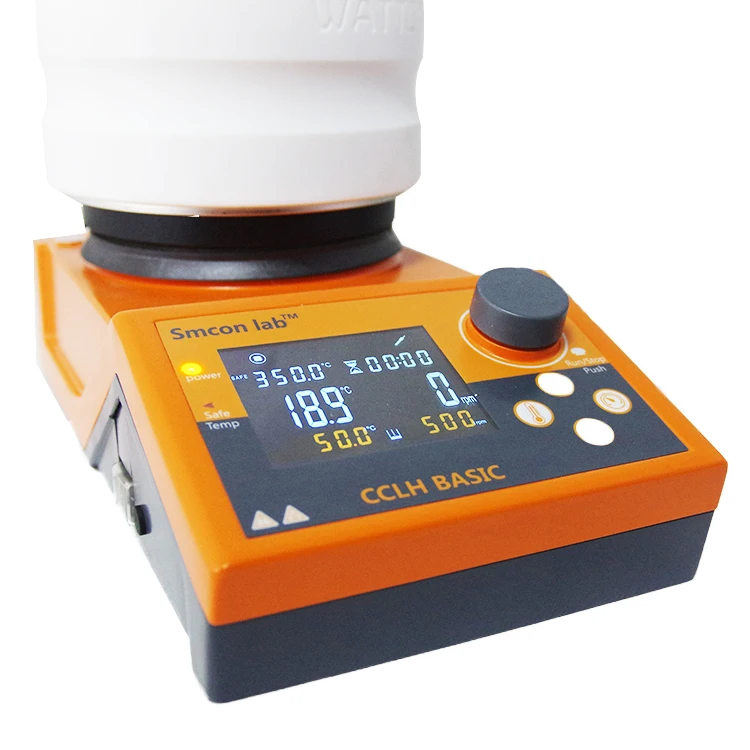

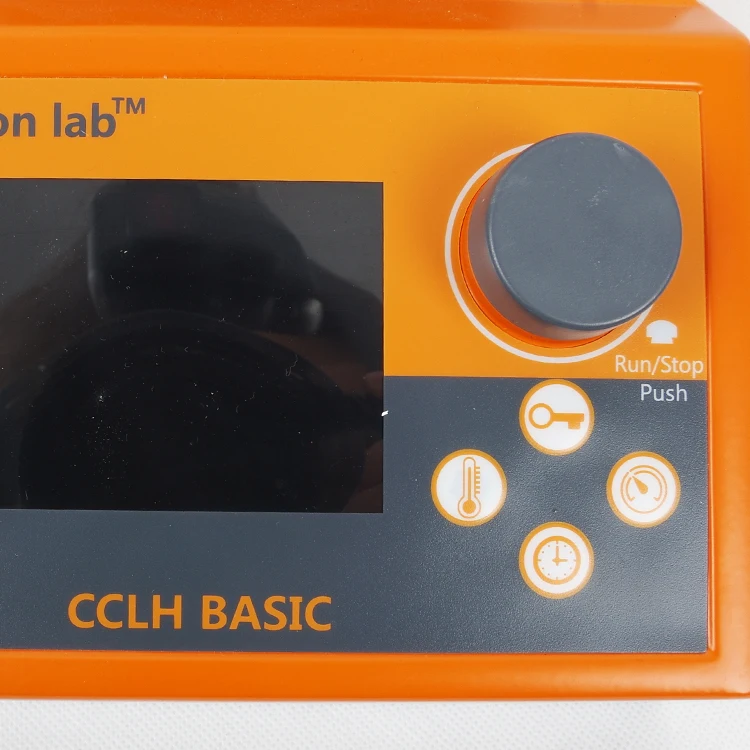

3>LCD high-definition LCD screen display, keyboard panel can be touched, digital display temperature, speed, more intuitive.

4>The maximum stirring capacity is 20L (water) and the rotational speed range is 100-1500 rpm.

5>High temperature control accuracy.

6>It adopts expensive Al-Ni-Co magnetic core, which has strong magnetism and does not demagnetize at high temperature, so as to prevent the agitator jumper.

7>External sensor drop automatic detection function, independent temperature limit protection function, to ensure safe use.

8>Anti-scald indication after shutdown.

Model	CCLH-BASIC
Name	magnetic stirrer
Workplate size	Ø135
Work disk surface material	Aluminum alloy coated Teflon
Range of rotation	100~1500rpm
Temperature control range	room temperature+5℃-300℃
Temperature setting range	0℃~320℃
Variable safety temperature	50℃-350℃
Configure thermometer temperature control accuracy	PT1000:±0.1K
Speed regulation accuracy	±1 rpm
Timing range	1Sec~99h59min/∞
Number of stirring points	1
Maximum stirring amount (water)	20L
Input Voltage/Output Power of Motor	24V/28W
Stirring longest size	70mm
External temperature sensor interface	Yes
Input power	220VAC50HZ/110VAC60HZ
Power	650W
Dimensions (W × D × H)	315×65×100mm
Net weight	3.8Kg
