BW1200 API Standard Bw Series Water Well Triplex Mud Pump
BW1200 API Standard Bw Series Water Well Triplex Mud Pump
BW1200 API Standard Bw Series Water Well Triplex Mud Pump
BW1200 API Standard Bw Series Water Well Triplex Mud Pump
BW1200 API Standard Bw Series Water Well Triplex Mud Pump
BW1200 API Standard Bw Series Water Well Triplex Mud Pump
BW1200 API Standard Bw Series Water Well Triplex Mud Pump

BW1200 API Standard Bw Series Water Well Triplex Mud Pump

Share on (62529626491):


Price:

Quantity:


Product Overview

Description


BW1200 Mud Pump
Product Description
Main Specification of BW1200 Mud Pump
Type: BW1200/7
Horizontal double cylinder reciprocating double action piston pump
Cylinder Liner Dia （mm）
160
150
Piston Stroke （mm）
270
Theoretical Flow Rate （L/min）
1200
1000
Rated Pressure (MPa)
7
8
Strokes Per Minute
70
Input Power （kW）
185
Overall Dimension（L×W×H） (mm)
3045×1440×2420
Weight (kg)
7200

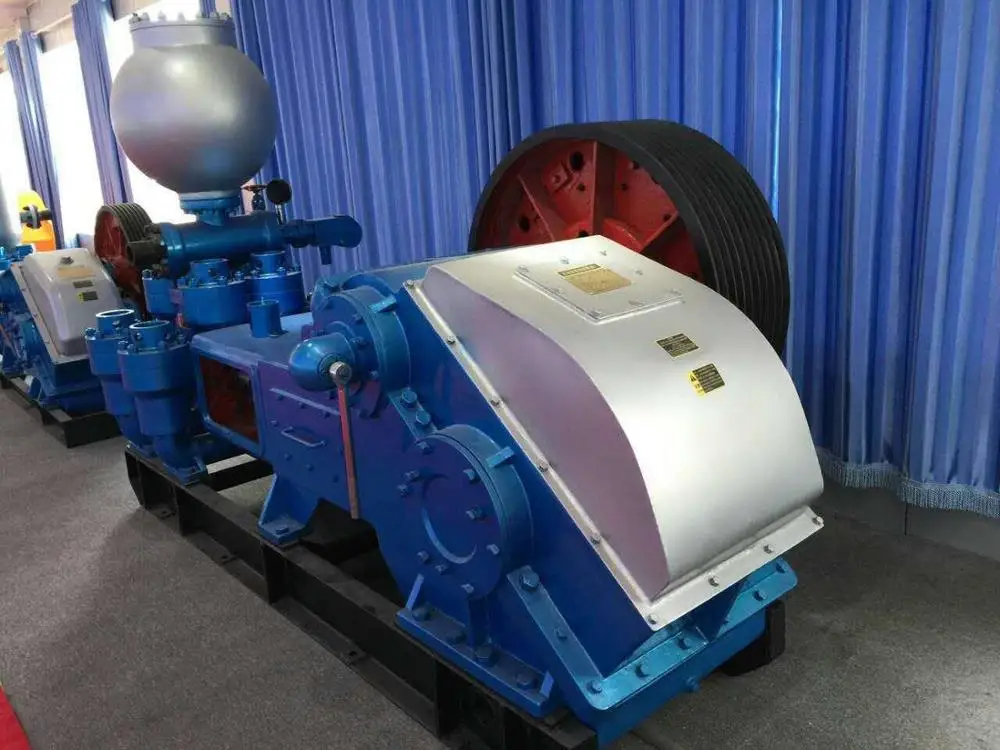

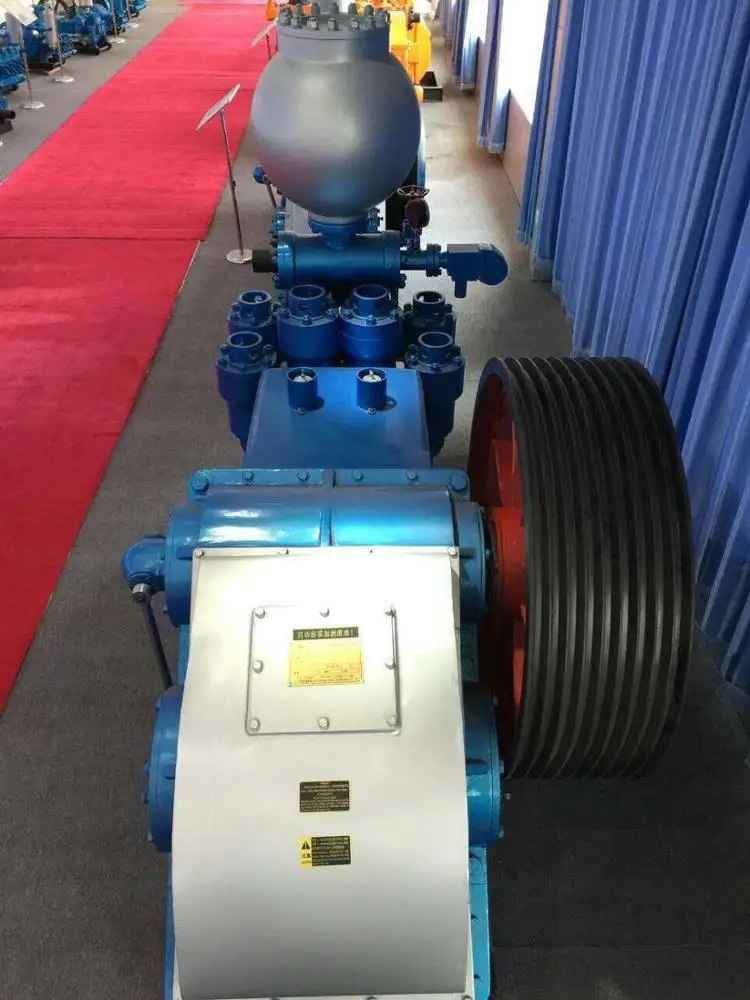

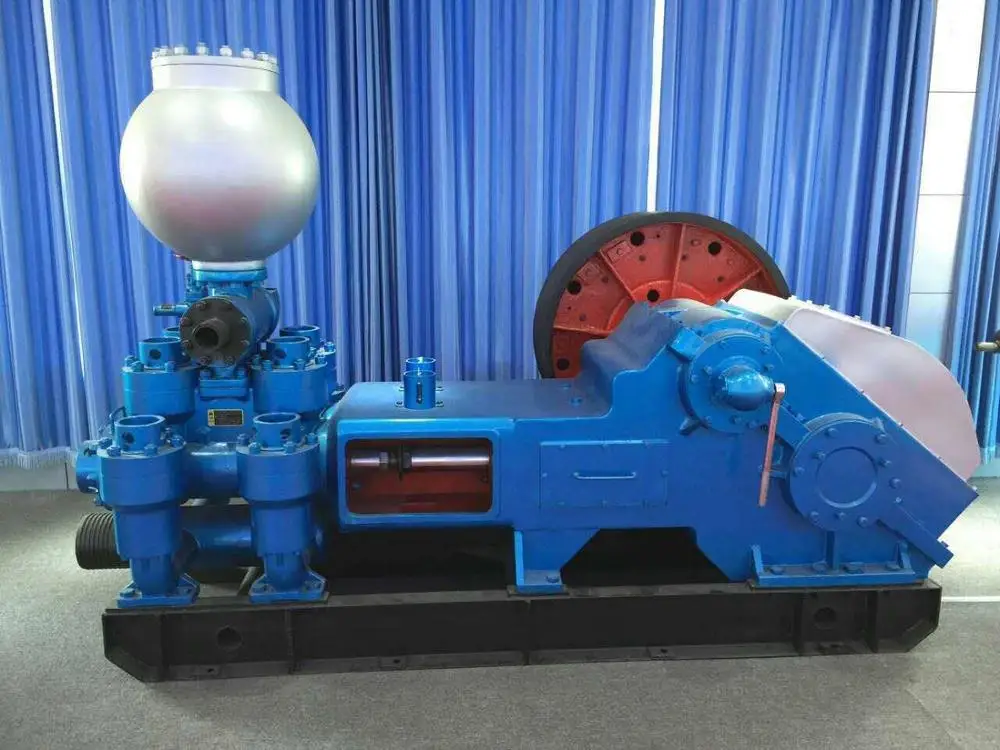

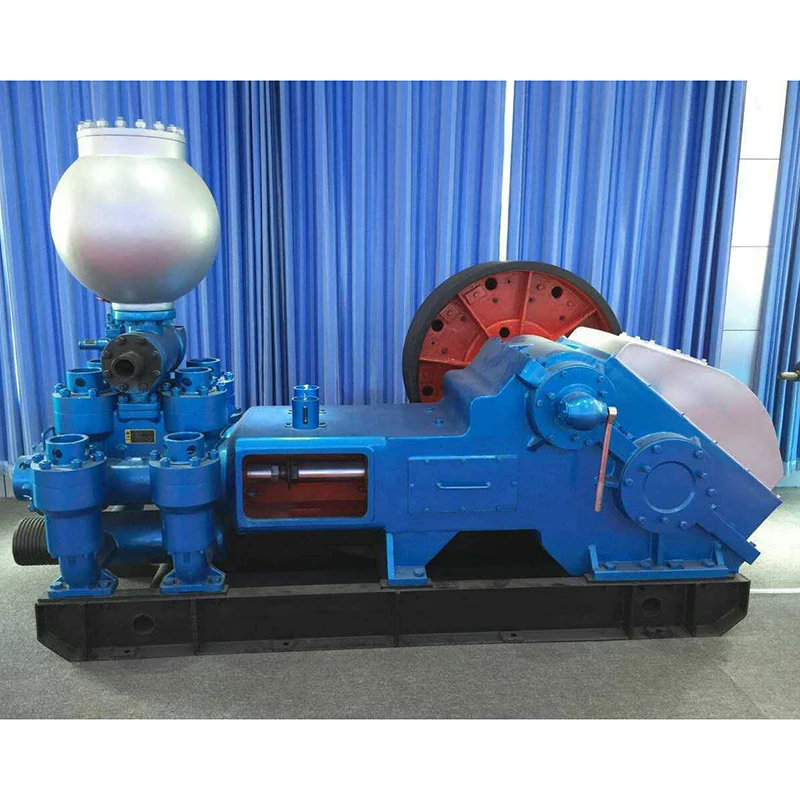

Pictures of BW1200 Mud Pump
Type: BW90/3, BW100/5, BW120/3, BW150/1.5, BW150/3.5, BW160/10, BW200/4, BW240/10, BW250, BW320, BW150/13, BW400/10, BW450/5, BW500/10, BW600/10, BW750, BW850/2, BW850/5, BW1200/7 Etc.
Application: The pump is mainly used for supplying flushing fluid to the borehole in geological drilling process. It can match with big diameter rigs in different drilling depth and improve drilling efficiency and borehole quality.

Structure Features:
1.Horizontal double cylinder & three cylinder,
single-acting&double-acting reciprocating piston pump.
2.Simple and compact structure, light weight, long service life of wearing parts, easy
operation.
3.Extending service life of pump greatly by using bi-metal liner.
Related Products of BW1200 Mud Pump
Packing and Transport
Packing: Seaworthy Packing
Delivery: about 30 days after your down payment.

Company Profile
Glorytek Industry (Beijing)Co.,Ltd.,
located in Beijing,China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.

Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering，underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.
Customer Photos
Certifications
Latest Exhibition
After-sale Warranty
Warranty of Core Drilling Rig:
(1)Within the period of the first year after delivery, the main parts of mud pump are guaranteed to be supplied free of charge once the problem caused by the quality issue.
(2) Service at working site: If need, our technical engineer can be dispatched to the working site for technical service,
but the expense of ticket, accommodation, diet, service charge shall be on buyer's account.
(3)Timely after-sale assistance shall be provided all the time.
