Small model LH 800ES automatic die cutting machine for rigid box making
- Category: >>>
- Supplier: Wenzhou Longhua Machinery Co. Ltd.
Share on (62529758764):
Product Overview
Description
LH-800es Fully Automatic Cutting Die Machine
Product Description
LH-800ES Automatic Cutting machine for Rigid box making/lable/

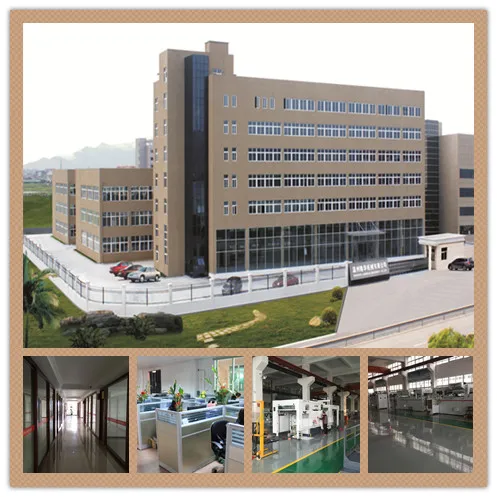

Company Information
Wenzhou Longhua Machinery Co.,Ltd is a manufacturer which specialized in producting automatic die cutting machine, The company founded in 2006 years. with many years experience specialized in the 1050 model die cutting machine , embossing machine. and foil hot stamping machine. especially for the deep embossiong and hot stamping machine get very high good reputaion on the market. With the solid thrength, advanced equipment.high-quality raw materials.top-classmanagement. Now company has become one of the most authority manufacturer in die cutting machine.
Our machines sold to to all over the country and also export to Europe ,Africa. America and southeast asiz and so on.
Our machines assembled by imported famous brand accessories , Our technician all are excellent with many years experience..They improve the technique so that the products could meet the high standard of the field ,Our company believe, 'Quality is the life.service is tenet' as our enterprice principle, We sincerely expecting cooperate with all of you at home and abroad for better future,
Product Description
This automatic paper die cutting machine is widely demanded in the packaging industry. And it is designed for
die cutting, creasing, cold and hot embossing paper products. Such as paper box. cartons and paper lables etc
Processed Materials
Applications
Features
Sheet Feed Section
| Feed Section
a. Standard non-stop configuration and pre load unit. b. Micro-adjustment is available for transversal position of pile table |
Feeding system
| Feeder
a. Use Taiwan Technology of of high precision feeder head, four suction head and four sent, b. the suction angle and height can be adjusted according to the deformation of paper c. Feeder head triple safety protection device to prevent collision. The self-invented air blow device ensure the paper feeding smoothly |
Paper Transfer Section
| Feeder Table
a. Pull and push integrate side lays. Sheet detect at side and front register. b. Adopts a double-speed motor for driving, equipped non-stop feeding device c. The front registering unit can be fine adjustment and with photo detector to detect double sheet during |
Platen Press Section

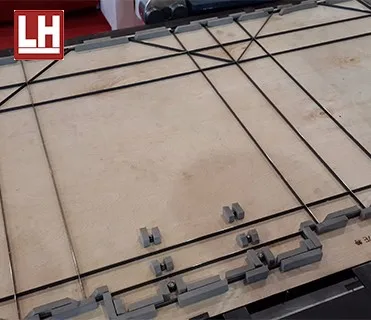

| Die Cutting Chase
a. Cutting chase turn-over device to actualise short set up of repeat jobs b. Micro-adjustment of cutting pressure controlled by touch screen. c. Pneumatic lock up system on die cutting chase to increase efficiency |
Paper Collecting Section
| Collection Parts
a. Separate counting device is available b. Safety photo-electric devices prevent over-ascending and over-descending of pile. c. Maximum pile height up to 1350 mm.
|
Specifications
Techincal Parameter
Max .paper feed size: 860*520mm
Mini.Paper feed size:340*260mm
Max.die cutting size:800*510mm
Max working speed: 7000sheets/hour
Processing paper thickness,: Paperboard ≤3.5mm Grayboard
Machine weight: 8 Ton
Total Power: 12.75kw
External Dimension:3650*2300*1800mm

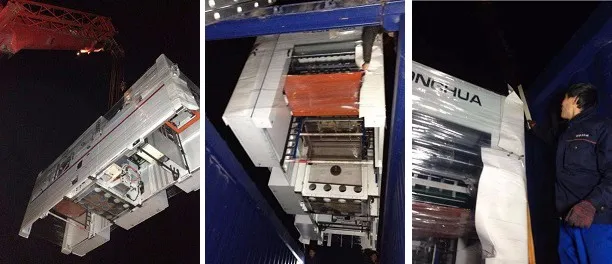

Packaging & Shipping
All the machine parts and accessories are shipped in a 20HQ Container |
