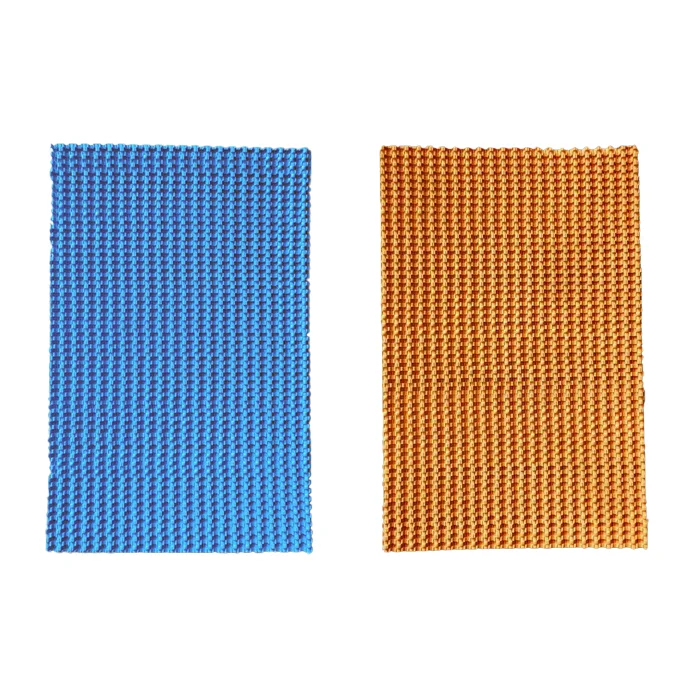

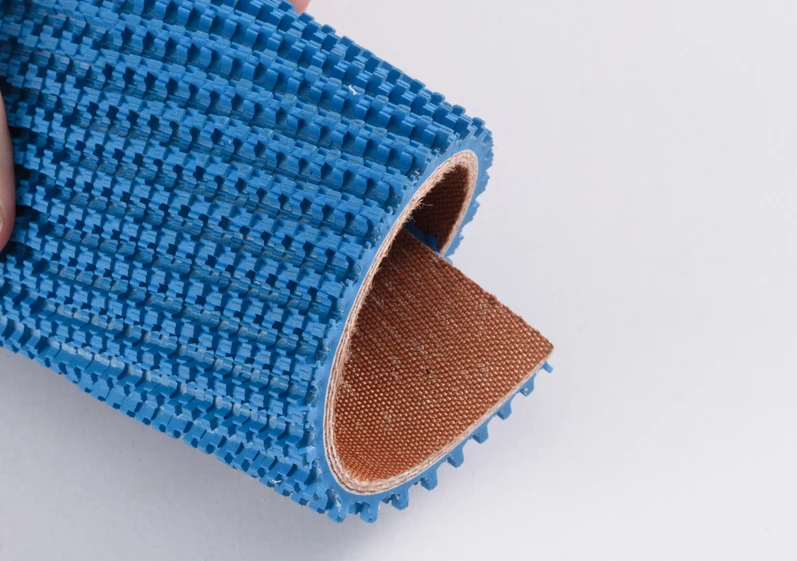

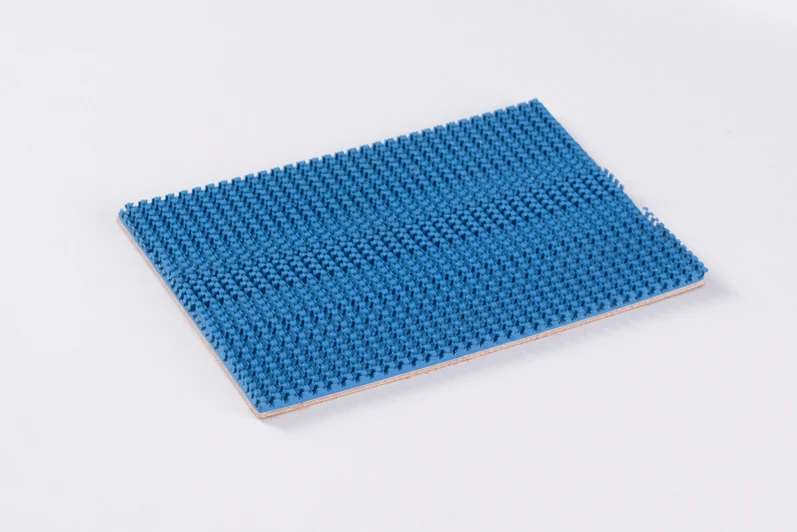

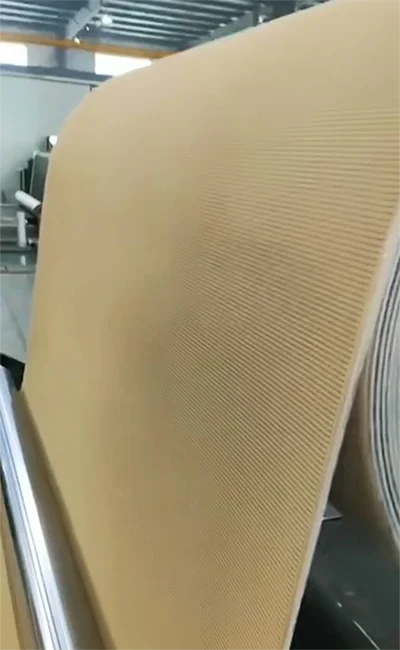

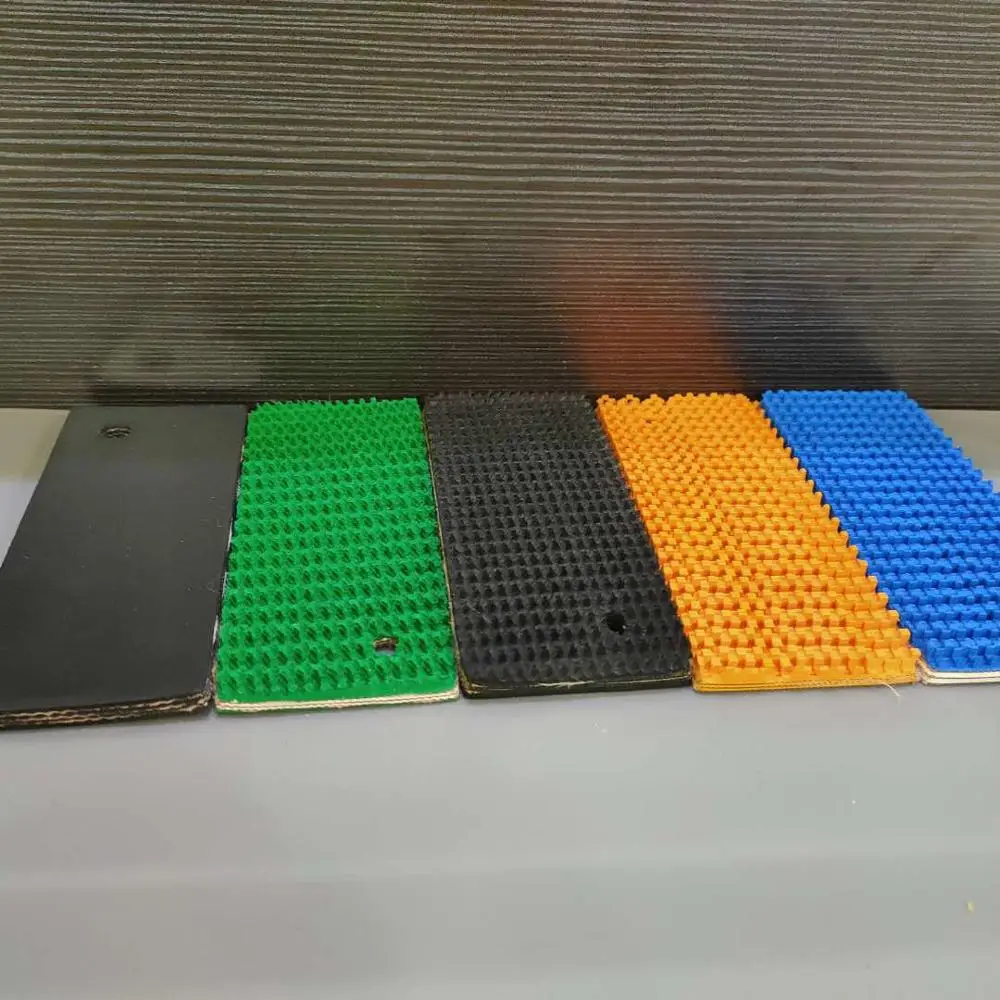

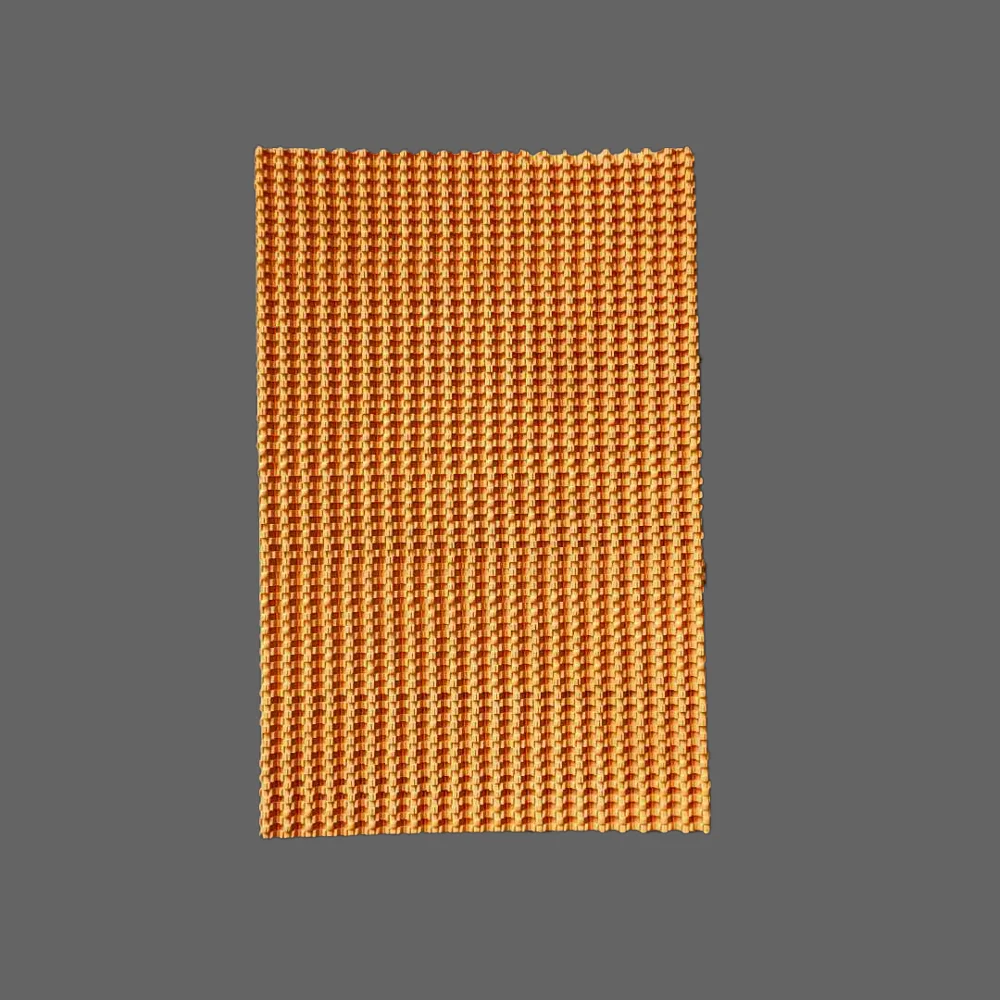

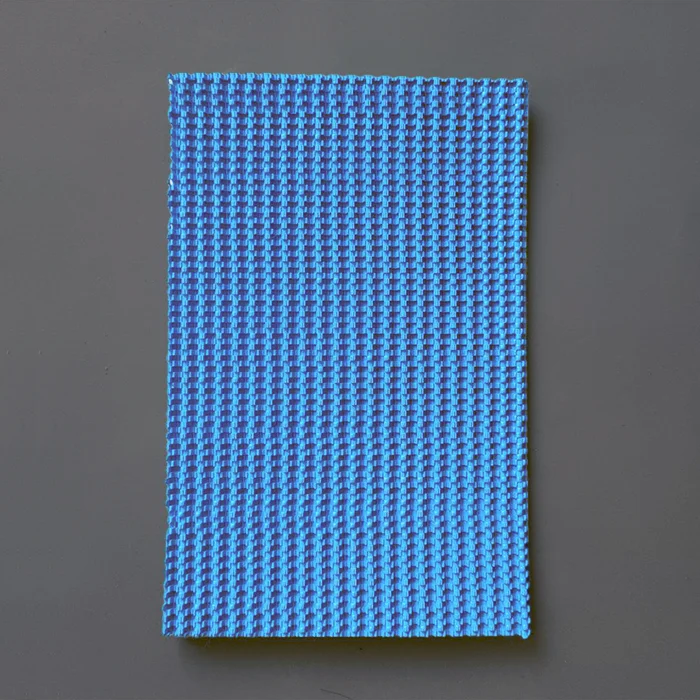

Super wide rough top grass pattern rubber climbing conveyor belt

Product Overview

Description

Super wide  rough top grass pattern rubber climbing conveyor belt





Product name	Model	Skeleton materials	Elastomer	Total thickness (mm)	Temperature	colour	Features and usage
Non-slip belt	TF	E1.E2	NBR/PVC	3.0-5.0	-15~110	green,white	The surface is small round convex pattern or horseshoe-shaped pattern, suitable for bulk materials, powder below 40°, rising transmission.
Special pattern belt	TG	E0.E1.E2	NBR/PVC.NR/SBR	4.0-8.0	-15~110	green,blue,black,red	The surface is deep pattern, cover roller with rubber or increase the holding force of load, anti-skid, suitable for special occasions, special materials processing and transmission.
Diamond network pattern belt	TK	E1.E2	NBR/PVC	3.0-6.0	-15~110	green	Increase the surface friction and holding force to prevent skid, suitable for steam material processing and transmission.
Resistance to thermal belt	TSI	E0.E1.E2	SiR.EPDM	3.0-6.0	180~320	red,black	Suitable for oven, microwave or heating material processing and transmission.
Resistance to low temperature belt	TL	E0.E1.E2	NR/SBR.EPDM	2.0-6.0	-40~100	black,grey,blue	Suitable for ice storage, processing and transfer of frozen materials.
Flame retardant belt	TE	E0.E1.E2	CR	1.0-5.0	-30~120	grey	Applicable to the processing and transmission of inflammable materials or the need for flame retardant, explosion-proof environment transmission.
conductive belt	TR	E1.E2	NBR	1.0-5.0	-15~110	black	Suitable for flammable explosive transfer or conductive occasions, volume resistance of 10 or less Ω 5 cm
guidance tape	TI	E1.E2	PVC.NBR/PVC	1.0-5.0	-10~80	green,white	Transmission surface plus positioning guide bar, to ensure the belt body directional anti - deviation operation.
Elevator belt	TJ	E1.E2	PVC.NBR/PVC	2.0-5.0	-15~80	green,white	The loading surface shall be equipped with a diaphragm bar to ensure the lifting of materials.
Felt belt	TM	E0.E1.E2	NBR/PVC.SiR	2.5-8.0	130~430	Primary colors	Applicable to buffer, shock absorption, heat resistance, non - slip material transmission and processing.
skirt belt	TQ	E1.E2	PVC.NBR/PVC	4.0-6.0	-10~80	green,white	Ensure that materials are not scattered or transferred upward.
sanding machine belt	TS	E0	NR/SBR	6.0-12.0	-40~100	black,grey,blue	Sanding machine for wood processing conveyor belt, surface for a variety of different patterns, to ensure the safety and reliability of the process.
Roller covering rough tape	TU	E3	NR/SBR.NBR/PVC	1.5-2.0	30~100	red,bluegrey	Oil-resistant, wear-resistant, high hardness, high elasticity, high strength coarse surface adhesive cloth is applied to the roll covering of each roller to increase friction or holding force.
Glue tape	TV	E4	NBR/PVC	0.6-1.1	-15~110	green	Special process processing high - efficiency high - quality textile coated ingot belt.
