Product Overview
Description
Compact Precision Manual Coin Cell Die Disc Cutter For Electrode and Separator discs preparation MSK-T-10
Product Description

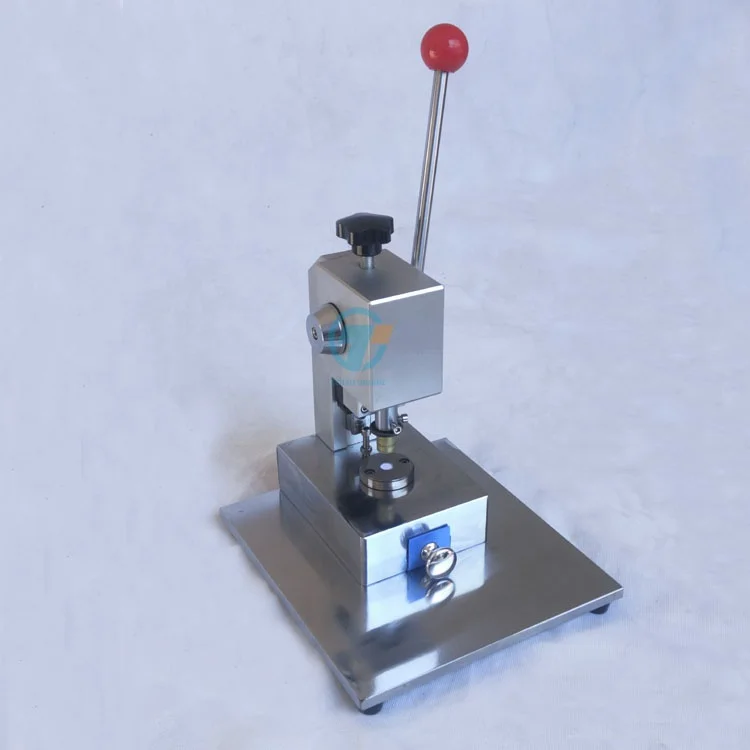

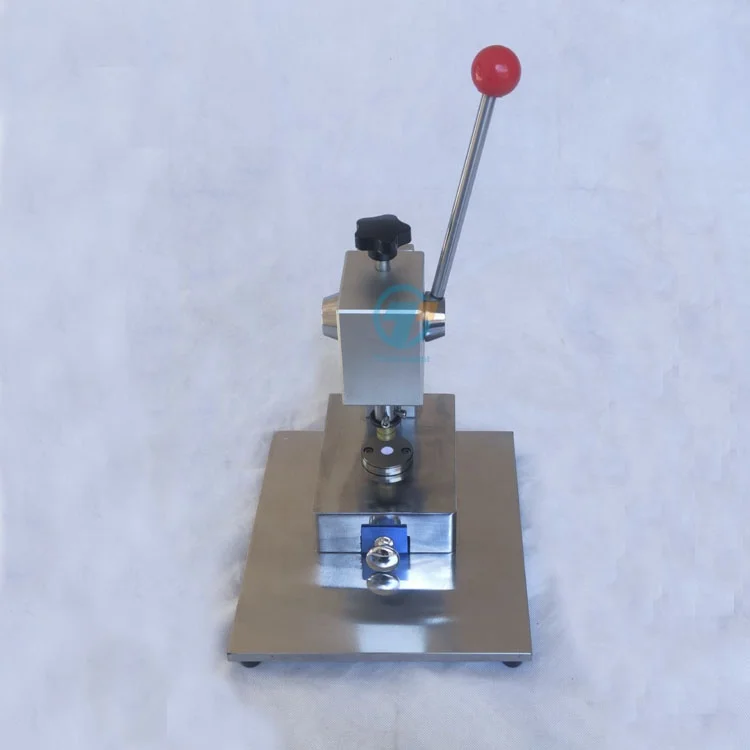

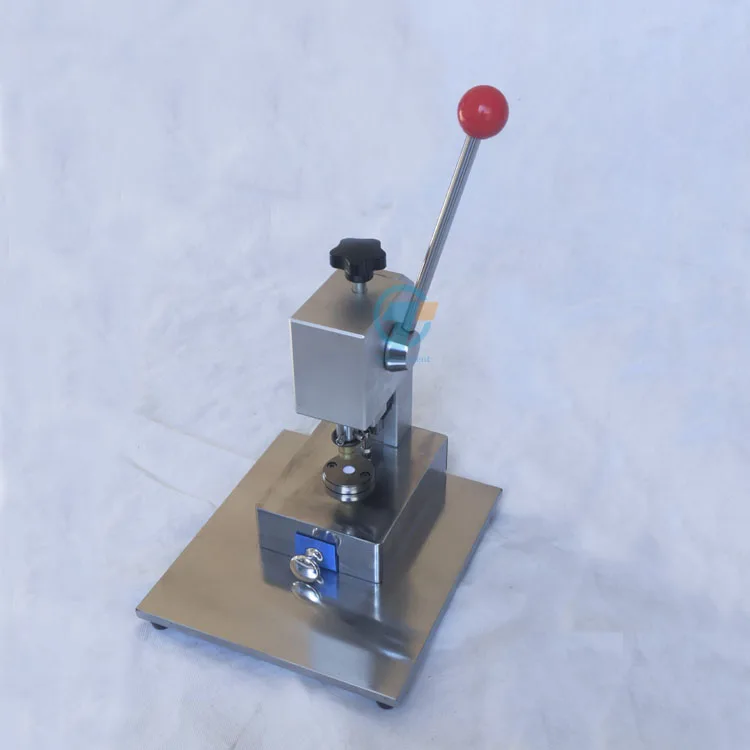

This is a compact disc cutter with quality sliding rail with ball bearing for precision cutting. It can be easily placed into a glove box with a transition chamber diameter larger than 230mm. The disk cutter is suitable for various types of coin cells such as CR2032, CR2025, and CR2016 with customized cutter die from 10mm to 24mm
This tool is manually operated and is designed for cutting round discs from thin metal sheet/foil (< 0.5 mm) or separator film (<30um). The resulting discs can be used as electrode/separator discs of split test cell and coin cell for battery researches as well as TEM sample preparation.
Specification of the Compact Precision Manual Coin Cell Die Disc Cutter For Electrode and Separator discs preparation MSK-T-10
Model | TCH-MSK-T-10 |
Contral Mode | Manual |
Punching stroke | 25mm |
Punching thickness | 0.005-0.5mm electrode and separator |

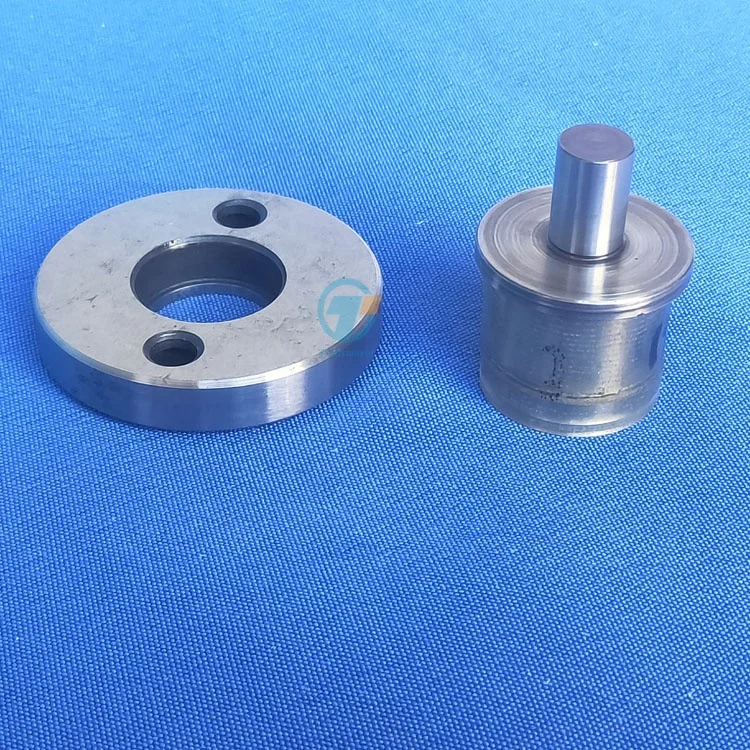

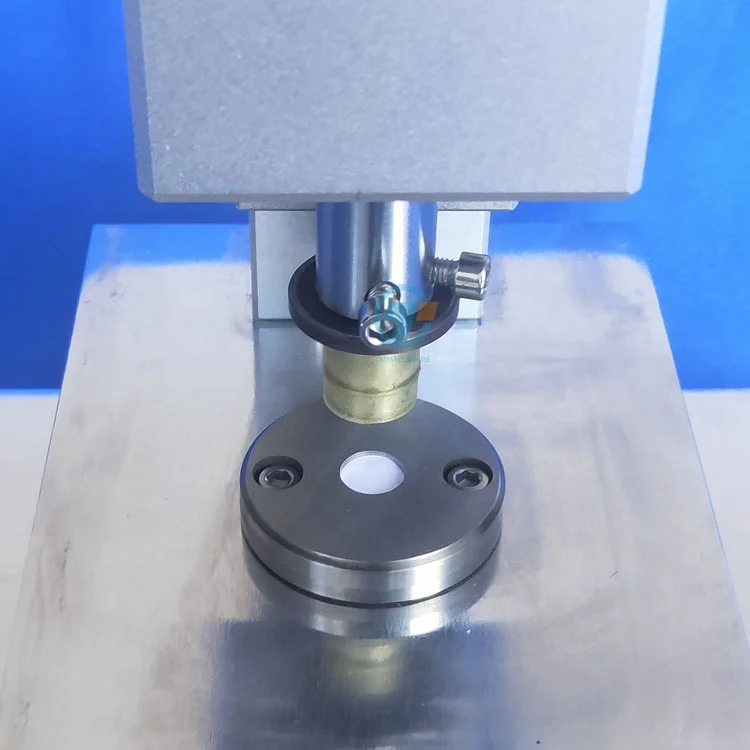

Cutting Die |
16, 19, and 20mm precision dies are included in the standard package Optional 3 - 24mm customized dies are available upon request
15mm (for electrode discs of CR20xx series coin cell cases) 19mm (for electrode discs of CR20xx series coin cell cases and CR2325 negative side cases) 20mm (for electrode discs of CR2450 cell cases, CR2325 positive side cases, and separator discs of CR20xx series coin cell cases) 24mm (for electrode and separator discs of CR24xx series) |
Application Notes | For make CR2016, CR2025 or/and CR2032 coin cell batteries, it will need at least three cutting dies: A 15mm (for negative side case, which is 16.5mm in diameter) B 19mm (for positive side case, which is 20mm in diameter) C 20 mm (for separator to fully separate the electrodes) For CR2450 coin cell: 20mm cutting die can be used for cutting electrode discs and the 24mm cutting die for either electrode or separator disc. |
Net Weight | about 13 kg |
Warranty | One year limited warranty with lifetime support |
reference of the Compact Precision Manual Coin Cell Die Disc Cutter For Electrode and Separator discs preparation MSK-T-10

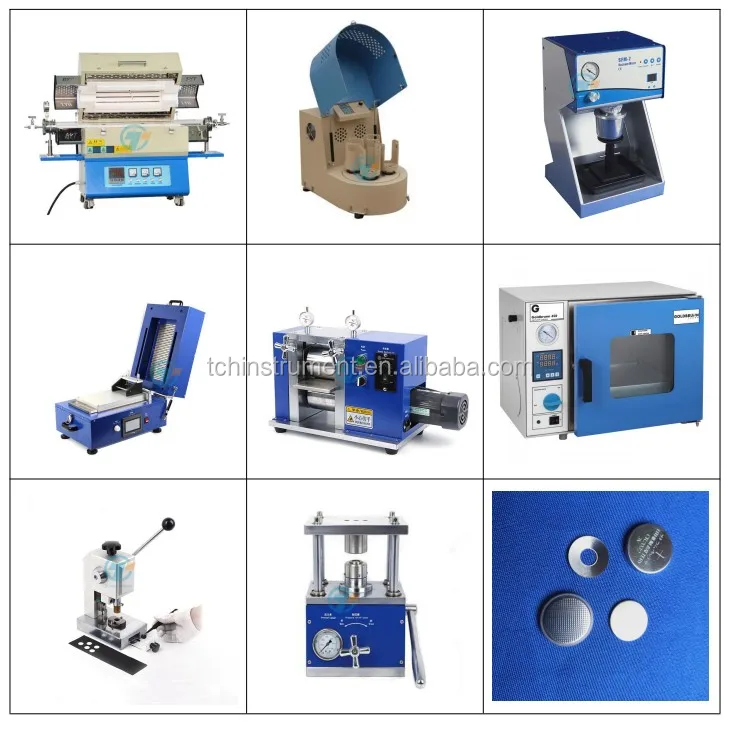

other related products for your choice
