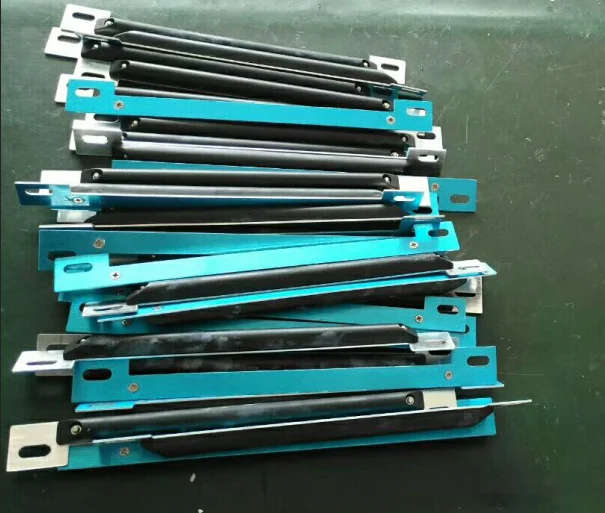

License Plate or vehicles or Waste bin Tracking Anti metal UHF RFID Wiper tag

Product Overview

Description

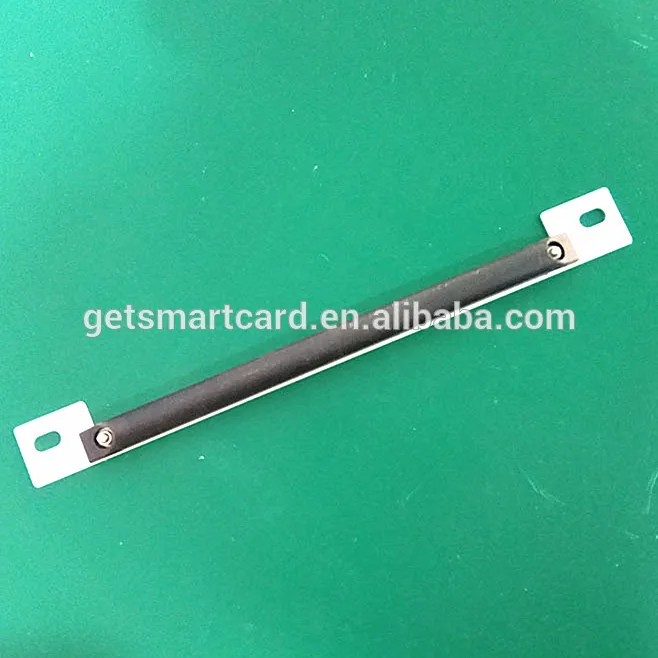

RFID UHF Long Range on Metal Electronic Car Truck vehicle License Plate Tag for automated guided vehicle rfid tracking



GSC24523 RFID Car vehicle License Plate Tag meets the ISO 18000-6C (EPC C1G2) standard. Its working frequency is 902-928 MHz. It has 96-bit EPC code, 64-bit TID code and 224-bit user data area. It can be used repeatedly. It can effectively protect the information security and user privacy of goods. The RFID label is encapsulated in engineering plastics and welded by ultrasonic wave. When used, double-sided glue, glass glue or screw can be directly mounted on the surface of the object, and the performance of the metal surface is the best.. Its main application is non-stop toll collection, vehicle management and urban intelligent transportation and other smart fields





Item Name	EPC C1 G2 Long Range Anti Metal Electronic UHF RFID Car Truck vehicle License Plate Tag
SKU	GSC24523

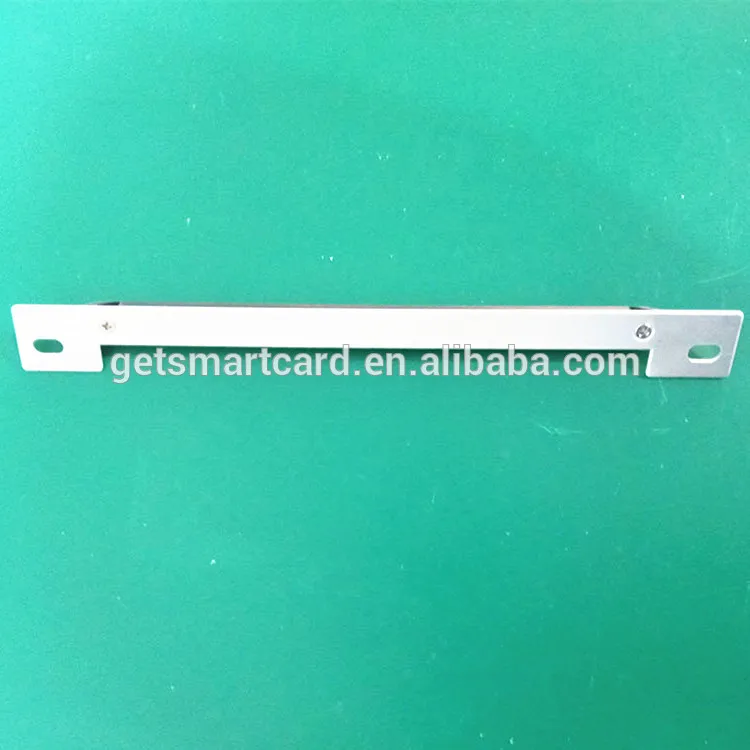

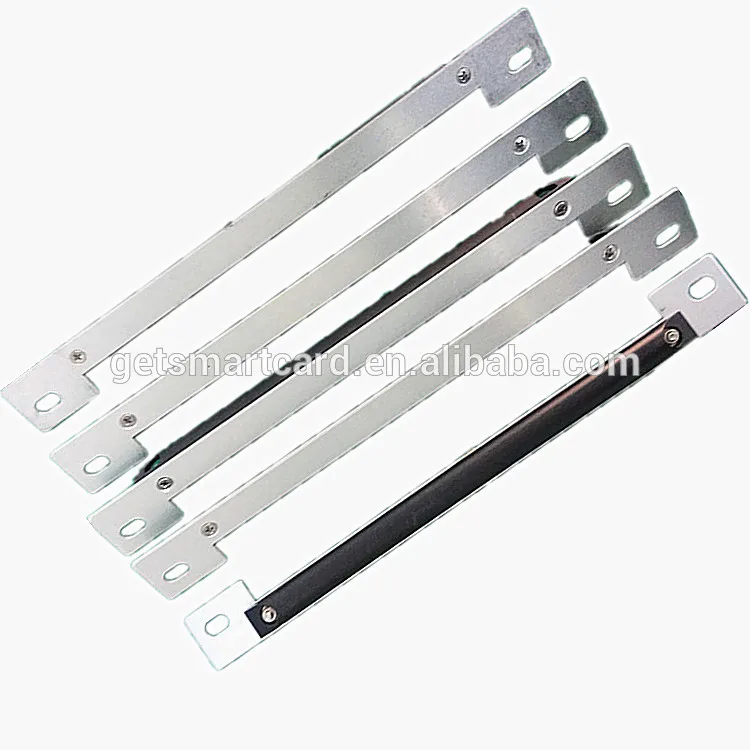

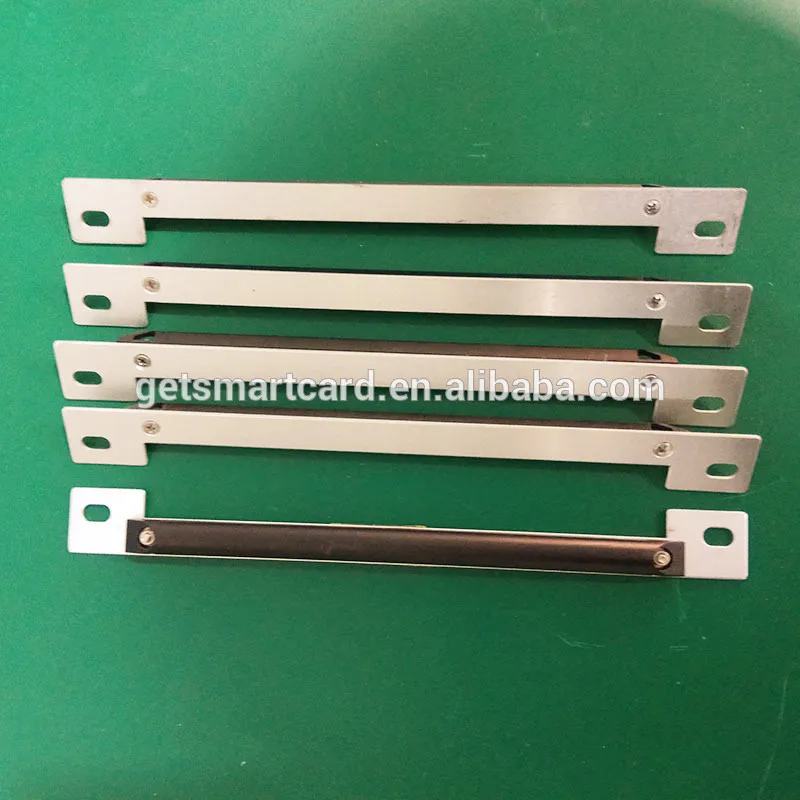

Material	PCB antenna, ABS cover+ Aluminum alloy back panel

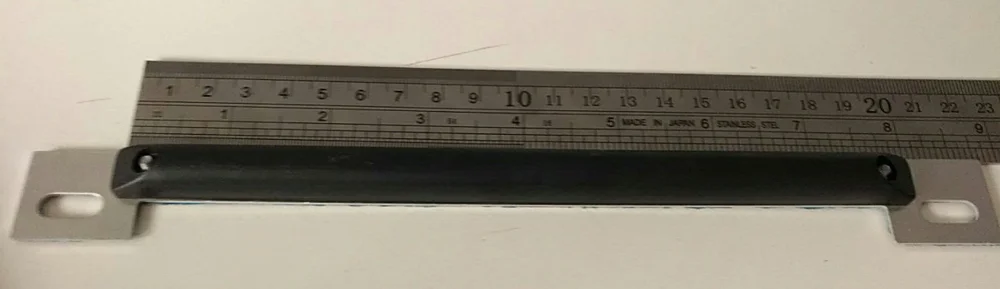

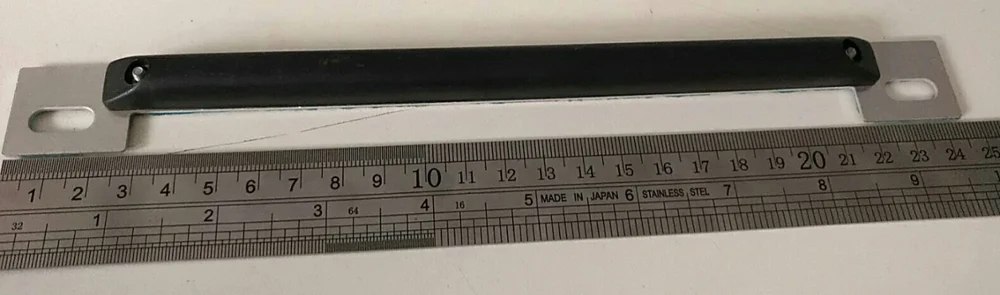

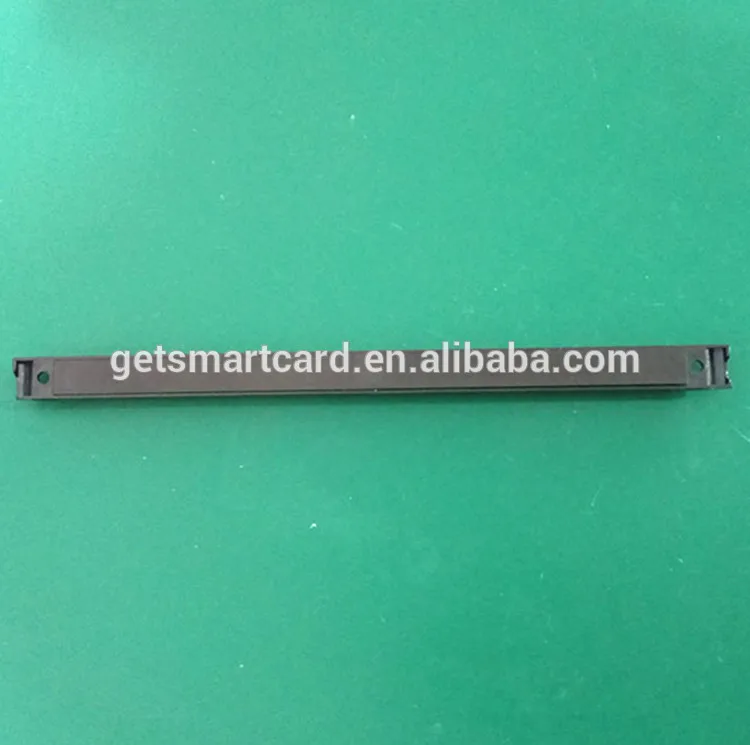

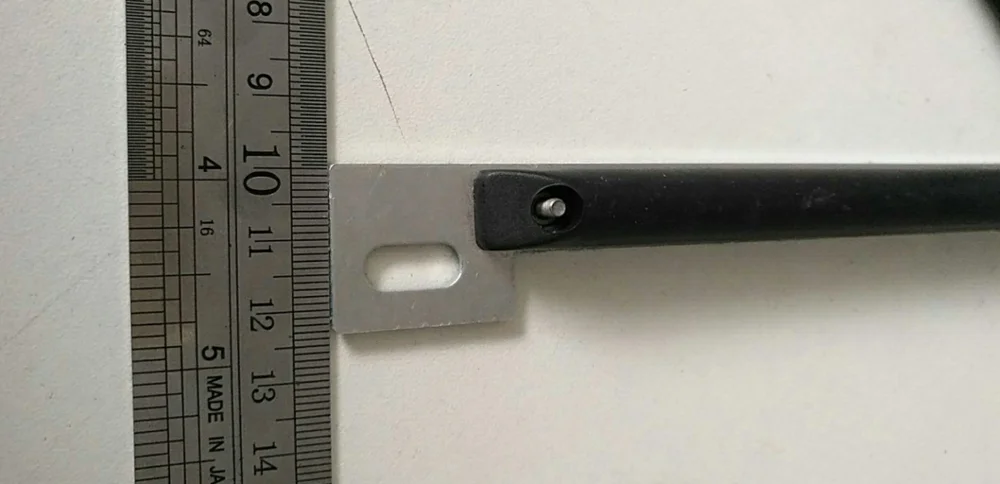

Dimension	200mm×12mm×10mmmm(RFID Tag );Metal base: 245×24×1.5mm;
Color	Black
Key Feature	Shockproof, waterproof, dust-proof and moisture-proof; Sturdy and durable
Operating mode	Passive, No need battery, No need maintenance
Protocol	ISO 18000-6C
Frequency	860-960MHz
Chip	Impinj M4QTor customized chip
Reading distance	3-15m, depends on reader and environment
Retention	100,000 times, 10 years
Installation	Simple and convenient installation by Screw, rivets, or adhesive sticker
Working temperature	-20℃~+70℃
Store temperature	-30℃~+85℃
Function	The Tag has strong anti-jamming performance and adopts anti-collision communication protocol.
	Effective binary tree anti-collision mechanism is not affected by the number of labels in the workspace,
	and can effectively read up to 200 labels per second.
Delivery	By express(DHL, FedEx, UPS, TNT, EMS), By air, By sea.

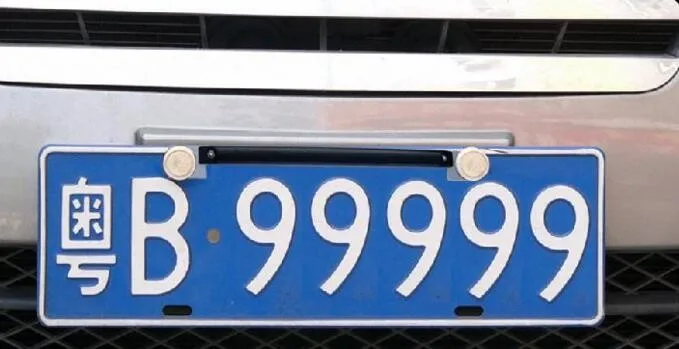

Application	Electronic License plate tag
	Vehicle identification,vehicle management, vehicle parking
	Smart Transportation
	Fleet Management
	Metal objects management
	No Parking Charging management
