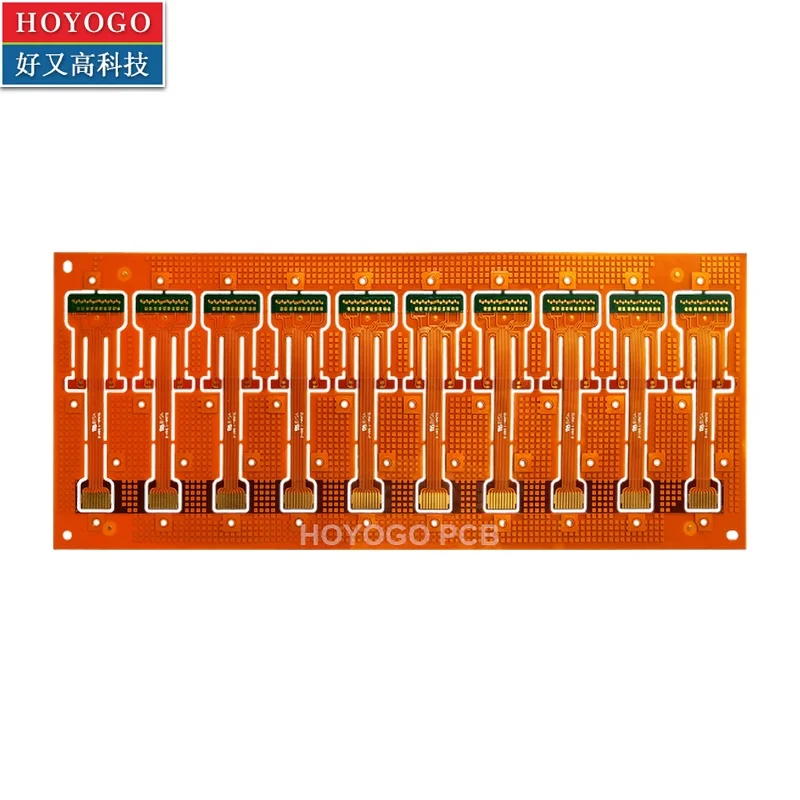

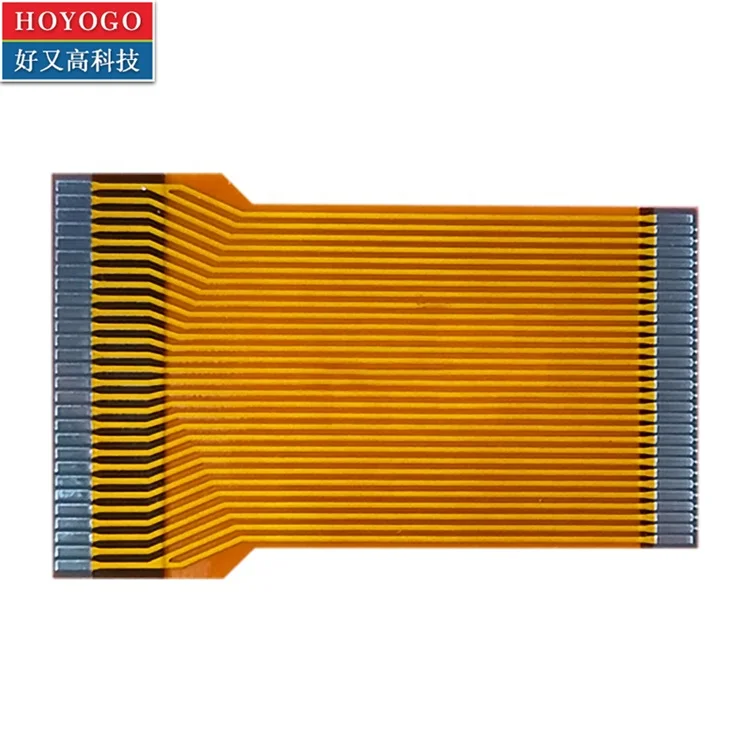

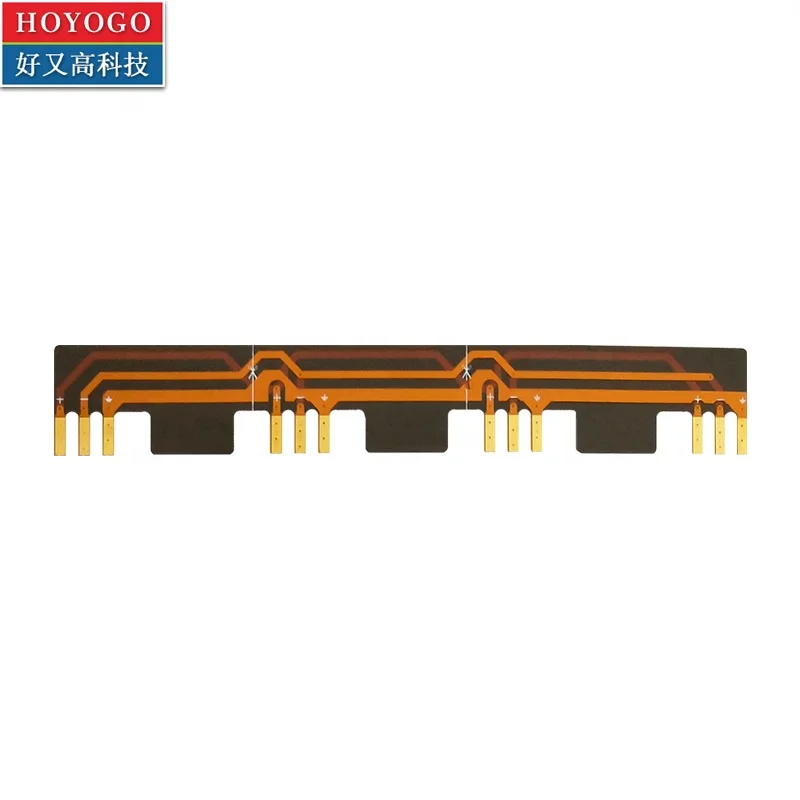

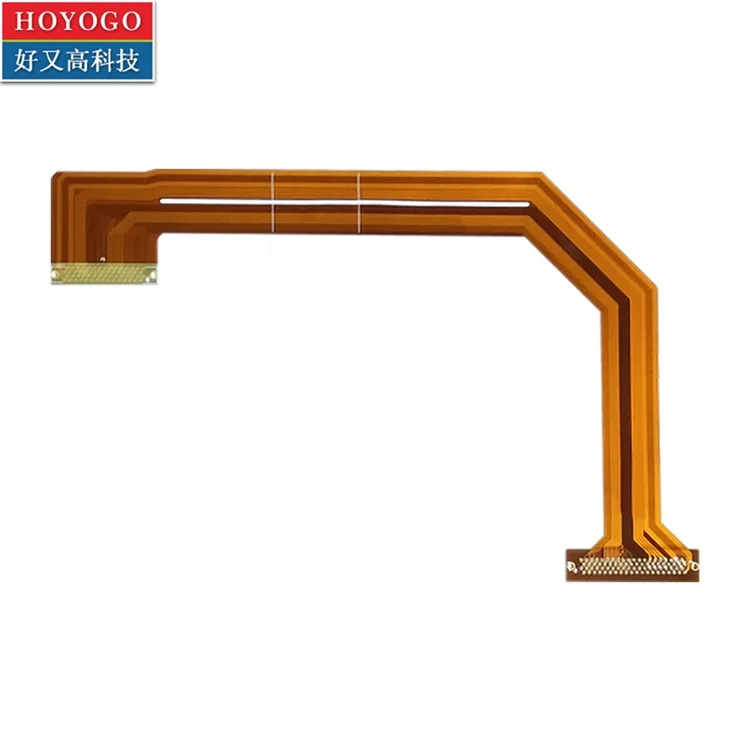

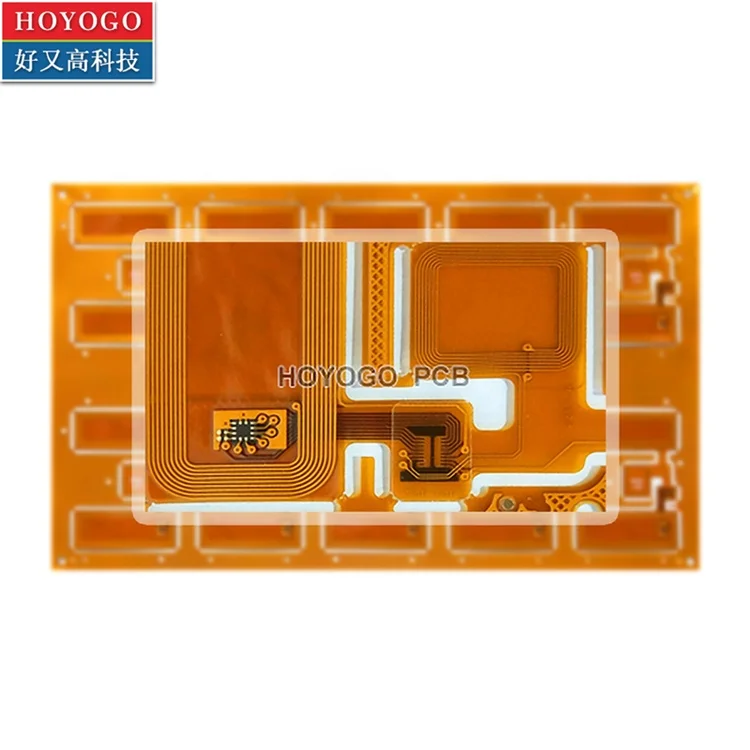

OEM Professional Custom Electronic LED Flexible Circuit Board PCB

Type

 Flexible Printed Circuit Board

Layer

 1-12L

Base Material

 PI, PET, PEN

Board Thickness

 Single-sided: 0.15mm;

 Double-sided: 0.10mm

Min. Finished Hole Size

 Drilling: 0.15mm;

 Punching: 0.50mm

Max. Panel Size (mm)

 500 * 800

Base Copper Thickness

 1/4-2OZ

Surface Finishing

 ENIG / Gold finger / Tin Plating /   Immersion Silver / Immersion Tin / OSP   /Hard Gold, etc.

Min. Line Width / Space

 Copper Weight: up to 0.5OZ: 0.06mm

 Copper Weight: 0.5-1OZ: 0.075mm

 Copper Weight: over 1OZ: 0.10mm

Min. Solder Mask Bridge (mm)

 0.20mm for coverlay, 0.12mm for LPI

Application

 Automotive, security, Medical, Consumer   Electronics, Telecommunication, Power   Electronics, other fields.
