LWS 16S 51.2V 58V li ion lifepo4 bms 100a 200a 300a 400a For Electric Scooters 48V BMS
- Category: >>>
- Supplier: Shenzhen Li-Ion Battery Bodyguard Technology Co. Ltd.
Share on (62530565033):
Product Overview
Description
Product Description
If you feel that this product does not meet your requirements, you can consult our staff, you can recommend or customize the lithium battery protection board you want.
Product Paramenters
Description of application effect
(Battery Management System) BMS can extend battery life and make battery work safely.
sightseeing vehicle,electric tricycle,low speed ev,emergrncy ups,solar street light,RV&home energy storage......
Product Description
LWS 20S li-ion lifepo4 bms 100a 200a 300a 400a For Electric Scooters 48V BMS
About your products,just tell us the relative voltage/ cells/ current A or equipment etc,we will help to recommend the most
suitable products for you.
Supply OEM/ODM and custom service
* High quality with smart balance function
* Wholesale price
* ISO9001/ISO14001/CE/ROHS certificates
* Fast delivery
About the battery BMS/PCB/PCM
Function: Detect and protect the battery from over-charge ,over-dicharge, over-current short-circuit ,temperature detecting protection andauotmatically voltage balance function .
Build with high end electronic components (High End IC and MOSFET ) ,simple structure design will let it have more stable quality
working performance , Flexible application
( it can be used for less series battery by leaving some connection pins at empty status ),full set of protection measures let it
works well without any infulence from external unexpected accidents.
suitable products for you.
Supply OEM/ODM and custom service
* High quality with smart balance function
* Wholesale price
* ISO9001/ISO14001/CE/ROHS certificates
* Fast delivery
About the battery BMS/PCB/PCM
Function: Detect and protect the battery from over-charge ,over-dicharge, over-current short-circuit ,temperature detecting protection andauotmatically voltage balance function .
Build with high end electronic components (High End IC and MOSFET ) ,simple structure design will let it have more stable quality
working performance , Flexible application
( it can be used for less series battery by leaving some connection pins at empty status ),full set of protection measures let it
works well without any infulence from external unexpected accidents.
Mode | LWS-20S400A-482(16S) |
PCM Size | L175*W116.5*T18 mm |
battery series | 4S-20S Available |
working current | 400A Available |
Application | LED lights, Emergency lights, Digital Equipment, etc |
Sample | available |
Wiring:
1. First connect the B- of the BMS to the total negative pole of the battery pack;
2.The cable starts from the thin black one connecting B-, the second red wire connects the positive pole of the first string of batteries, and the next string is connected in turn to positive pole of the battery,B-,B1,B2.....B16; then insert the cable into the BMS;

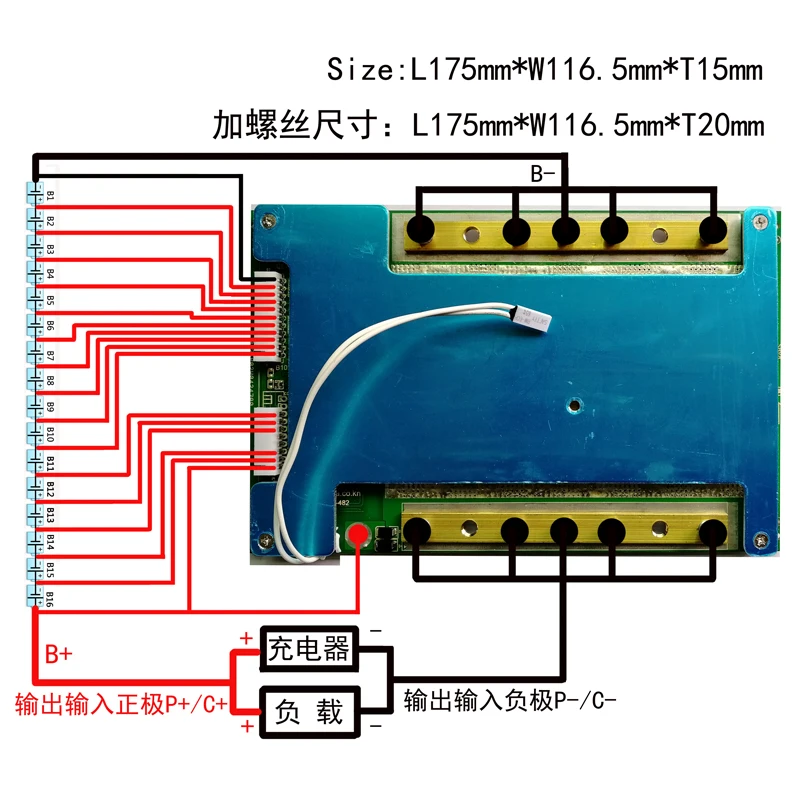

(The maximum number of strings is 4-20 strings, the example picture is 16 strings)
(Please weld the wires in order and avoid pseudo solder joints.)
3. Connect Charger C-/Load P- with BMS C-/P- (Use larger size wires)
4. Connect Positive Pole: Charger C+/Load P+ with Battery Pack B+ (Use larger size wires) .
1. First connect the B- of the BMS to the total negative pole of the battery pack;
2.The cable starts from the thin black one connecting B-, the second red wire connects the positive pole of the first string of batteries, and the next string is connected in turn to positive pole of the battery,B-,B1,B2.....B16; then insert the cable into the BMS;

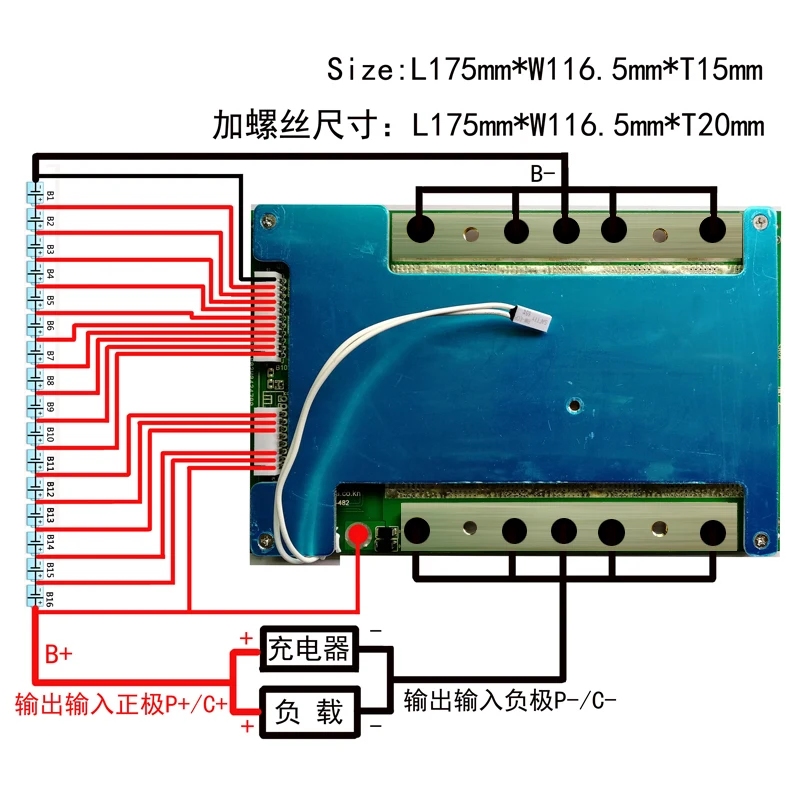

(The maximum number of strings is 4-20 strings, the example picture is 16 strings)
(Please weld the wires in order and avoid pseudo solder joints.)
3. Connect Charger C-/Load P- with BMS C-/P- (Use larger size wires)
4. Connect Positive Pole: Charger C+/Load P+ with Battery Pack B+ (Use larger size wires) .
PCM Specifications For 51.2V（16S）LiFePO4 Battery Packs | ||||||
Model:LWS-20S300A-482(16S) | ||||||
No. | Test item | Criterion | ||||
1 | Voltage | Charging voltage | DC:57.6V CC/CV | |||
Balance voltage for single cell | 3.60±0.025V | |||||
2 | Current | Balance current for single cell | 36±5mA | |||
Current consumption | ≤50uA | |||||
Maximal continuous charging current | 200A | |||||
Maximal continuous Discharging current | 200A | |||||
3 | Over charge Protection | Over charge detection voltage for single cell | 3.75±0.025V | |||
Over charge detection delay time | 800—1300mS | |||||
Over charge release voltage for single cell | 3.55±0.05V | |||||
4 | Over discharge protection | Over discharge detection voltage for single cell | 2.20±0.08V | |||
Over discharge detection delay time | 500mS—1300mS | |||||
Over discharge release voltage for single cell | 2.7±0.1V | |||||
5 | Over current protection | Over current detection voltage | 0.1±0.025V | |||
Over charge/discharge current detection current | 600±50A | |||||
Detection delay time | 3S±1S(adjustable) | |||||
Release condition | Cut load,Automatic recovery | |||||
6 | Short protection | Detection condition | Exterior short circuit | |||
Detection delay time | 500—1500uS | |||||
Release condition | Cut load,Automatic recovery | |||||
7 | Resistance | Protection circuitry（MOSFET） | ≤20mΩ | |||
8 | Temperature | Operating Temperature Range | -40～+85℃ | |||
Storage Temperature Range | -40～+125℃ | |||||
About your products,just tell us the relative voltage/ cells/ current A or equipment etc,we will help to recommend the most suitable products for you.
Title goes here.
*Complete products contract PCB assembly and manufacturing services
*Circuir boards 2 to 30 layers PCB layout,fabrication, PCB assembly and box build
*Active and passive components source is directly from original manufacturer
*Enclosure cabinet case plastic injection molding,mental stamping,manufacture and assembly
*High-precision 0201 size components SMT technology and lead-free
*IC pre-program
*Hight-precision E-Testing
ShenZhen LWSPCM Co;ltd -We are specialzed manufacturer in the lithium battery pack pcb/pcm/bms.
The usage ranges cover lithium battery pack (lithium metal batteries),power li-ion batteries(LiCoO2,LINiCoMnO2,LiMnO4 ,LiFePO4)
Applications for: mobile phone batteries,Laptop,Tablet PC,power tool,e-bike,electric buses,golf cart power bank etc,involved in digital products,electric vehicle,energy storing device,medical equipment and mobile illumination) and so on.
Of which,the LiFePO4 battery balanced protection board is our core products.
*Circuir boards 2 to 30 layers PCB layout,fabrication, PCB assembly and box build
*Active and passive components source is directly from original manufacturer
*Enclosure cabinet case plastic injection molding,mental stamping,manufacture and assembly
*High-precision 0201 size components SMT technology and lead-free
*IC pre-program
*Hight-precision E-Testing
ShenZhen LWSPCM Co;ltd -We are specialzed manufacturer in the lithium battery pack pcb/pcm/bms.
The usage ranges cover lithium battery pack (lithium metal batteries),power li-ion batteries(LiCoO2,LINiCoMnO2,LiMnO4 ,LiFePO4)
Applications for: mobile phone batteries,Laptop,Tablet PC,power tool,e-bike,electric buses,golf cart power bank etc,involved in digital products,electric vehicle,energy storing device,medical equipment and mobile illumination) and so on.
Of which,the LiFePO4 battery balanced protection board is our core products.
FAQ
Q: How many Ampere protection circuit boards should choose?
A: It depends on your load power such as electric motor power please contact the sales or technical support before buying.
Q: What is the distinction between same port wiring and different port wiring?
A: The cathode of charger and load is different for different port wiring , the cathode of charger and load is same for same port
wiring and the charging current is equal to the discharge current.
Q: What is the distinction between balance and unbalance function?
A: Equilibrium function is that high voltage cells will be discharged with resistor, waiting for the low voltage cells , to
achieve the each cell voltage is consistent , to improve the battery performance for the whole group.
Q: Do you have Minimum Order Requirement (MOQ)?
A: No, We don’t have MOQ, Different customer have different requirement ,We can provide various capacity and size is per your
requirements,Also ODM / OEM is welcome.
Q: How many Ampere protection circuit boards should choose?
A: It depends on your load power such as electric motor power please contact the sales or technical support before buying.
Q: What is the distinction between same port wiring and different port wiring?
A: The cathode of charger and load is different for different port wiring , the cathode of charger and load is same for same port
wiring and the charging current is equal to the discharge current.
Q: What is the distinction between balance and unbalance function?
A: Equilibrium function is that high voltage cells will be discharged with resistor, waiting for the low voltage cells , to
achieve the each cell voltage is consistent , to improve the battery performance for the whole group.
Q: Do you have Minimum Order Requirement (MOQ)?
A: No, We don’t have MOQ, Different customer have different requirement ,We can provide various capacity and size is per your
requirements,Also ODM / OEM is welcome.
