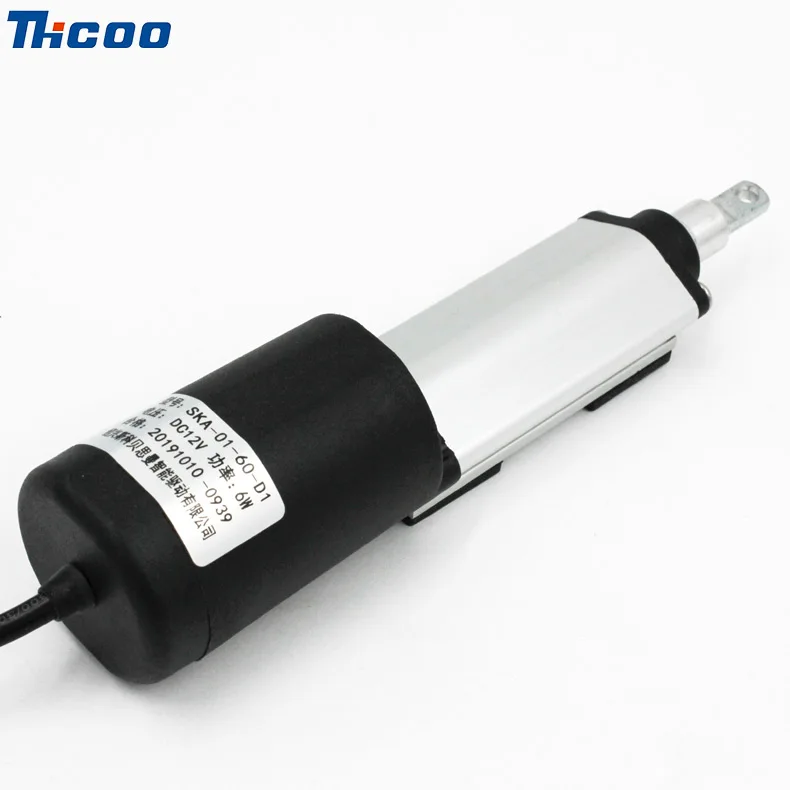

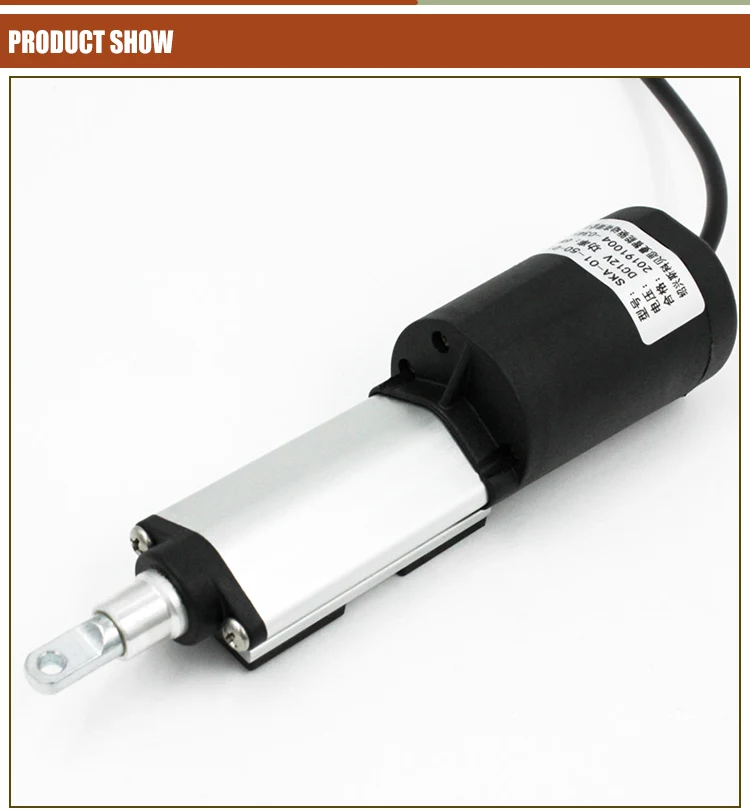

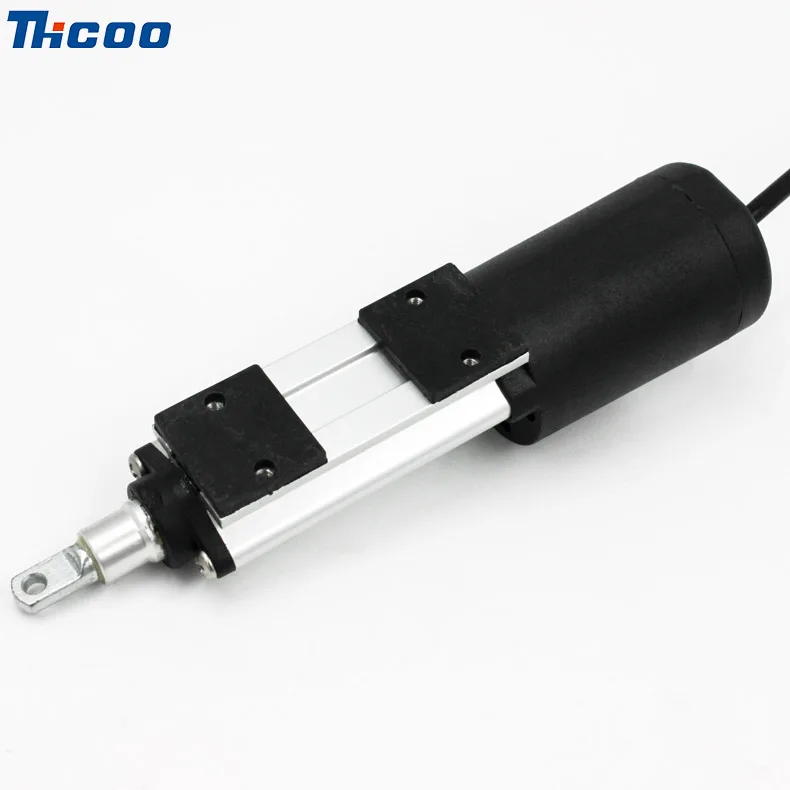

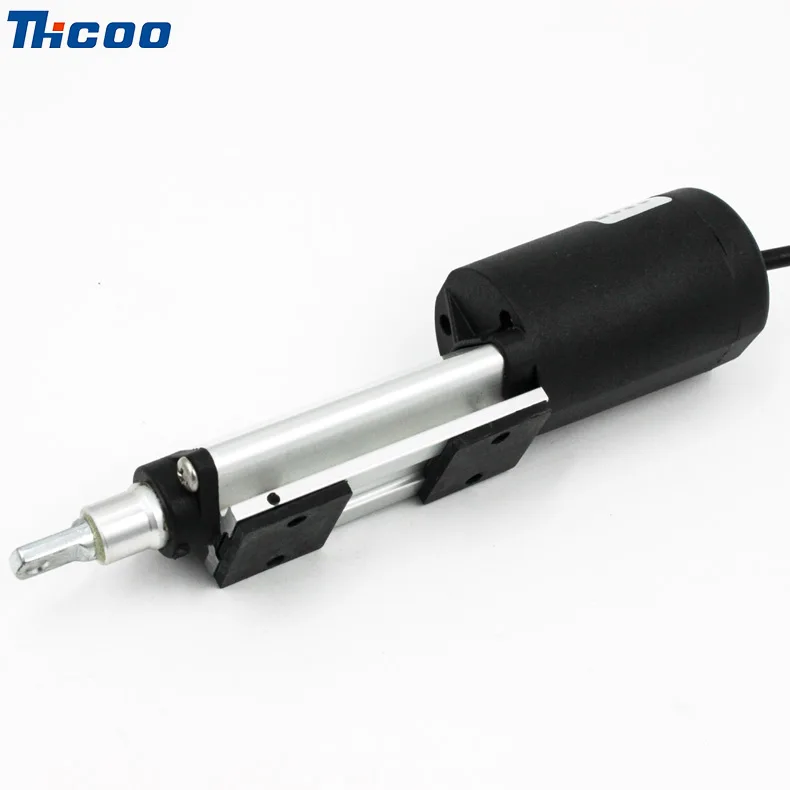

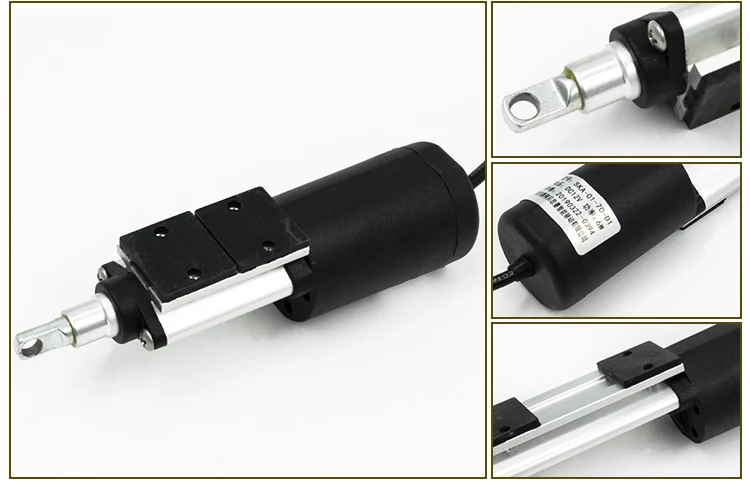

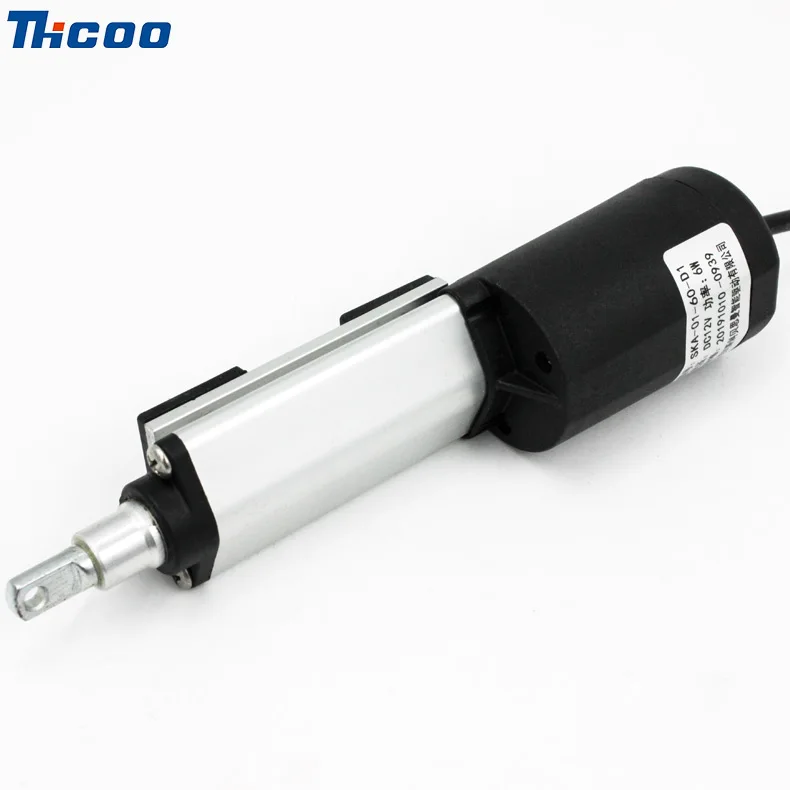

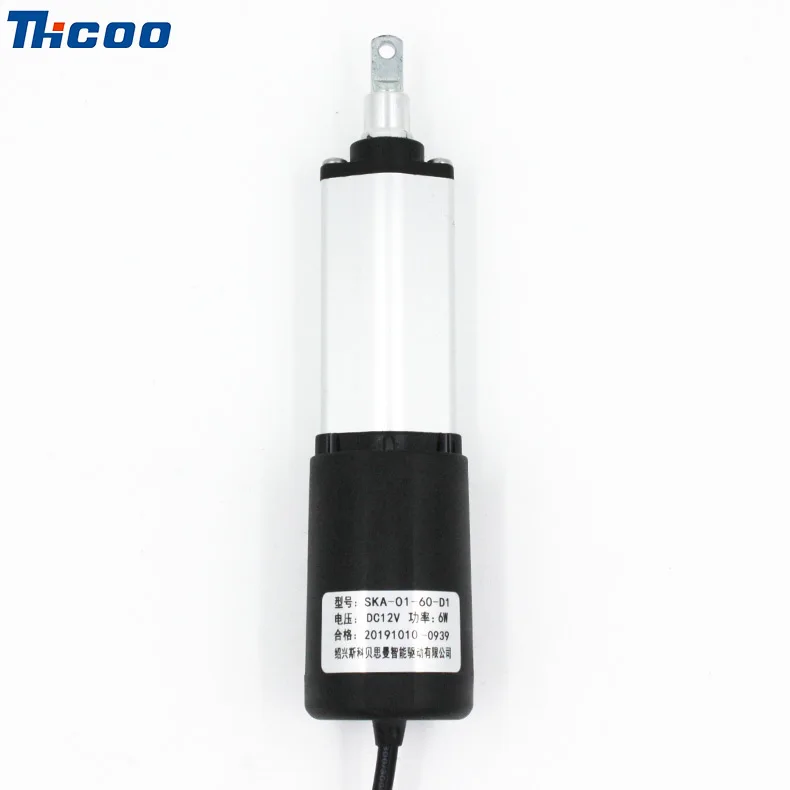

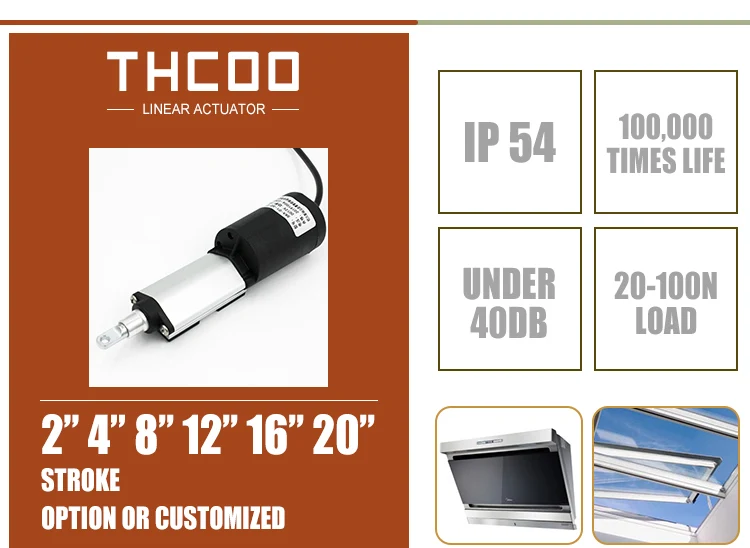

IP54 12v Mini Actuador Electric Linear Actuators for Chair SKA

Product Overview

Description





DAILY LIFE -------------------------------------------------------------------------------------------------------------------------------------------------------------

You can find actuators everywhere, as they make our lives easier. Can be used to open doors, lift platforms, raise flat screen at home and in buses, floor cleaners, mobile traffic signs, automatic spice racks, chicken coop doors, hospitality hydraulic beds, message tables, electric sofas and many others.



FEATURES -------------------------------------------------------------------------------------------------------------------------------------------------------------

12 Volt Linear Actuators are rugged and durable and can withstand harsh working environments. They can also be used in SMART HOME applications, thus providing a smooth integration with all systems. Ideal for replacement of comparable size pneumatic and hydraulic cylinders.



BENEFITS --------------------------------------------------------------------------------------------------------------------------------------------------------------

One electric actuator is faster and easier to install than multiple hydraulic and pneumatic components. Compare zero maintenance electric actuators against the fluid replacement, leak repairs and other routine maintenance needed to support hydraulic systems. Also boosts productivity and efficiency together with superior accuracy and repeatability.



SUPERIOR QUALITY GUARANTEED OR YOUR MONEY BACK! ------------------------------------------------------------------------------------

Progressive Automations actuators are quiet, clean, non-toxic and energy efficient. Our products can also be designed to suit your requirements. Our support team of engineers are skilled and ready to reply to any question, also could help you with your product integration.





Product Model	SKA
Input	12VDC/24VDC
Load capacity	100N
Self-lock force	100N
Max. speed	10mm/s
locked-rotor current	550mA
Overload protection	<440mA
Stroke	50 mm
Color	Black
Limit switch	Without
Duty cycle	10% ,MAX.2 min/18 min.off
IP Degree	IP54
Operatingt temperature	-26℃~+65℃
Noise	Under 40DB

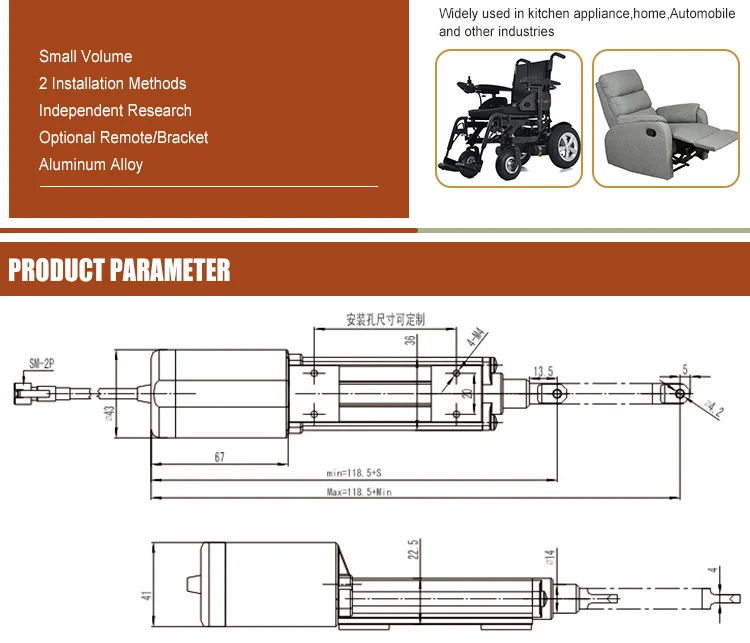

Min Installation Dimension	S+105mm+L(adapting piece)
Inner pipe	Aluminum Alloy
Adapting Piece	Steel (optional type: A, B, C, D, E; accept customized)
Standard	CE/RoHS





Q:May I have a sample order before bulk one?
A: Of course, we can provide a sample for you.



Q:What should I do if the stroke I want is not same as in the picture?

A:Pls contact us,we can customize any stroke and no MOQ.



Q:Does your product have Hall feedback?

A:Yes,they can built in hall sensor.



Q:This item do not seem to meet my requirements. Do you have any other products?

A:Plstell us the load,speed you needed and more details to get right product and best price.



Q:How do I place an order?

A:Pls tell me your email/phone number/delivery address,we will send you the trade assurance order to you for your payment.



Q:What is the trade assurance order?

A:It is a guarantee provided by Alibaba for buyers and sellers.If there is a problem, Alibaba can help us solve it.
