Automatic Gate Opener Electric Lock
US $110.00-$156.00

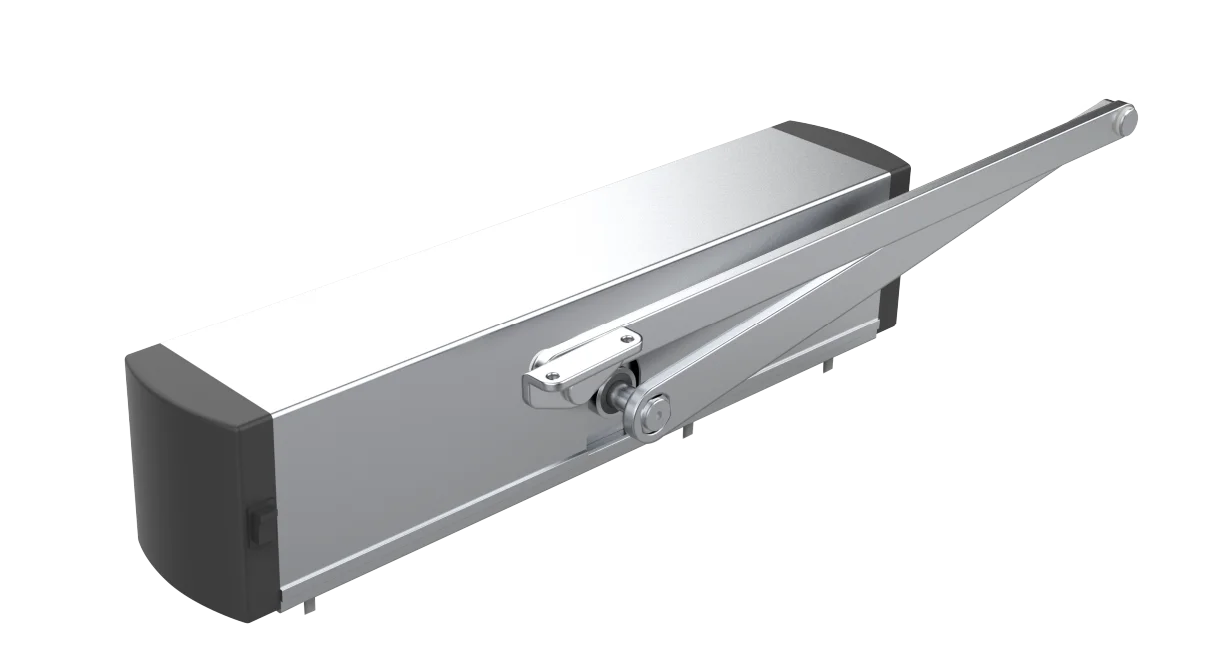

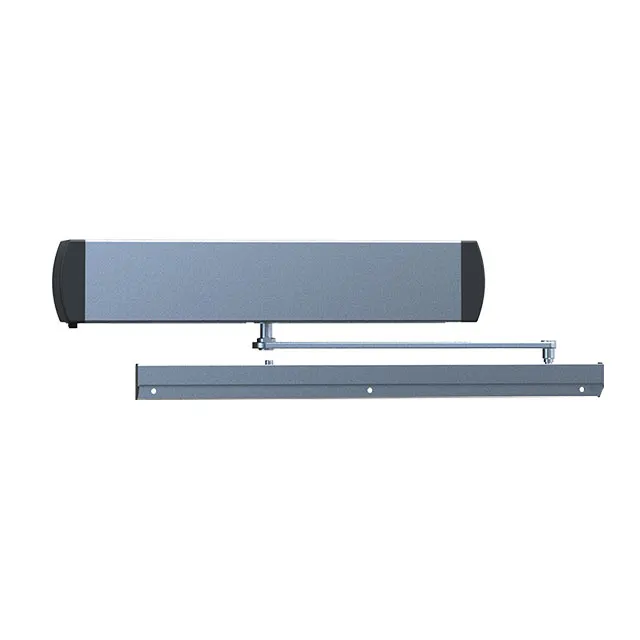

Non Contact Heavy Duty Automatic Swing Door Opener / Gate Operator
- Category: >>>
- Supplier: Bisen Smart Access Co. Ltd.
Share on (62530683050):
Product Overview
Description
Technical Specifications
Supply power: | 220VAC±10%,50/60Hz |
Power consumption: | 40W(max) |
Drive unit: | 24V DC Motor |
Open angle: | 80°-100° |
Opening time(speed): | 15-99Sec.(adjustable) |
Closing time(speed): | 15-99Sec.(adjustable) |
Hold-open time: | 1-99Sec.(adjustable) |

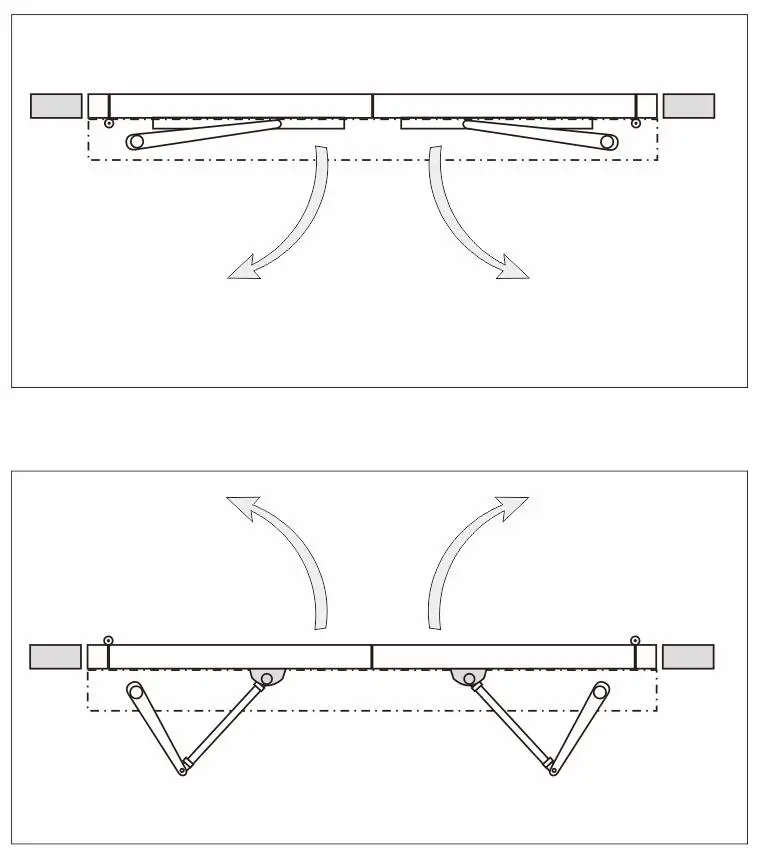

Drive arm: | pull arm(inward open)/ push arm(outward open) |
Environment temperature: | -20°C-50℃ |
Relative humidity: | ≤85% |

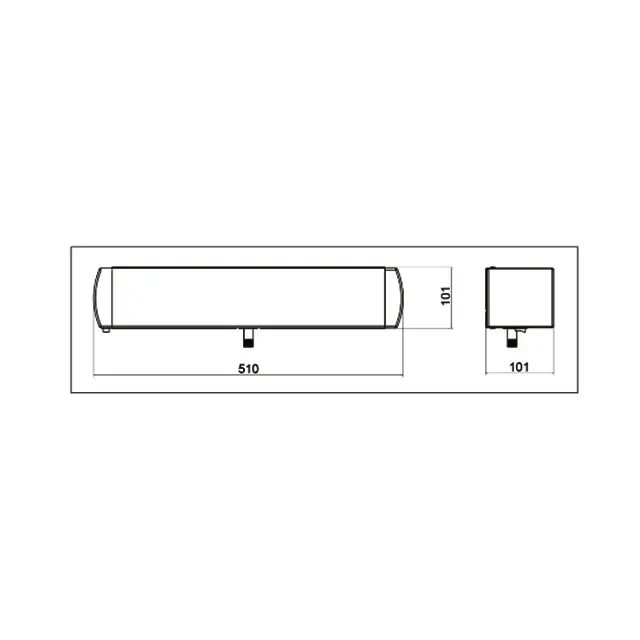

Dimensions
Features
Advanced software
1. Push & open function(can be turn off if needed, such as windy environment).
2.Auto reverse when an obstacle is encountered either in closing direction or opening direction.
3. Various opening modes: remote control, card reader, motion sensor, opening button etc.
4. Having interfaces to connect fire alarm signal, backup battery and electric lock.
5. Digitally change some parameters if needed, by adjustor.
Adjustable parameters
1. Opening speed and closing speed: 3s~10s
2. Hold-Open time adjustable: 1-10s
3. Creep speed for opening adjustable
4. Creep speed for closing adjustable
5. Push & open angle(0°-180°) adjustable
Simple and reliable structure
1. It consists of some modules, such as controller board, motor, easy to replace.
2. The motor transmission is simple and stable. Adopting worm and worm gear decelerator, super silence, no abrasion.
3. It is easy to open and close the cover for check.
4. Easy installation (first, install one mount plate on the wall, then use the screw to install whole automatic door opener on the mount plate)
5. Sliding arm and articulated arm both available, can open inside or outside.
6. Excellent reliability, over more than 2 million cycles durability tests.

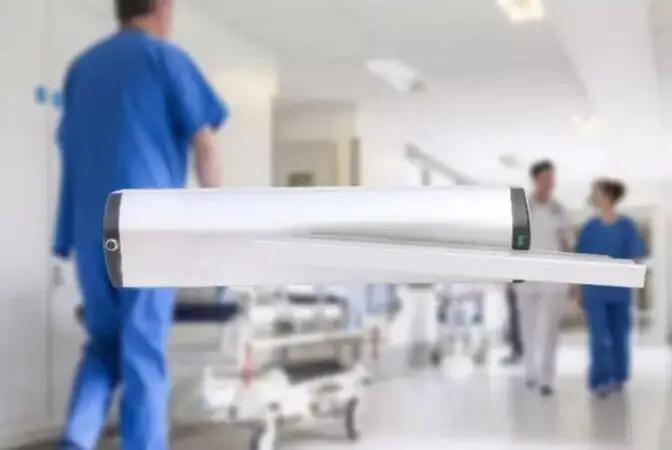

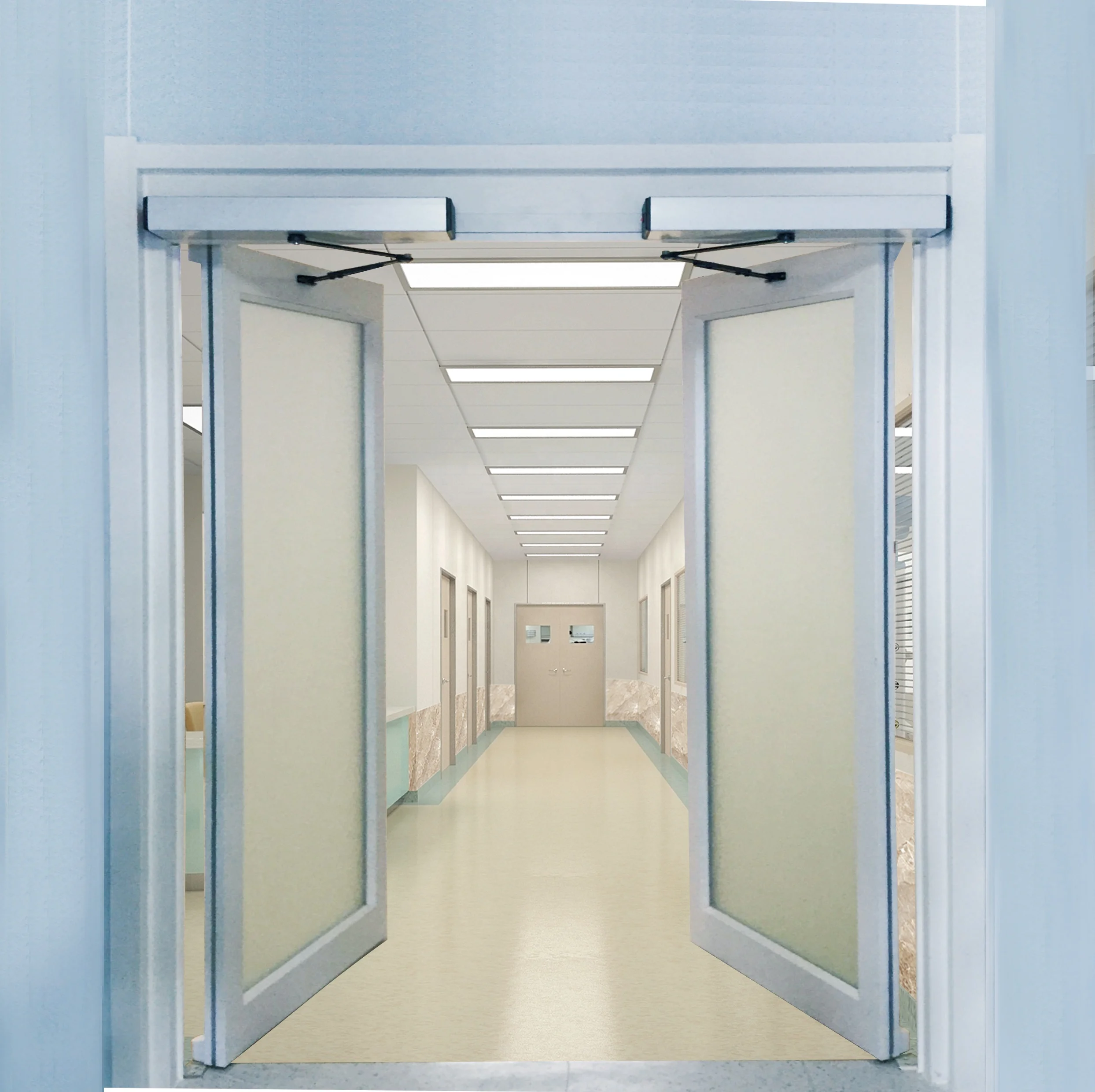

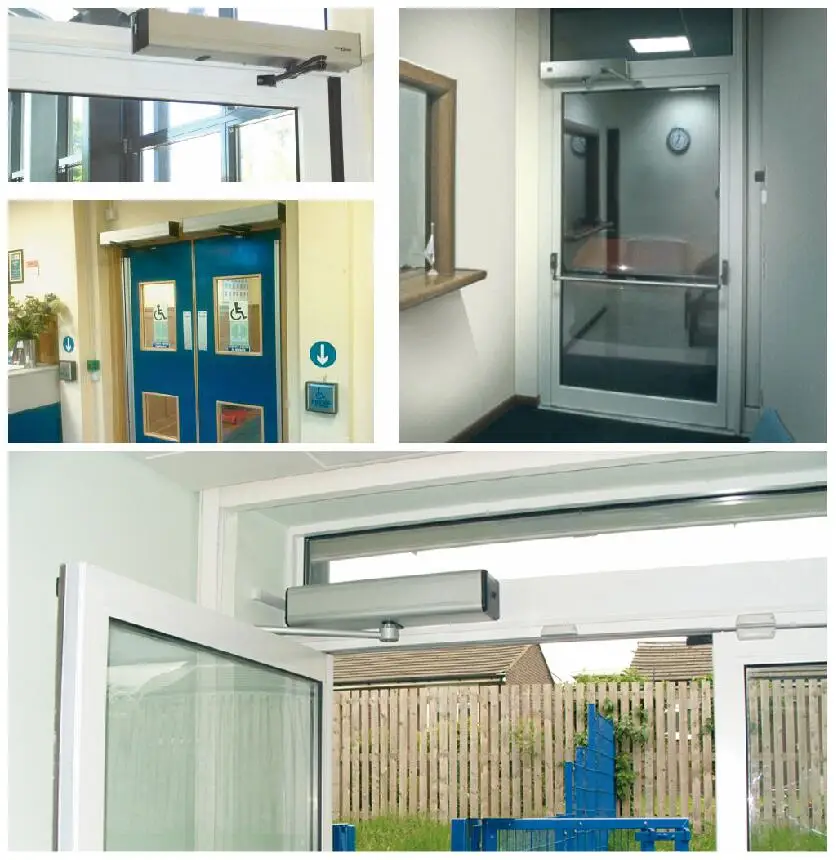

7. Application: hospitals, office buildings, hotels and restaurants, places with the old and the disabled.
1. Push & open function(can be turn off if needed, such as windy environment).
2.Auto reverse when an obstacle is encountered either in closing direction or opening direction.
3. Various opening modes: remote control, card reader, motion sensor, opening button etc.
4. Having interfaces to connect fire alarm signal, backup battery and electric lock.
5. Digitally change some parameters if needed, by adjustor.
Adjustable parameters
1. Opening speed and closing speed: 3s~10s
2. Hold-Open time adjustable: 1-10s
3. Creep speed for opening adjustable
4. Creep speed for closing adjustable
5. Push & open angle(0°-180°) adjustable
Simple and reliable structure
1. It consists of some modules, such as controller board, motor, easy to replace.
2. The motor transmission is simple and stable. Adopting worm and worm gear decelerator, super silence, no abrasion.
3. It is easy to open and close the cover for check.
4. Easy installation (first, install one mount plate on the wall, then use the screw to install whole automatic door opener on the mount plate)
5. Sliding arm and articulated arm both available, can open inside or outside.
6. Excellent reliability, over more than 2 million cycles durability tests.
7. Application: hospitals, office buildings, hotels and restaurants, places with the old and the disabled.
Company Profile
BISEN SMART ACCESS CO,.LTD was established in 1999, located in NanChang, China.
We are the biggest professional manufacturer for parking management system and equipments, gate and door automatic operators in China. more than 70 experienced engineers are engaging in R&D team , and more than 500 employees are working in manufacturer and service. We can provide quality ODM / OEM service for customers.
Our main products: Parking system auto-barrier gate, Sliding gate opener, Swing gate opener, Industrial sectional door opener, anti-terrorism road blocker, Hydraulic bollard, Pedestrian gate, Entrance control system etc.
Exhibition
Certifications
Manufacturing Technique
Testing Equipment
Our Services
1.ODM,OEM Customised for special requirements.
2. MOQ: 1 piece
3. Warranty:1 year
4. 24- hour responce.
5. Training
3. Warranty:1 year
4. 24- hour responce.
5. Training
FAQ
Q: Are you trading company or manufacturer ?
A: We are a manufacturer.
Q: How long is your delivery time?
A: Depends upon the quantity. Normally about 5 days for 1 full 20 container, 7 days for 1 full 40 container.
Q: Do you provide samples ? Is it free or extra ?
A: Yes, we provide samples, it depends on the price, free or not need to negotiate.
Q: What is your terms of payment ?
A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 50% T/T in advance, balance before leaving factory
If you have any other question, pls feel free to contact us.
