Modular Kwikstage Scaffolding System Comply With Australian Standard For Building Work
- Category: Ladders & Scaffoldings >>>
- Supplier: Changzhou Yueyang Machinery Co. Ltd.
Share on (62530701695):
Product Overview
Description
Product Description
● High Grade Steel takes heavy loading capacity, get to 6.6kN.
● Meet EN12811 and AS/NZ 1576 standards.
● Special design for aerial using, easy installation, less labour force, economic cost.
● More items for more possibilities.
● Hot dipped galvanized surface treatment for long use life.
● Aluminium kwikstag scaffolding system is available.

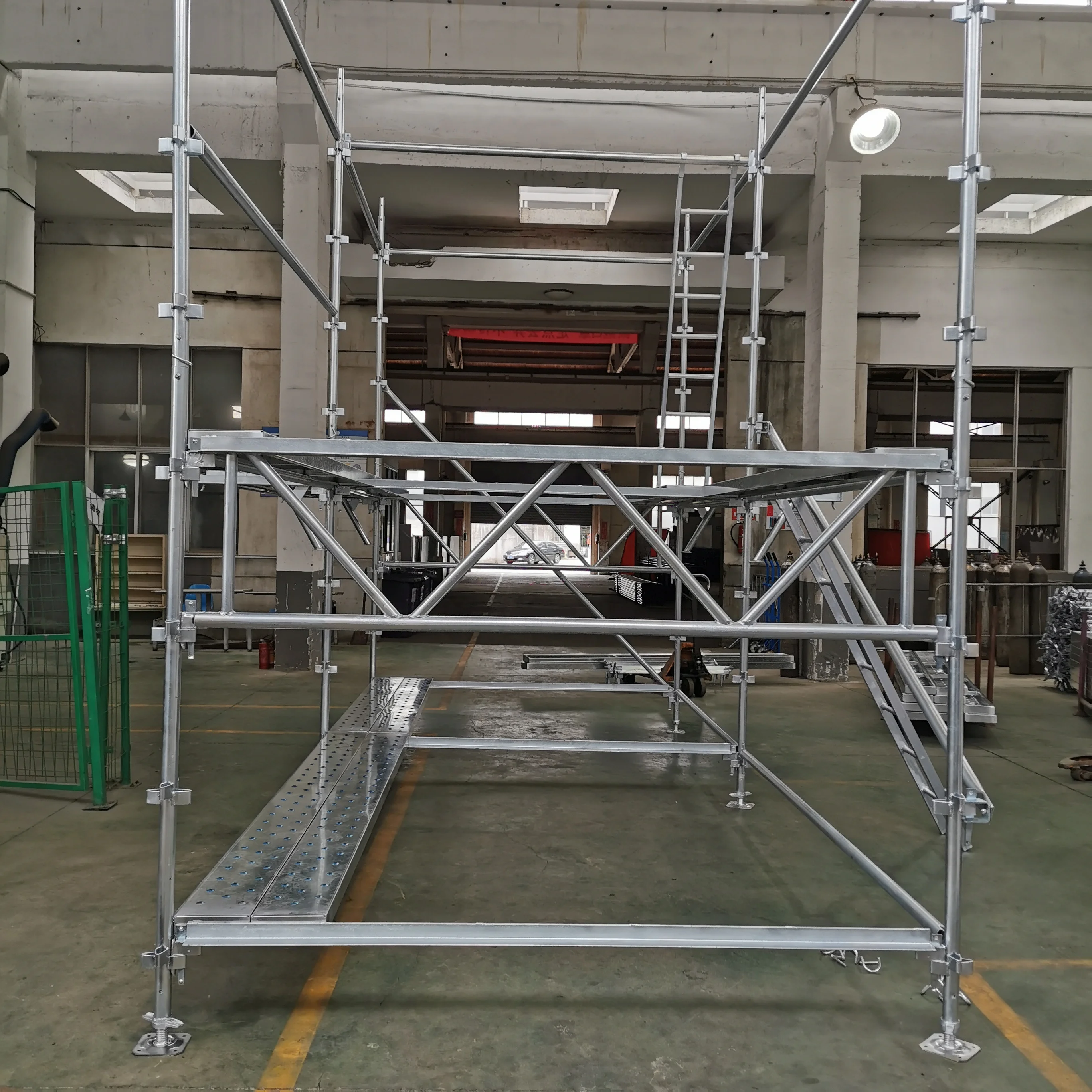

● Recommend Size: 2.44m(L)x1.27m(W)x5m(H), more size can be customized.
Item Name | Specification | Quantity |
Standard | 1.00m(H) With Spigot 2.00m(H) With Spigot | 4 pcs 8 pcs |
Single Ledger | 1.27m(L) 2.44m(L) | 7 pcs 12 pcs |
Transom | 1.27m(L) | 4 pcs |
Diagonal Brace | 2.44m(W)x2.50m(H) Section | 2 pcs |
Scaffolding Deck | 0.23m(W)x2.44m(L) | 3 pcs |
Alu Stair | 2.44m(W)x1.50m(H) Section | 2 pcs |
Long Handrail | match with alu stair | 2 pcs |
Base Jack | 0.6m(H) | 4 pcs |
Lock Pin | Lock the standard | 8 pcs |
Detailed Images
Standard
Single Ledger
Transom (profile)
Diagonal Brace
Bracket

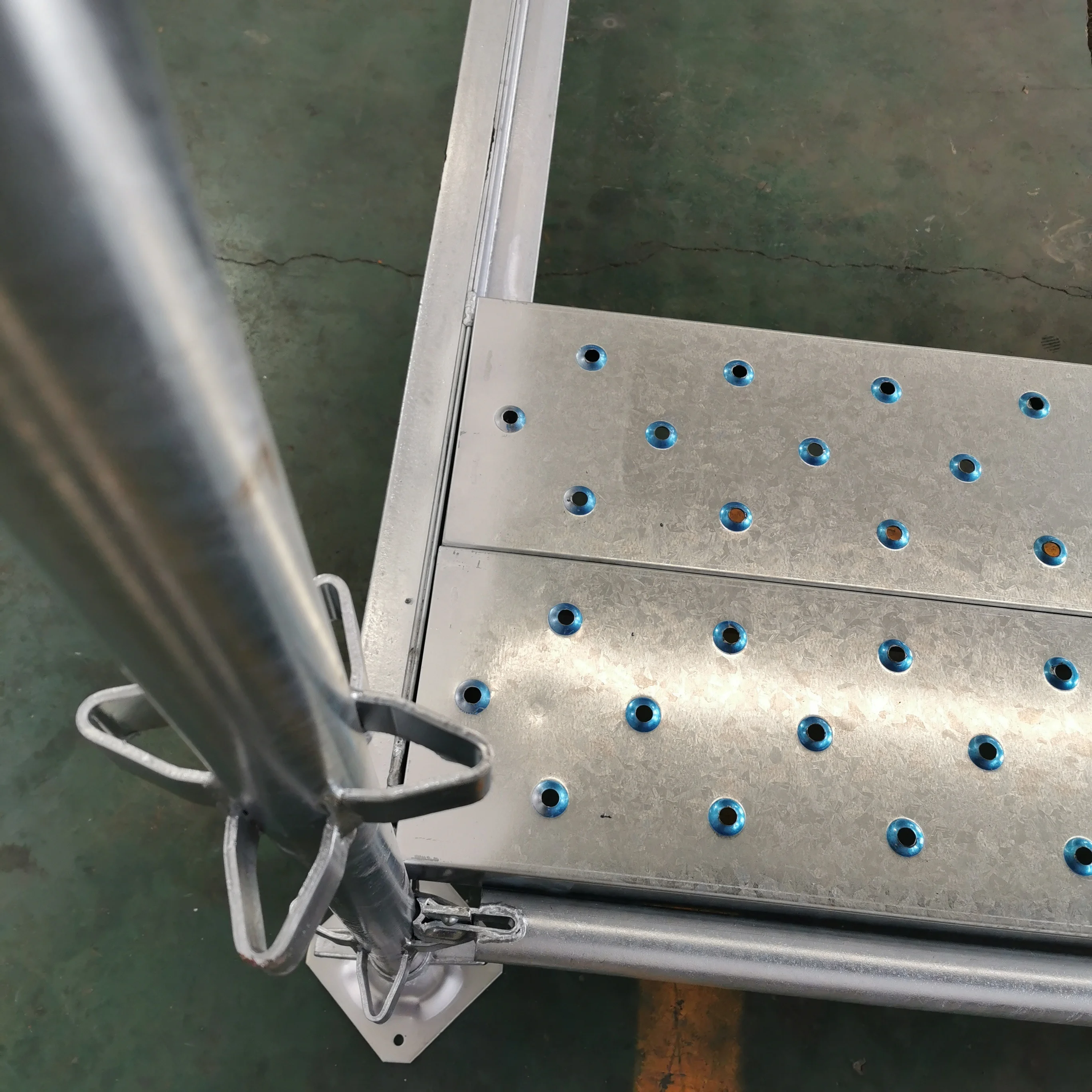

Steel Plank

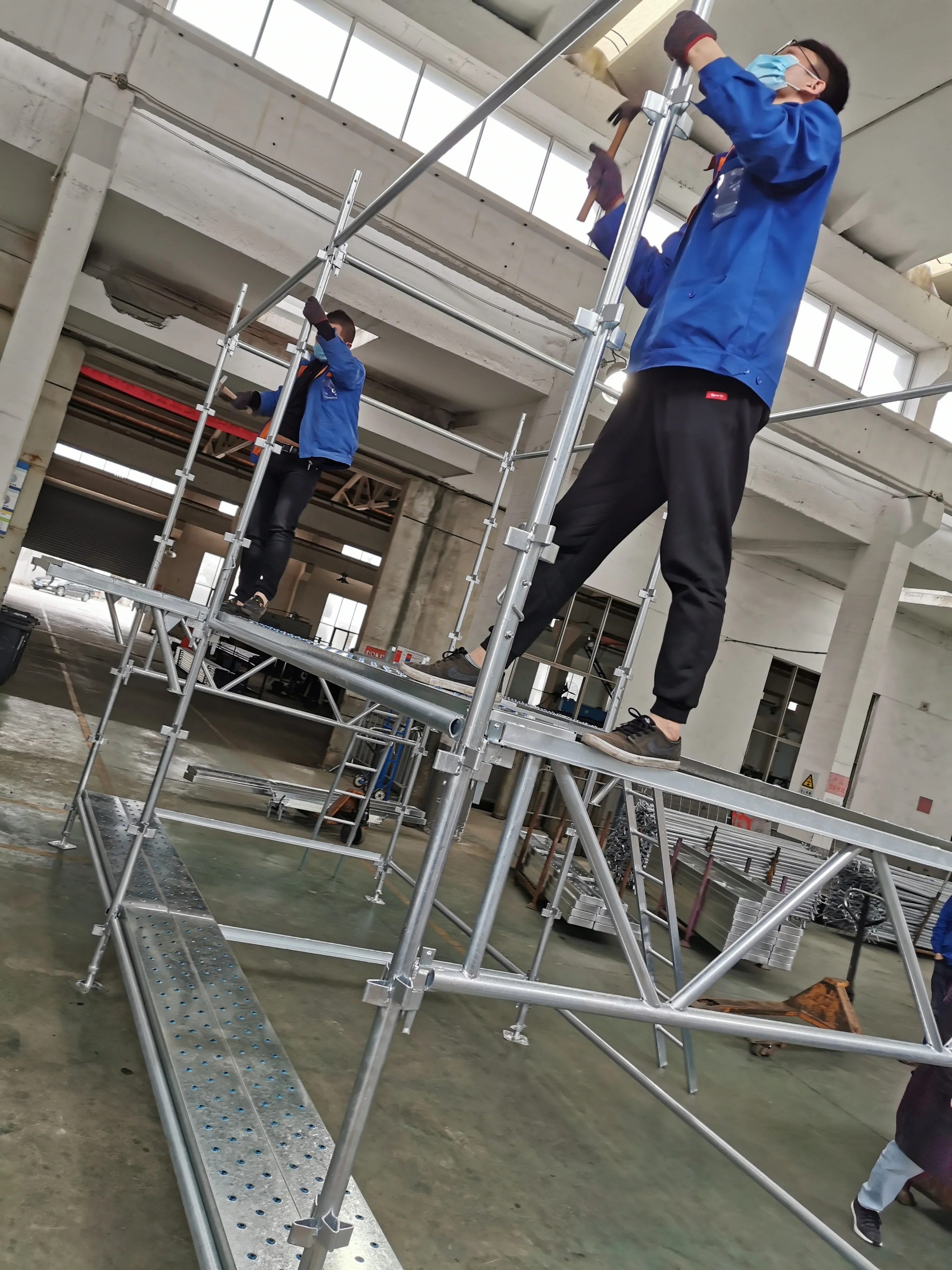

▶ Put adjustable base jack on the ground, followed by the standard. The recommended height for the adjustable base jack extension is 20 cm. Begin erecting at the ground’s highest point.
Note: Anchor the base jack to the ground.
▶ On the first floor, connect the single ledger from the horizontal direction and transom from the longitudinal direction to the adjacent holes of the star. Check the assembled frame and ensure that it is level and square.

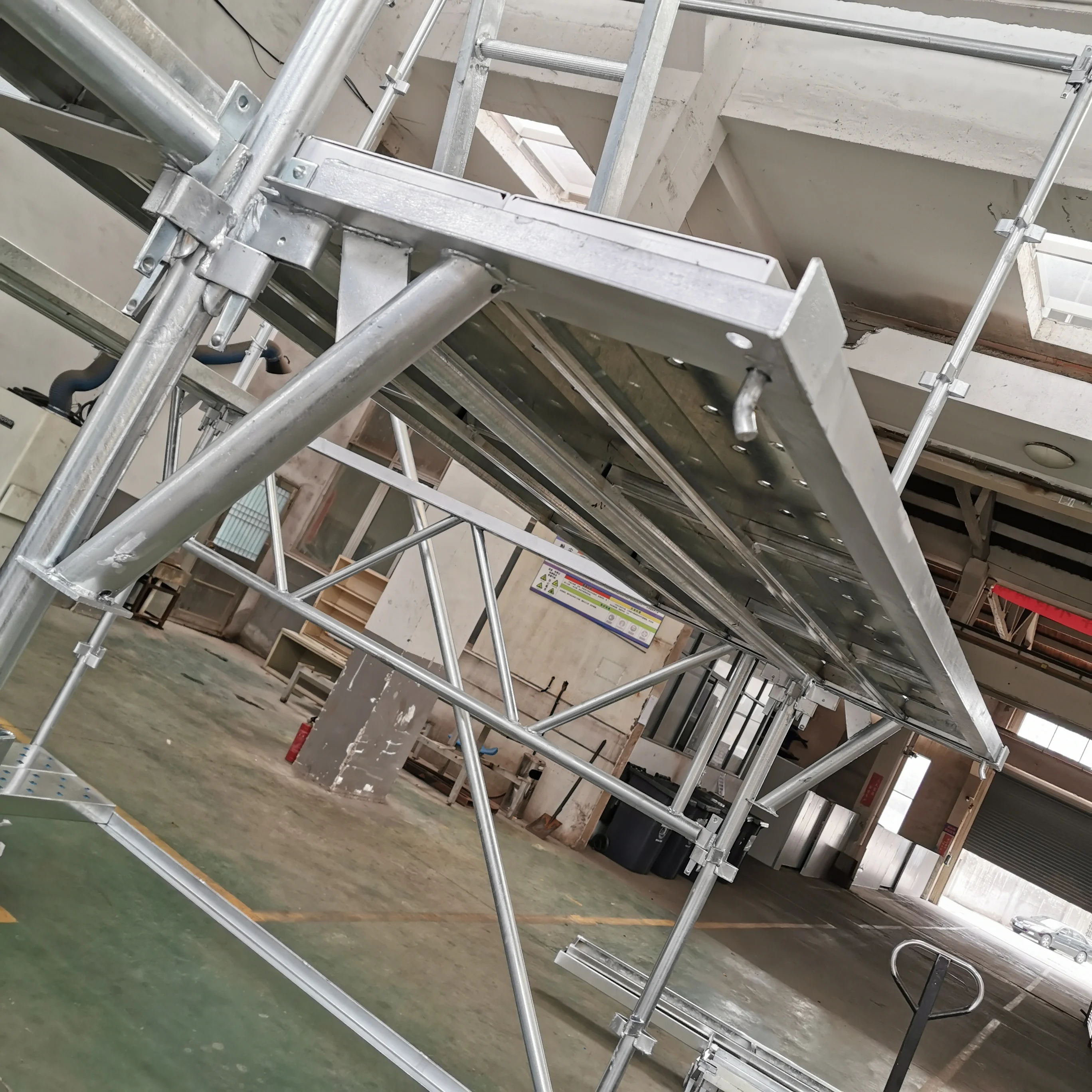

▶ Put on the steel planks, use the steel plank whose length matches with the single ledger.
▶ Install the second floor single ledgers and transoms (or double transoms) at a 2m height (4 stars spacings). The specifications of Single ledgers follow the first floor bays.
▶ Repeat the step1-4.

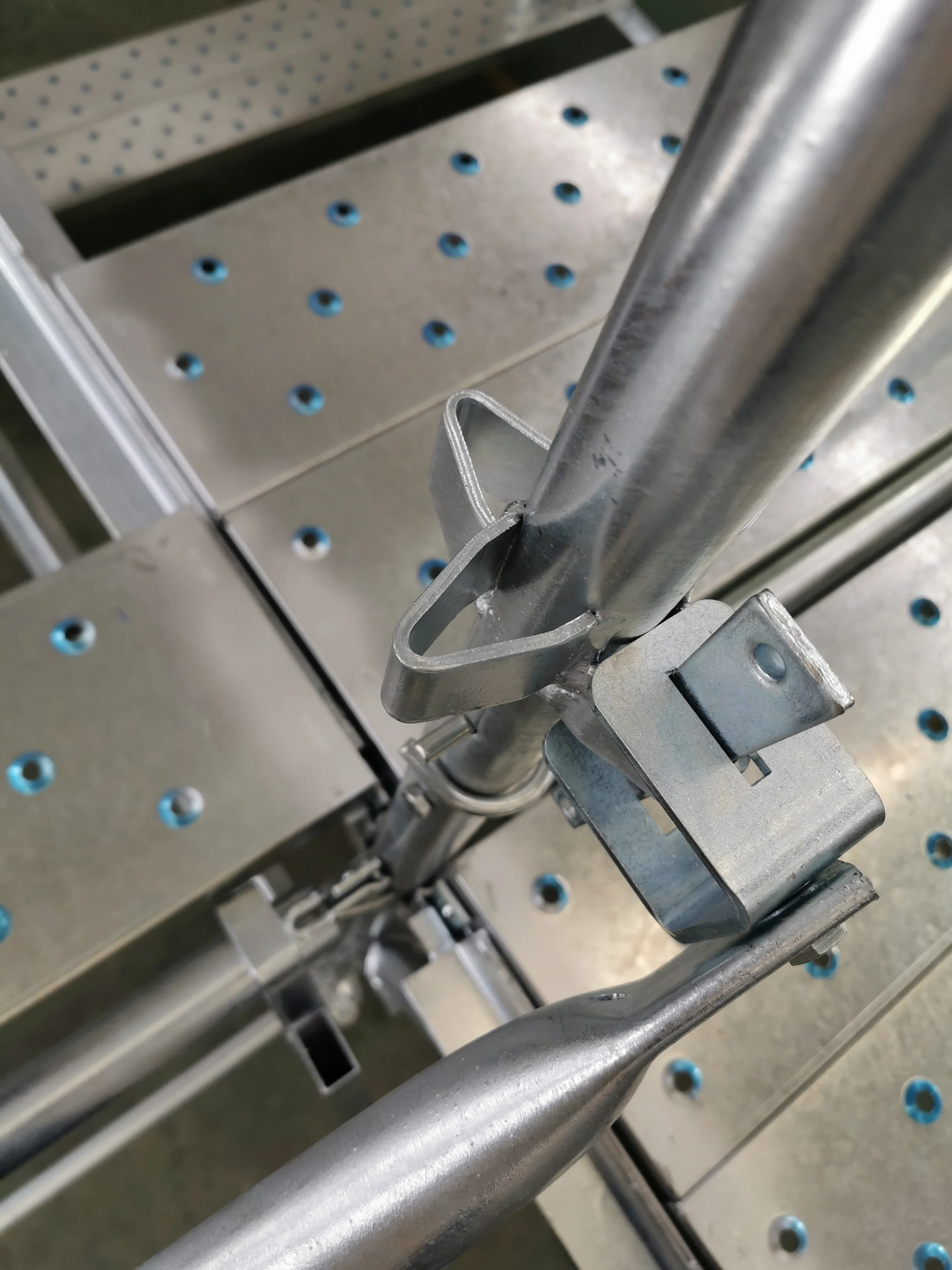

NOTE: Use safety clip to lock the standars.
▶Install the diagonal bracing according to plan.
Meanwhile, secure all the wedges of single ledgers and diagonal braces with hammer.
▶ Install the brackets and tie bars to where needed.
▶ Install the toe board to where needed.

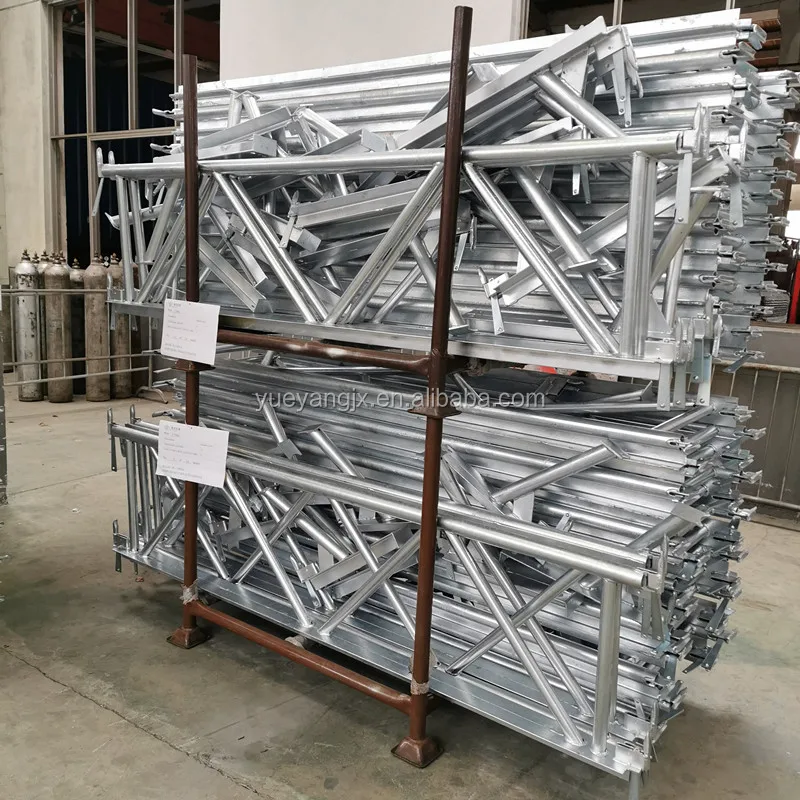

Packing & Shipping
Recommend Products
Company Profile
Established in 2004, Changzhou Yueyang Machinery Co., Ltd. is located in Changzhou City along the Taihu shore, covering an area of 13,000 square meters. We are near to Shanghai City and Nanjing City, enjoying convenient transportation access. We specialize in providing high quality scaffolding systems to foreign and domestic high-tech industries, such as civil construction, petrol-chemical plants and large shipbuilding projects etc.
