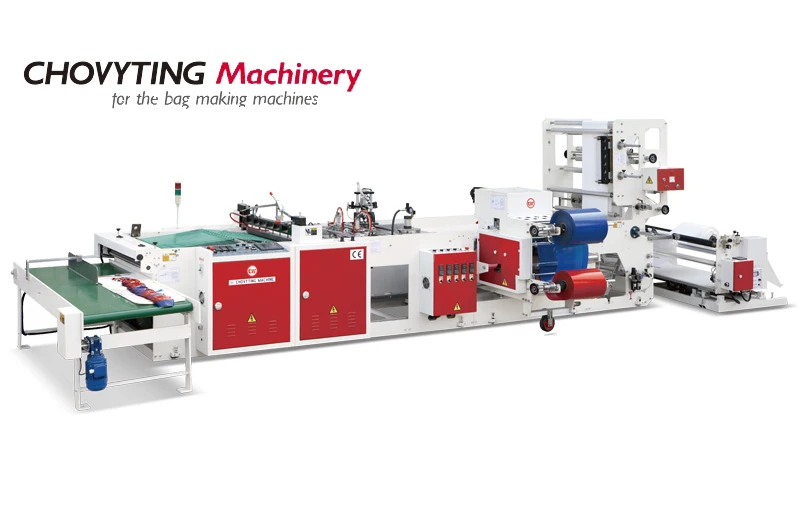

High speed HDPE LDPE NYLON hot sealing Patch Bag Carry Bag Shopping Bag Making Machine
Brief Introduction:CW-800SDP high speed soft loop handle bag making machine is the best choice for increased capacity and space-saving benefits. This machine highly enhances production efficiency, reduces production cost and allows the buyer to gain a significant margin of profit in the market.
It’s user friendly ergonomic design, rigid construction with resistant to vibration Recipe and production control system with special PLC system, Standard components with side sealing bar, easy changeable single and double sealing bar system can be optional

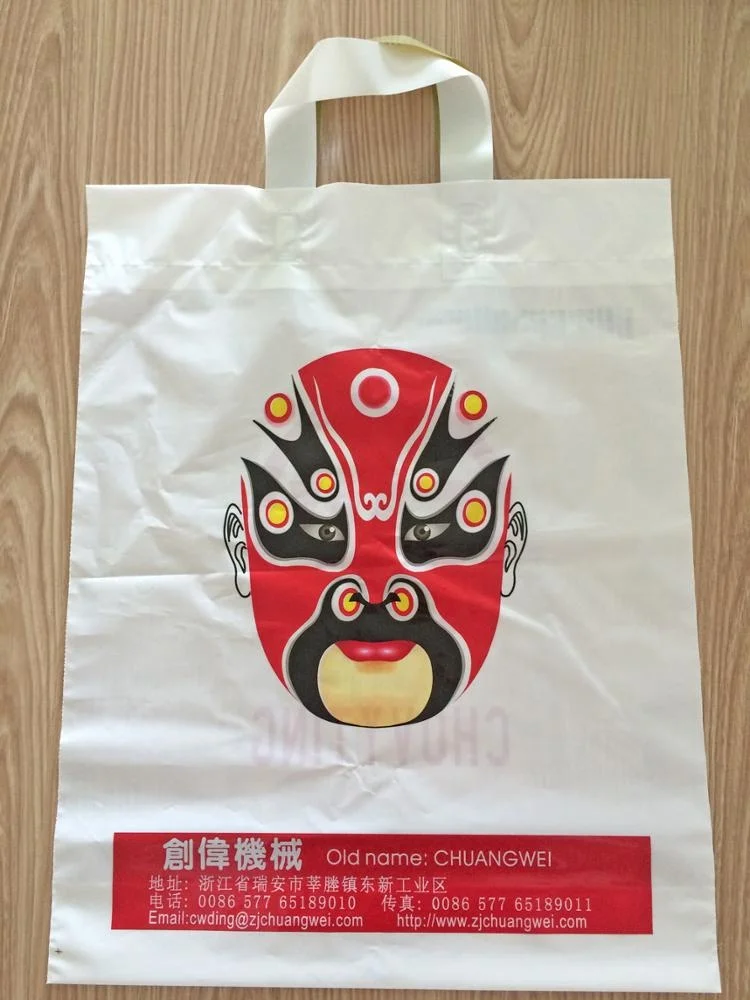

FEATURES: -With soft loop handle bag function
-With patch handle bag function
-With Die cut handle bag function
Details Images:

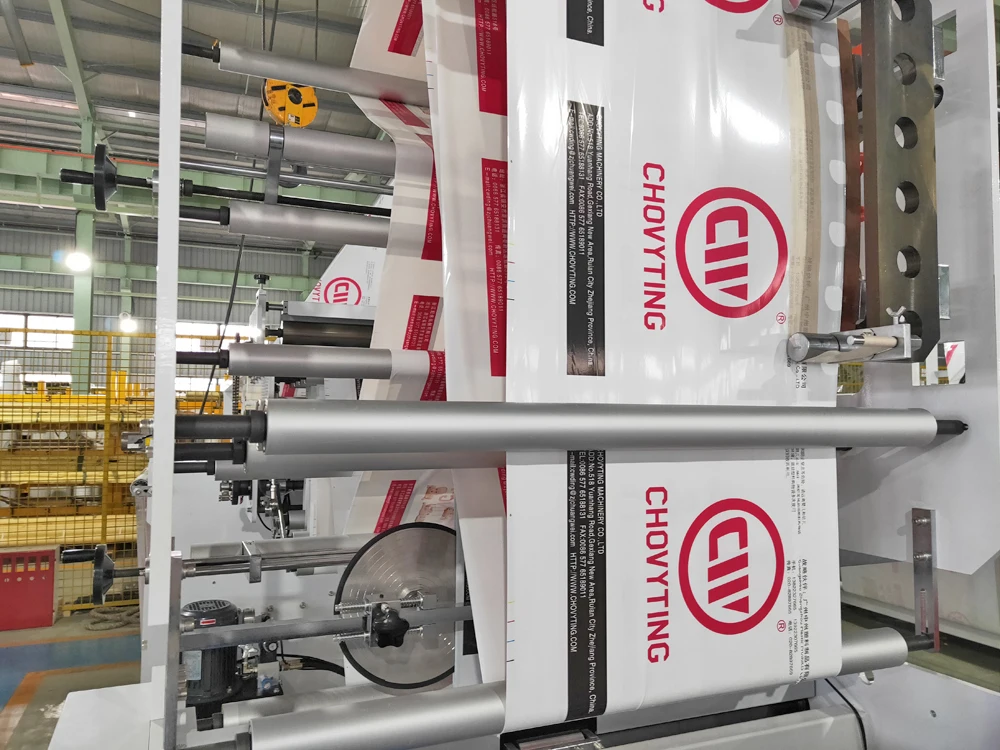

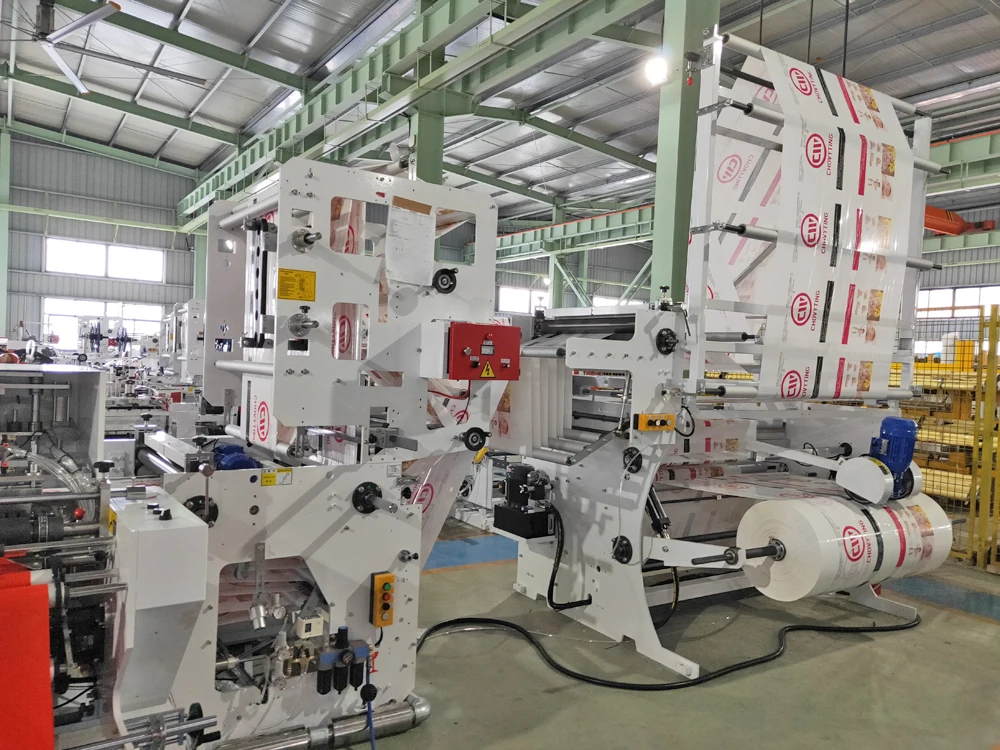

Auto Unwinding+Folding Part
with automatic pneumatic loading-up
and EPC correction system
machine with folder unwind all in one design save occupation space.

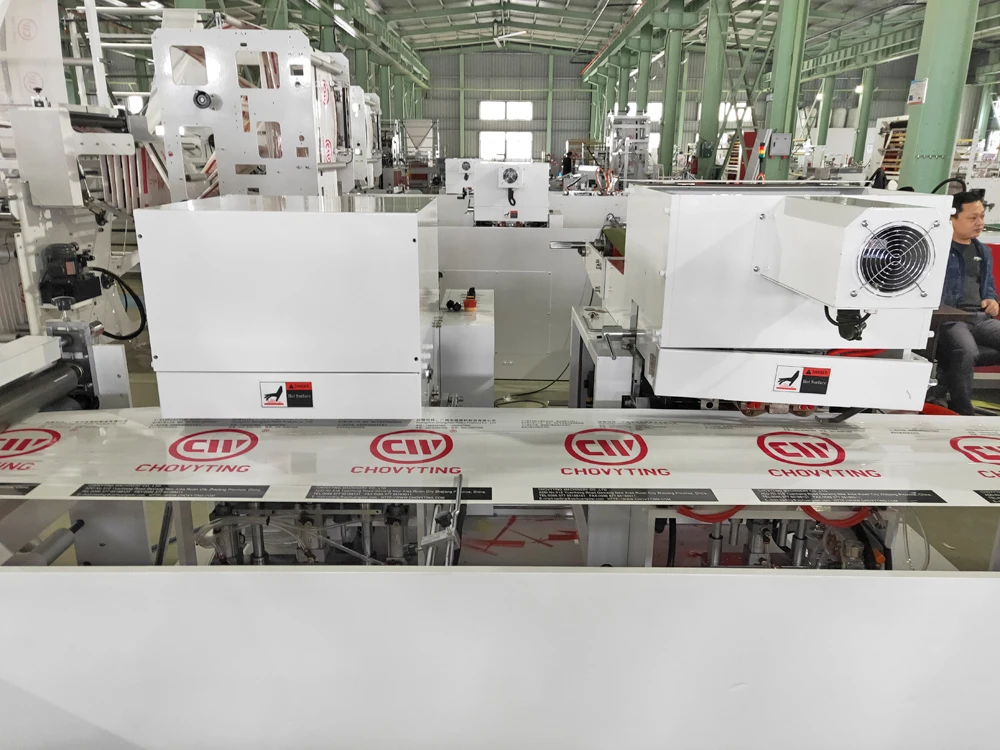

Loop handle device
Patch handle device
sepcial CHOVYTING PATENTED loop handle attaching device ensure selaing perfect while machine in high speed
Prewarming devices
top folded and bottom gusset area with presealing devices

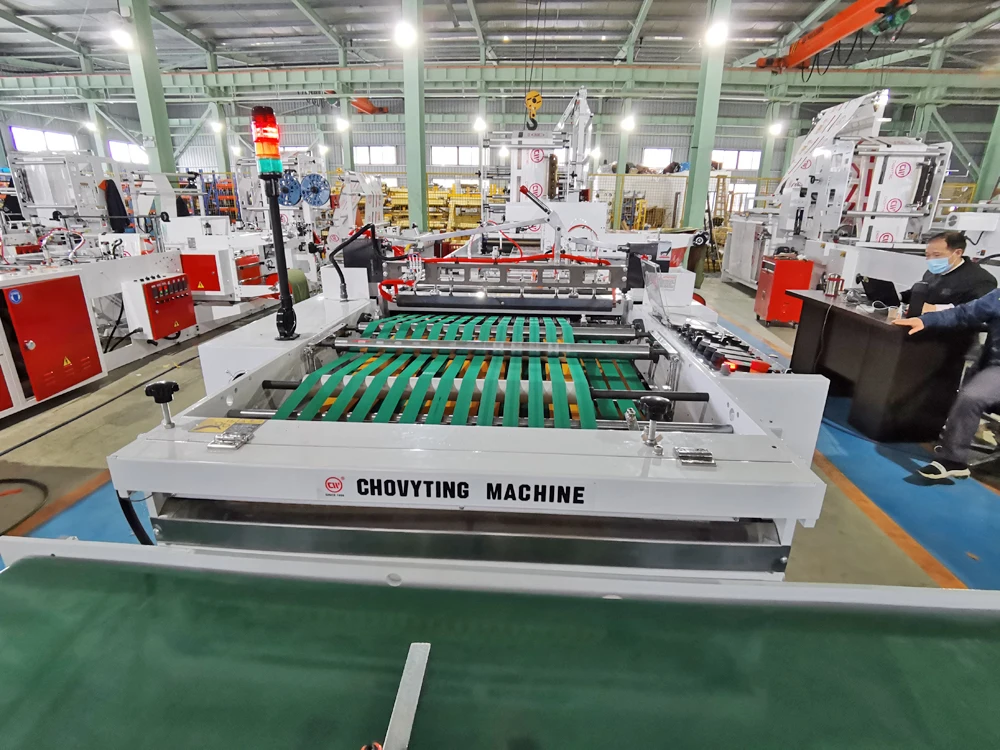

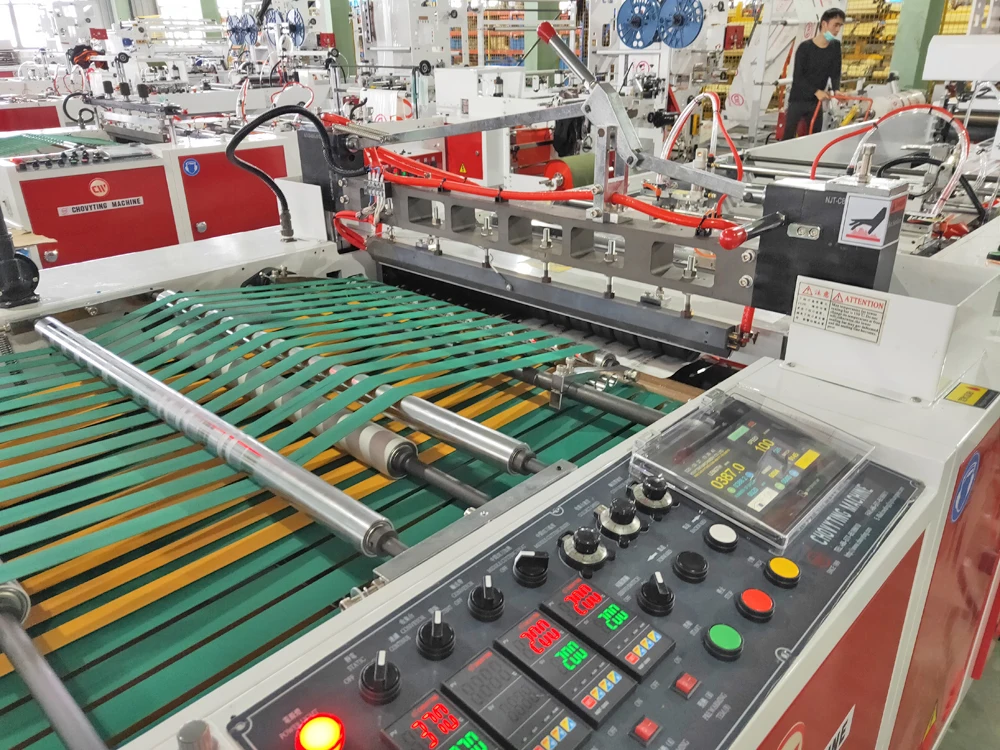

Side sealng and cutting knife
specially design side sealing knife is in high temperature duration
Technical Parameter :
Model
CW-800SDP
Bag type
Soft loop handle bag, D cutting bag，Patch handle bag
Unwind width
1600mm tube film
Unwind dia.
φ900mm (max.)
Bag width
250-750mm
Bag length
250-600mm
Bottom Gussets
50-75mm
Film thickness
HDPE 0.025-0.05mm
LDPE 0.035-0.08mm
Production speed
100-120pcs/min
Line speed
60m/min
Total power
约 10kw
Machine dimension
7000*2200*1950mm
Machine weight
3000kg
Air compressor
6HP
Machine Components
