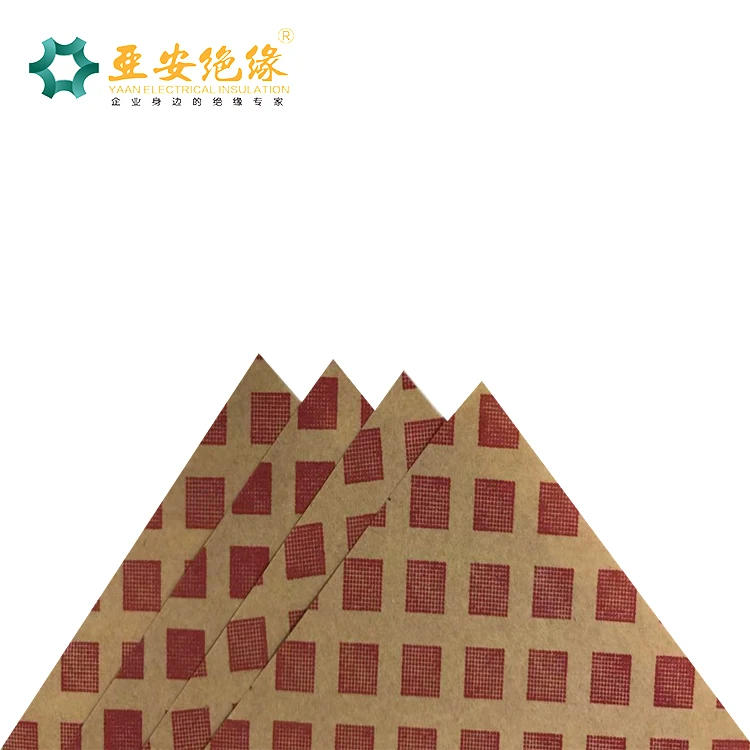

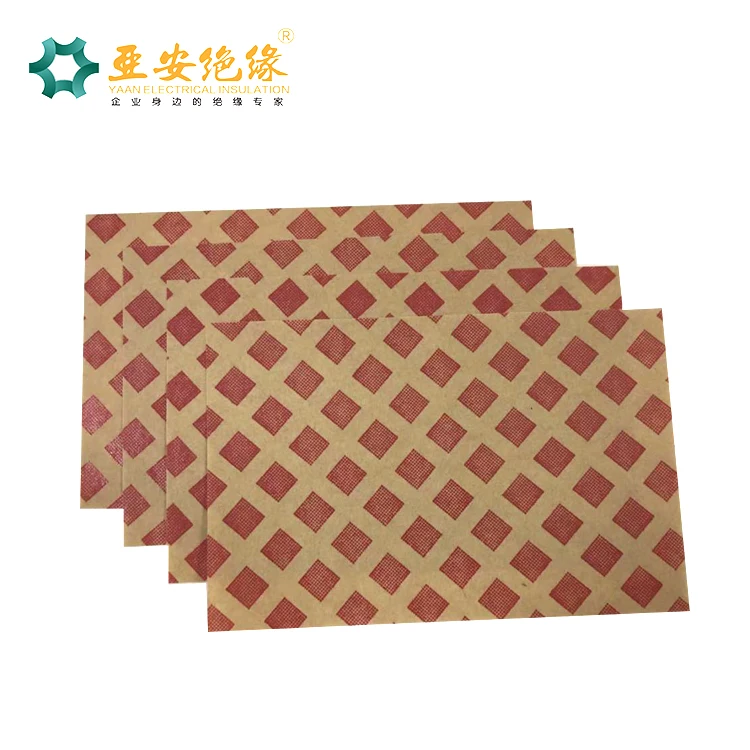

Diamond dotted kraft presspaper cable insulating paper varnish oil transformer ddp insulation materials for electric transformer
- Category: >>>
- Supplier: Henan Yaan Electrical Insulation Material Plant Co. Ltd.
Share on (62531186547):
Product Overview
Description
Product Introduction
Diamond dotted kraft presspaper cable insulating paper varnish oil transformer ddp insulation materials for electric transformer
Type: Diamond Dotted Insulation Paper
Color: red dispensing, white dispensing
Material: Modified epoxy resin + insulating paper
Conventional width: 945mm
Conventional thickness: 0.08mm 0.13mm
Color: red dispensing, white dispensing
Material: Modified epoxy resin + insulating paper
Conventional width: 945mm
Conventional thickness: 0.08mm 0.13mm

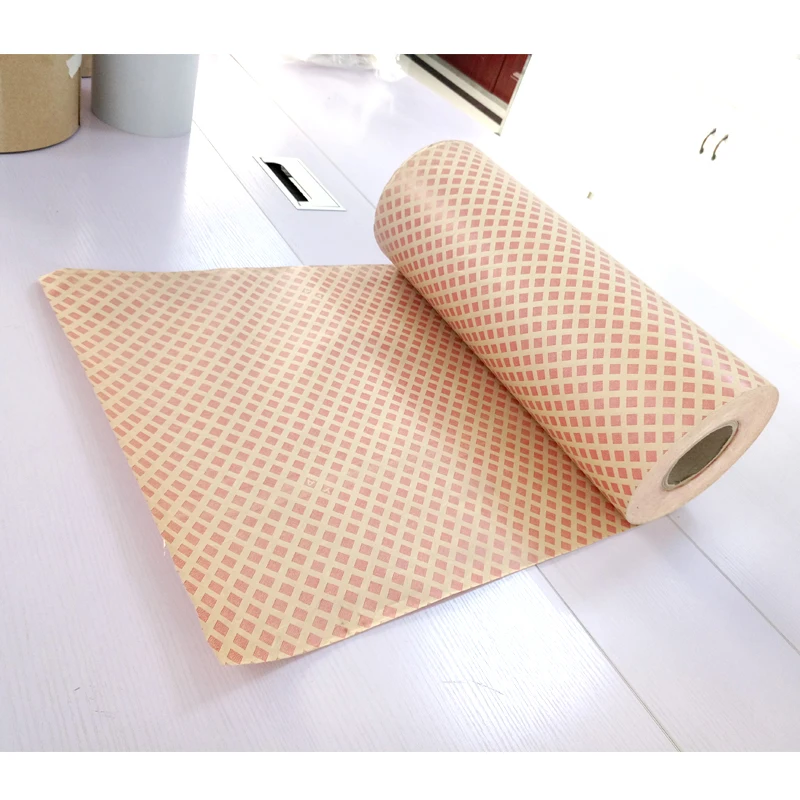

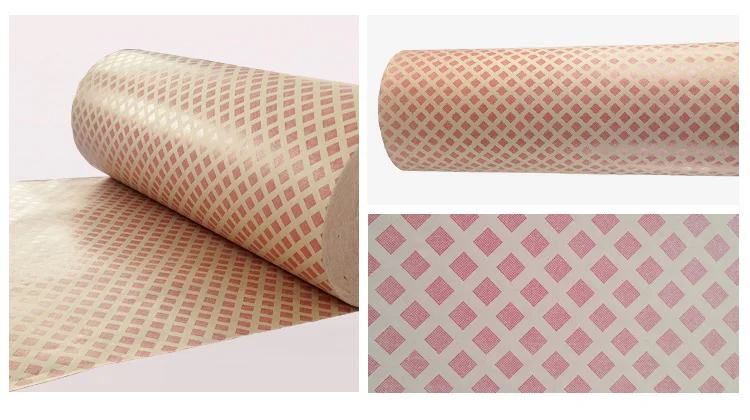

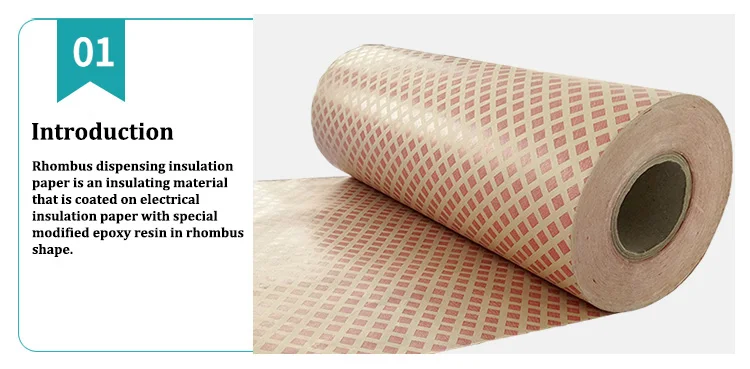

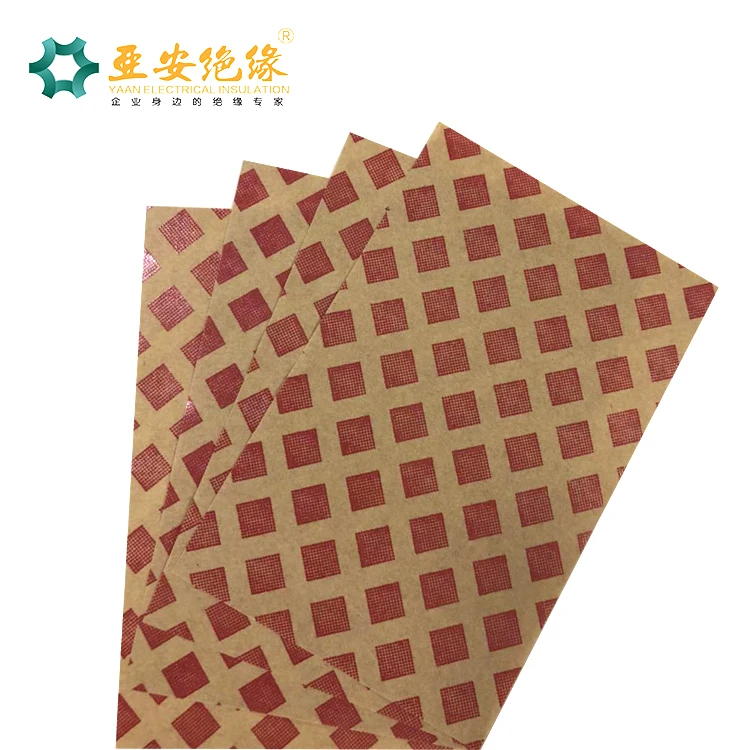

Diamond dotted insulation paper is one new kind of Electrical Insulation Materials, made of DMD with diamond-shape modified epoxy resin dotted on both sides.
Product Features:
Diamond dotted insulation paper has better dielectric properties and better mechanical properties than normal DDP paper after heat solidification.
Product details
Item | Unit | Specification |
Vertical layer bending strength(150±3℃) | Mpa | ≥340 |
Apparent bending elastic modulus | Mpa | ≥24000 |
Vertical layer compression strength | Mpa | ≥350 |
Parallel layer impact strength (charpy type) | KJ/m2 | ≥33 |
Parallel layer impact strength (cantilever method) | KJ/m2 | ≥34 |
Parallel layer shear strength | Mpa | ≥30 |
Tensile Strength | Mpa | ≥300 |
Parallel layer direction breakdown voltage (90℃ in oil) | KV | ≥35 |
Dielectric constant (50Hz and 1MHz) | — | ≤5.5 |
Dielectric loss constant (50H and 1MHz) | — | ≤0.04 |
Insulation resistance after immersion in water | MΩ | ≥5×104 |
Long-term heat resistance | — | ≥130 |
Density | g/cm3 | 2 |
Application

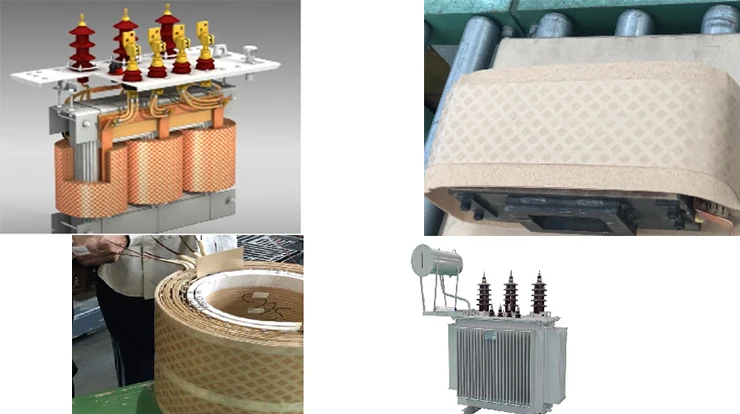

Diamond dotted insulation paper be used on oil-immersed transformer as interturn insulation, or used on distribution transformers as interlayer insulation.
