Multilayer Rigid Fr 4 PCB High Tg Circuit Board HDI PCB Inverter Circuit Board
- Category: HDI PCB >>>
- Supplier: Shenzhen Sandeying Electronic Co. Ltd.
Share on (62531253642):
Product Overview
Description
Product Description

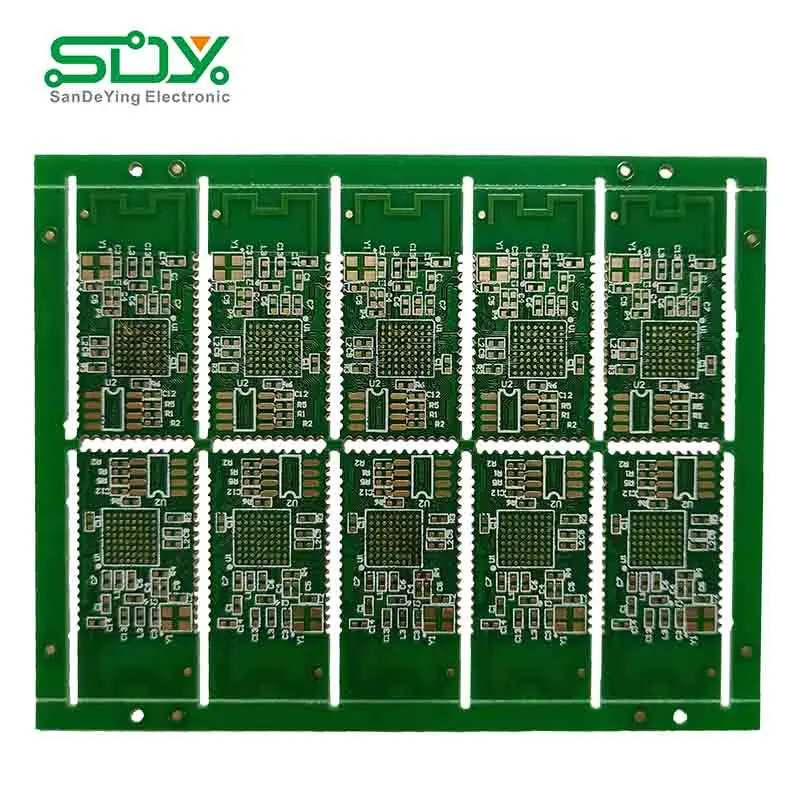

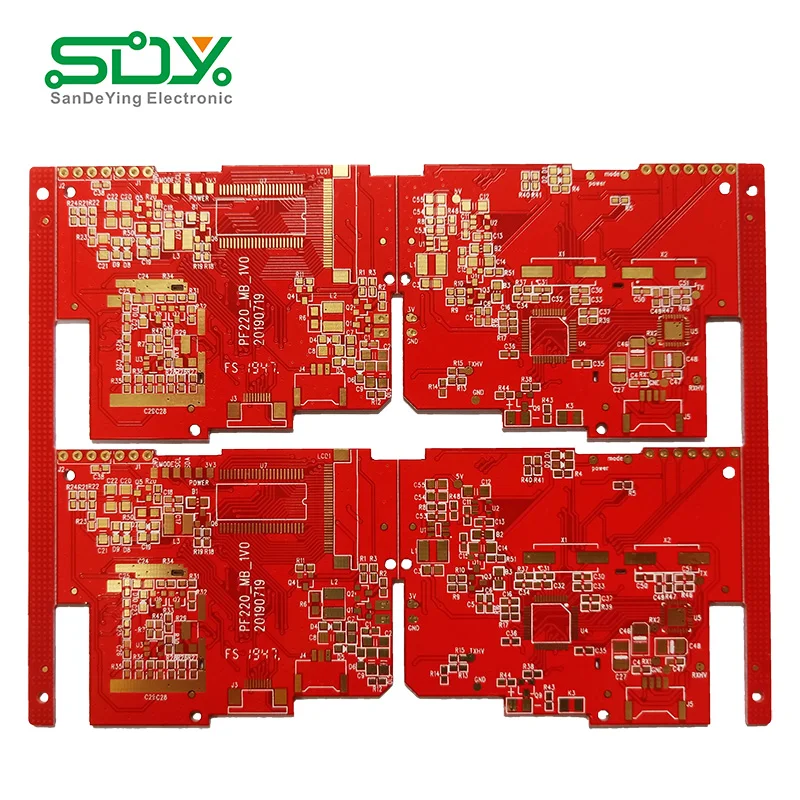

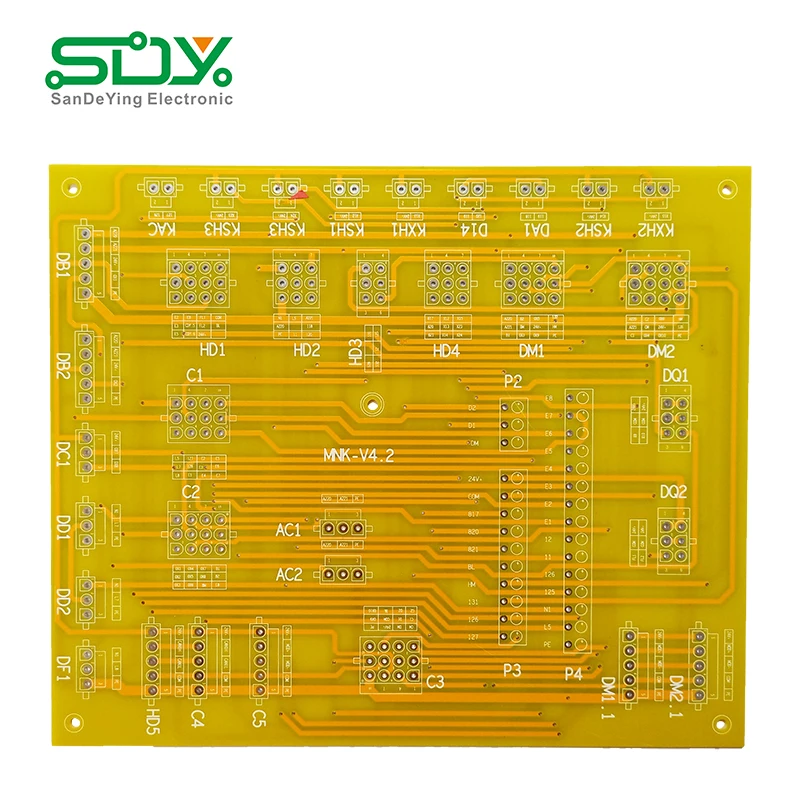

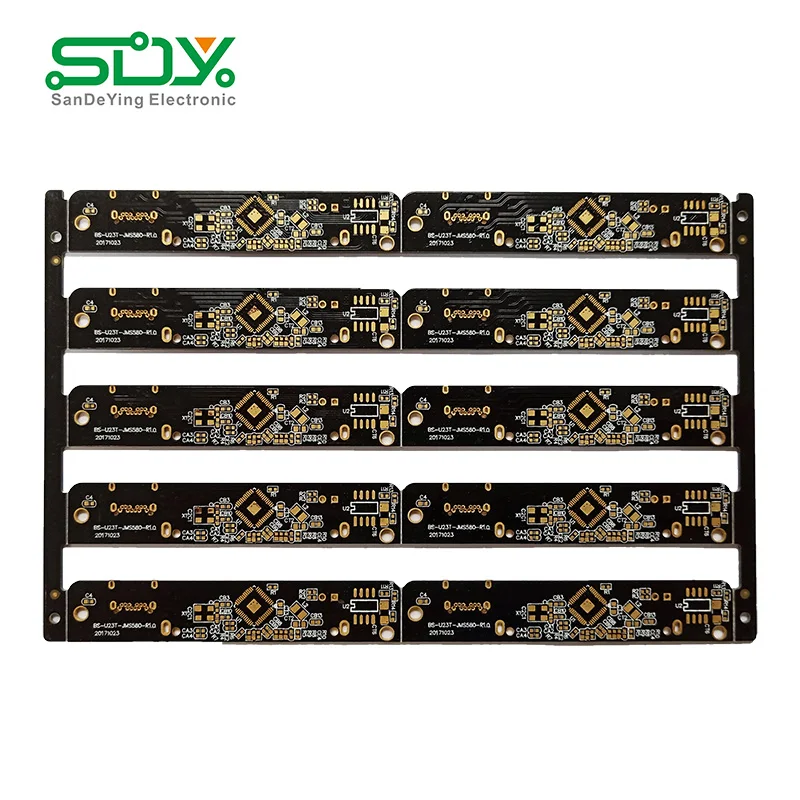

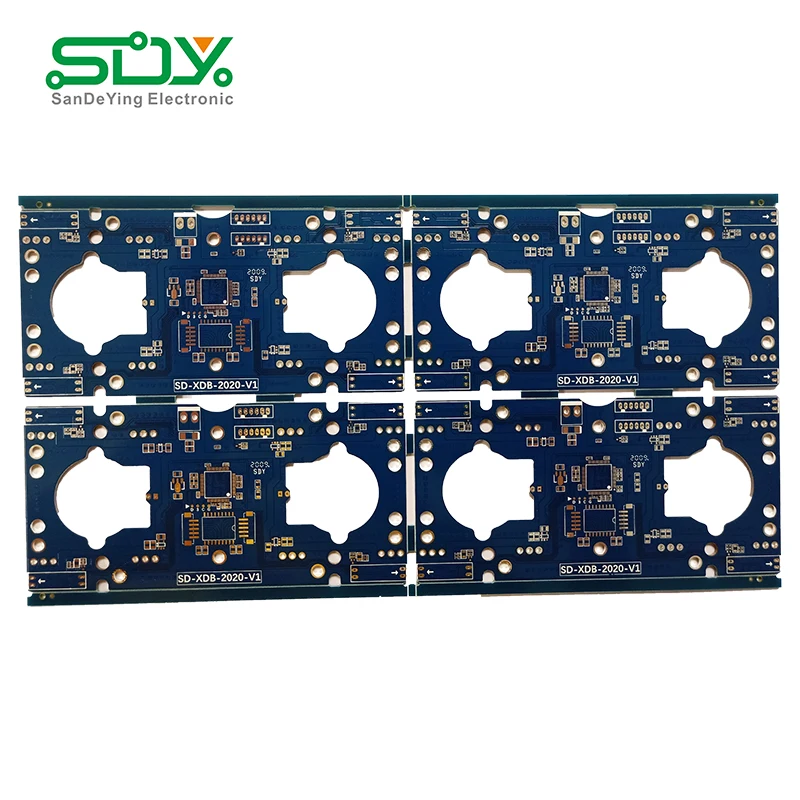

Multilayer Rigid Fr-4 PCB High Tg Circuit Board HDI PCB Inverter Circuit Board
SDY is an one-stop PCB supplier, manufactures various kinds of PCBs, including single layer PCBs, double layer PCBs, multilayer PCBs, high TG FR-4 PCBs, heavy copper PCBs, impedance controlled PCBs, gold finger PCBs, plating gold PCBs, and some other PCBs according to customers' requirements.
Why Choose Us
PCB Capacity
Layers | 1-16 layers | Min Board Thickness(2-layer) | 0.2mm |
Max Board Size | 635 × 1100mm | Min Board Thickness(4-layer) | 0.6mm |
Min Board Size | 20 × 30mm | Min Inner-layer Thickness | 0.1mm |
Min Trace | 0.1mm | Min Annular Ring | 0.1mm |
Min Space | 0.1mm | Min Hole Location Tolerance | ±0.075mm |
Min Hole Size | 0.2mm | Min Hole Size Tolerance | ±0.05mm |
Board Warp | ≤ 1° | Min Outer Dimension Tolerance | ±0.1mm |
Solder Mask | Green, Yellow, Red, Black, Blue, White | ||
Surface Finish | HAL, HASL, Immersion Gold, Immersion Silver, Plating Gold, Plating Nickel, Plating Silver, Gold Finger, OSP | ||
Board Material | FR-4, High Tg FR-4, Halogen Free FR-4, Thick Copper FR-4, Aluminium Based, Rogers, Taconic | ||
Acceptable file | Gerber file(RS-274-X or RS-274-D with aperture list and drill files),Protel,PADS,POWERPCB,AutoCAD,ORCAD | ||
CAM software | Genesis, CAM350 | ||

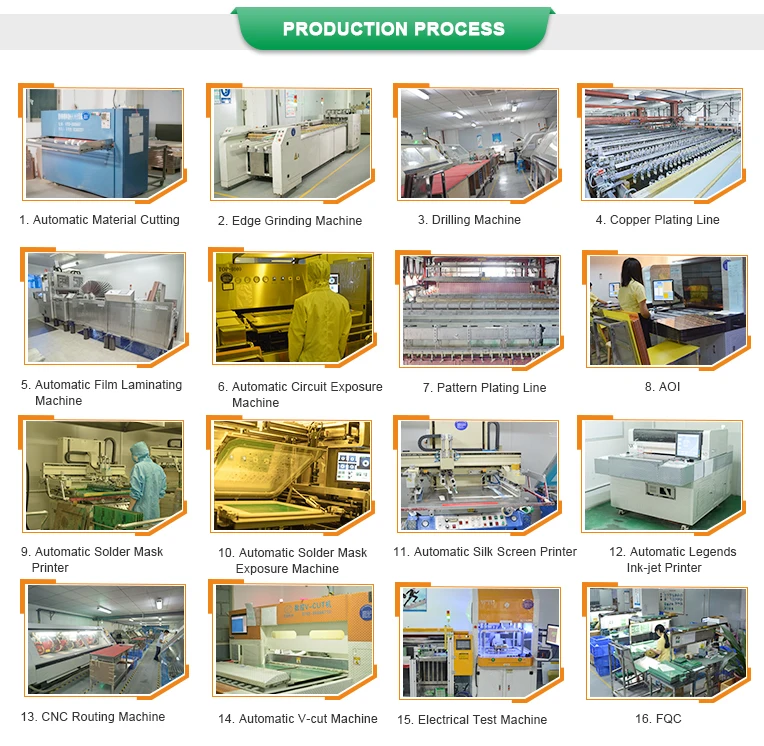

Production Process
Delivery Time
|
PROTOTYPE |
MASS PRODUCTION (above 20 m2) | |
Quick Turn | Standard Time | ||
2L | 24 hours | 3-4 days | 8-10 days |
4L | 48 hours | 5-6 days | 8-10 days |
6L | 72 hours | 6-7 days | 10-12 days |
8L | 72 hours | 7-8 days | 12-14 days |
10L | 96 hours | 9-10 days | 16-18 days |
12L | 96 hours | 10-12 days | 18-20 days |
Payment&Shipping

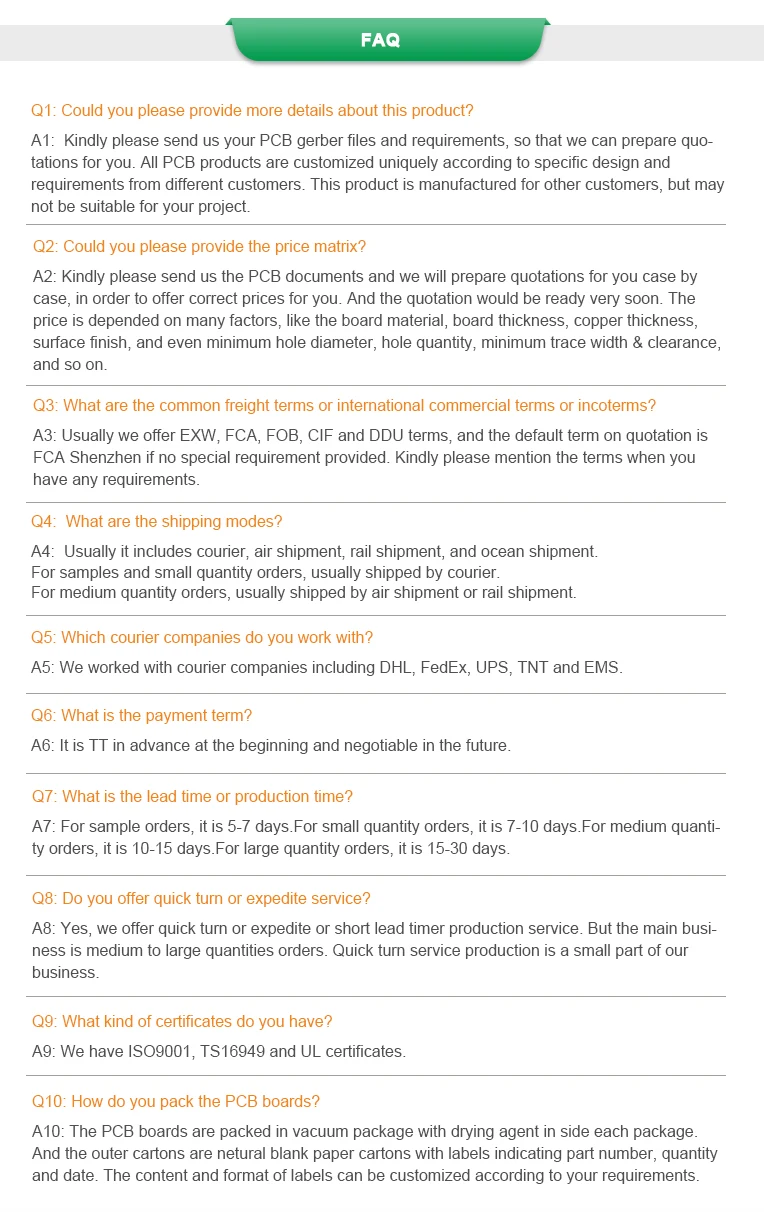

FAQ
