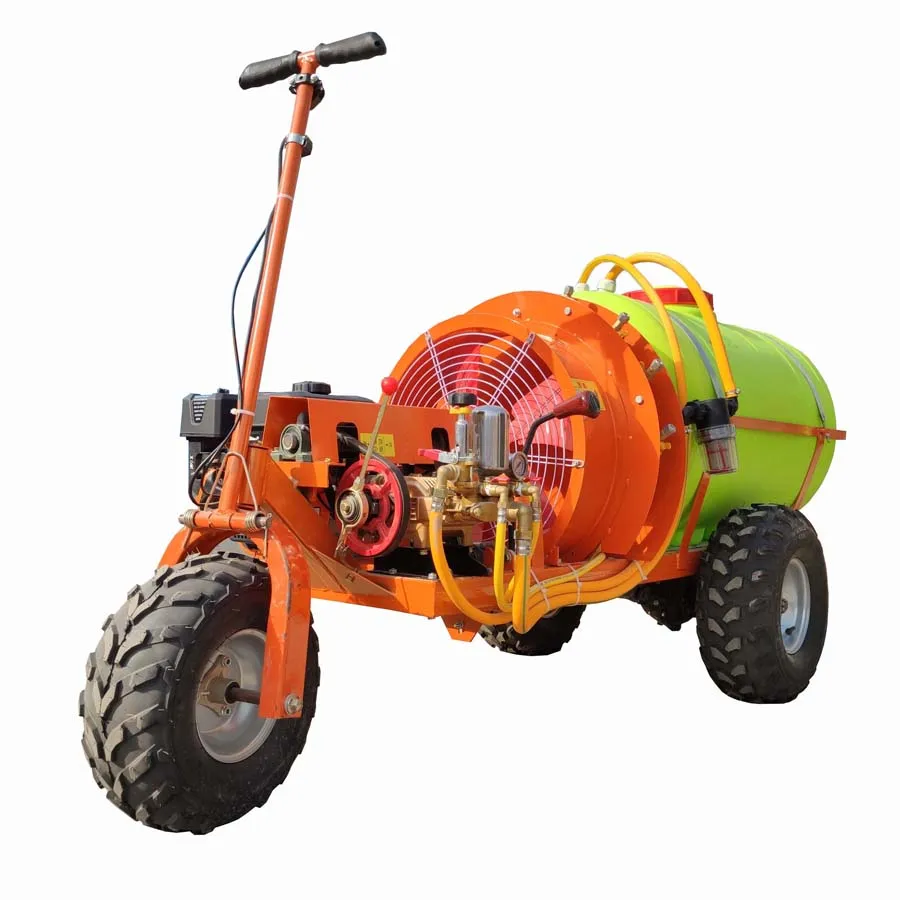

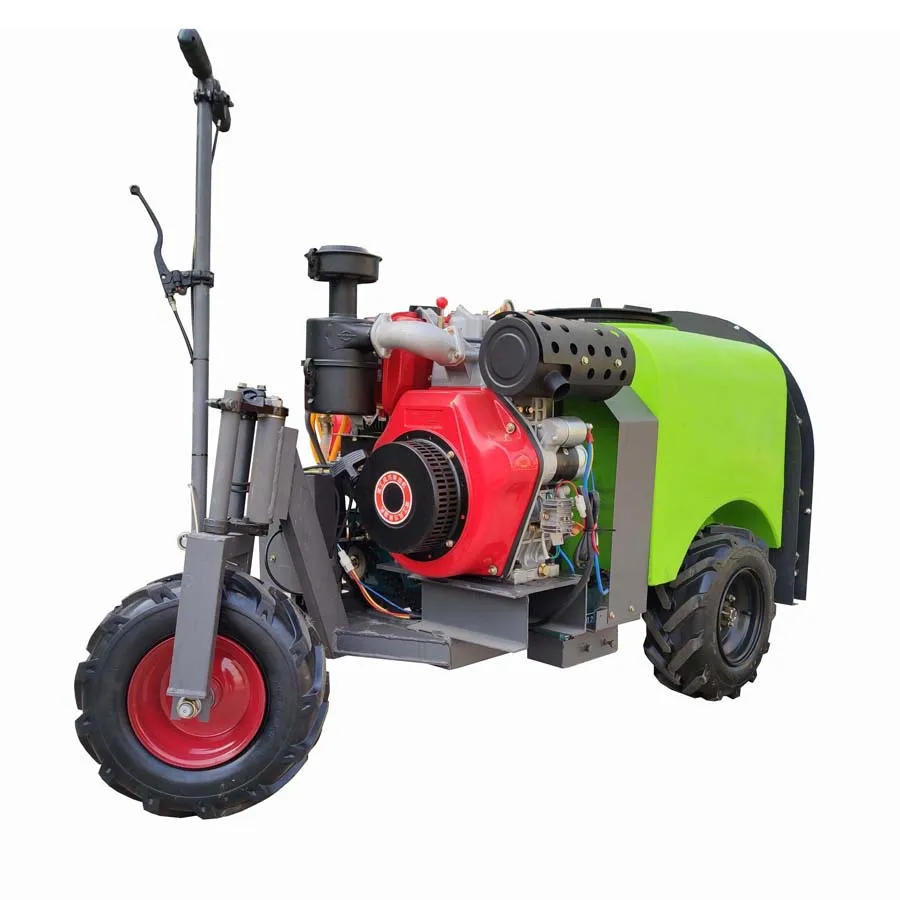

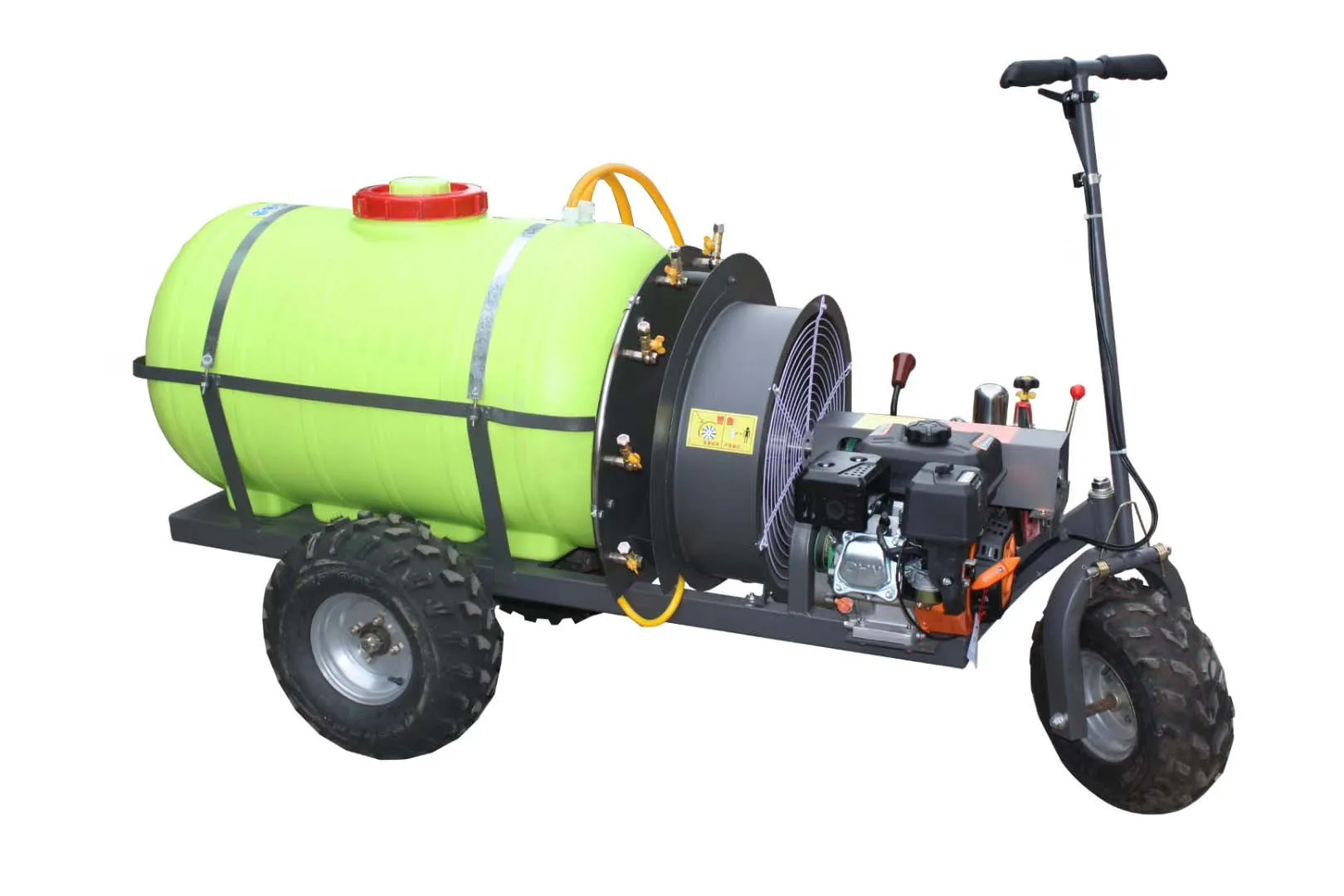

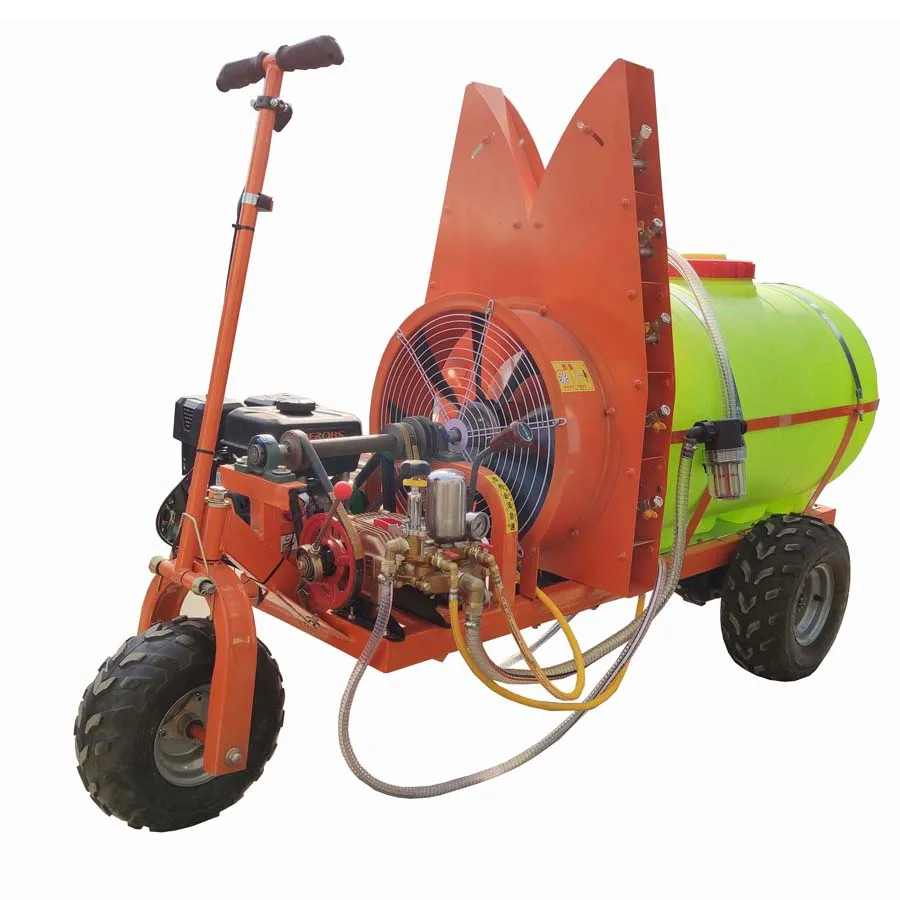

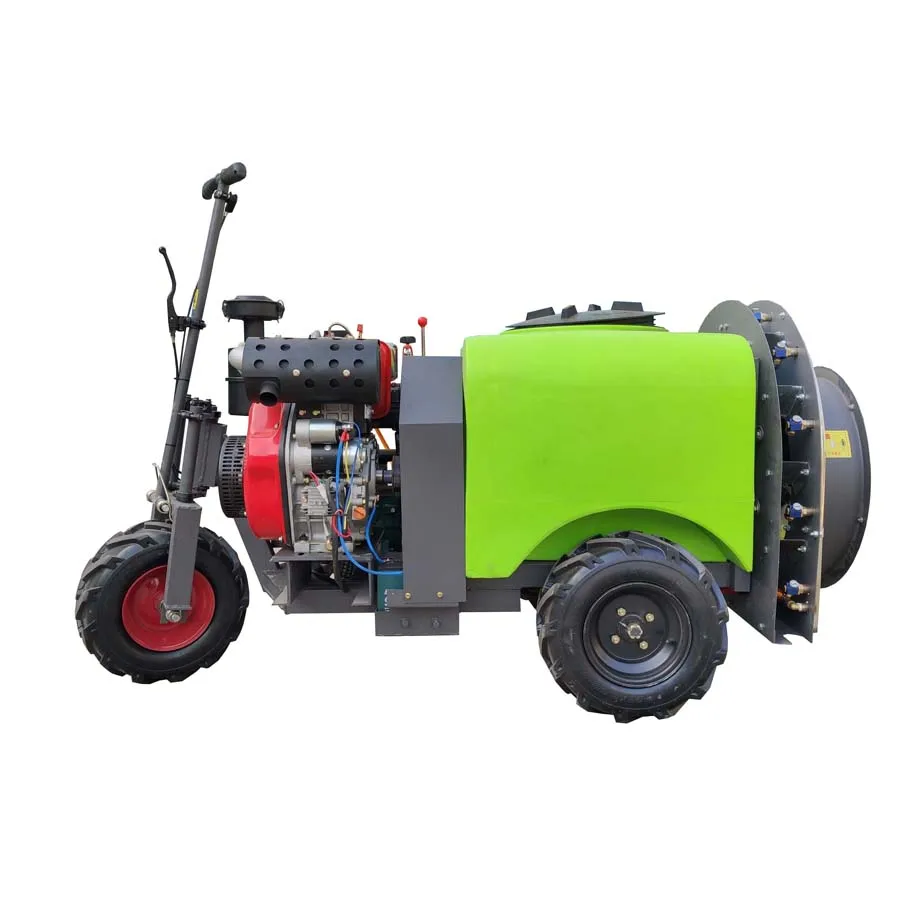

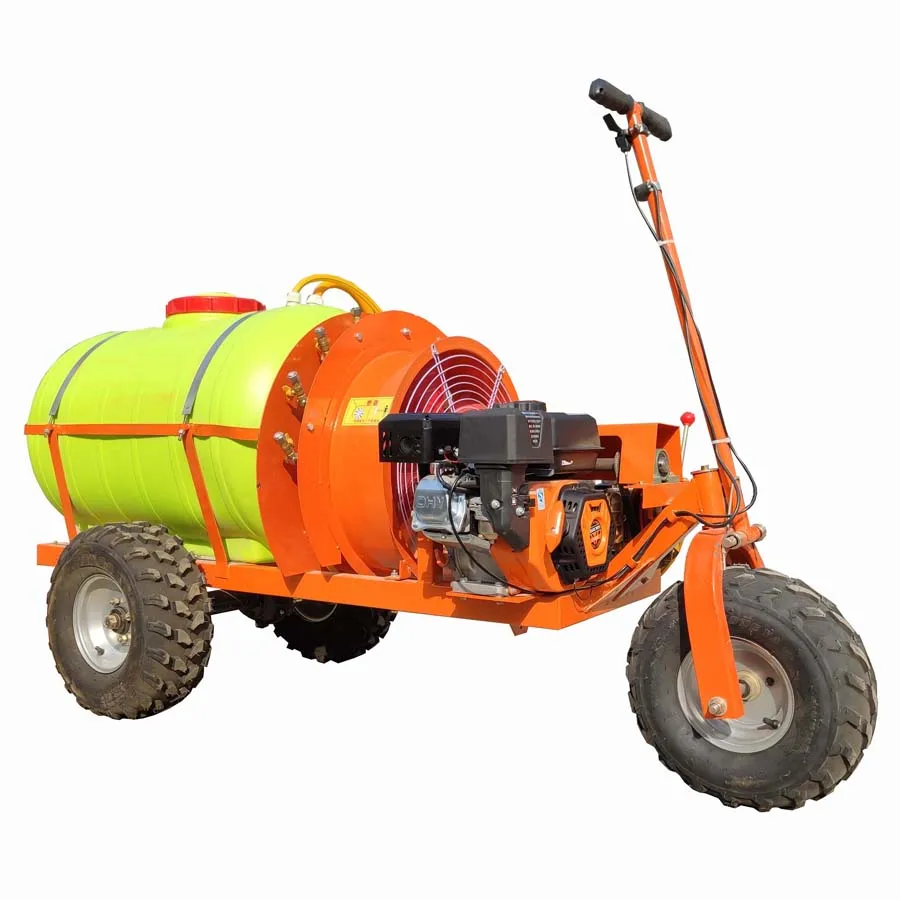

Three tyres self propelled garden air blast sprayer

Mini three wheel type orchard air blast power sprayer series

Engine: zongshen gas engine 4.0-8.2kw or Changgong diesel engine 8.5kw .
Tank capacity: 200/300/400 L.
Drive system: real wheel drive.
Sprayer pump: three cylinder plunger pump.
Work range: height 2-4m width 6-8m.

3WFG-300A SERIES

3WFG-200C series

3WFG-300BQC series

Model 3WFG-300 series
Engine Zongshen gas engine 4KW / changgong diesel engine 8KW
Tank capacity 200/300/400 L
Sprayer nozzle 8-10pcs
Fan system 500mm
Drive type Rear axle drive
Start type recoil
Sprayer pump Three cylinder plunger pump
Work height 3-5m Calm wind condition
Work width 4-8m Calm wind condition
Work pressure 1.0-2.5Mpa
Gear box 2F+1R
Drive speed 2-4KM/H
Overall size 1.9x0.9x0.9-1.3 m
Net weight 200kg

3WFG-300/400CQ sereis

Model 3WFG-300BC/Q series
Engine Zongshen gas engine 8.2KW / changgong diesel engine 8.5KW
Tank capacity 200/300/400 L
Sprayer nozzle 10-14pcs
Fan system 500mm
Drive type Rear axle drive
Start type Electric
Sprayer pump Three cylinder plunger pump
Work height 3-5m Calm wind condition
Work width 4-8m Calm wind condition
Work pressure 1.0-2.5Mpa
Gear box 2F+1R
Drive speed 2-4KM/H
Overall size 1.9x0.9x0.9-1.3 m
Net weight 300kg

Configuration list

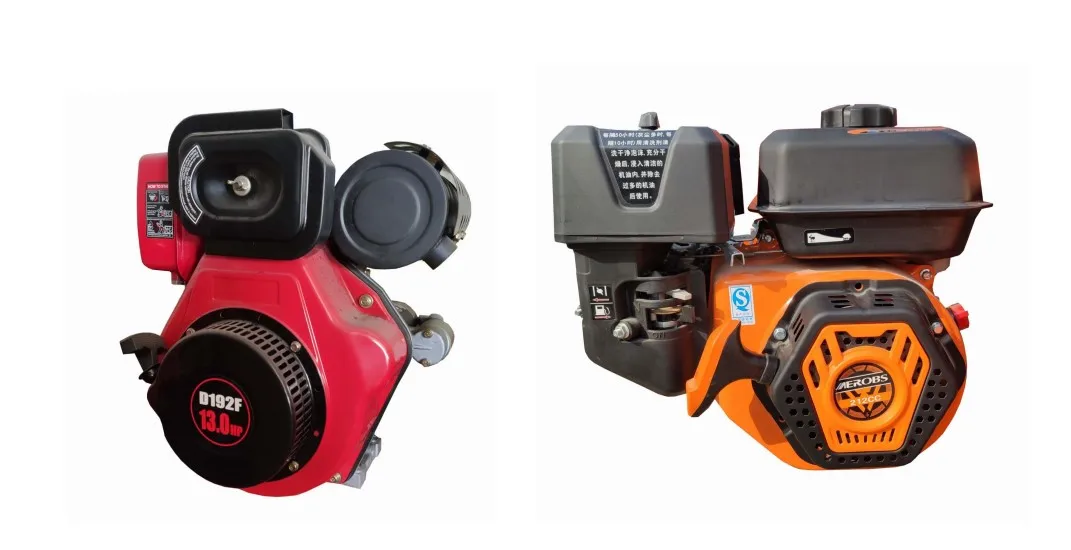

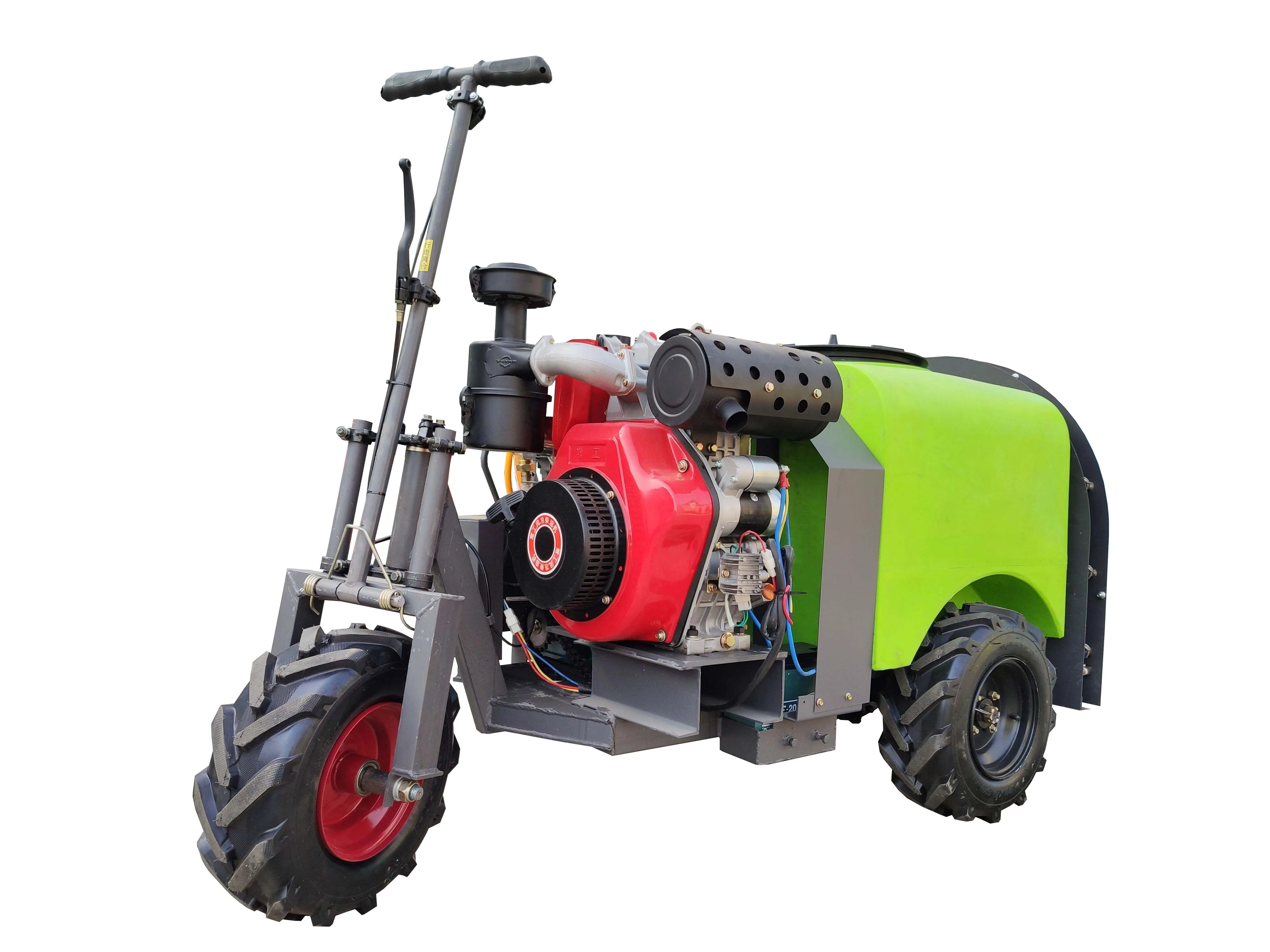

Changgong Diesel engine 8.5Kw   or  Zongshen gasoline engine 4.0- 8.2Kw

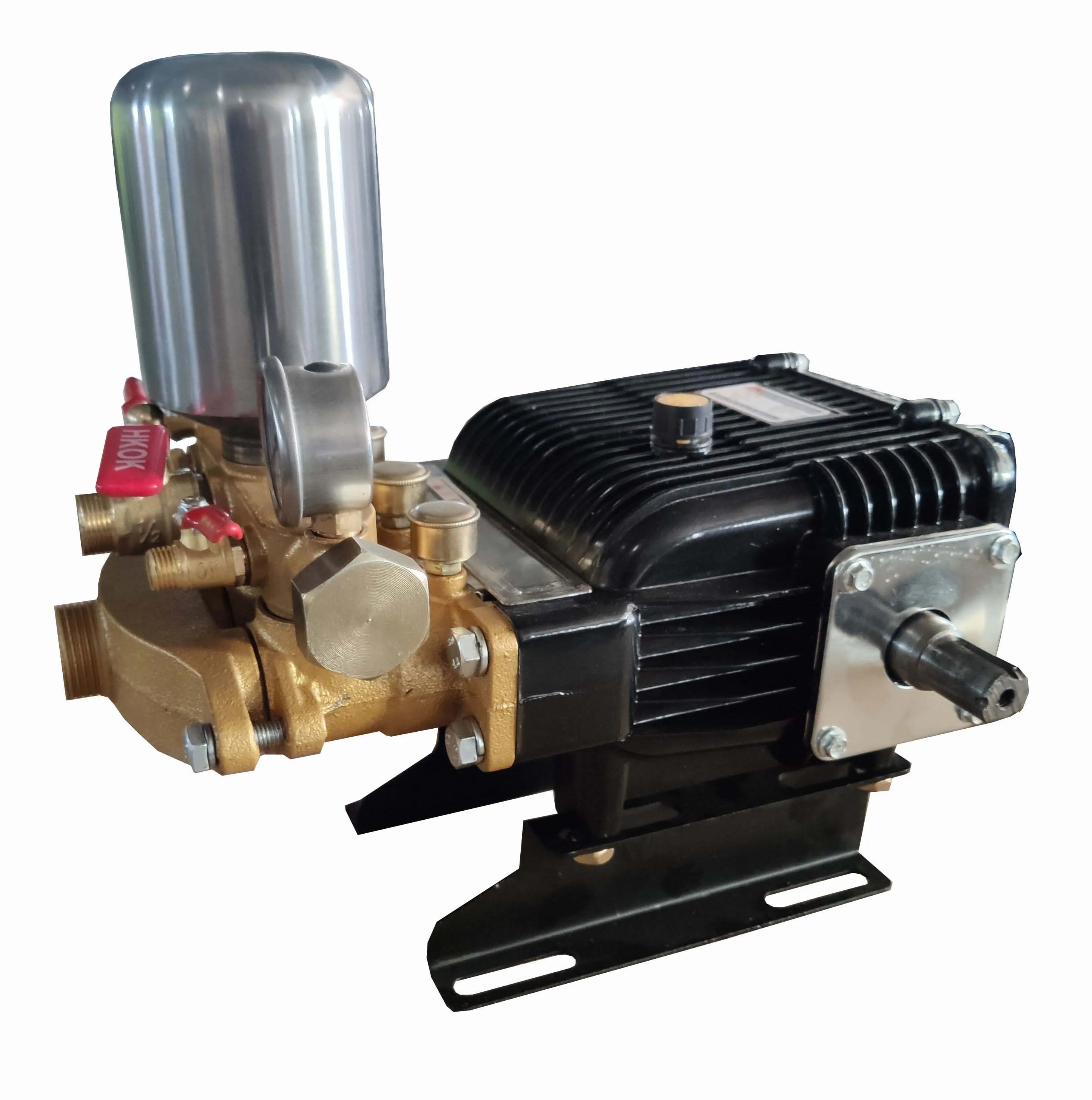

Three cylinder plunger pump

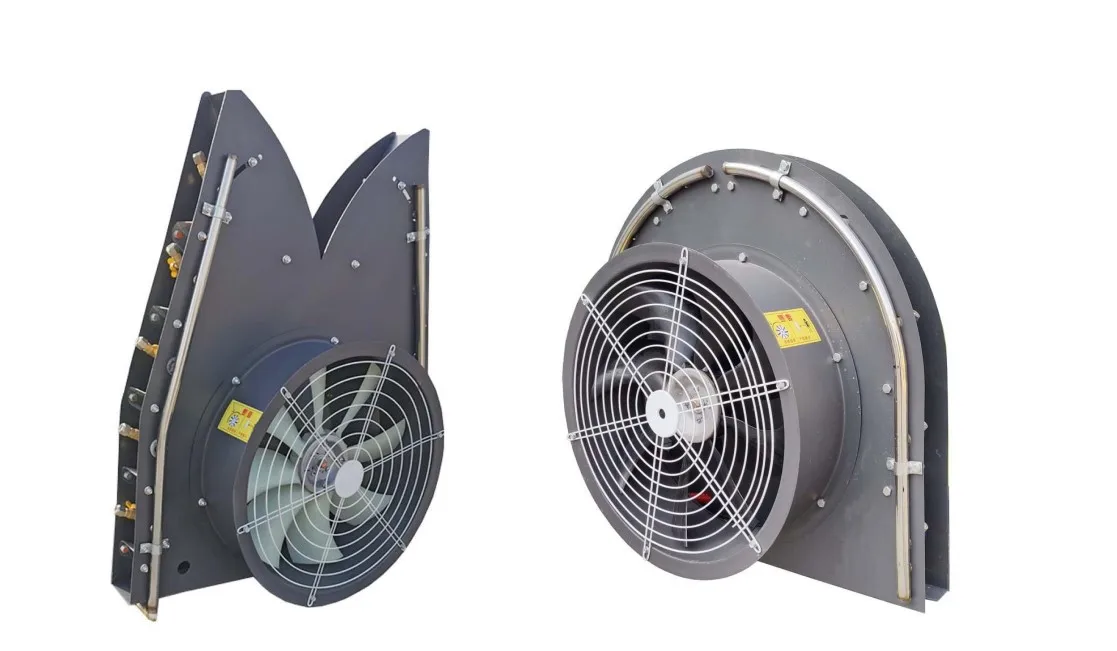

different type fan system according to your decided

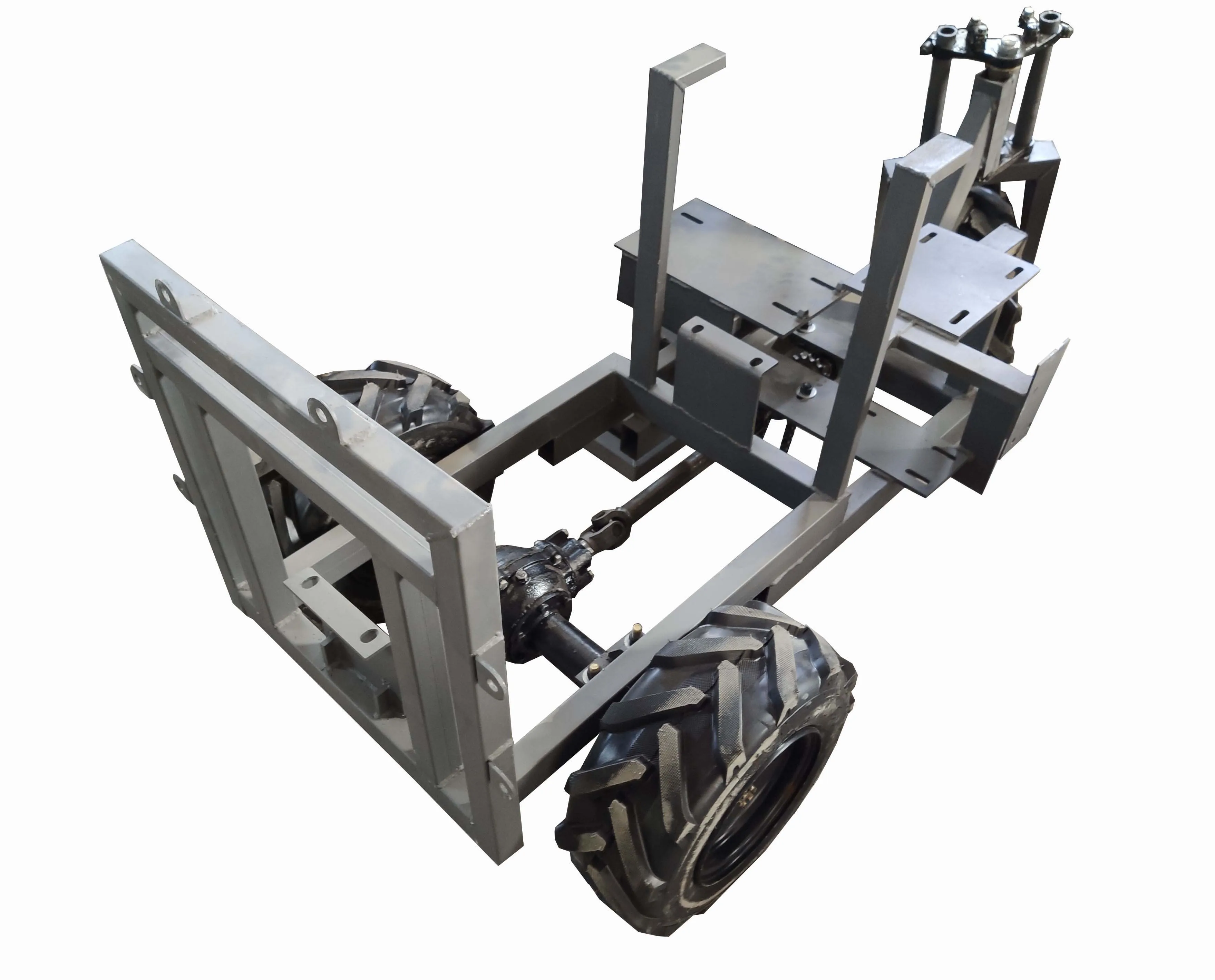

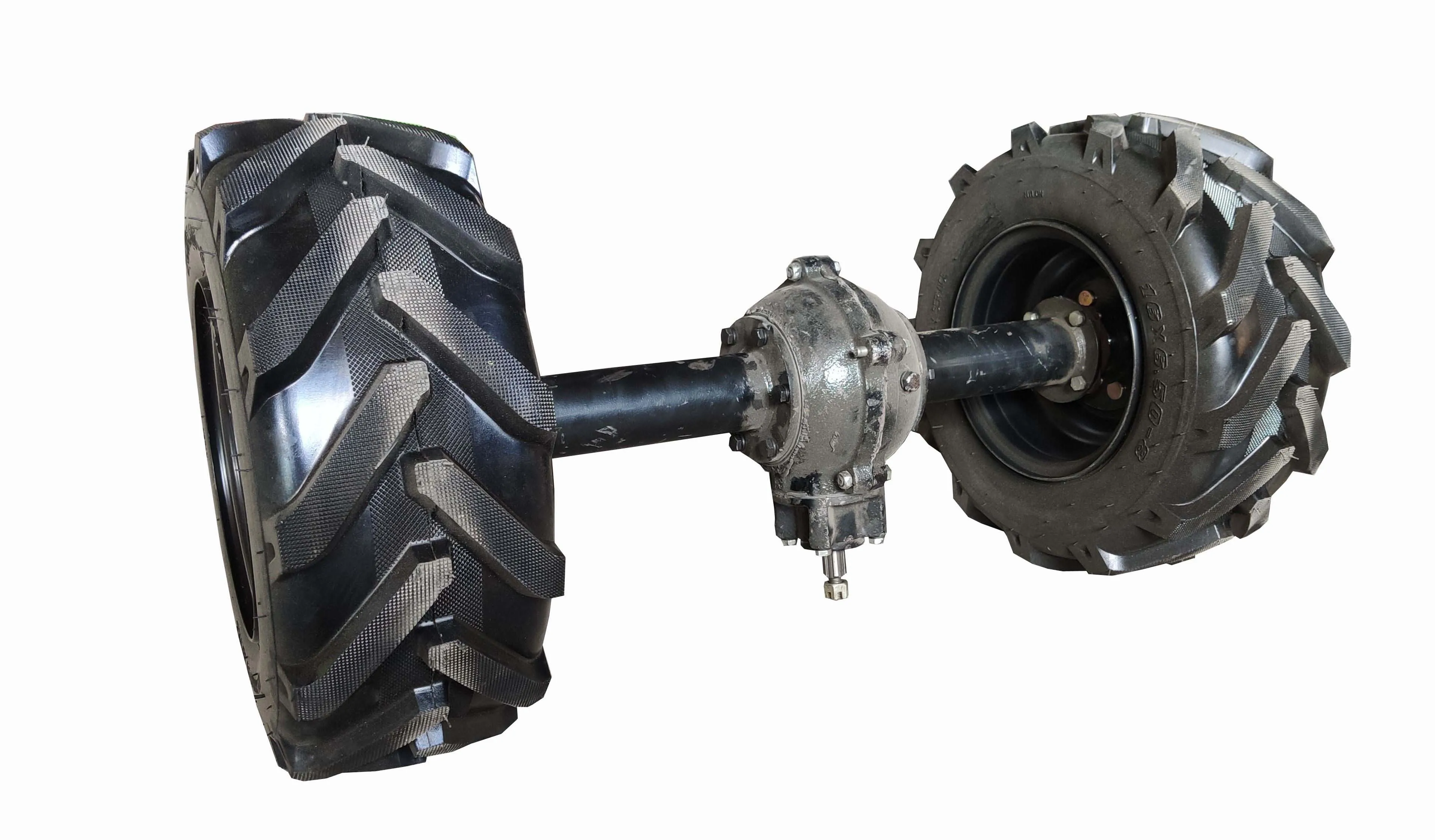

Rear wheel drive system with Pneumatic herringbone tire

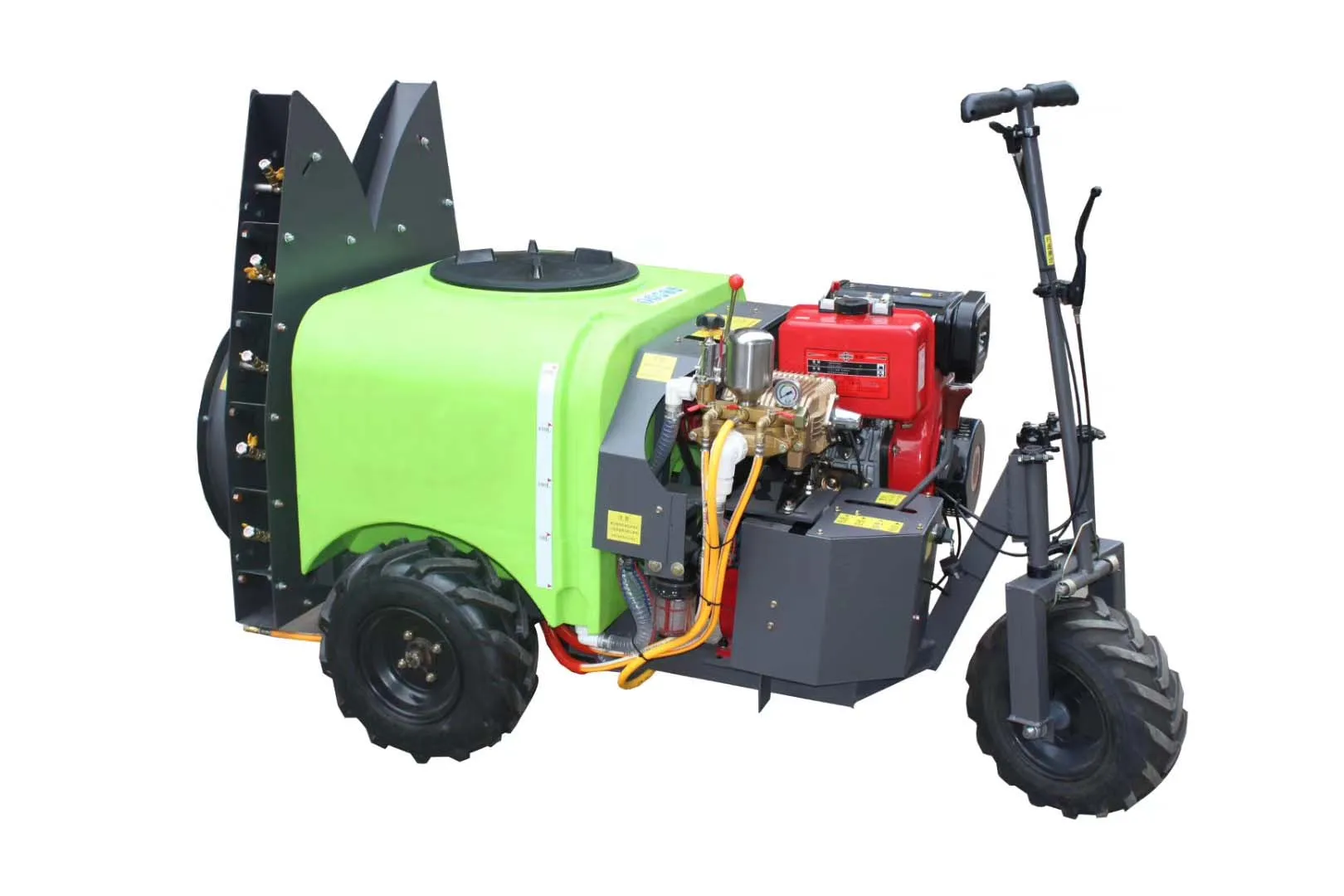

Whole machine structure
