380V 24ft AC solar photovoltaic large permanent magnet gearless industrial ceiling fan
- Category: >>>
- Supplier: Taizhou Donghai Fishery Machine&Electrics Co. Ltd.
Share on (62531489578):
Product Overview
Description
Kesheng large permanent magnet gearless Industrial ceiling fan, the largest diameter can reach 7.3 meters! The new fan blades manufactured using aerodynamic principles and advanced processes can drive a large amount of air with only 1.5kW or less power,generating a large area natural breeze system, which serves the dual functions of ventilation and cooling. Compared with traditional water-cooled fans and small high-speed fans, the unparalleled application advantages can be called the perfect solution for smooth ventilation and cooling.
Model | Fan Diameter Size | Power | Air Volume | Coverage Area | Rotating Speed | Nos.of Blades | Level of Noise | Voltage | Weight |
(feet) | (kw) | (m3/min) | (m2) | (rpm) | (pcs) | (dB) | (v) | (kg) | |
KFD7300A | 24ft (7.3m) | 2.2 | 14210 | 680 | 0-50 | 6 | ≤40 | 380 | 130 |
KFD6700A | 22ft (6.7m) | 2.2 | 13260 | 500 | 0-55 | 6 | ≤38 | 380 | 125 |
KFD6100A | 20ft (6.1m) | 2.2 | 12450 | 420 | 0-60 | 6 | ≤35 | 380 | 120 |
KFD5500A | 18ft (5.5m) | 2.2 | 11660 | 380 | 0-65 | 6 | ≤34 | 380 | 115 |
KFD5100A | 17ft (5.1m) | 1.5 | 10840 | 300 | 0-65 | 6 | ≤33 | 380 | 100 |
KFD4800A | 16ft (4.8m) | 1.5 | 10340 | 230 | 0-70 | 6 | ≤32 | 380 | 96 |
KFD4200A | 14ft (4.2m) | 1.5 | 8920 | 180 | 0-80 | 6 | ≤32 | 380 | 92 |
KFD3600A | 12ft (3.6m) | 1.5 | 7530 | 130 | 0-80 | 6 | ≤30 | 380 | 88 |
KFD3000A | 10ft (3.0m) | 1.5 | 6390 | 100 | 0-90 | 6 | ≤29 | 380 | 84 |

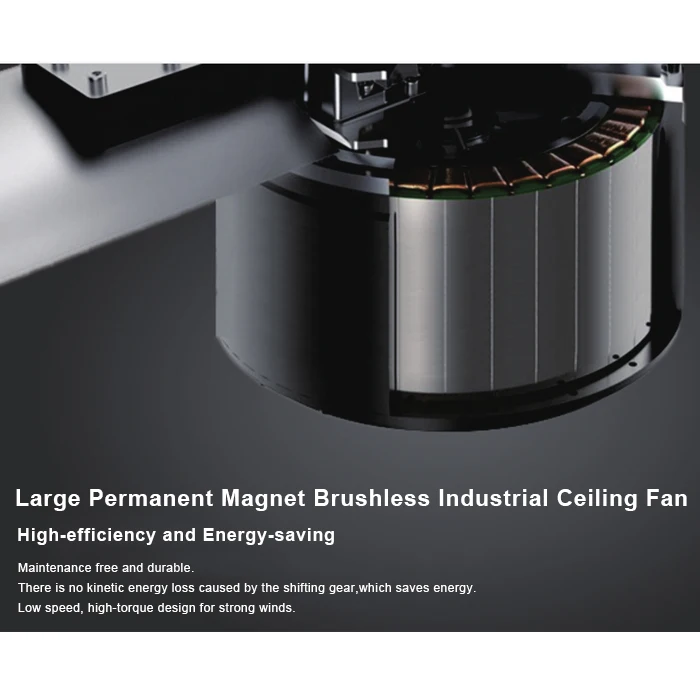

* Our fan with Permanent magnet Direct drive motor

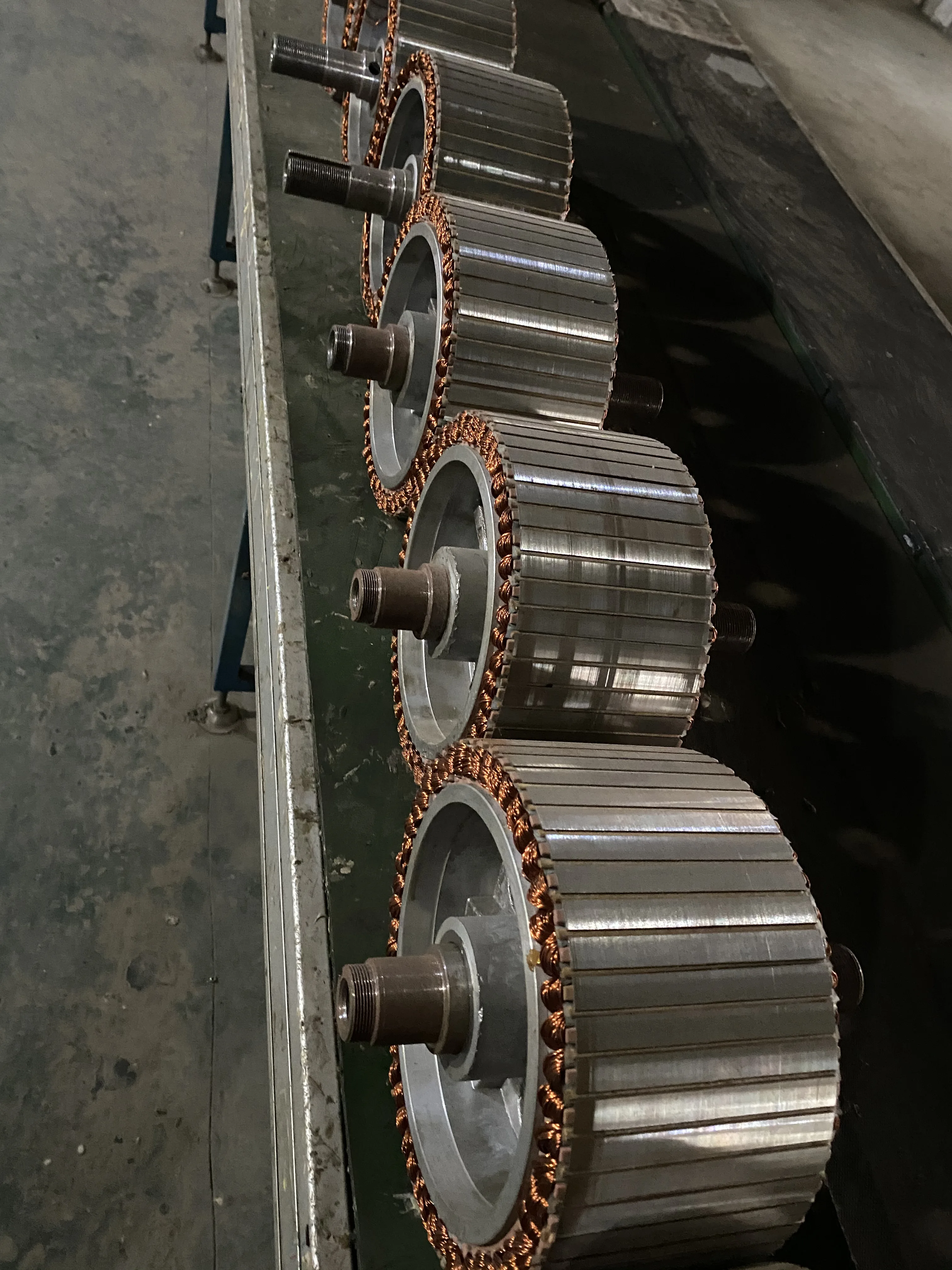

1) Permanent magnet synchronous high-temperature resistant out rotor motor, super energy efficient.
2) Small size and light weight,Only 32.5kgs.
3) Low noise. 38db
4) Simple structure.
5) Frequency modulation width (0-50HZ)
6) Direct drive motor maintenance free
7) No running hazard.8) Its drive control the motor temperature rise not more than 20degC.
* Other fan with gear box.
1) The use of asynchronous ordinary motor+gear box consumes a lot of energy.
2) Large and heavy.
3) Loud noise 60db.
4) Complex structure.
5) FM narrow (25-50HZ)
6) Need frequent daily maintenance (change seals, add gearbox oil.)
7)There are hidden dangers such as gearbox leakage.8) Every 2years have to do a maintenance.
* Our Permanent magnet gearless industrial ceiling fan
1)Energy conservation and environmental protection
2)Free maintenance
3)Simple installation steps
4)Long service life
* Industrial air conditioning
1)Huge quantities of electricity
2)Freon generation, not enough environmental protection
3)The air is too dry
4) * The service life is relatively short
* Our Permanent magnet gearless industrial ceiling fan
1)Simulation of natural wind effect, human comfort is strong
2)Low noise
* Industrial pipeline air cooler
1)The air is heavy with moisture
2)Loud noise
3)Bacteria can breed in pipes
* Our Permanent magnet gearless industrial ceiling fan
1)Wide wind coverage
2)Low noise
3)Meet more occasions to use
4)More security
* Floor industrial exhaust fan
1) Electric wires break easily and are not safe
2) Loud noise
3) The fan blade is easy to scratch and has low safety factor
4) Uneven coverage of air volume
Application
Application field:

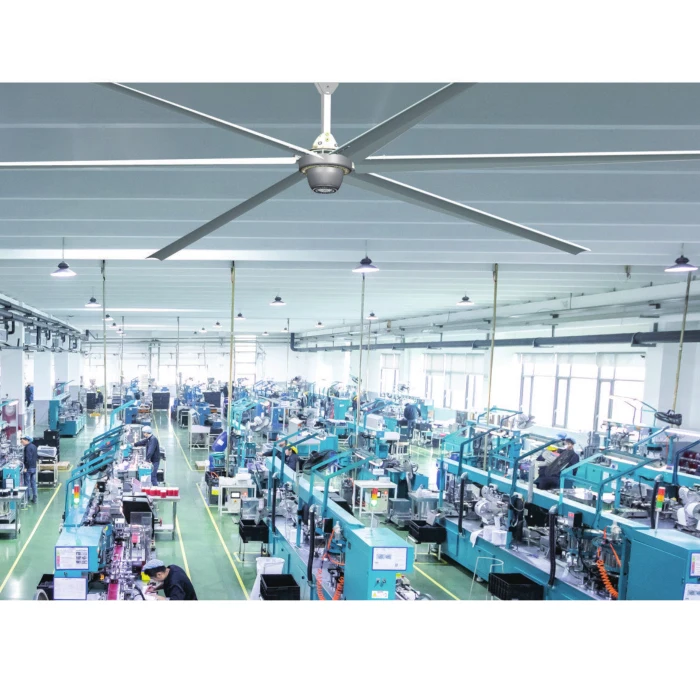

Industrial application:workshop/logistics warehouse/farm
Commercial place:Convention Center/4S shop/Large shopping malls and supermarkets
Transportation:Railway Station/Terminal Ticket Office/Bus Station/Subway Station/Terminal
Sports and leisure:Gymnasium/Indoor Stadium/Playground/Zoo and Botanical Garden
Other types:Office lobby/Villa/Dining Hall/Museum/School Auditorium...

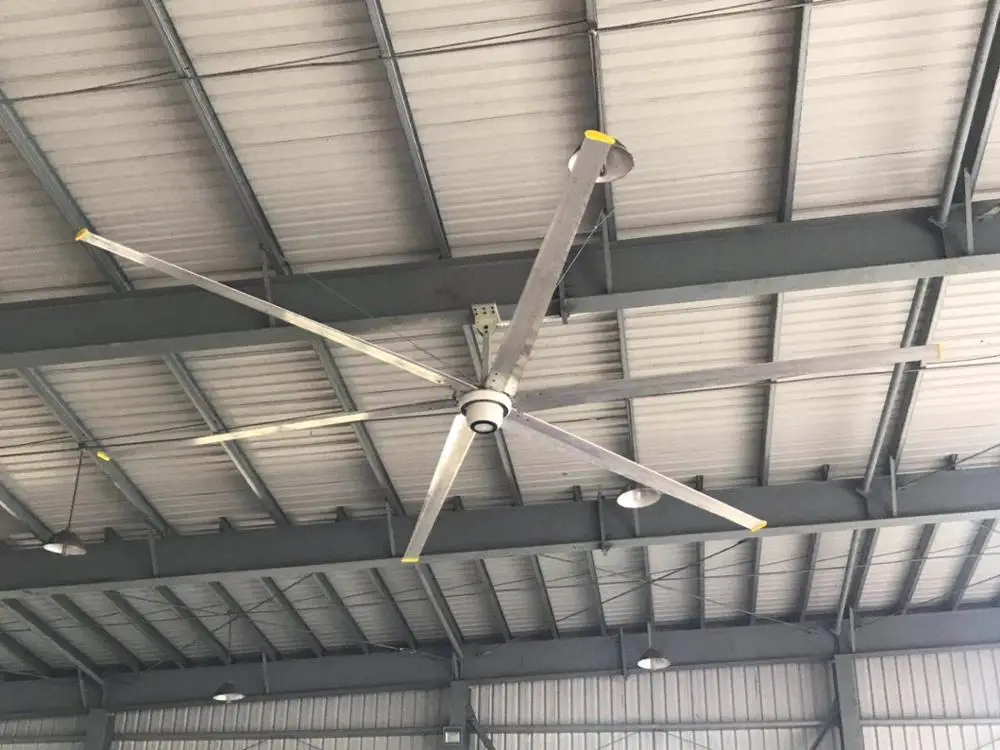

Installation Instructions
The super-large size of Kesheng Brand industrial fans gives you doubts about safety.In fact， it is not necessary.The company team has studied this very carefully.The measures taken have been proved theoretically and tested strictly in practice， and won many national patents.And get high-tech enterprisesin Taizhou.
1.Safety buckle：When accidents occur， the safety ring plays a protective role to prevent any parts from sliding； when the bottom fixture is loosened, the fan will fall in the vertical plane.The insurance hook can catch the shelf.Make sure that the lower part of the fan does not falloff.
2.Fan-blade C and Y-type safety clip：Re-connect all fan-blades and chassis to form a whole structure. The upper and lower layers of the fan blades are fixed to ensure that the blades and chassis become a whole.The bolts used are self-locking bolts to eliminate the danger of loosening.
3.Fasteners：All fasteners are up to 10.8 grade of the highest strength industrial bolts， the actual stress is more than 10 times；
4.Wire rope：The stress intensity of each wire cable can reach 1000KG， and double protection is set at each connecting point； it can bear the weight of the fan at rest； when the fan is unexpected， the wire rope can suspend the fan in the air to avoid falling danger.The blade is connected by the second safety hook to prevent accidental falling off.When the danger occurs， the damage to the main fixed beam is reduced to the lowest level.In the process of fan rotation， due to the action of reaction force， the fan almost floats in the air， and the weight of each component is very small.
1.Safety buckle：When accidents occur， the safety ring plays a protective role to prevent any parts from sliding； when the bottom fixture is loosened, the fan will fall in the vertical plane.The insurance hook can catch the shelf.Make sure that the lower part of the fan does not falloff.
2.Fan-blade C and Y-type safety clip：Re-connect all fan-blades and chassis to form a whole structure. The upper and lower layers of the fan blades are fixed to ensure that the blades and chassis become a whole.The bolts used are self-locking bolts to eliminate the danger of loosening.
3.Fasteners：All fasteners are up to 10.8 grade of the highest strength industrial bolts， the actual stress is more than 10 times；
4.Wire rope：The stress intensity of each wire cable can reach 1000KG， and double protection is set at each connecting point； it can bear the weight of the fan at rest； when the fan is unexpected， the wire rope can suspend the fan in the air to avoid falling danger.The blade is connected by the second safety hook to prevent accidental falling off.When the danger occurs， the damage to the main fixed beam is reduced to the lowest level.In the process of fan rotation， due to the action of reaction force， the fan almost floats in the air， and the weight of each component is very small.
5.Electric wrench：can achieve the firm hand can not reach； in the installation process， all fixtures are used electric wrench， to ensure the quality of the project.

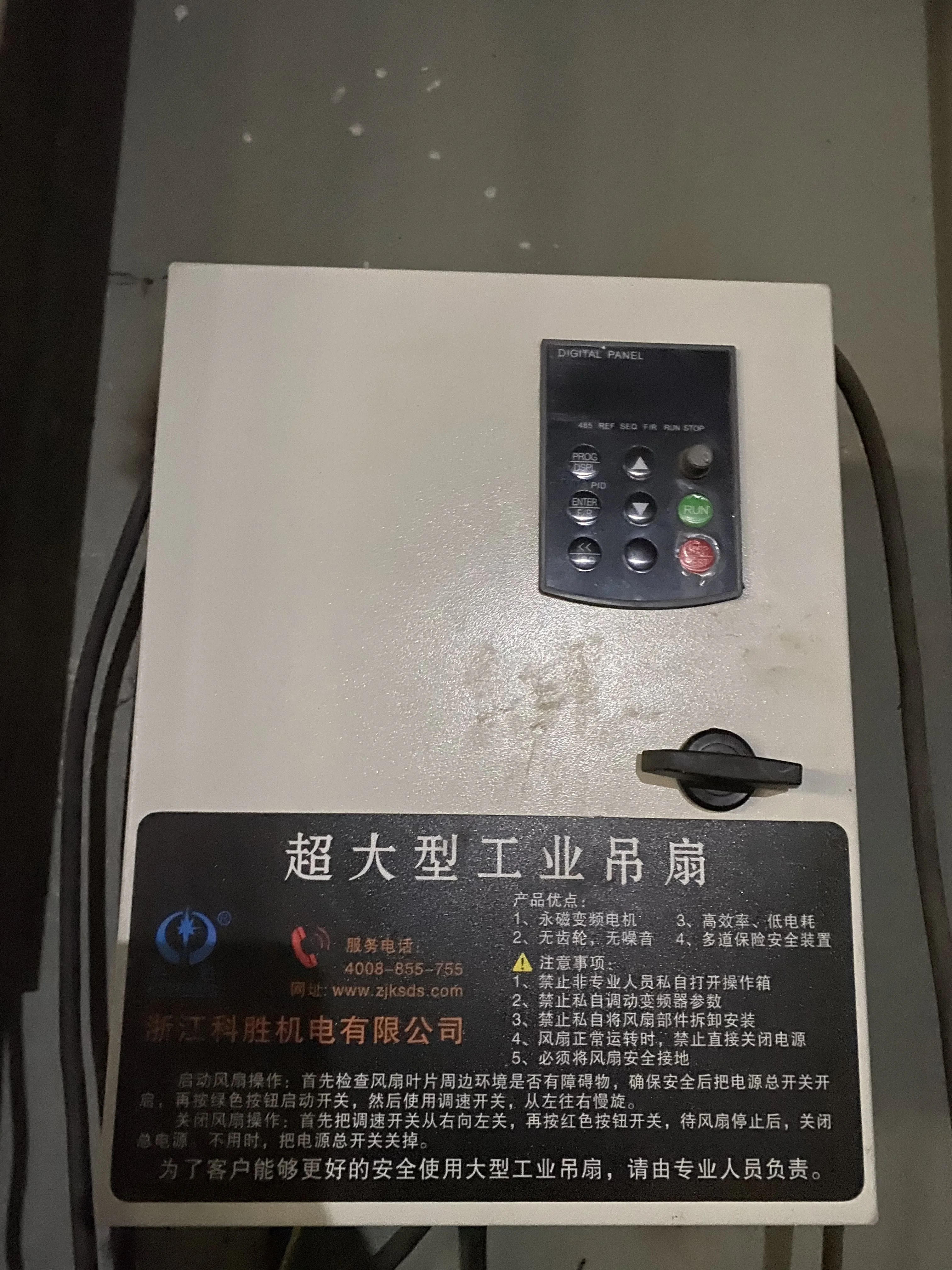

6.Frequency conversion protection：When the fan is abnormal， the frequency converter will automatically alarm and stop running.
6.Frequency conversion protection：When the fan is abnormal， the frequency converter will automatically alarm and stop running.
Certifications
Packing & Delivery
1.Weight calculation: The weight of the product is include the control box, top connecting members, etc.
2.Size: The product sizes listed above are standard crystals, other sizes can be customized.
3.Noise: The sound level meter is 1m away from the motor and the electromagnetic noise is below 40dB(A).
4. Package: Standard wooden box packaging.
5. Input power: Three-phase, single-phase can be choosed.
2.Size: The product sizes listed above are standard crystals, other sizes can be customized.
3.Noise: The sound level meter is 1m away from the motor and the electromagnetic noise is below 40dB(A).
4. Package: Standard wooden box packaging.
5. Input power: Three-phase, single-phase can be choosed.
Company Introduction
ZHEJIANG KESHENG MACHINERY & ELECTRICS CO .,LTD .Integrates the design, development, production,
sales and service of permanent magnet high efficiency saving energy motors, our main products include solar systems, solar water pump, AC/DC permanent-magnet high efficiency saving energy submersible motors, AC/DC permanent magnet synchronous low medium high speed motors, servo motor for industrial sewing machines, wind-driven generators etc. The company has ISO Quality Management System, CE/ROHS certifications.
Our Service
1. OEM Manufacturing welcome: Product, Package...
2. Sample order.
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.
