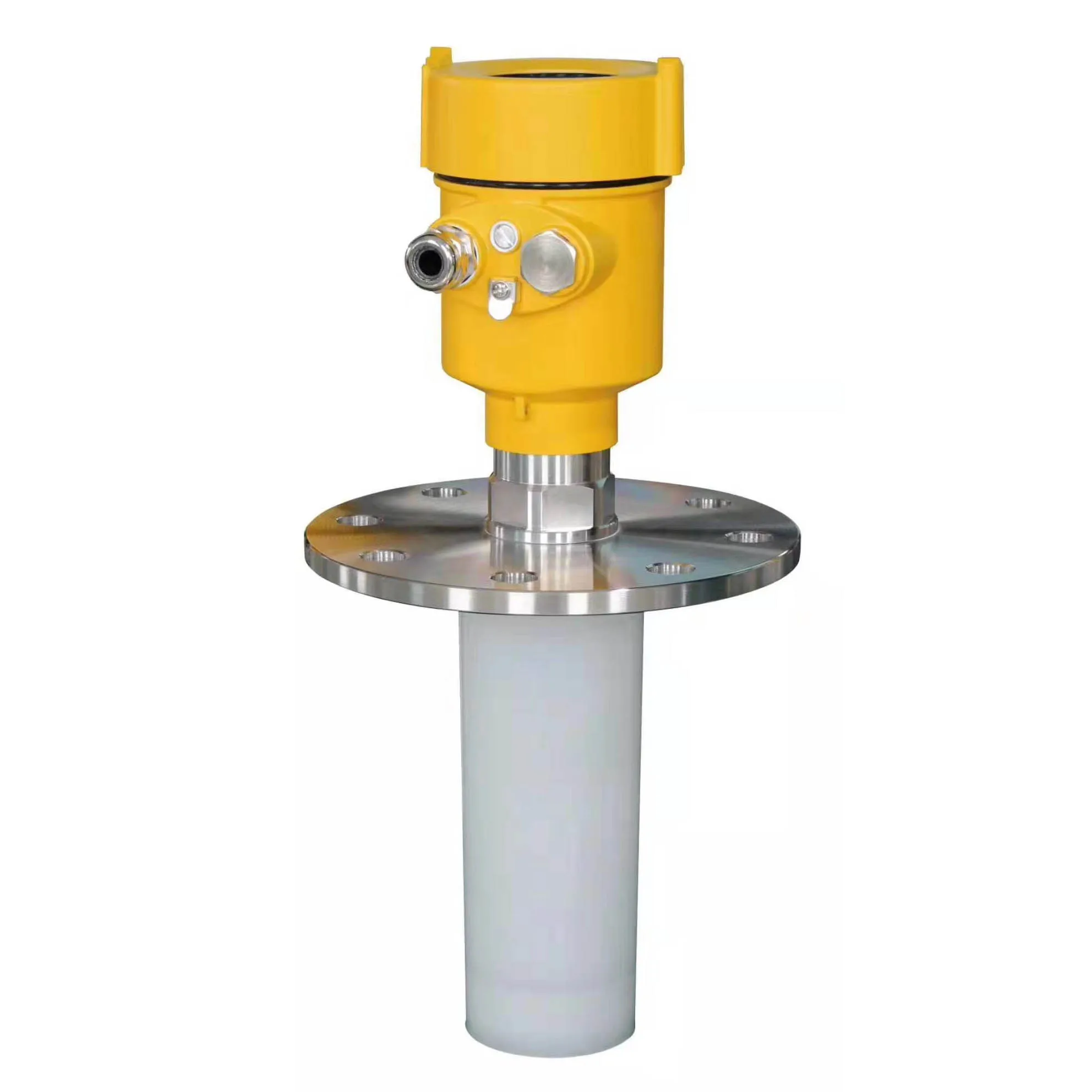

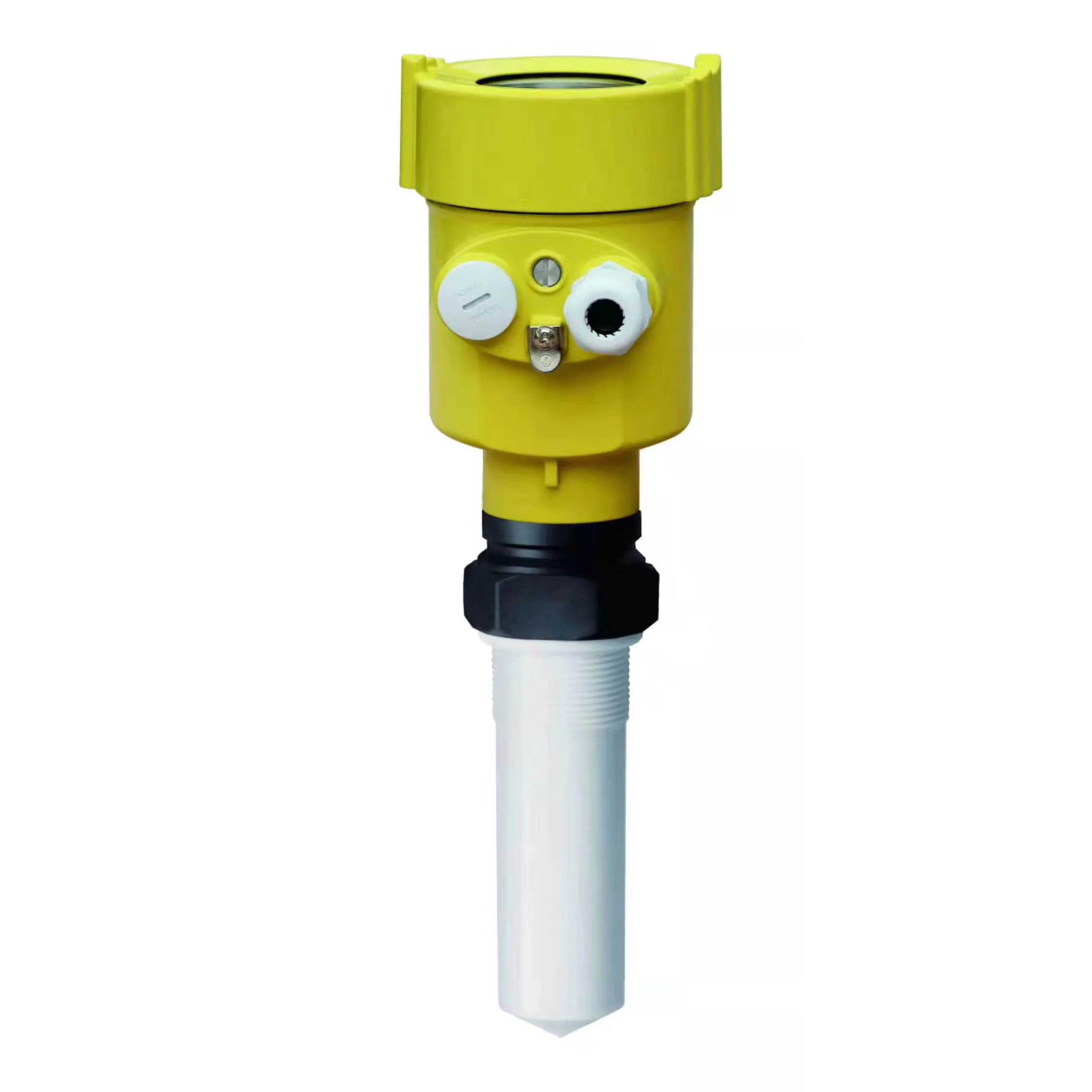

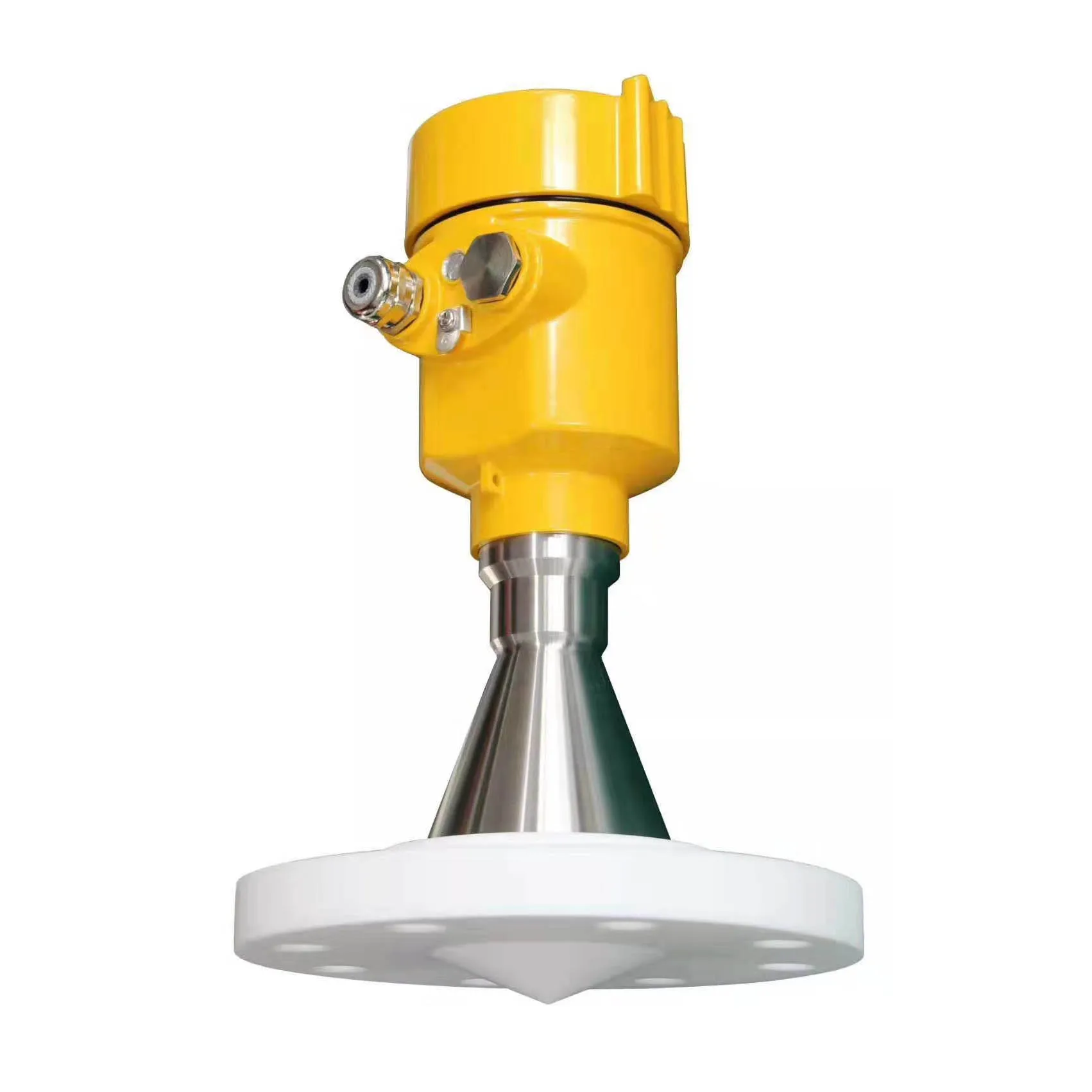

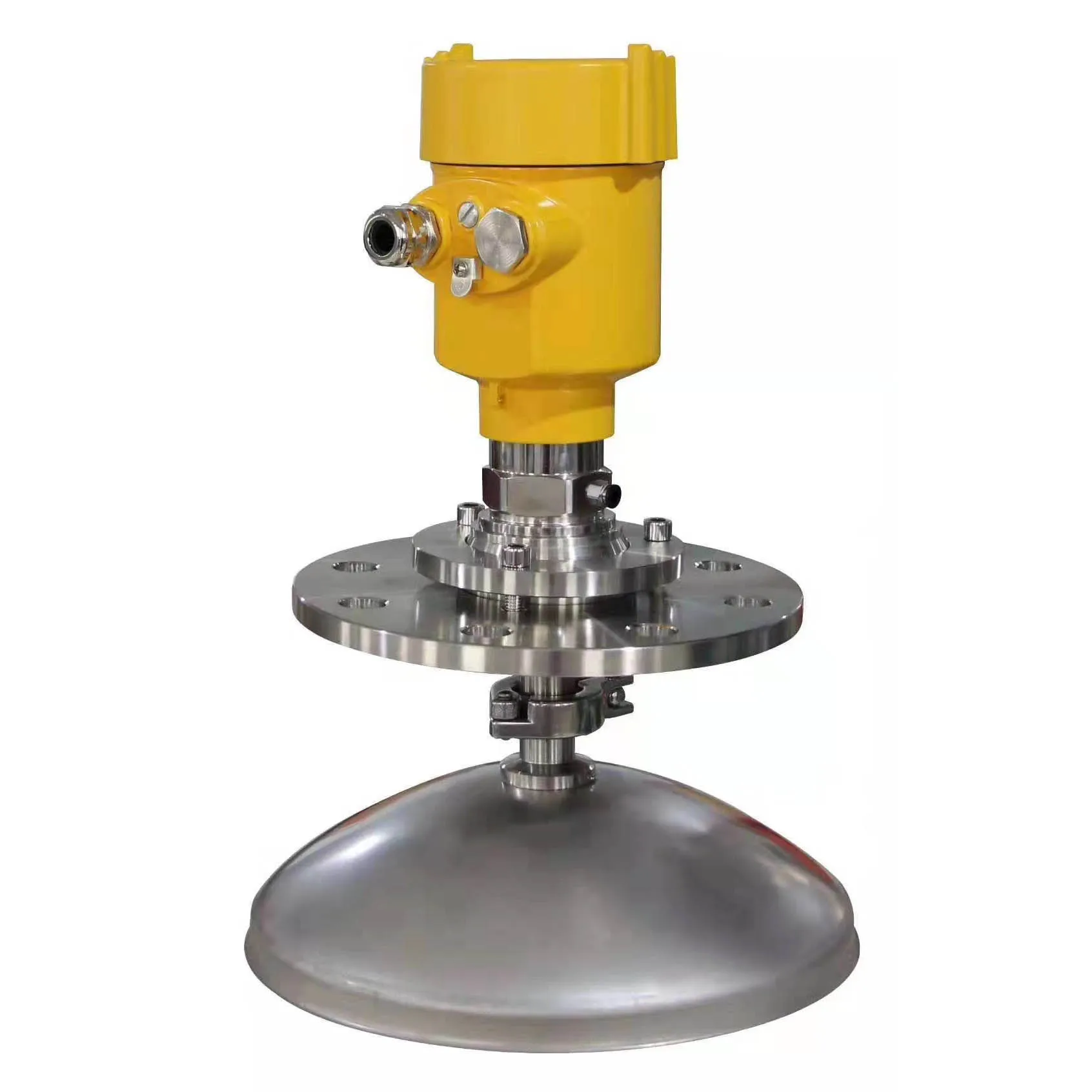

4 20mA liquid level transducer radar level transmitter 26G HZ radar level sensor water river monitor

Product Overview

Description

4-20mA radar level transmitter 26G HZ





APPLICATION

Coal Plant, Power Plant

Petroleum and Chemical Industrial

Foodstuff Industrial

General Industrial Applications



CHARACTERS

Large measurement scale, precious accuracy

Non-touchable measurement, so it is suitable for more complex

working condition

The outstanding is measurement viscous liquid or applied inbig change occasion for temperature and pressure

Outputs an analog signal 4~20mA



PRODUCTS DESCRIPTION

Smart radar level TRANSMITTER, for its characters of non-touchable measurement, can precious measure the media of pollution and corrosion. Its stable and accurate apparent is also shown in complex measurement. Outputs an analog signal 4~20mA, can be controlled by remote. It is adopted an unique micro-wave technology,Echo-tech process applied for various industrial condition. The pulse working method can measure small dielectric constant media,and safely applied in metal and nonmetal vessels. It is not harmful for human body and environment.



TECHNICAL PARATRANSMITTERS



Model	KDZA57	KDZA58	KDZA59
Application	liquid	solid	solid
	High corrosive, sanitary	Storage vessel, process vessel, Strong dust, easy to crystallize, condensation	Normal temperature, normal pressure
Max. Range	20m	70m	l 5m
Accuracy	+3mm	+1 5mm	+1 0mm
Temperature	(-40 - 150)°C	(-40 - 80)°C	(-40 - 80)°C
		(-40 - 1 20)°C	(-40 - 1 20)°C
		(-60 - 250)°C	(-60 - 250)°C
		(-60 - 400)°C
Process Pressure	(-0.1 - 0.5)MPa	normal pressure	normal pressure
		(-0.1 - 4)MPa	(-0.1 - 4)MPa
		(-0.1 - 40)MPa
Frequency Range	26GHZ	26GHZ	26GHZ
Signal Output:	(4 - 20)mA/HART	(4 - 20)mA/HART	(4 - 20)mA/HART
Power	2 Wires (DC24V)	2 Wires (DC24V)	2 Wires (DC24V)
	4 Wires (DC24V/AC220V)	4 Wires (DC24V/AC220V)	4 Wires (DC24V/AC220V)
Field Displaying	optional	optional	optional
Process Connection	A/B/C/D1	A/B/C/D1	A/B/C/D1(Page 4)
Flange Accessories		G/H/I/J/K3	G/H/I/J/K3
Antenna	U	L/M/N/P3	L/M/N/P3
Frequency Range		S/T/V/W3	S/T/V/W3
