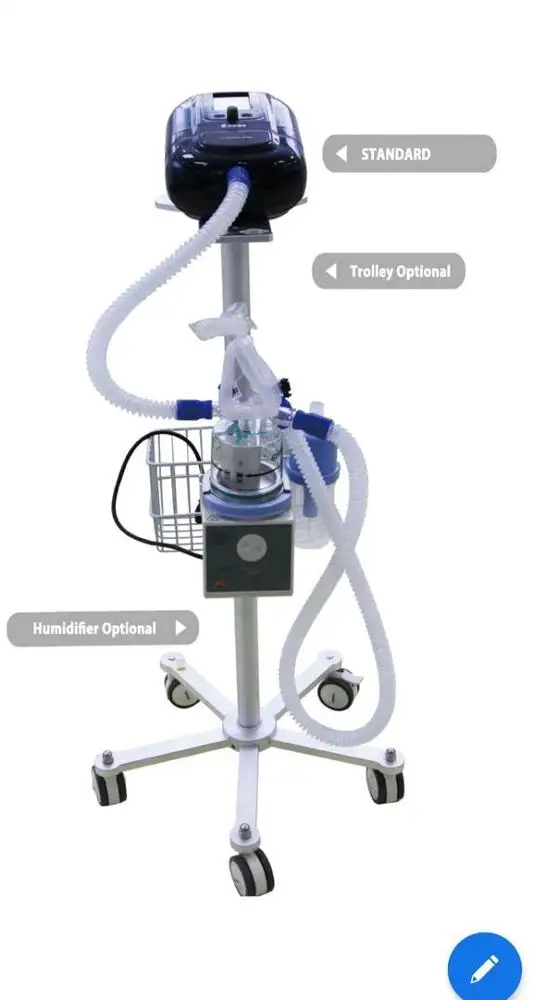

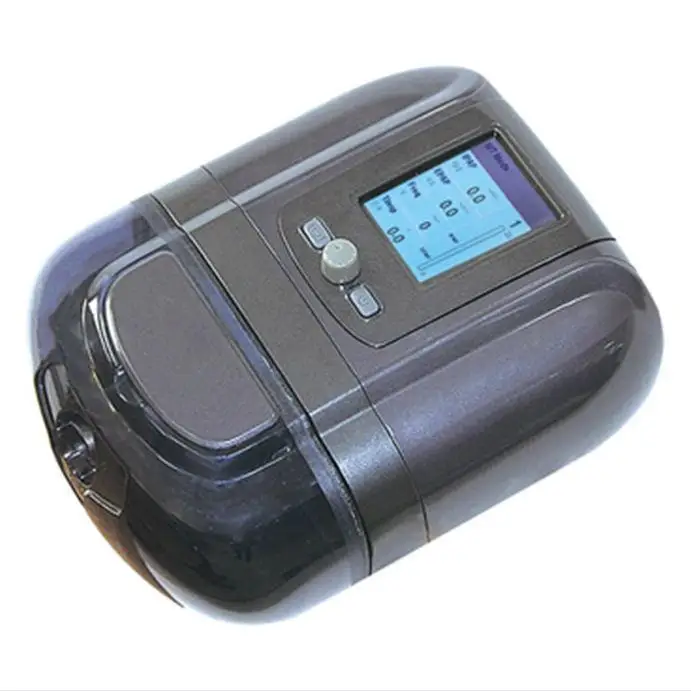

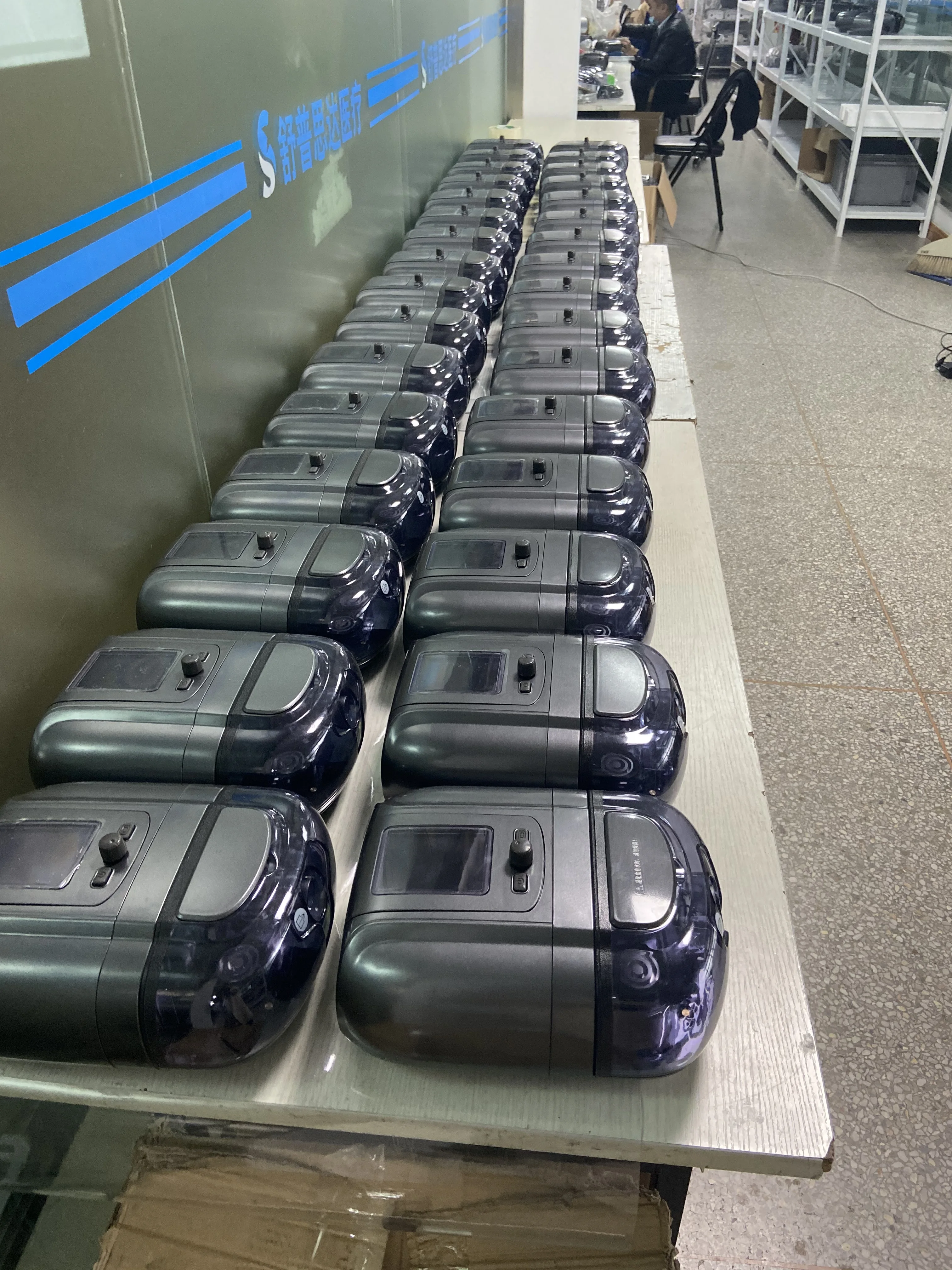

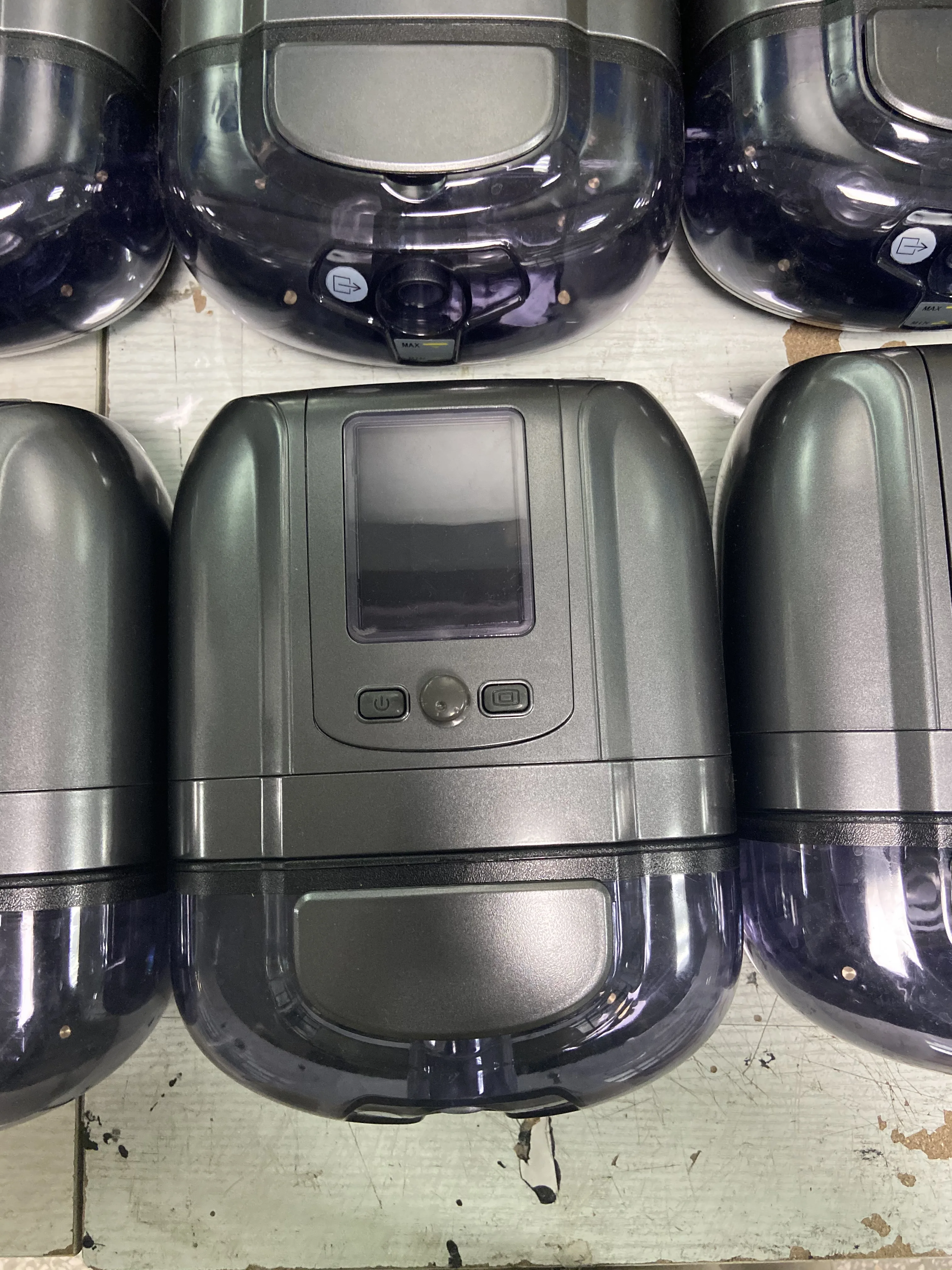

Medical Supplies Oxygen Concentrator for Sale india Bi pap Machine CPAP S9600

Share on (62532211465):


Price:RUB 31,641.92

Quantity:


Product Overview

Description

S1100 ICU ambulance Ventilator with with 4 wheels




 Product name
  • s9030 non invasive ventilator
 Application
  • The ventilator is suitable for various kinds of medical institutions for cardiopulmonary resuscitation respiratory support. Acute respiratory failure caused by various reasons or incomplete oxygenation dysfunction. Intra-operation,  post-operation respiratory support, other respiratory treatment.
Trust Points Si
  • Simplicity: easy to use, easy to move with 4 wheels.

  • Choice: adapt the equipment to your patients and procedures freely

  • Patient Centered Ventilation: Precision in an anesthesia ventilator,fromconventional ventilation to advanced modes, including 8 modes: IPPV;A/C;PCV;SIMV; SPONT/CPAP;PSV;SIGH;MANU.

  • Designed and manufactured by Superstar Medical with over 23 years experience in this area.

  • International standard and advanced technology suitable for wide range use.

  • Compact interface and big screen give you better operating experience.

  • Over 2,000 units installed in the world.

 Features
  • 12.1” TFT LCD screen displays the Ventilation parameters, Alarming information and Waveform.

  • Recycle breathing pipe, ensure easy operating and keep tidy.

  • Multiple working modes such as volume control and pressure limit, adapt to wide range patient.

  • Vaporizer with temperature, flow compensation and self-lock function, keep safety anytime.

  • Multiple parameters monitoring interface, make every parameter clear, let users know the patient conditions in all aspects;

  • Stable and low noise air compressor, create quiet work environment for doctors.
  • Real time pressure-time, flow-time loop graphics and high precision O2 concentration detection function included.

 Safety
  • Three level alarming system, visual and sound alarm information.

  • With lots of alarming, reminding and protection functions.

  • Advanced power management control technology.

  • With built-in backup power source, when outside power source goes off, back-up power source starts to work.
  • Self-check before running, eliminate system mistake.

  • Separate design of electric and gas, keep safety running of ventilator.


Specifications



Ventilation modes:

IPPV, A/C, PCV, SIMV, SPONT/CPAP, PSV,SIGH,MANU



Ventilator parameter ranges



Tidal volume(Vt)

0 mL ~ 2000 mL

Frequence(Freq)

1bpm ~ 100 bpm

I/E

4:1~1:8

PEEP

0cmH2O ~ 40 cmH2O

Pressure triggering sensitivity(PTr)

20 cmH2O ~ 100cmH2O

Flow trigger sensitivity (FTr)

0.5 L/min ~ 30 L/min



Pressure Limit

20 cmH2O ~ 100 cmH2O

Monitored Parameters



Frequence(Freq)

0 /min ~ 100 /min

Tidal volume(Vt)

0 mL ~ 2500 mL

Oxygen concentration

15 % ~ 100 %



Graphical display:



Oxygen concentration



Size:Wooden case packing size:L560*W 560*H 605mm , GW:35KG ; NW:17KG

                                                   L670*W700*H 1160 mm , GW:79KG ; NW:46.2KG



Alarm and protection

No tidal volume

No tidal volume within 6s

High oxygen concentration alarm

Low oxygen concentration alarm

19%-100%

18%-99%

High Airway  pressure alarm

Low Airway  pressure alarm

High Minute Volume alarm

Low Minute Volume alarm

Continuous Pressure alarm

20cmH2O-100cmH2O

0cmH2O-20cmH2O

5L/min-99L/min

1L/min-30L/min

(PEEP+1.5kPa) over 16s

Suffocation warning

5s-60s

The maximum limited pressure

<12.5 kPa

Fan error

Oxygen deficit



Show on screen

Show on screen

Working conditions



Gas source

O2,AIR

Pressure

280kPa-600kPa

Voltage

-220V±22V

Power frequency

50Hz±1Hz

Input power

900VA(with air compressor)
250VA(without air compressor)



56


S1100 ICU ambulance Ventilator with with 4 wheels
