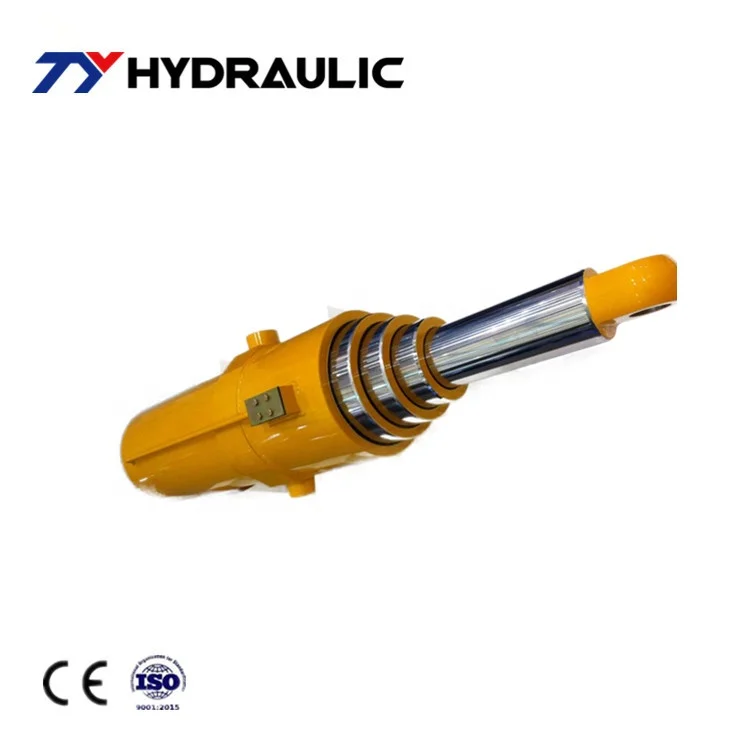

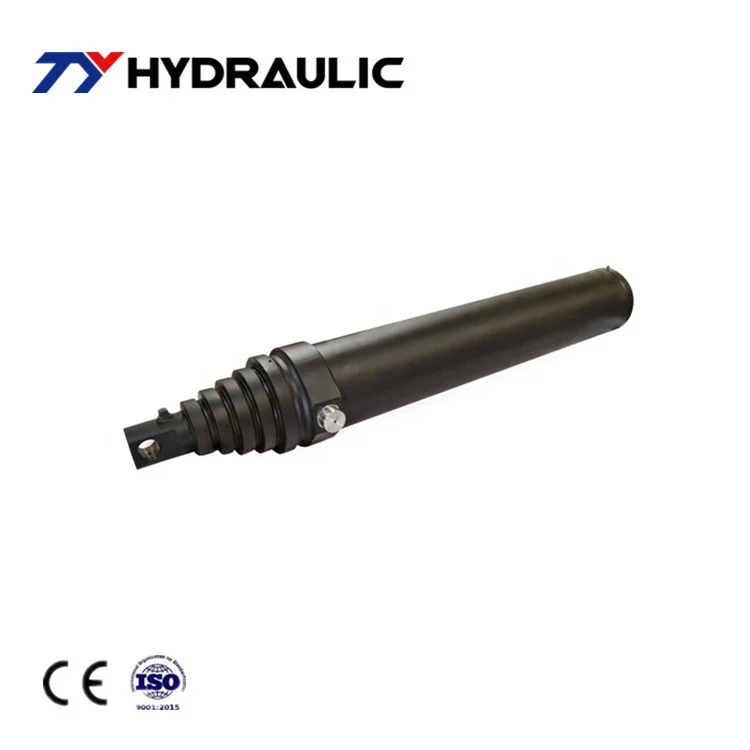

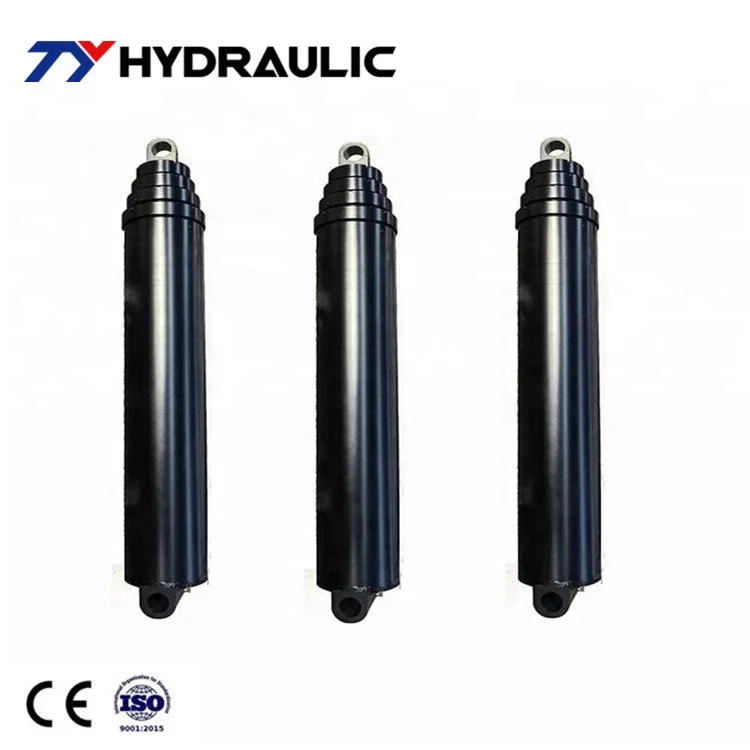

Custom Made 100 Ton 5 Stage Dump Truck Telescopic Hydraulic Cylinder

Product Description

The telescopic hydraulic cylinder is designed for applications requiring long and short strokes. Inner threaded head makes it easier to remove head and stem seals without special tools or retaining rings. Redundant rod seals improve seal and pressure capabilities and provide a buffer against peak pressure. The  telescopic hydraulic oil cylinder suitable for mining, public utility, public service, road construction, waste and garbage, oil and gas, military, transportation, road service, material handling and other fields.

Telescopic hydraulic cylinder can get a longer working stroke with multi-stage sleeve-shaped piston rod hydraulic cylinder, also known as multi-stage hydraulic cylinder.It is composed of two or more piston hydraulic cylinder set, the piston rod of the previous stage piston cylinder is the cylinder of the latter piston cylinder.

Therefore, the slow out faster, the corresponding hydraulic thrust from large to small; this thrust, speed changes, is suitable for a variety of automatic loading and unloading machinery on the thrust and speed requirements. The order of retraction is generally followed by small to large retraction, the retraction of the axial length is shorter, smaller footprint, compact structure.

Commonly used in construction machinery and other mobile machinery, such as cranes, dump trucks and other hydraulic systems. Our clients can avail this Telescopic Hydraulic Cylinder from us at the most reasonable price. If for any reason you feel otherwise with your purchase, contact us and we will be there for you.

Features:

Operating pressures up to 5000 PSI

Heavy chrome- increased corrosion resistance and durability

Tight tolerance bearings for improved alignment and reliability

Tapered head design for tighter radial clearances

Bores range from 3.50” to 22.00”

Up to five stages available

400+” stroke per stage, dependent on bore sizes

Rod fed double and single acting available

High pressure sealing

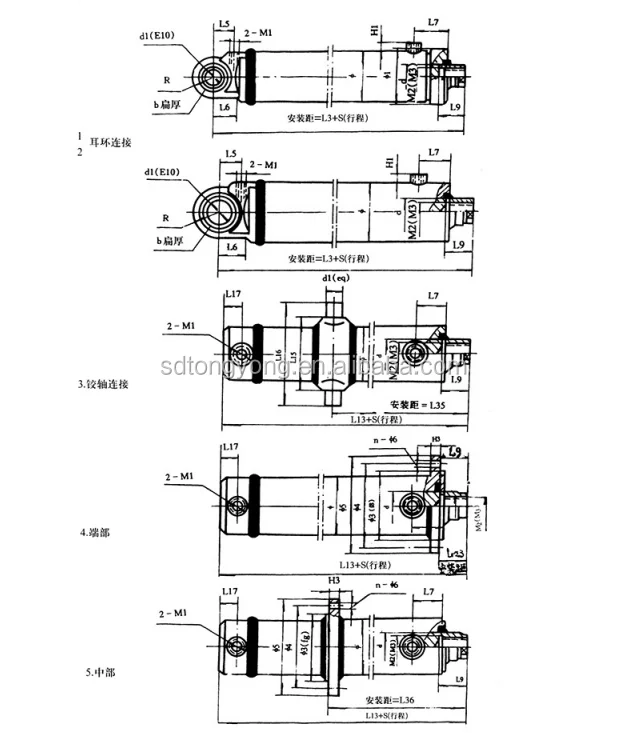

Technical parameters:

Quality Control:

1. The mechanical properties and chemical elements of the raw material will be inspected to check whether qualified after entering the warehouse.

2. Chemical composition inspection of raw materials, Test the chemical composition of metallic materials, such as C, Si, Mn, P, S, Cr, Ni and other elements. Mainly for raw materials incoming inspection, by testing whether the material qualified, receiving materials.

3. Metallographic analysis of metal materials is usually the raw materials, such as copper, iron, aluminum, magnesium, zinc, titanium, etc., for the processing of structural parts and finished product evaluation, through the metallographic analysis.

You can find a variety of possible reasons for failure analysis in time, Prediction and analysis the characteristics of metallic materials and materials, Study material surface, and internal defects, and to improve and verify the process technology of the material.

4. Salt spray test is a major use of salt spray test equipment created by the artificial simulation of salt spray environmental conditions to assess the corrosion resistance of products or metal materials, environmental testing.

We partner with our customers to design, engineer, and build custom hydraulic cylinders that work best for their specific application and industry. A tradition of craftsmanship, engineering excellence, quality control, and on-time delivery is included with all of our hydraulic cylinder products.

Tongyong Hydraulic have the advanced CNC machine tools, a horizontal machining center, a welding robot, parts cleaning agent, automatic assembly lines, automatic painting equipment etc. to hydraulic cylinder ensure a 360-degree quality control of the production process.

Rigorous Standards and Testing

Our ISO 9001:2015 Certified Standards ensure that each cylinder is manufactured to exacting specifications developed jointly between our Sales, Engineering, and Quality departments – and you, our Customer. In addition, every cylinder is individually inspected and tested before leaving our plant to not only meet but hopefully exceed your expectations.

We have been ISO Certified since 2004 and continually invest in our equipment and capabilities, with ongoing training for our most important asset – our people. This ensures that quality is built into each and every component of the hydraulic cylinders we manufacture.

Tongyong Hydraulic are passionate about delivering high-quality hydraulic cylinders which are fit for purpose, durable and long-lasting. In order to do this, we have invested in a dedicated assembly suite on-site at our  facility. Our assembly area is secluded from our main manufacturing processes and all components are washed before assembly to maintain a good standard of cleanliness – ensuring that our cylinders perform to their fullest standard.

 All of our parts are stamped with identification numbers to ensure full traceability and we employ rigorous testing procedures which simulate intense and prolonged use in a realistic intended-use environment. This allows us to mitigate and correct any potential issues at the prototyping stage to ensure the final product performs as expected for the duration of its use.

Prototype and Design Capabilities

The team at Tongyong Hydraulics will work alongside you as an extension of “your” Design and Engineering team to create a solution which is robust, high quality, and fine-tuned for optimal performance. We want to understand your application as well as you do!

As a full-service supplier, our team will be there for support from start to finish and will ensure a smooth launch into production, with dedicated ongoing support into the future.

Engineering Philosophy

Our sales and engineering staff will work with you to become an extension of your team. We will be there for support from start to finish for new or ongoing projects. We will work with you from the early design phase and application engineering and approvals through production and field support for the life of the product.
