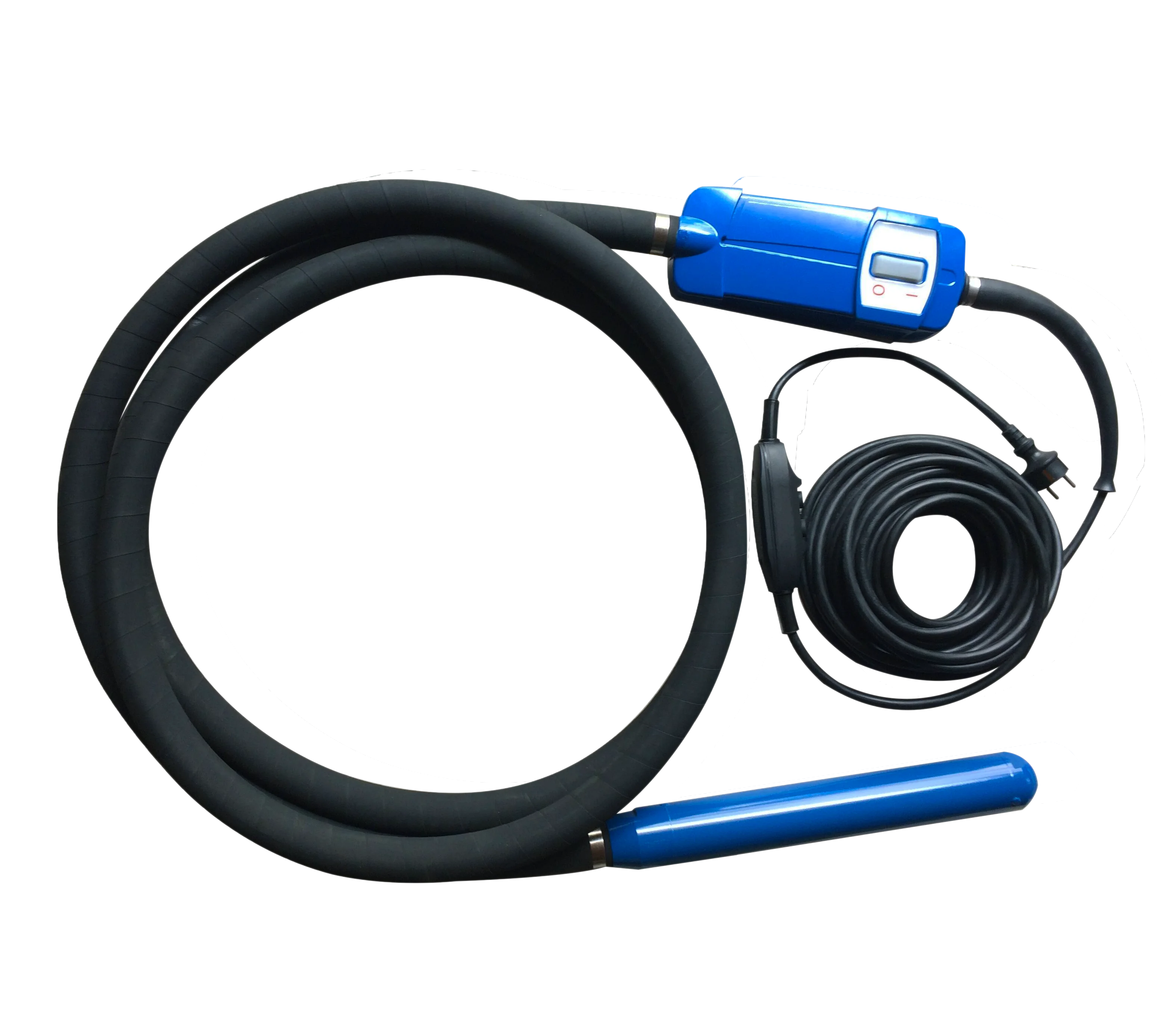

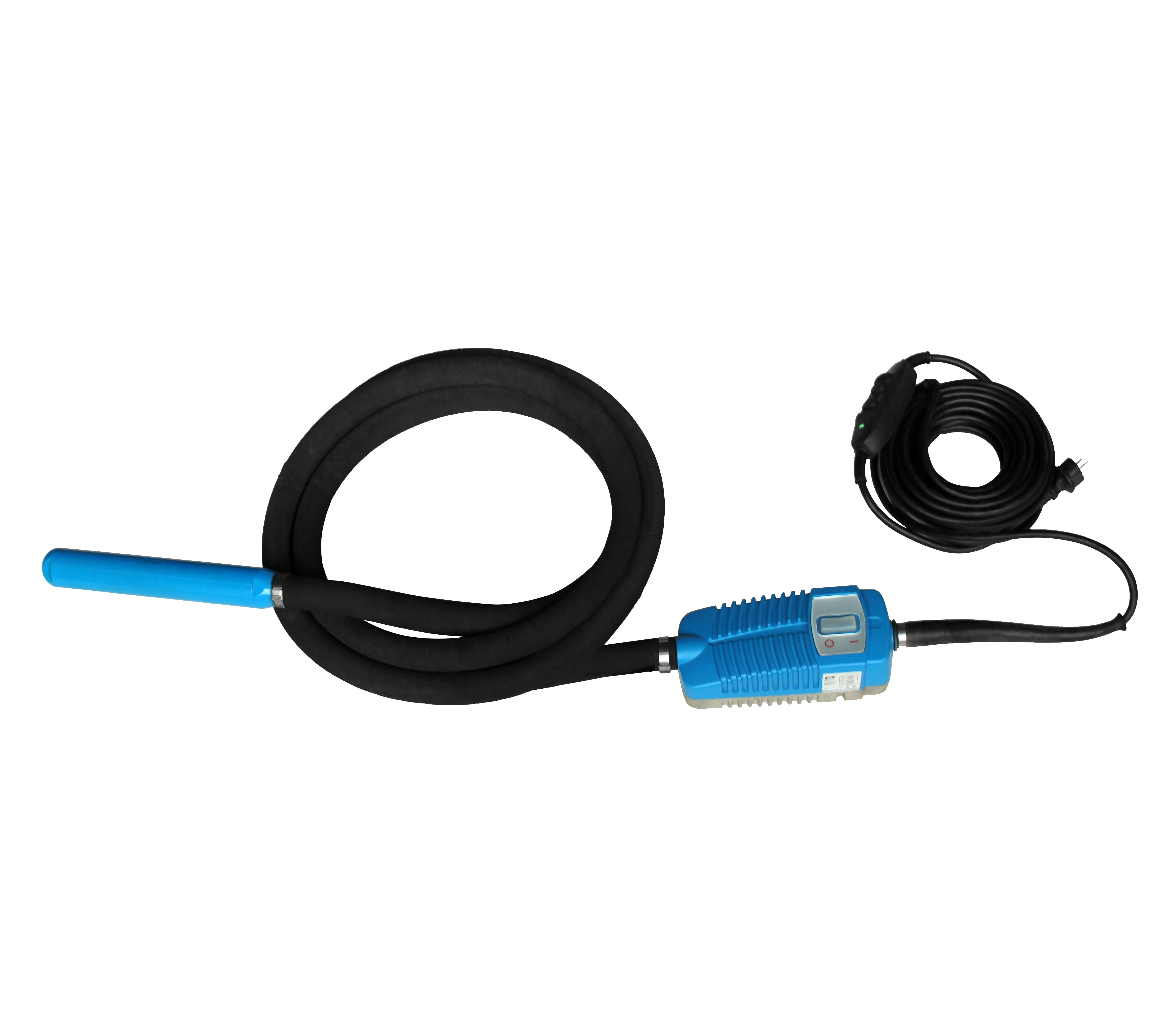

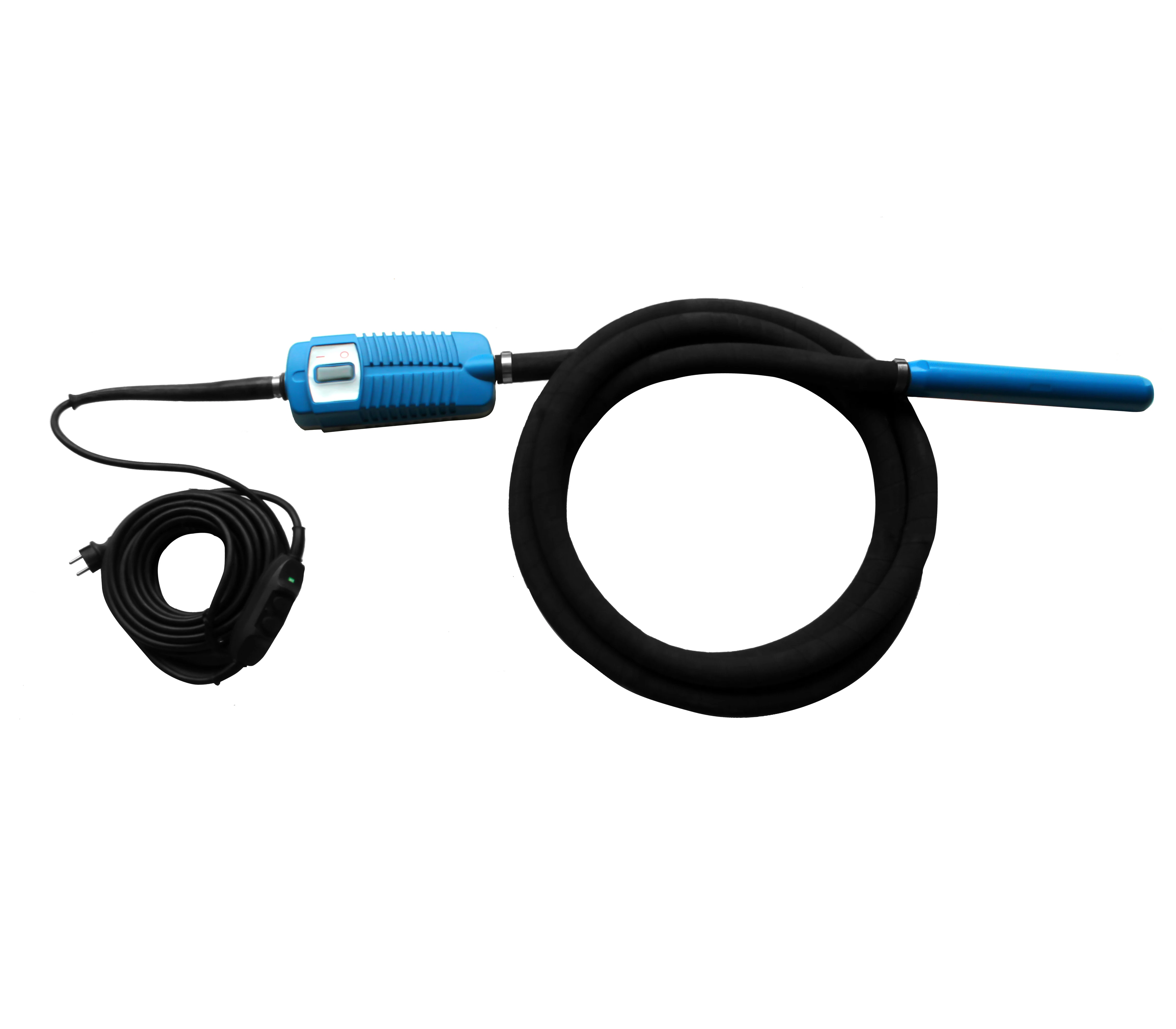

Electronic Converter High Frequency Concrete Vibrator Machine | OSCAR | Top Level
- Category: >>>
- Supplier: Shanghai Motor Electromechanical Technology Inc.
Share on (62532223938):
Product Overview
Description
Product Description
Features and Benefits
- Easy & the most comfortable vibrator for operation.
- Aluminum housing for the electronic converter, a modern design with bigger surface for cooling, no temperature on converter in working.
- The PCB is fixed with resin inside housing, no problem for moving & shaking.
- Waterproof & dust-proof system that achieve IP67.
- Fully protected in converter against overloading, leakage, lack of phase, short circuit.
- Much bigger range for the length of flexible shaft.

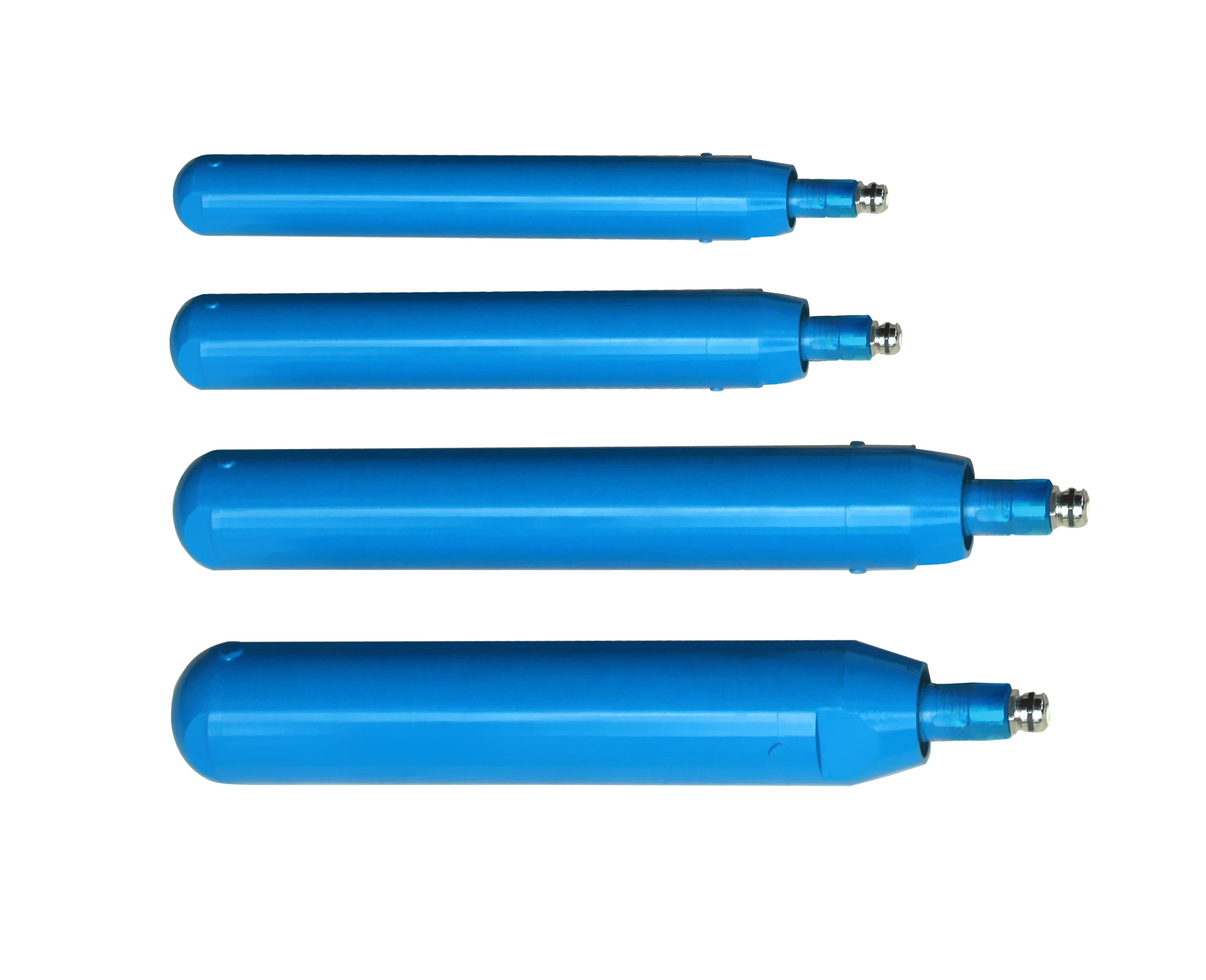

- Variety size of poker head could be suitable for different working condition.
- Non-noise in working.
- High frequency of vibration on poker head.
- The highest efficiency system, with the fewest consumption of power for the same construction.
- Maintenance free, easy operation.
- Aluminum housing for the electronic converter, a modern design with bigger surface for cooling, no temperature on converter in working.
- The PCB is fixed with resin inside housing, no problem for moving & shaking.
- Waterproof & dust-proof system that achieve IP67.
- Fully protected in converter against overloading, leakage, lack of phase, short circuit.
- Much bigger range for the length of flexible shaft.
- Variety size of poker head could be suitable for different working condition.
- Non-noise in working.
- High frequency of vibration on poker head.
- The highest efficiency system, with the fewest consumption of power for the same construction.
- Maintenance free, easy operation.
Specification
Code | 840101 | 840102 | 840103 | 840104 | |||
Model | OSACAR 38 | OSACAR 50 | OSACAR 58 | OSACAR 65 | |||
Tube diameter(mm) | 38 | 50 | 58 | 65 | |||
Supply voltage | 220V-1-50Hz/110V-60Hz | ||||||
Length of tube(mm) | 350 | 390 | 440 | 440 | |||
Hose length(m) | 5 | 5 | 5 | 5 | |||
Cable length(m) | 15 | 15 | 15 | 15 | |||
Tube weight(kg) | 4.8 | 7.2 | 8.7 | 10.1 | |||
Total weight(kg) | 17.1 | 19.5 | 21 | 23.4 | |||
Capacity vibration(m3/h) | 11 | 19 | 30 | 35 | |||
Frequency in concrete(pmt) | 12000 | 12000 | 12000 | 12000 | |||
Amps(A) | 1.2/2.4 | 1.9/3.8 | 2.5/5.0 | 2.9/5.8 | |||
Vibration type | Eccentric | Eccentric | Eccentric | Eccentric | |||
Centrifugal force(N) | 1600 | 3900 | 5700 | 6500 | |||
Vibration(m/s2) | 3.8 | 4.5 | 4.6 | 4.9 | |||
Sound pressure level(db(A） | 70 | 71 | 71 | 72 | |||
Protection class(IP) | IP67 | IP67 | IP67 | IP67 | |||
FAQ
Q1:Are you manufacturer?
A: Yes, we are factory, but we are also a high-tech enterprise, as we have sales team, own designers, own showroom, laboratory can help buyers to decide which products are their best choice, and all your inquiry will be replied within 24 hours.
Q2: How can I get a sample to check your quality ?
A: After price confirmation, you can require for samples to check our quality.
Q3: How long for the delivery time ?
1. Sample will be ready for delivery in 3~10 days. Quantity order will be ready for delivery in 30~45 days .
Q4:How can I trust you and why do I trust you?
A: We are experienced manufacturer and have 8 years oversea trading experience. Our products have longer life than others. Meanwhile, we have an more advanced design than others.
Q5: What is the Quality Warranty for the products?
We offer 12months Guarantee for all of our products. Our company provides a guarantee on purchased goods from the date factory inspection, subject to the requirements of the consumer, product manuals, instructions and descriptions of those attached to the delivered goods.
The warranty is invalid under the follow situations:
1. Normal wear parts and assemblies;
2. Failure to comply with the operating instructions;
3. Using substandard consumables (fuel, motor oil);
4. Violation of the storage conditions, mechanical damage during transportation.
5 .Any changes to the model you purchased.
A: Yes, we are factory, but we are also a high-tech enterprise, as we have sales team, own designers, own showroom, laboratory can help buyers to decide which products are their best choice, and all your inquiry will be replied within 24 hours.
Q2: How can I get a sample to check your quality ?
A: After price confirmation, you can require for samples to check our quality.
Q3: How long for the delivery time ?
1. Sample will be ready for delivery in 3~10 days. Quantity order will be ready for delivery in 30~45 days .
Q4:How can I trust you and why do I trust you?
A: We are experienced manufacturer and have 8 years oversea trading experience. Our products have longer life than others. Meanwhile, we have an more advanced design than others.
Q5: What is the Quality Warranty for the products?
We offer 12months Guarantee for all of our products. Our company provides a guarantee on purchased goods from the date factory inspection, subject to the requirements of the consumer, product manuals, instructions and descriptions of those attached to the delivered goods.
The warranty is invalid under the follow situations:
1. Normal wear parts and assemblies;
2. Failure to comply with the operating instructions;
3. Using substandard consumables (fuel, motor oil);
4. Violation of the storage conditions, mechanical damage during transportation.
5 .Any changes to the model you purchased.
