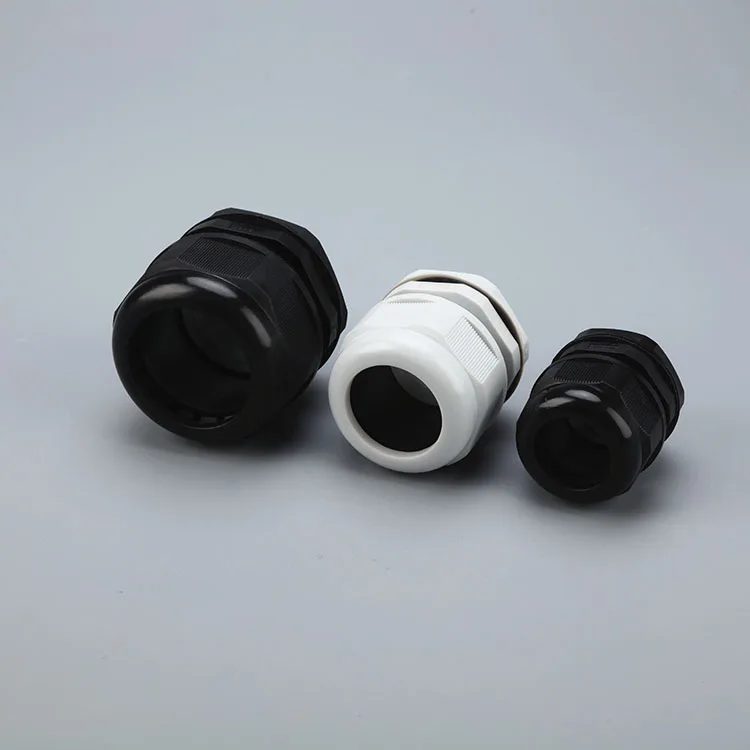

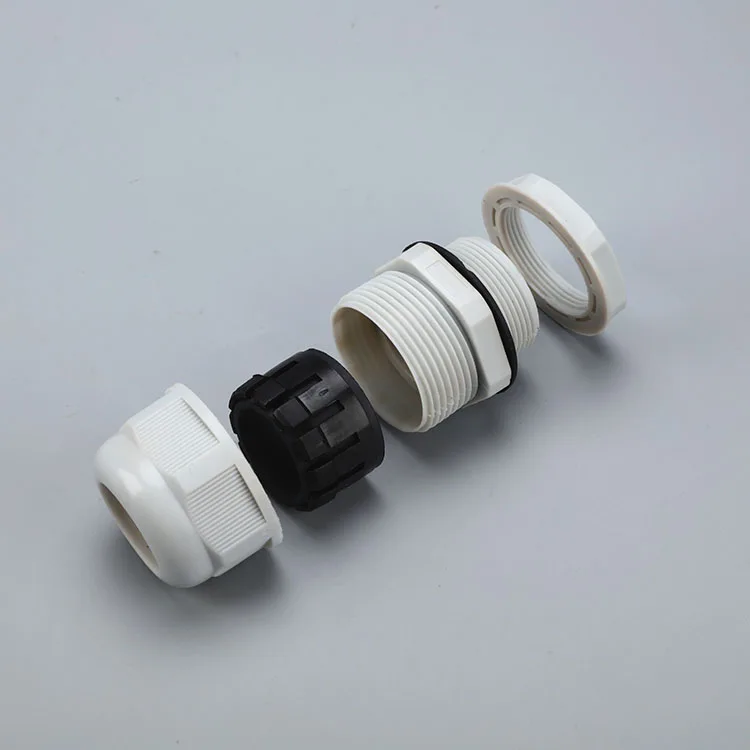

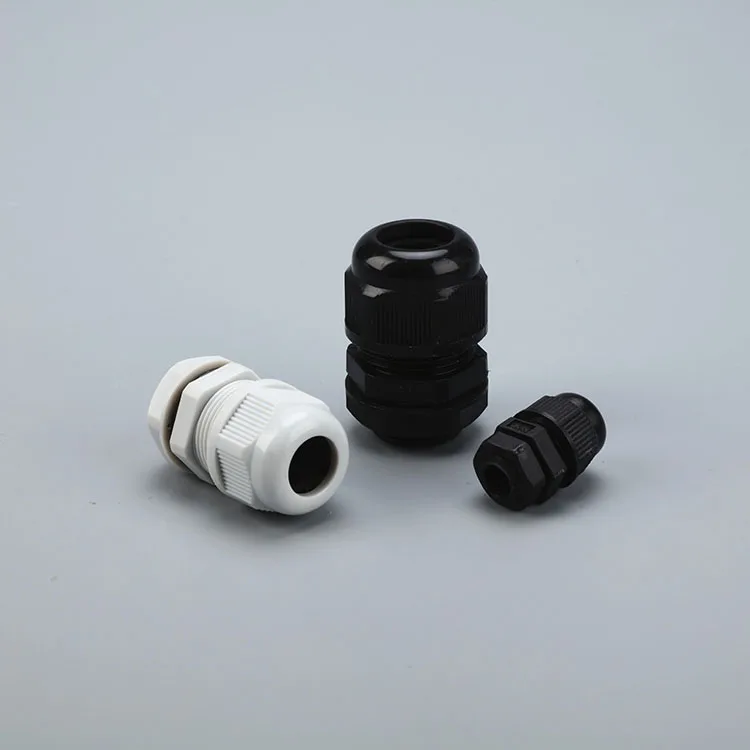

IP68 M20 Types Of Cable Gland Connector Nylon Cable Gland
- Category: >>>
- Supplier: Yueqing Huihua Electronic Co. Ltd.
Share on (62532274130):
Product Overview
Description
Product Description
| Metric Thread Cable Gland | |
| Material | Nylon66,94v-2. Tight ring from rubber |
| Feature | 1 .Special designation,good strengthsile and none damage to electrical maching. 2.not need to dismetgrate the fix terminal,cable can be inserted Through direcity then tighten easy and save time. |
| Application | Used for machiery cotrol box,distribution plate,machine and electrical. etc. |
| Item NO. | cable range (mm) | L2 (mm) | L1 (mm) | L (mm) | spanner size(mm) |
| HR-M12 | 3-6.5 | 12 | 8 | 22 | 16 |
| HR-M14 | 4-8 | 14 | 8 | 26 | 19 |
| HR-M16 | 5-10 | 16 | 8 | 27 | 22 |
| HR-M18 | 5-10 | 18 | 8 | 27 | 22 |
| HR-M20 | 10-14 | 20 | 9 | 28 | 24 |
| HR-M22 | 10-14 | 22 | 10 | 30 | 27 |
| HR-M24 | 12-15 | 24 | 10 | 30 | 27 |
| HR-M25 | 13-18 | 25 | 10 | 35 | 33 |
| HR-M27 | 13-18 | 27 | 10 | 35 | 33 |
| HR-M30 | 16-21 | 30 | 11 | 34 | 35/36 |
| HR-M32 | 16-21 | 32 | 11 | 34 | 36/37 |
| HR-M36 | 18-25 | 36 | 12 | 40 | 41/42 |
| HR-M40 | 22-32 | 40 | 14 | 48 | 52/53 |
| HR-M50 | 32-38 | 50 | 14 | 49 | 60/61 |
| HR-M63 | 37-44 | 63 | 14 | 50 | 67 |
