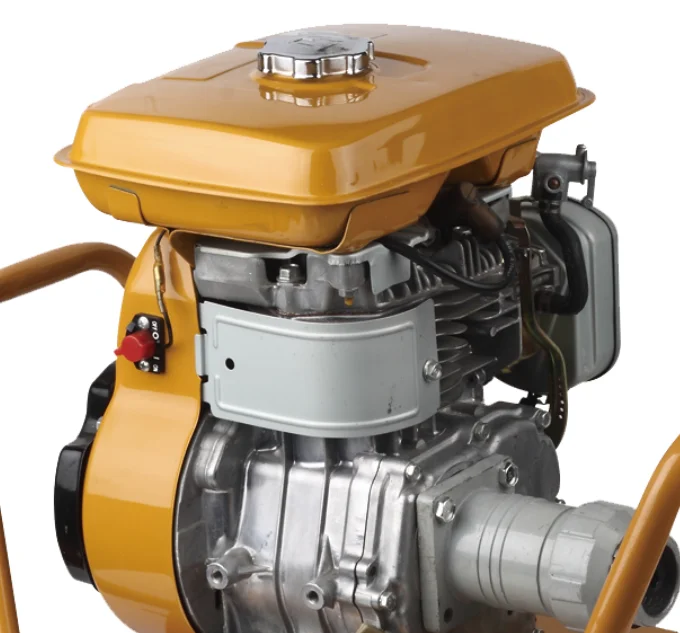

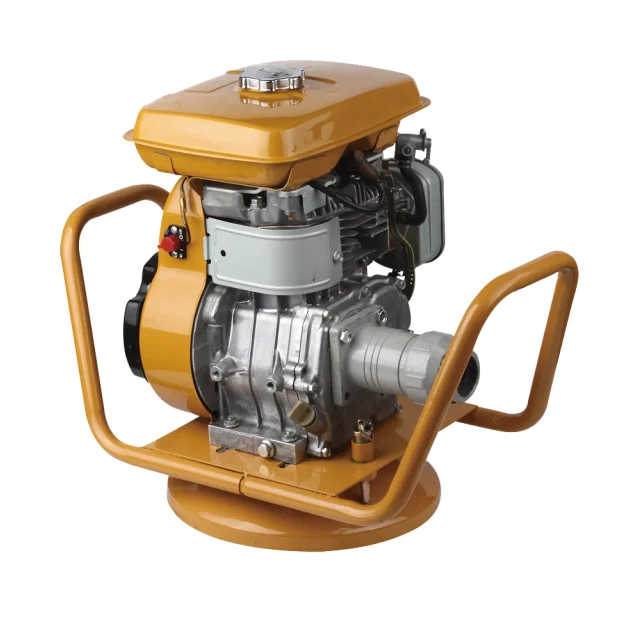

PME VZ honda poker vibrator honda petrol concrete vibrator
- Category: Concrete Vibrator >>>
- Supplier: Wuxi Pinnacle Mechanical Equipment Co. Ltd.
Share on (62532542776):
Product Overview
Description
Product Description
Reliable and Cheap home depot concrete for honda petrol concrete vibrator motor rental
Description
Concrete Vibrator
The basic principal of concrete vibration is to consolidate the mix by removing entrapped air. Vibration is a series of rapid compressive impulses which greatly reduces the surface friction between the various size particles of the mix. The result is the rearrangement of these particles into a denser mass. During the vibration process. Unwanted trapped air escapes to the surface.
The advantages of consolidating concrete by vibration:
Greater density of the concrete
Greater strength
Improved bond with reinforcement steel
Greater bond on construction joints
Greater durability
Improved product finish
Vibrator Technical Data | ||||
Model | PME-VH | PME-VL | PME-VR | PME-VS |
Engine | Honda GX160 | Loncin G200F | Robin EY20 | B&S 1062 |
Engine type | Air-cooled,single cylinder,4-stroke,petrol engine | |||
Displacement [cc] | 163 | 196 | 183 | 163 |
Engine power [HP] | 5.5 | 6.5 | 5 | 5 |
Rated power [KW] | 3.05 | 3.8 | 3.7 | 3.7 |
Speed [RPM] | 3600 | 3600 | 3600 | 3600 |
Starting system | Manual start | |||
Employed fuel | 93# | |||
Employed oil | 10W-30 | |||
Fuel tank capacity [L] | 3.6 | 3.6 | 3.8 | 1.8 |
Oil tank capacity [L] | 0.6 | 0.6 | 0.6 | 0.6 |
Vibrator poker | V28; V32; V38; V45; V50; V60; V70 | |||
N.W./G.W. [kg] | 22/25 | |||
Package (L x W x H) [cm] | 53x42x45 | |||
Poker Technical data | |||||||
Model | V28 | V32 | V38 | V45 | V50 | V60 | V70 |
Poker size[dia.x Lenght] | 28x450 | 32x450 | 38x465 | 45x475 | 50x475 | 60x480 | 68x480 |
Vibrating frequency [VPM] | 12000-14000 | ||||||
Rotational speed [rpm] | 3000-3600 | ||||||
Vibrating Amplitude [mm] | 1.4 | 1.8 | 1.8 | 2 | 2 | 2.4 | 2.4 |
Dia. of flexible hose [mm] | 30 | 30 | 30 | 30 | 32 | 32 | 32 |
Dia. of flexible shaft [mm] | 10 | 10 | 10 | 10 | 12 | 12 | 12 |
Length [m] | 6m (4-10m as optional) | ||||||
N.W.[kg] | 15 | 15.5 | 16 | 17 | 19 | 22 | 23 |
Package size [cm] | 80x68x7 | ||||||
